SICK ZSE18 Series Bedienungsanleitung

OPERATING INSTRUCTION

ZSE18

Cylindrical photoelectric sensors

OPERATING INSTRUCTION

ZSE18

Cylindrical photoelectric sensors

Described product

Z18 SimpleSense

ZSE18

Manufacturer

SICK AG

Erwin-Sick-Str. 1

79183 Waldkirch

Germany

Legal information

This work is protected by copyright. Any rights derived from the copyright shall be

reserved for SICK AG. Reproduction of this document or parts of this document is only

permissible within the limits of the legal determination of Copyright Law. Any modifica‐

tion, abridgment or translation of this document is prohibited without the express writ‐

ten permission of SICK AG.

The trademarks stated in this document are the property of their respective owner.

Original document

This document is an original document of SICK AG.

8021945 | SICK

Subject to change without notice 3

Contents

1 General safety notes......................................................................... 5

2 Notes on UL approval........................................................................ 5

3 Intended use...................................................................................... 5

4 Operating and status indicators...................................................... 5

5 Mounting............................................................................................. 5

6 Electrical installation........................................................................ 6

7 Commissioning.................................................................................. 11

8 Troubleshooting................................................................................. 13

9 Disassembly and disposal............................................................... 14

10 Maintenance...................................................................................... 14

11 Technical data.................................................................................... 15

11.1 Dimensional drawings.............................................................................. 15

CONTENTS

48021945 | SICK

Subject to change without notice

1 General safety notes

■Read the operating instructions before commissioning.

■

Connection, mounting, and configuration may only be performed by trained

specialists.

■

2006/42/EG

SAFETY

Not a safety component in accordance with the EU Machinery Directive.

■

When commissioning, protect the device from moisture and contamination.

■These operating instructions contain information required during the life cycle of

the sensor.

2 Notes on UL approval

Blue housing types (Zxx18-1xxxxx ... Zxx18-9xxxxx):

•Type 1 enclosure

Clear housing types (Zxx18-Axxxxx ... Zxx18-Jxxxxx):

•Type 1 enclosure

•Class 2 power supply required

3 Intended use

The ZSE18 is an opto-electronic through-beam photoelectric sensor (referred to as

“sensor” in the following) for the optical, non-contact detection of objects, animals, and

persons. A sender (ZSO18) and a receiver (ZEO18) are required for operation. If the

product is used for any other purpose or modified in any way, any warranty claim

against SICK AG shall become void.

4 Operating and status indicators

Figure 1: Status indicators

1LED indicator (green): power

2LED indicator (orange): light received

5 Mounting

Mount sensors (sender and receiver) using suitable mounting brackets (see the SICK

range of accessories). Align the sender and receiver with each other.

GENERAL SAFETY NOTES 1

8021945 | SICK

Subject to change without notice 5

NOTE

When mounting through beam photoelectric sensors adjacent to each other, alternate

the sender (ZSO18) and receiver (ZEO18) arrangement every other pair. Also ensure

that there is sufficient distance between pairs based on the sender (ZSO18) light spot

diameter. Refer to figure 2 and table 1.

Receiver (ZEO18)

Sender (ZSO18)

Receiver (ZEO18)

Figure 2: Arrangement of several through-beam photoelectric sensors

Table 1: Light spot diameter

300

(11.81)

250

(9.84)

150

(5.91)

(1.97)

200

(7.87)

100

(3.94)

1,500

(59.06)

2,000

(78.74)

2,500

(98.43)

01,000

(39.37)

500

(19.69)

Spot size in mm (inch)

Distance in mm (inch)

Figure 3: ZSE18-xxxxx3

600

(23.62)

300

(11.81)

400

(15.75)

500

(19.69)

100

(3.94)

200

(7.87)

(26.25)

(52.49)

(39.37)

(65.62)

(13.12)

Spot size in mm (inch)

Distance in m (feet)

Figure 4: ZSE18-xxxxx8

6 Electrical installation

The sensors must be connected in a voltage-free state (UV = 0 V). The following informa‐

tion must be observed depending on the connection type:

– Plug connection: pin assignment

– Cable: wire color

Only apply voltage/switch on the voltage supply (UV > 0 V) once all electrical connec‐

tions have been established.

Explanation of connection terminology used in Tables 2-5:

BN = Brown

WH = White

BU = Blue

6 ELECTRICAL INSTALLATION

68021945 | SICK

Subject to change without notice

BK = Black

n. c. = no connection

Q1 = switching output 1

Q2 = switching output 2

L+ = supply voltage (Uv)

M = common

L.ON = light operate

D.ON = dark operate

NOTE

The sensor outputs may come equipped with a factory set ON delay and/or OFF delay.

This is indicated by a Txx suffix at the end of the Model Number (Zxx18-xxxxxxTxx).

Connection and Output detail:

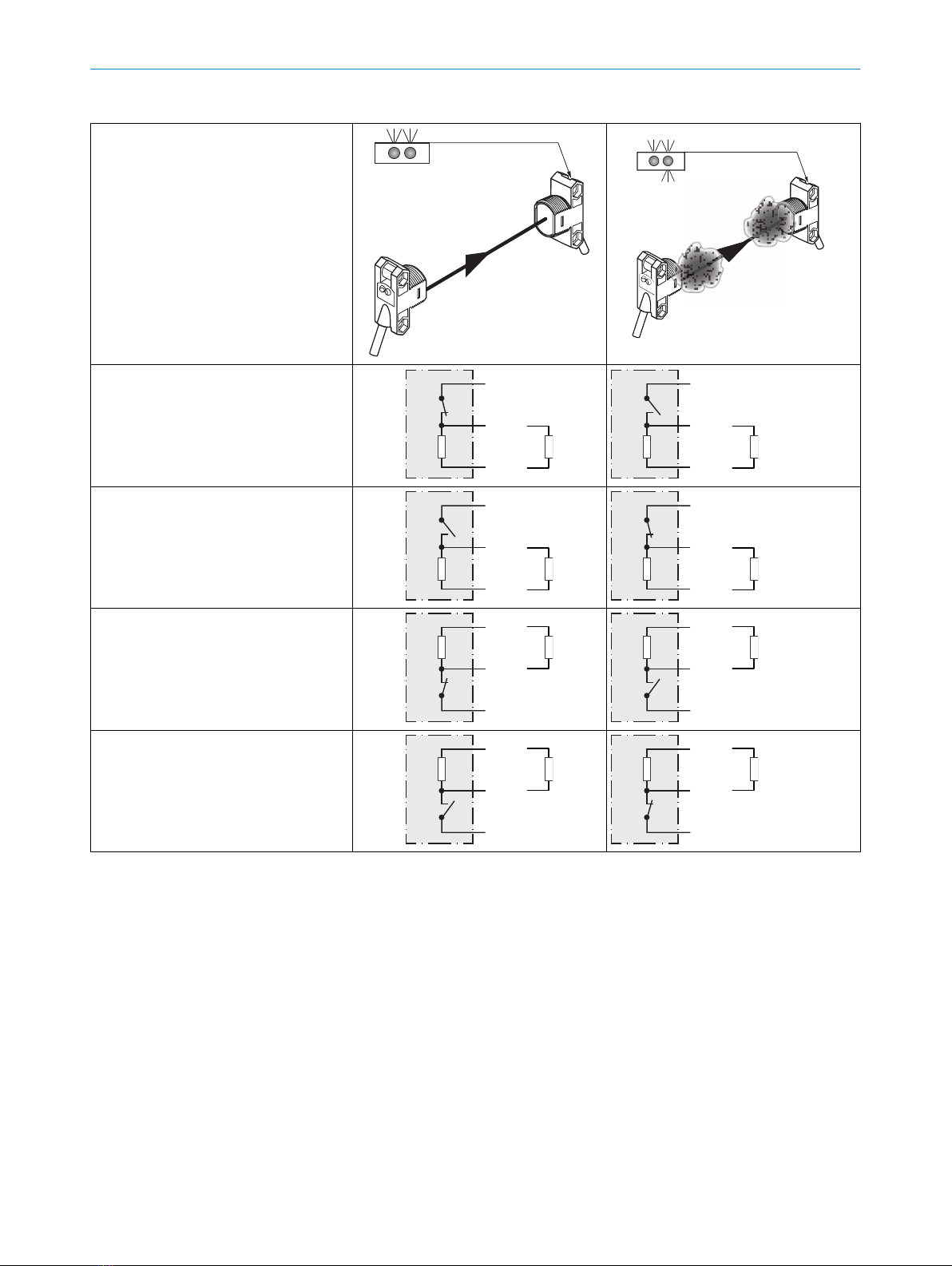

Table 2: Output Operation

ZSE18 / ZEO18

-x_xxxx = Q1 output

-xx_xxx = Q2 output

-xPxxxx

-x8xxxx

-xxPxxx

L.ON, PNP: Q (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-xHxxxx

-x4xxxx

-xxHxxx

L.ON, PNP Open Collector Q (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-xFxxxx

-x2xxxx

-xxFxxx

D.ON, PNP: Q (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-xKxxxx

-x6xxxx

-xxKxxx

D.ON, PNP Open Collector Q (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

ELECTRICAL INSTALLATION 6

8021945 | SICK

Subject to change without notice 7

-xNxxxx

-x7xxxx

-xxNxxx

L.ON, NPN: Q (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-xGxxxx

-x3xxxx

-xxGxxx

L.ON, NPN Open Collector Q (≤ 100 mA)

+ (L+)

‒ (M)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-xExxxx

-x1xxxx

-xxExxx

D.ON, NPN: Q (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-xJxxxx

-x5xxxx

-xxJxxx

D.ON, NPN Open Collector Q (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

+ (L+)

‒ (M)

Load

-xAxxxx

-XRxxxx

-xxAxxx

L.ON, Push-pull (≤ 100 mA)1

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-xBxxxx

-xSxxxx

-xxBxxx

D.ON, Push-pull (≤ 100 mA)1

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

1PNP output diagram pictured; NPN also possible by connecting the Load to + (L+) and Q

6 ELECTRICAL INSTALLATION

88021945 | SICK

Subject to change without notice

Table 3: Alarm/Health Operation

ZSE18 / ZEO18

-xx_xxx = Q2 output

Health/Alarm is always the Q2 output

-xxRxxx

Health, PNP (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-xxTxxx

Alarm, PNP (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-xxQxxx

Health, NPN (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

-xxSxxx

Alarm, NPN (≤ 100 mA)

+ (L+)

‒ (M)

Load

+ (L+)

‒ (M)

Load

ELECTRICAL INSTALLATION 6

8021945 | SICK

Subject to change without notice 9

Table 4: Test Input

ZSE18 / ZEO18

-x_xxxx = Q11

Test Input is always on Q1

-xRxxxx

-xSxxxx

-x1xxxx

-x2xxxx

-x3xxxx

-x4xxxx

-x5xxxx

-x6xxxx

-x7xxxx

-x8xxxx

Test Input, NPN (≤ 1 mA)

+ (L+)

Test

– (M)

+ (L+)

Test

– (M)

1Variants ZSE18 / ZSO18 -xAxxxx ... -xPxxxx do not have a Test Input

Table 5: Connection Pinout

Zxx18 Diagram Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6

-xxx1xx

0.14 mm2

AWG26

+ (L+)

- (M)

- -

-xxx2xx

M8, 3p

+ (L+)

(BN)

- - (M)

(BU)

(BK)

- -

-xxx3xx / -xxx5xx

M8, 4p

+ (L+)

(BN)

(WH)

- (M)

(BU)

(BK)

- -

-xxx4xx

M12, 4p

4 1

+ (L+)

(BN)

(WH)

- (M)

(BU)

(BK)

- -

-xxxAxx

RJ12

2 5

n. c. + (L+)

(BN)

(BK)

(WH)

- (M)

(BU)

n. c.

-xxxBxx

RJ9

1 2 3 4

+ (L+)

(BN)

(WH)

- (M)

(BU)

(BK)

- -

6 ELECTRICAL INSTALLATION

10 8021945 | SICK

Subject to change without notice
