Socket SOCKETSCAN S800 Bedienungsanleitung
www.socketmobile.com
Bluetooth®wireless technology
Cordless Barcode Scanner
ATTACHABLE
SOCKETSCAN™ 800 SERIES USERGUIDE
socketmobile.com
Package Contents 3
Product Information 4
Charge the Battery 5
Optional Charging Accessories 6
Scanning Barcodes 7
Bluetooth Connection Modes 8-9
Setup without software application (Basic Mode):
• Android 10
• Apple®11
• Windows 12
Setup using Application Mode:
• Android 13-14
• Windows 15-16
• Apple 17-18
Active Mode 20-21
Bluetooth Unpairing 21
Factory Reset 22
Restore Method 23
Status Indicators 24-25
Product Specications 26-28
Helpful Resources 29
Regulatory Compliance 30-31
Limited Warranty 32
Command Barcodes 33-35
PACKAGE CONTENTS
PACKAGE CONTENTS
Thank you for choosing Socket Mobile!
Let’s get started!
PACKAGE CONTENTS
© 2017 Socket Mobile, Inc. All rights reserved. Socket®, the Socket Mobile logo, SocketScan™,
DuraScan™, Battery Friendly® are registered trademarks or trademarks of Socket Mobile, Inc.
Microsoft® is a registered trademark of Microsoft Corporation in the United States and other
countries. Apple®, iPad®, iPad Mini®, iPhone®, iPod Touch®, and Mac iOS® are registered
trademarks of Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Tech-
nology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and
any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade
names are those of their respective owners.
Universal
Klip Case
USB Charging CableSocketScan™
800 Series
Micro USB Port Lanyard Hook
Lanyard Attachment (not included)
Top LED
Side LED
Power button
Scan Trigger button
Socket Mobile’s barcodes scanners can be wiped clean with a cloth
dampened with isopropyl alcohol or water. Or, the barcode scanners can
be wiped clean with a Sani-Cloth.
Warning: DO NOT IMMERSE IN WATER (scanner’s mechanics could be
damaged)
DO NOT USE BLEACH FOR CLEANING (scanner’s material property may be
affected)
PRODUCT INFORMATION
CHARGE THE BATTERY
4
CHARGE THE BATTERY
1. Insert charging cable into an AC charging adapter
(not included - most smartphones and tablets come with AC
Adapters that look something like this.)
2. Plug charging adapter (not included) into an outlet.
3. Insert Micro USB into the 800 Series USB port.
4. The 800 Series will beep twice indicating adequate power is being
supplied to the unit.
5
Side LED status
• Red = Charging
• Green = Fully charged
Note: The SocketScan comes with a pre-installed
rechargeable Lithium Ion battery, the initial full charging of the battery
can take up to 4 hours.
Power On
Press and hold down the small power button on the side until the
SocketScan beeps twice (low-high tone).
4 Hours
OPTIONAL CHARGING ACCESSORIES
SCANNING BARCODES
6
DuraCase
Socket Mobile DuraCase™ combines and safeguards
both the 800 Series and mobile device as a one-handed
scanning solution that simultaneously charges both
devices.
Available for Apple®iPod touch®, Samsung J3/J5*and
Samsung S7*.
Watch our video on how to setup your DuraCase.
*On Samsung mobile devices, be sure to disable Fast Charge.
DuraCase
Charging Dock
DuraCase
6 Multi-Bay Charger
Due to varying countries’ outlets,
the DuraCase 6 Multi-Bay Charger
power cords are NOT included in the
package.
DuraCase
Charging Adapter
SCANNING BARCODES
7
After connecting the SocketScan to your device, open an application.
Place the cursor where you want to enter the scanned data.
1. Hold the SocketScan a few inches from the barcode.
2. Aim, press and hold the trigger button.
By default, the SocketScan will beep, vibrate, and the side LED will
ash green to conrm successful scan.
SocketScan S800
~4” to 8”
scanning distance
SocketScan S850
~6” to 12”
scanning distance
BLUETOOTH CONNECTION MODES
BLUETOOTH CONNECTION MODES
8
Connect your scanner using one of the following Bluetooth connection modes:
Bluetooth Connection Proles
Bluetooth Mode Description
Basic Mode (HID)
(Default)*
Human Interface
Device Prole
• NO software installation required
• Connects to most devices
• Good for barcodes containing small amounts
of data
• Scanner interacts with host device like a
keyboard
Application Mode
(SPP)
Serial Port Prole
For Android or Windows
• Software installation is required
• More efcient and reliable data
communications for barcodes containing lots
of data
• If you have an application that supports
Socket Mobile Scanners this is the mode
recommended
Application Mode
(MFi-SPP)
Apple Specic
Serial Prole
For iOS Devices
• Must use with an App developed to work with
iOS devices
• Software installation is required
• If you have an iOS application that supports
Socket Mobile Scanners this is the mode you
want to use
*By default, the scanner is set to Basic Mode (HID).
BLUETOOTH CONNECTION MODES
Connect your scanner using one of the following Bluetooth connection modes:
Bluetooth Connection Proles
Bluetooth Mode Description
Basic Mode (HID)
(Default)*
Human Interface
Device Prole
• NO software installation required
• Connects to most devices
• Good for barcodes containing small amounts
of data
• Scanner interacts with host device like a
keyboard
Application Mode
(SPP)
Serial Port Prole
For Android or Windows
• Software installation is required
• More efcient and reliable data
communications for barcodes containing lots
of data
• If you have an application that supports
Socket Mobile Scanners this is the mode
recommended
Application Mode
(MFi-SPP)
Apple Specic
Serial Prole
For iOS Devices
• Must use with an App developed to work with
iOS devices
• Software installation is required
• If you have an iOS application that supports
Socket Mobile Scanners this is the mode you
want to use
*By default, the scanner is set to Basic Mode (HID).
9
Operating System Connection Options
Operating
Systems
(OS)
Devices
Bluetooth
HID
Support
Bluetooth
SPP
Support
Bluetooth
Apple
Serial
Specic
(MFi Mode)
Android Android 4.0.3 &
later Yes Yes N/A
Apple iOS iPod, iPhone, &
iPad Yes N/A Yes
Windows PC Windows 7, 8, 10 Yes Yes N/A
Mac OS
Mac OS X 10.4 to
10.X
Mac Books, Mac
Mini, &iMac
Yes No N/A
Note: To switch from one mode to the other you must remove the
pairing information from both devices - host computer and the scanner.
(see unpairing procedure on page 16)
The SocketScan will unpair and automatically power off. The next time you
power on the SocketScan, it will be
discoverable.
Select the appropriate mode and pair with the second host device.
BASIC MODE (HID)
BASIC MODE (HID)
Android: Connect Android Device in Basic Mode (HID)
In this mode the scanner functions and communicates similar to a key-
board. Therefore, scanner will work with Notes, and any other
application that supports an active cursor.
1. Power on the scanner. Make sure the scanner is
discoverable (unpaired) and the blue light blinks fast.
2. Go to Settings | Bluetooth.
3. Make sure the device’s Bluetooth is turned “On” to scan for devices.
4. In the list of found devices, select Socket CHS [xxxxxx]. Tap Pair.
5. The scanner will connect to the Android device.
6. The scanner will beep once after it has connected.
Note: If you have trouble connecting or pairing with host device, turn
host device’s Bluetooth off/on, and/or perform factory reset to the
scanner (see page 44).
Now you are ready to scan barcodes!
To connect to a new device or use a different prole (mode) on
the same device, you must rst unpair the scanner (see page 22).
10
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Socket Barcode-Lesegerät Handbücher
Socket
Socket DuraScan D730 Bedienungsanleitung
Socket
Socket D820 Bedienungsanleitung
Socket

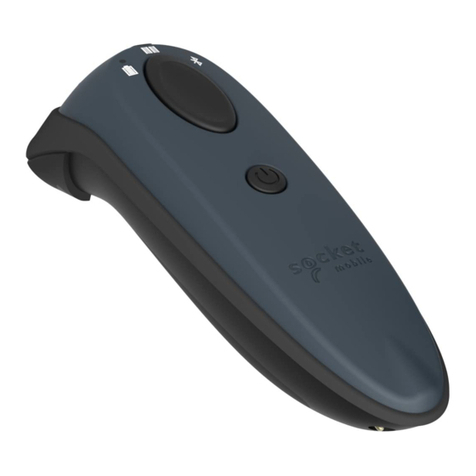

Socket DuraScan 700 Series Bedienungsanleitung
Socket
Socket DURASCAN D750 Bedienungsanleitung
Socket
Socket SocketScan 700 Series Bedienungsanleitung
Socket
Socket 800 SERIES Bedienungsanleitung
Socket
Socket In-Hand Scan Card Bedienungsanleitung
Socket
Socket CX2895-1508 Bedienungsanleitung
Socket
Socket DURASCAN D750 Handbuch
Socket
Socket S740 Bedienungsanleitung
Socket
Socket Socketscan S370 Technisches Datenblatt
Socket
Socket DuraScan D745 Bedienungsanleitung
Socket

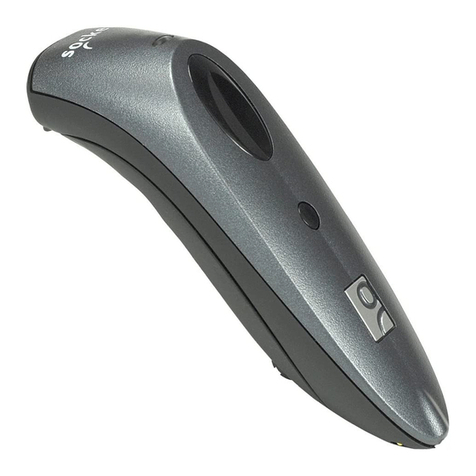

Socket CHS Series 7 Bedienungsanleitung
