USER GUIDE AEX-ST-DVR-X5

PRO SERIES

12 Channel Mobile Digital Video Recorder

AEX-ST-DVR-X5

User Guide

CONTENTS

1 Product Characteristics 3

1.1 Overview 3

1.2 Speciﬁcations 4

1.3 System Diagrams 4

1.4 External Interface 4

1.5 Hard Disk Installation 4

1.6 SIM Card Installation 4

1.7 Deﬁnitions of External Cables 4

2 Frequently Asked Questions 5

Notice:

The information in this manual was current when published. Standby RSG UK Limited reserves the right to revise

and improve its products. All speciﬁcations are therefore subject to change without any notice.

The purpose of this manual is to aid the user in the operation for our AEX-ST-DVR-X5 12 Channel Mobile DVR.

The user should have a basic understanding of computer operation and basic knowledge of how to connect

peripherals and make some settings.

Guarantee & Warnings:

1) Electrical Apparatus Safety

All installation and operation should comply with local electrical safety norms.

2) Transportation

In the process of transportation, storage and installation, please avoid heavy stress, violent vibration,

impact and water splashing.

3) Installation

Install the equipment in accordance with the requirements, handle carefully. Do not heavily press the

equipment before the MDVR installation is ﬁnished.

4) Requirements on Engineers & Technicians

All the work of checking and maintenance should be done by qualiﬁed technicians and engineers. We do not

undertake any responsibility caused by unauthorized modiﬁcations.

5) Requirements on Environment

The equipment should be installed and stored in a cool and dry place, away from direct sunlight, ﬂammable or

explosive substances, etc. Keep gaps not less than 3cm around the device to facilitate ventilation for cooling.

6) Accessories

Make sure to use accessories from the manufacturer recommended in the attachment. Insulate circuit ground

and metal shell for all the peripherals. Before installation, please open the package and ensure that all parts

are included. If there are any problems, please contact us as soon as possible.

Standby RSG UK Limited Phone: +44 (0)1543 438800 Email: inf[email protected]o.uk Web: www.standbyrsg.co.uk C-10700-A_HW-03/23

When attention matters.

USER GUIDE AEX-ST-DVR-X5

Standby RSG UK Limited Phone: +44 (0)1543 438800 Email: inf[email protected]o.uk Web: www.standbyrsg.co.uk C-10700-A_HW-03/23

When attention matters.

USER GUIDE AEX-ST-DVR-X5

1 Product Characteristics

1.1 Overview

AEX-ST-DVR-X5 is developed from the brand new platform N9M, which is an advanced and

function-extensive Mobile Video Recorder specially designed for network high deﬁnition,

analog audio and video input and excellent extension. It uses high-speed processor and

embedded operating system, patented ﬁle system 4.0 to ensure the safety and integration

of important data, combining with H. 264 video compression / decompression technology,

network technology and GPS locating technology. It can realize AHD 1080P and 720P

high deﬁnition, IP 1080P and 720P high deﬁnition, WD1, WHD1, WCIF, D1, HD1, CIF video

recording and vehicle driving information recording, as well as wireless data upload. With

center software it also achieves alarm linkage central monitoring, remote management

and playback analysis. It is powerful with modular design, ﬂexible installation, easy

maintenance and high reliability.

1.2 Speciﬁcations

Function Overview Preview, Recording, Playback, Network, Locating

System OS Linux 3.0.8

Control Mode CP4, Easy Check, Network (3G/4G/WIFI), Mouse

Video Input 8 channels AHD (1080P)+4 channel IPC (1080P)

Output 2 channels

Total Resource PAL: 8*720P@25FPS (AHD) +4*1080P@30FPS (IPC)

Or 8*1080P@12FPS (AHD) +4*1080P@30FPS (IPC)

NTSC: 8*720P@30FPS (AHD)+4*1080P@30FPS (IPC)

Or 8*1080P@15FPS (AHD)+4*1080P@30FPS (IPC)

Video Signal Standard Electrical level: 1Vpp Impedance: 75Ω NTSC/PAL Optional

Audio Input 12 channels

Output 2 channels

Audio Signal Standard Electrical level: 2Vpp Input impedance: 4.7kΩ

Standby RSG UK Limited Phone: +44 (0)1543 438800 Email: inf[email protected]o.uk Web: www.standbyrsg.co.uk C-10700-A_HW-03/23

When attention matters.

USER GUIDE AEX-ST-DVR-X5

Display Display Split 1/4/9 Image display

OSD GPS information, alarm, temperature, acceleration, voltage,

device information, software version, MCU version,

network status

Operation Interface Semi-transparent GUI

Recording Video/Audio Compression Video: H.264

Audio: ADPCM, G.711A, G.711U

Image Resolution PAL:

1080P, 720P, WD1 (928X576), WHD1 (928X288),

WCIF (464X288), D1 (704X576), HD1 (704x288),

CIF (352x288);

NTSC:

1080P, 720P, WD1 (928X480), WHD1 (928X240),

WCIF (464X240), D1 (704x480), HD1 (704x240),

CIF (352x240);

Digital:

720P (1280X720)

Image Quality 8 Levels adjustable

Recording Mode Schedule/Alarm (sensor trigger, speed, acceleration, video

loss, temperature)

Pre-recording 0-60minutes

Post-recording 0-30 minutes

Mirror Recording Yes

Playback Playback Channel 4 channels by local playback

Search Mode Date/time, channel, event

Network 3G/4G EVDO/WCDMA/TDD-LTE/FDD-LTE

WIFI 802.11b/g/n

Ethernet RJ45 x 1 (10/100 M/1000M)

IPC Ethernet 6-pin M12 (4x10/100M, PON power supply)

Locating GPS Location tracking, speed detection and time sync

Storage Hard disk Supports 2.5" hard disk up to2TB

Standby RSG UK Limited Phone: +44 (0)1543 438800 Email: inf[email protected]o.uk Web: www.standbyrsg.co.uk C-10700-A_HW-03/23

When attention matters.

USER GUIDE AEX-ST-DVR-X5

Interface USB USB2.0 x 2

SD SD slot x 1

SIM SIM slot x 2

RS232 RS232 X 2

RS485 RS485 X 2

Sensor 8 inputs, 2 outputs

Serial G-sensor (Internal)

Speed 1 channel pulse speed detection

Interface Touch panel CP4 Optional

Intercommunication I MIC interface

VGA VGA x 1

Power Input DC8-36V, ACC

Output 5V@500mA, 12V@500mA

Max Power Consumption 105.3W

Standby Power Consumption ≈0W

Physical Dimension (L x W x H) 295 x 222 x 89 mm (with back cover and shelves)

Characteristics Weight 2.6 kg

Environment Operating Temperature -40℃- +70℃ (With heater) or -10℃- +70℃

Operating Relative Humidity 8%-90%（No Condense）

Standby RSG UK Limited Phone: +44 (0)1543 438800 Email: inf[email protected]o.uk Web: www.standbyrsg.co.uk C-10700-A_HW-03/23

When attention matters.

USER GUIDE AEX-ST-DVR-X5

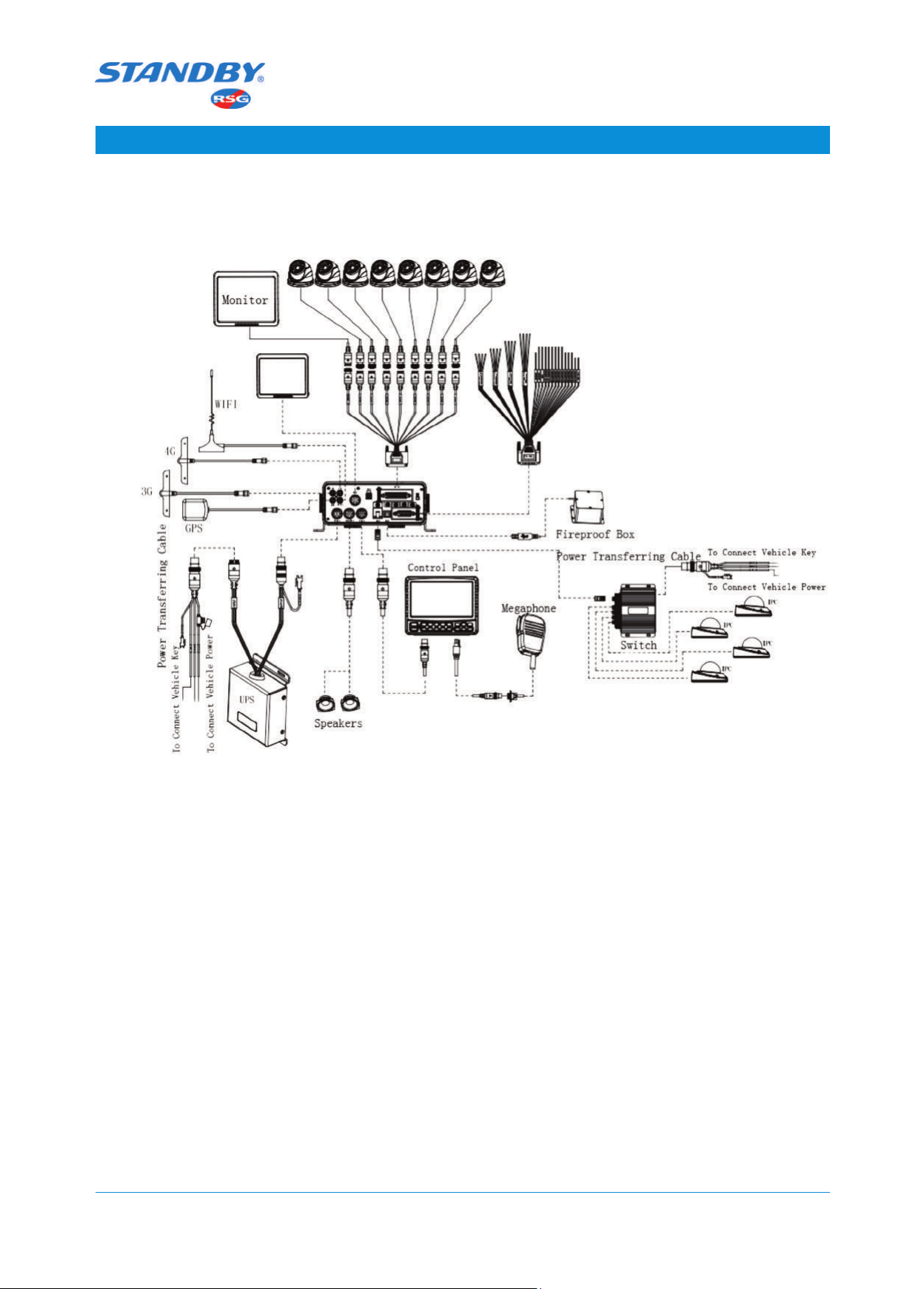

1.3 System Diagram

Standby RSG UK Limited Phone: +44 (0)1543 438800 Email: inf[email protected]o.uk Web: www.standbyrsg.co.uk C-10700-A_HW-03/23

When attention matters.

USER GUIDE AEX-ST-DVR-X5

1.4 External Interface

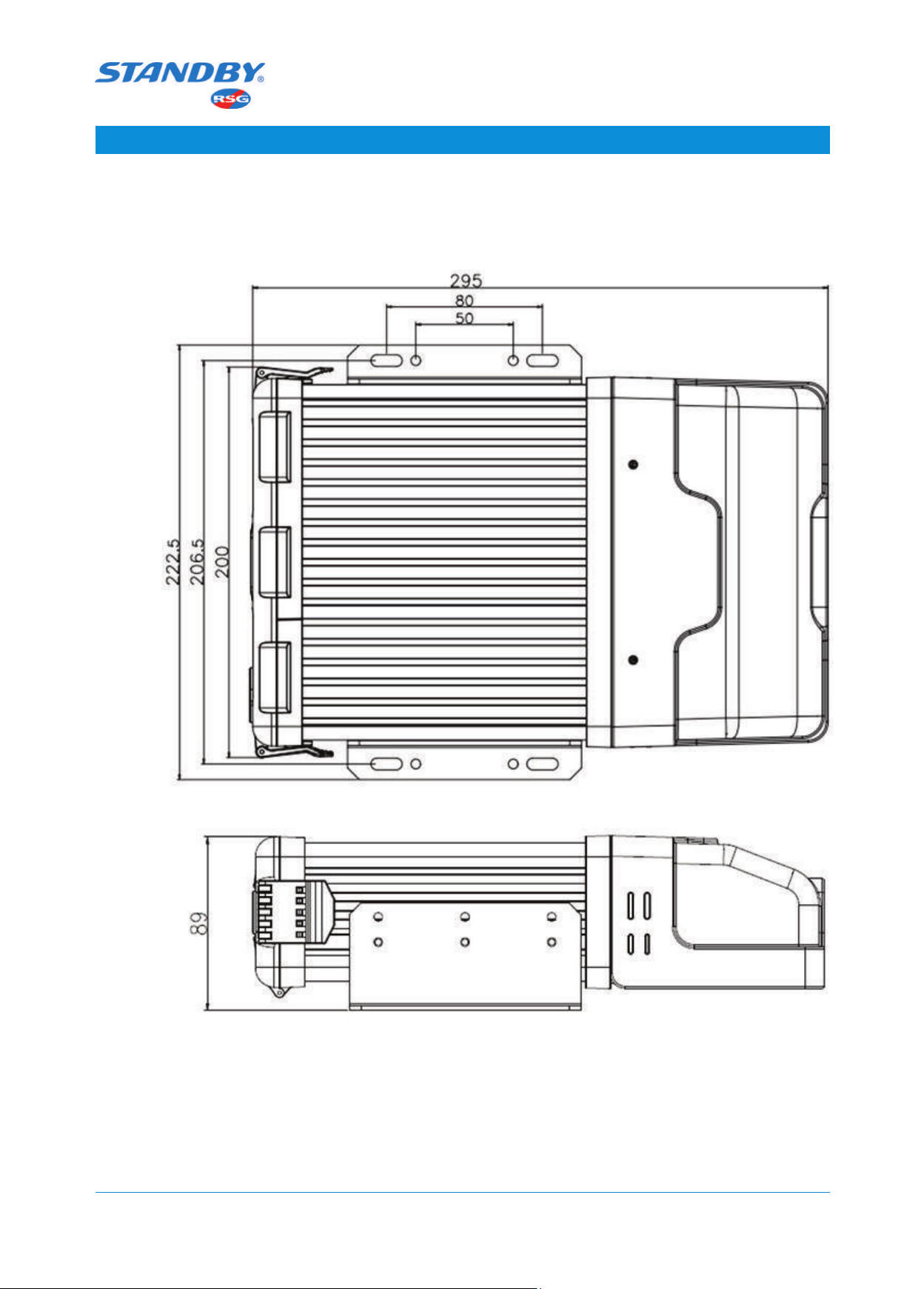

1.4.1 Dimensions (Unit: mm)

Standby RSG UK Limited Phone: +44 (0)1543 438800 Email: inf[email protected]o.uk Web: www.standbyrsg.co.uk C-10700-A_HW-03/23

When attention matters.

USER GUIDE AEX-ST-DVR-X5

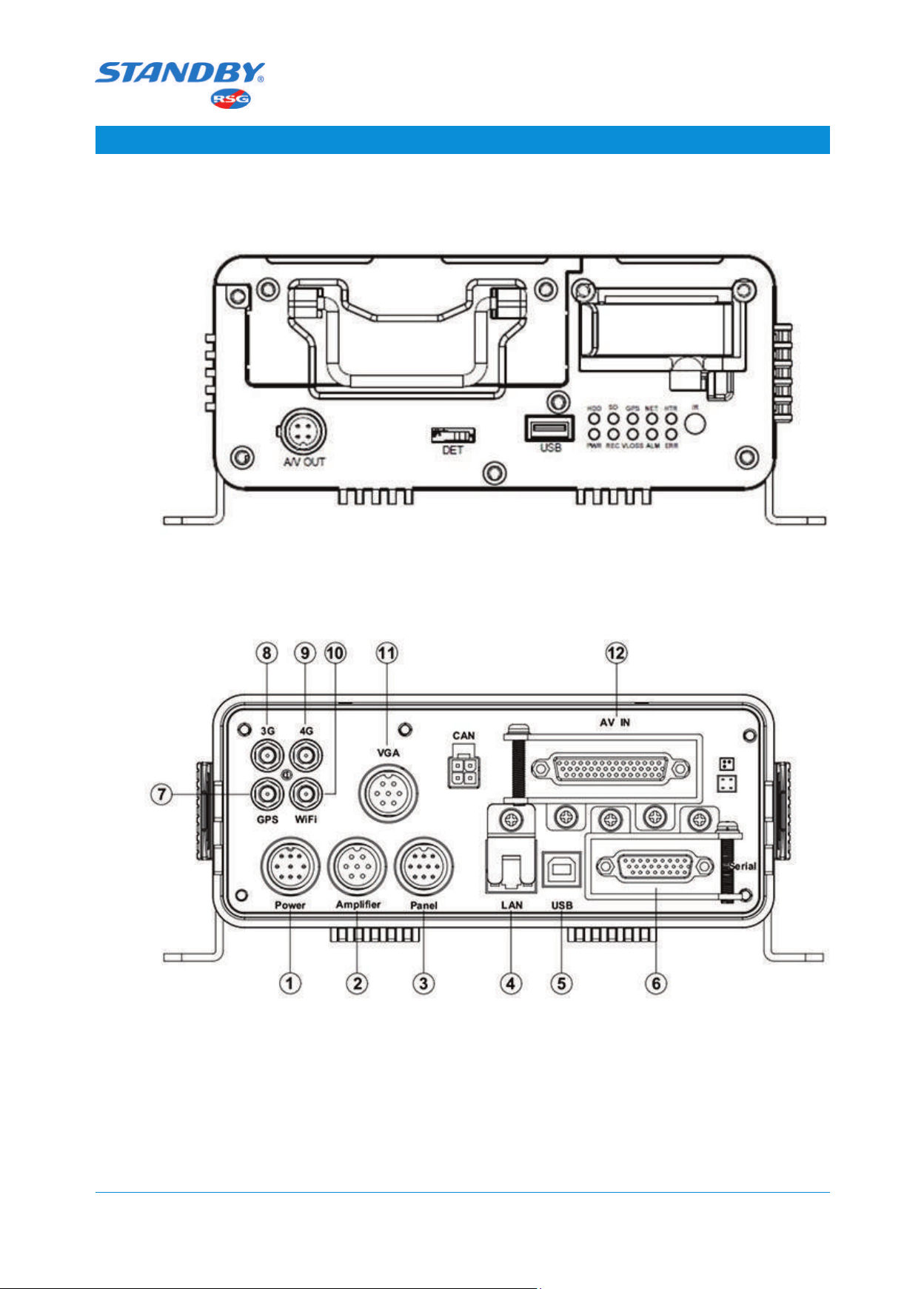

1.4.2 Front Panel

1.4.3 Rear Panel

Standby RSG UK Limited Phone: +44 (0)1543 438800 Email: inf[email protected]o.uk Web: www.standbyrsg.co.uk C-10700-A_HW-03/23

When attention matters.

USER GUIDE AEX-ST-DVR-X5

Serial Number Print Description

1 DC8-36V Power input

2 Ampliﬁer Ampliﬁer interface

3 Panel Control panel (CP4)

4 LAN Network interface

5 USB USB interface

6 Serial Serial interface

7 GPS GPS antenna interface

8 3G 3G antenna interface

9 4G 4G antenna interface

10 WIFI WIFI antenna interface

11 VGA VGA display

12 A/V A/V input 1-8, A/V output

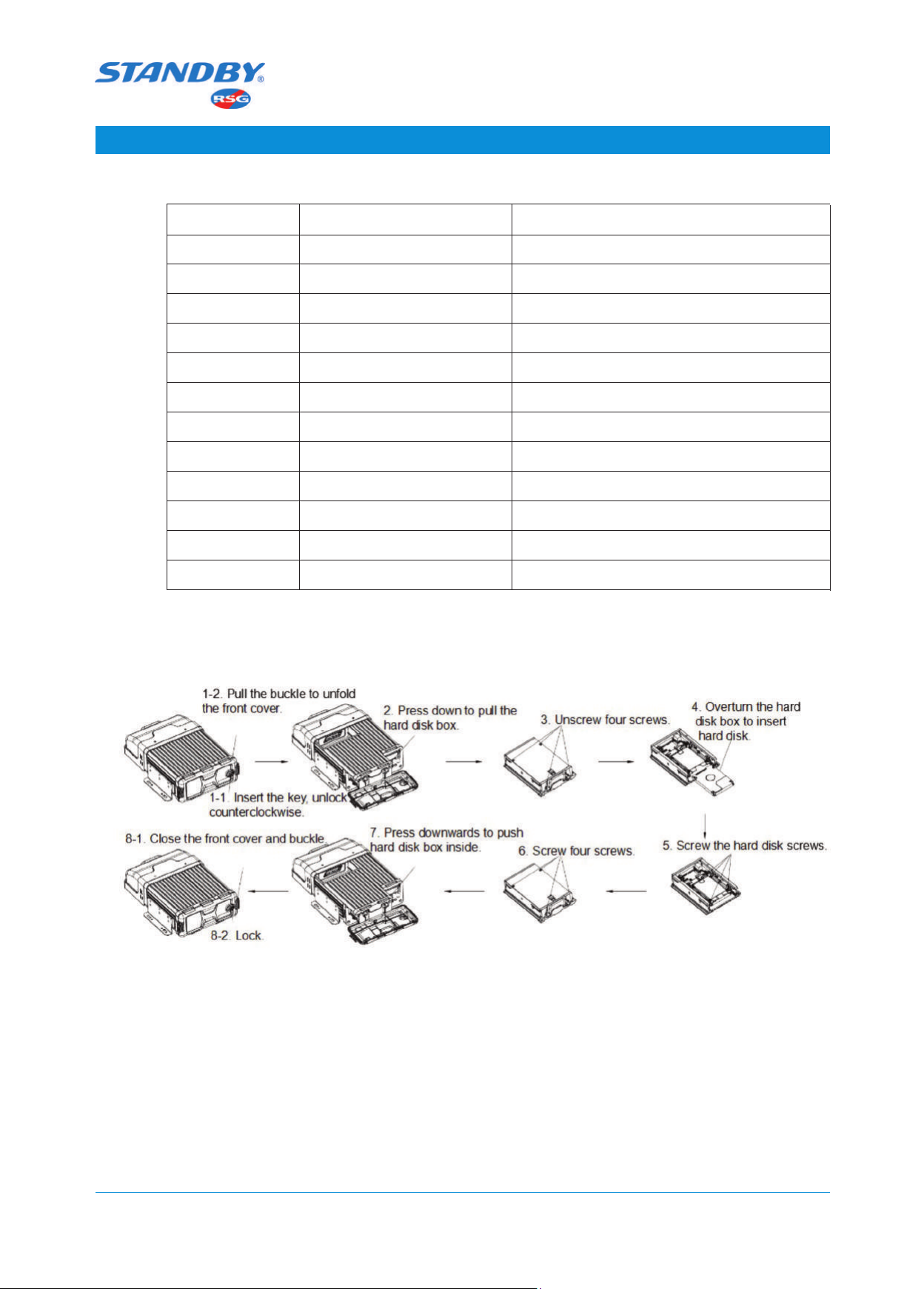

1.5 Hard Disk Installation

Standby RSG UK Limited Phone: +44 (0)1543 438800 Email: inf[email protected]o.uk Web: www.standbyrsg.co.uk C-10700-A_HW-03/23

When attention matters.

USER GUIDE AEX-ST-DVR-X5

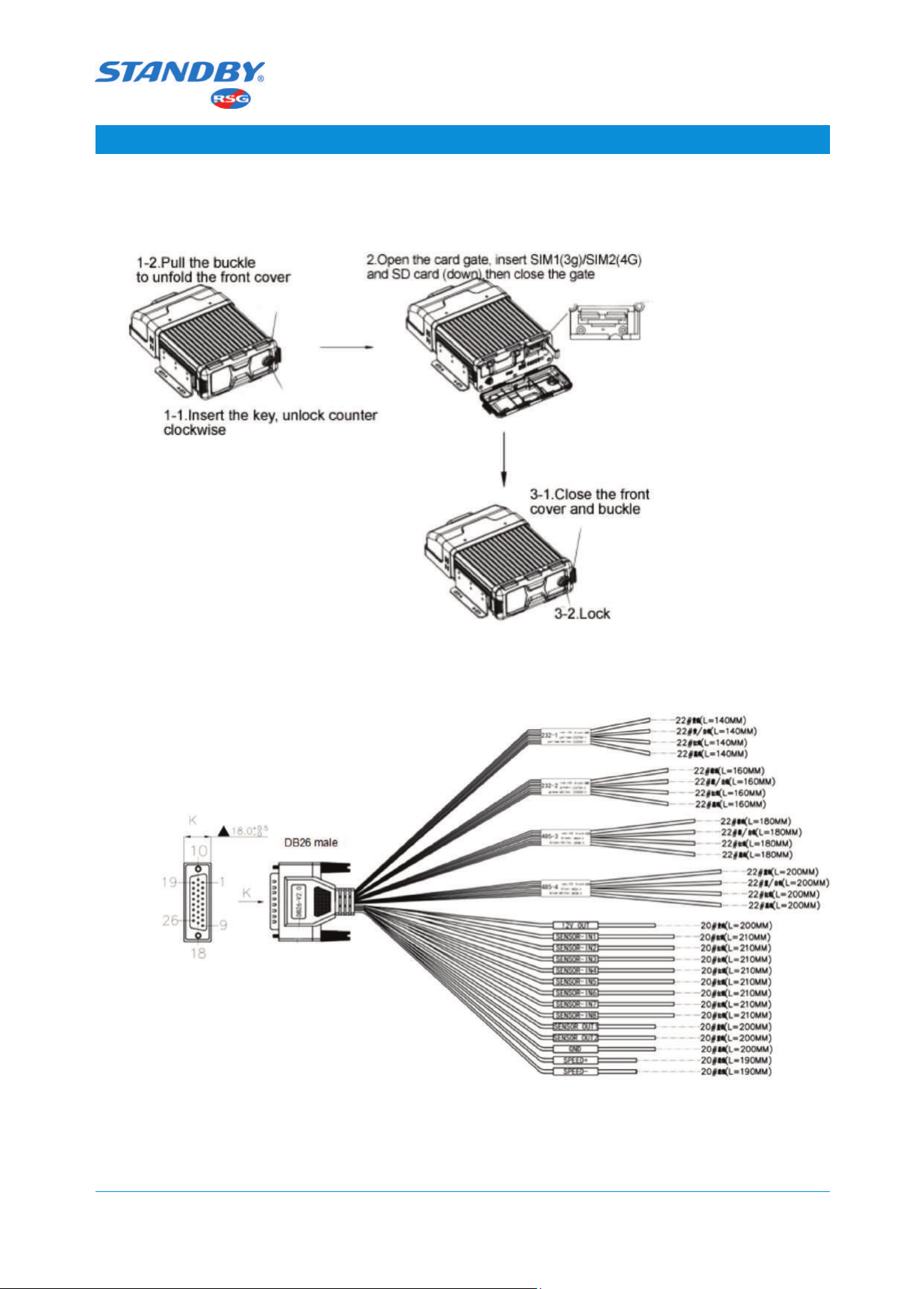

1.6 SIM Card Installation

1.7 Deﬁnition of external cables

1.7.1 Alarm cable deﬁnition
