Star Trac E-UB Bedienungsanleitung

620-7922 Rev B

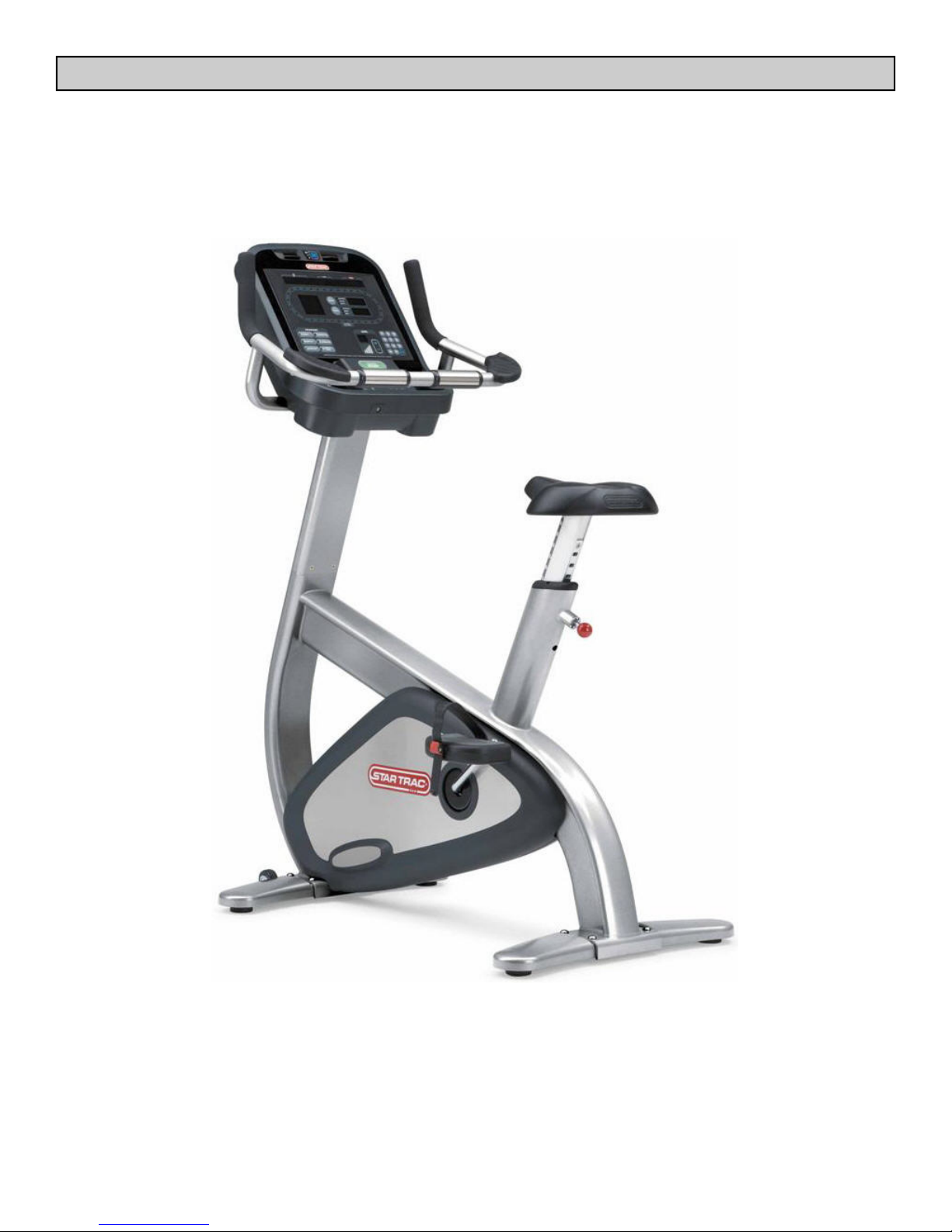

E-UB Upright Bike

(E-UB) UPRIGHT BIKE INSTALLATION INSTRUCTIONS

620-7922 Rev B

GENERAL

Before using this product, it is essential to read ALL installation Instructions and this

ENTIRE operations manual; the manual describes equipment setup and instructs

members on how to use it correctly and safely.

1. Multi-end wrench, 10MM/12MM/15MM (Included)

2. Hex (Allen) key, 3MM (Included, E-UB only)

3. Hex (Allen) key, 5MM (Included, E-UB only)

4. Hex (Allen) key, 4MM (Included, E-RB only)

5. Hex (Allen) key, 6MM (Included)

6. Phillips screwdriver, #2 (Included)

7.Torque wrench (not included)

TOOLS REQUIRED

If you are a Factory Certified Installer you must:

•

Adhere to all torque and assembly specifications.

•

Use a CALIBRATED TORQUE WRENCH with the necessary hex key sockets

•

NOT USE a powered drill, powered driver or powered impact tool for any part of the assembly.

•

Complete the assembly checklist is completed on each Star Trac product.

•

Complete the final programming, functional and cosmetic checklists for each Star Trac product.

FACTORY CERTIFIED INSTALLER

reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Star Trac.

iPod

is a registered trademark of Apple, Inc.

MYE

is a registered trademark of MYE Entertainment LLC.

Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes

will be incorporated into new editions of this publication. All product names and logos are trademarks of their respective owners. Printed in the USA.

620-7922 Rev B

Step 1.

Place the box with heavy end facing down in the

area where the unit is going to be assembled.

Cut and remove packaging straps.

Step 2.

Open the box and remove top cover. Then re-

move items from top packaging foam.

(E-UB) UPRIGHT BIKE UNPACKING INSTRUCTIONS

Step 4.

Lift the unit off of the box base and place it on

the floor. Remove packaging materials.

Step 3.

Carefully remove the display and neck assembly

from the box. Unwrap and place the assembly

on a non-scratching surface.

620-7922 Rev B

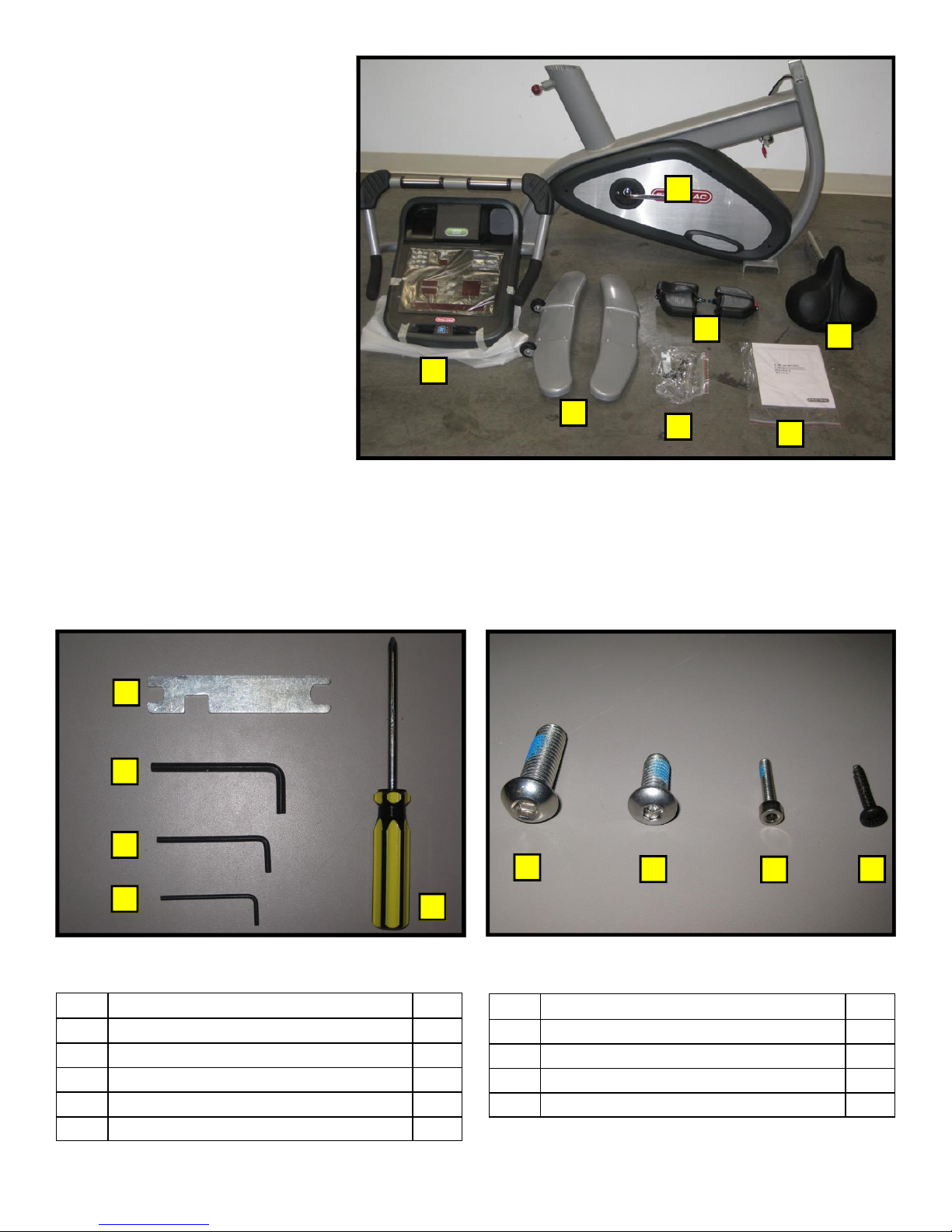

Step 6.

Verify the following components

are included:

1. Bike frame

2. Display console assembly

3. Front and rear feet.

4. Left and right pedals

5. Hardware kit

6. Seat post assembly

7. Owner’s manual, installation

manual and warranty registra-

tion card.

Step 5.

Remove remaining packaging ma-

terials and lay all components on

the floor.

Step 8.

Verify the following hardware is included in the kit:

Step 7.

Verify the following tools are included in the kit:

4 5

1 2 3 4

Item Description QTY

1 Multi-end wrench (10MM/12MM/15MM) 1

2 Hex (Allen) key, 6MM 1

3 Hex (Allen) key, 5MM 1

4 Hex (Allen) key, 3MM 1

5 #2 Phillips screwdriver 1

Item Description QTY

1 Screw, M10x30 (Feet Base) 8

2 Screw, M8x20 (Neck Joint) 4

3 Screw, M4x20 (Seat Sleeve) 2

4 Screw, M4 Pan Head (Display Cover) 8

620-7922 Rev B

(E-UB) UPRIGHT BIKE INSTALLATION INSTRUCTIONS

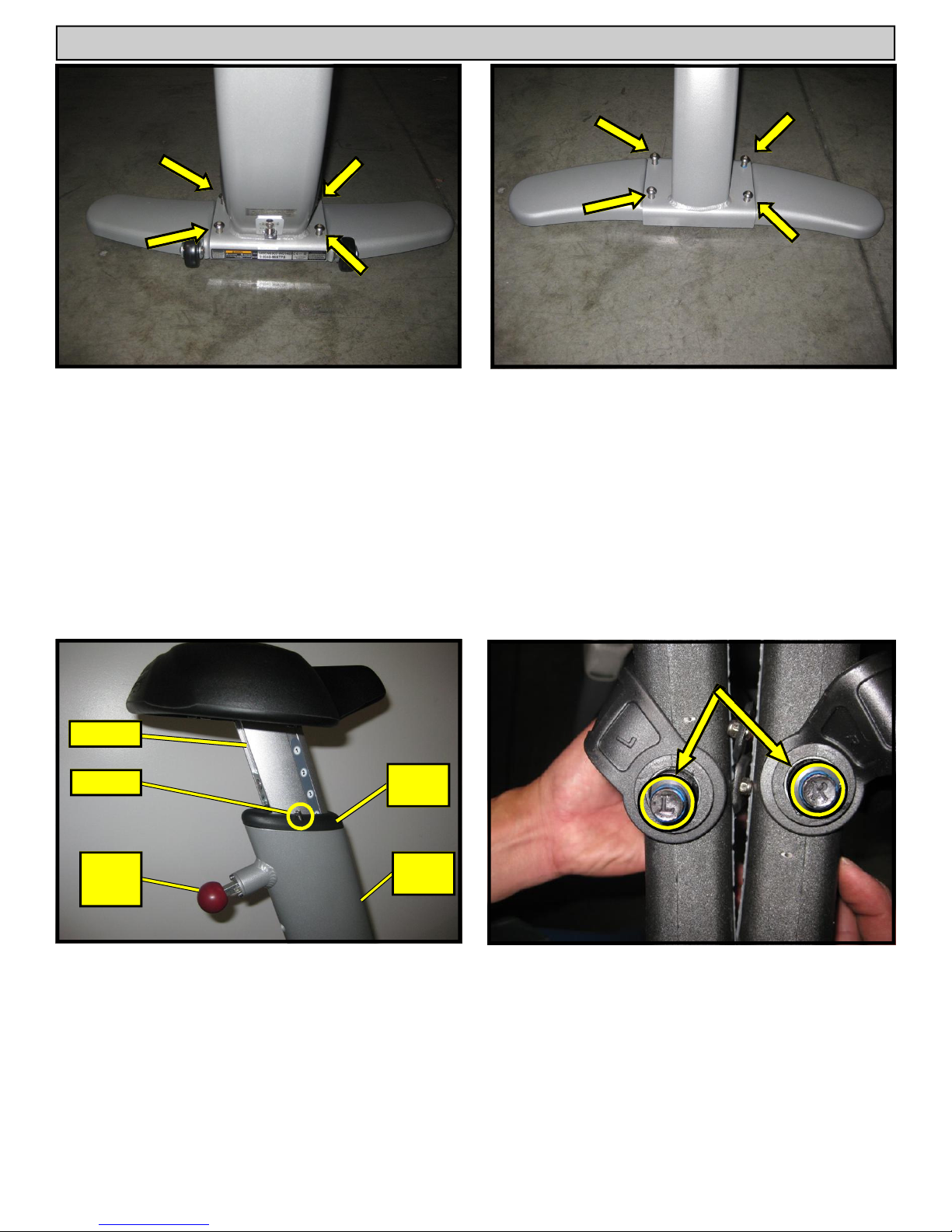

Step 2.

Install back foot with (4) M10 x 30mm long

button head screws. Tighten all 4 screws to 200

lb-in of torque.

Step 1.

Install front foot with (4) M10 x 30mm long

button head screws. Tighten all 4 screws to 200

lb-in of torque.

Step 4.

Hold and identify left and right pedals.

Note: Left pedal is marked L, right pedal is marked R.

Step 3.

Carefully slide the seat post into the seat tube.

Pull on the seat release knob to allow the seat

to enter the tube. Install (2) M4 x 20mm long

socket head screws into the seat sleeve and

tighten screws to 35 lb-in of torque.

Seat Post

M4 Screw

Seat

Release

Knob

Seat

Sleeve

Seat

Tube

620-7922 Rev B

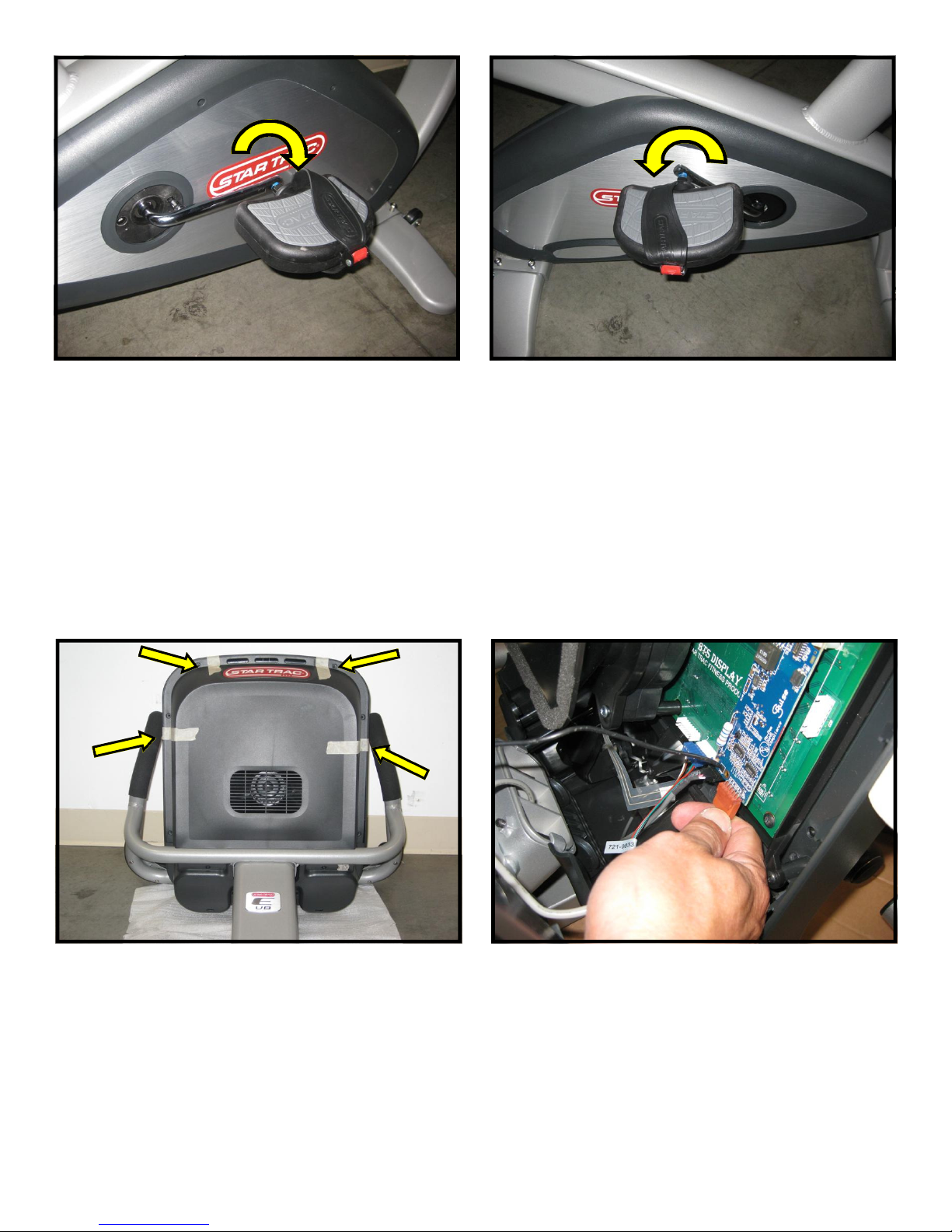

Step 8.

Next, un-plug the heart rate cable from the HR

board connector on the display board, then re-

move the front of display.

Note: Place the display in a safe place for later use.

Step 7.

Remove the packaging tape that holds the dis-

play assembly together, then separate the back

of the display from the front.

Step 6.

Attach left pedal to left pedal crank, then tighten

securely.

Note: For left pedal, turn counterclockwise to

tighten.

Step 5.

Attach right pedal to right pedal crank, then

tighten securely.

Note: For right pedal turn clockwise to tighten.

620-7922 Rev B

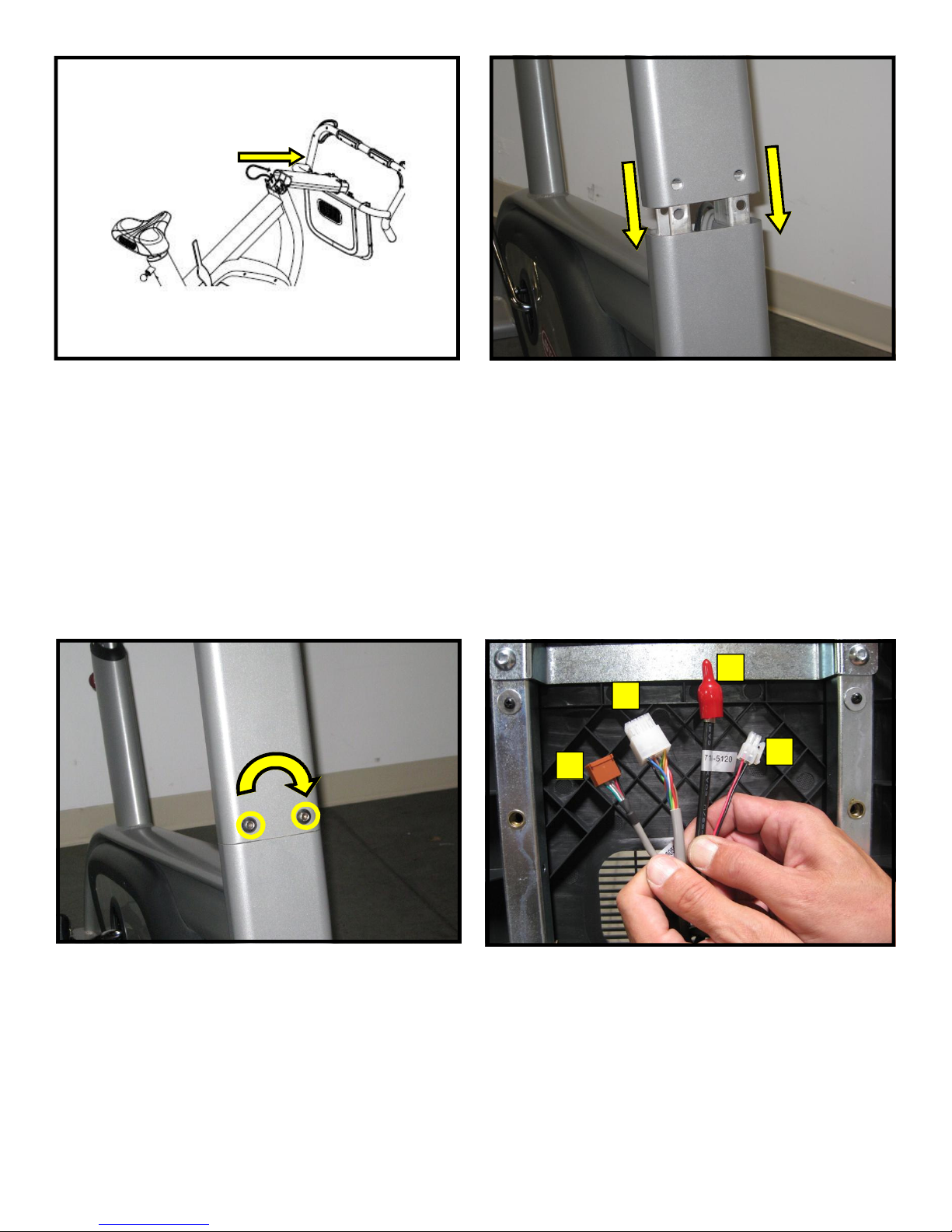

Step 12.

Identify cables coming out of neck and handlebar:

1.Heart rate cable

2.Main I/O cable

3.Coax cable

4.DC power cable

Note: If unit is not equipped with Personal Viewing

Screen, the coax and DC power cables should be

tucked down the neck for possible future use.

Step 11.

Thread in (4) M8 x 20 flat head screws in the

front and back of the neck where the two pieces

came together. Tighten the screws to 150 lb-in

of torque.

Step 10.

Keep hold of the cables and rotate the display

up. Now slide the neck over the two mounts in

the lower neck.

Caution: Take care not to pinch the cables or your

finger when the two pieces come together

Step 9.

Take upper display and neck assembly to the

front of the unit. Feed the cables from the lower

neck through the upper neck.

Note: It may be necessary to have one person sup-

port and position the display while a second person

feeds the cables.

620-7922 Rev B

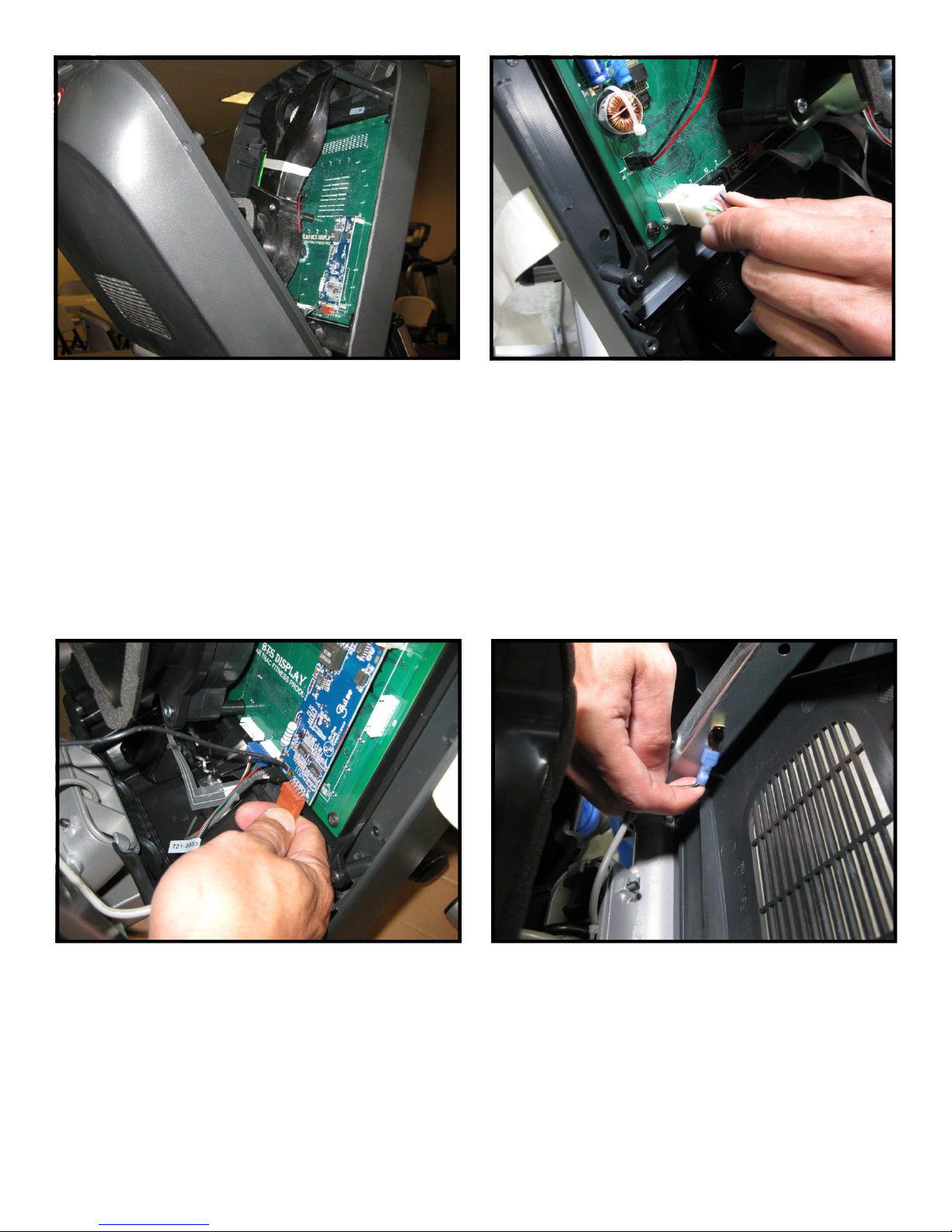

Step 16.

Plug the HR ground cable into the quick discon-

nect tab on the display frame.

Step 15.

Next, plug-in the heart rate cable into the HR

board connector.

Step 14.

Plug-in the 12-pin main I/O cable into the front

display circuit board at J4 connector.

Step 13.

Position the display assembly near the top rail

while you make the necessary connections.

620-7922 Rev B

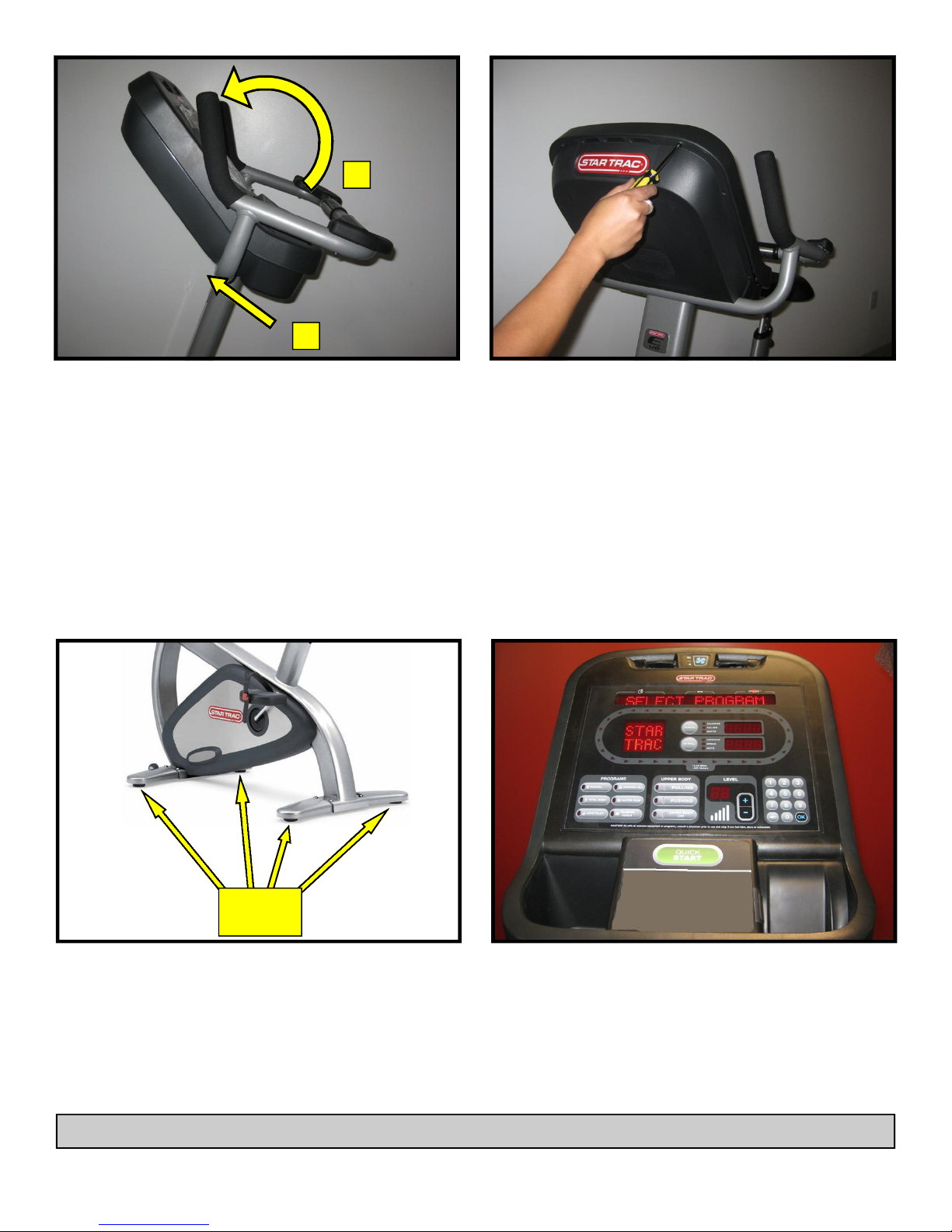

Step 20.

Perform a visual inspection, and test the fea-

tures and functions of the unit prior to use.

Note: Refer to the User’s Manual for other settings

and instructions.

Step 19.

Place the unit on the floor in the position it will

be used. Then adjust leveling feet to assure

that the unit is leveled to the floor and does not

rock back and forth.

Step 18.

Next, secure the front display to the back with

(8) M4 Phillips head screws.

Step 17.

Assemble the front and back display parts to-

gether by sliding the bottom of the front display

under the 2 tabs at the base first, then pressing

front display against the back cover.

YOU HAVE NOW COMPLETED THE (E-UB) UPRIGHT BIKE INSTALLATION

Leveling

Feet

620-7922 Rev B

ATTENTION

•

Star Trac recommends that the bikes be spaced a minimum of 20.0 inches (0.5 m) apart to allow

safe and easy ingress and egress. Even more importantly, there must be at least 48 inches

(1.25 m) of free space behind the bike.

•

As with any motorized equipment, the area where bikes are located must be free of obstructions

and fixtures with sharp edges to prevent injury in the event that a user trips or loses balance and

falls.

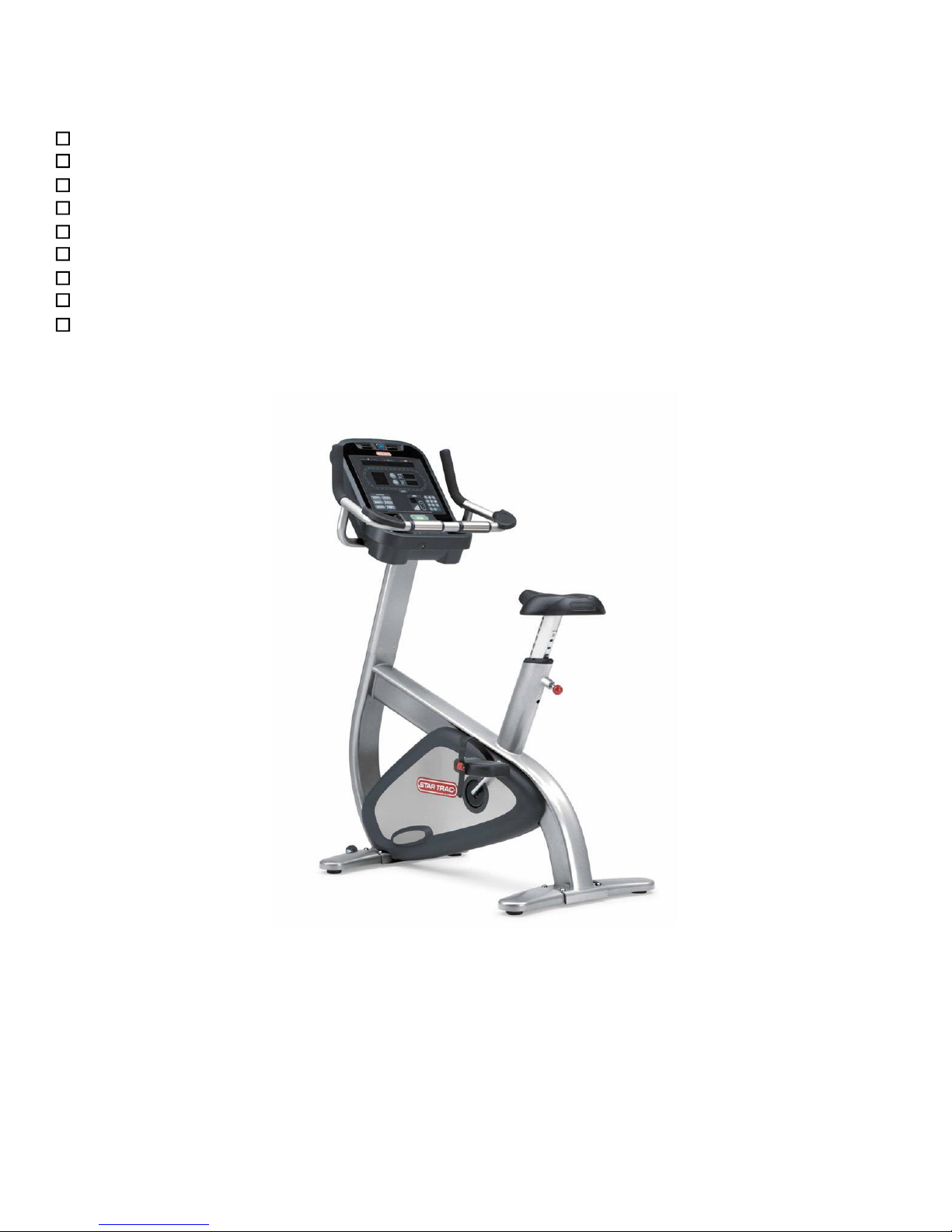

Use the checklist below to ensure the proper installation of the E Series Upright Bike:

1.All parts and hardware in the package are accounted for.

2.All screws are tightened down to their specified values.

3.Upper neck is properly mounted and secured to the lower neck.

4.Left and right pedals are properly mounted and secured.

5.All cables and harnesses are properly plugged into their respective connectors.

6.The front and back display plastics are properly installed and secured.

7.Unit is leveled to the floor.

8.Once powered up, all features of the unit function properly.

9.Using a chest strap or wireless heart rate simulator, verify heart rate is recording properly.

For technical assistance call Star Trac Customer Service: 1 800 503 1221
