Stardom SA2TB2 Bedienungsanleitung
Docking
User Manual
SA2TB2
» SA2TB2 User Manual...................................... 1
1. Operating Information .....................................................1
2. Package Contents and Product Views ............................1
3. The System Connections ................................................3
4. Hardware Requirements and Precautions ......................4
5. System Fan Failure Management ...................................4
6. The MSU, and easy RAID congurator ...........................4
7. Description of HDD Indicators ...................................... 10
8. Frequently Asked Questions .........................................11
» SA2TB2 產品使用說明 .....................................12
1. 環境需求 ....................................................................... 12
2. 產品外觀及包裝內容 ..................................................... 12
3. 硬體連結示意圖 ............................................................ 14
4. 注意事項 ....................................................................... 15
5. 風扇故障狀況排除 ..............................................................15
6. MSU 簡易設定 .............................................................. 15
7. 燈號說明 ....................................................................... 21
8. 常見問題 ....................................................................... 22
SOHORAID SA2TB2 User Manual
V1.0
Docking SA2TB2 User Manual
1
1. Operating Information
The Introduction
Thanks for purchasing Stardom product. This User Manual will introduce you the SA2TB2 Thunderbolt
storage product. Before using your SA2TB2, please read it thoroughly. Although all information
contented in this User manual had already been carefully verified before publishing, however, the
actual product and its specication will be based upon the time of delivery from Stardom. Any update
to the product or its relevant information may be listed on www.stardom.com.tw . Product is subjected
to change without prior notications.
If you have any question regarding to the product you purchased, or you would like to know the
latest product information, User Manual’s update, please contact to your local supplier or visit to
www.stardom.com.tw for further information.
Copyright © Raidon Technology, Inc. – All right is reserved.
Operating Temperature: 5 ～35 ℃(41 ～95 ℉)
Storage Temperature : -20 ～47℃(-4 ～116 ℉)
5% to 95% noncondensing
Line Voltage : 100 ～240V AC
2. Package Contents and Product Views
Open the package and you shall nd the following parts：
Please make sure related accessories and product body are not missing or damaged. For any questions,
please contact local distributor or retailer from your purchase for further assistance.
SA2TB2 Product Unit x1
Thunderbolt Cable x1
Power Cord x1
CD x1
Quick Installation Guide x1
Note: Thois product is also designed with the SGPIO KIT, please contact us to
Docking SA2TB2 User Manual
2
Power switch
Thunderbolt port
Power socket
Mnin-SAS
12G port
Fan

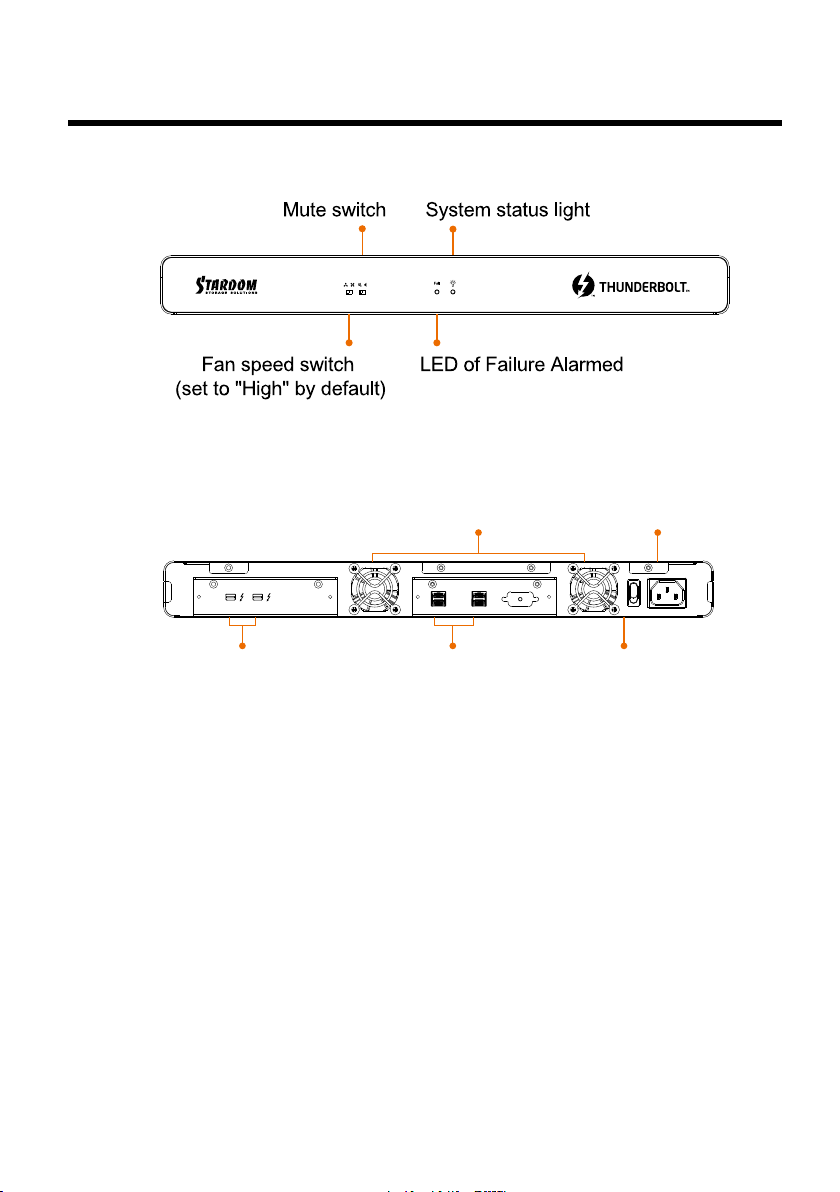

Front and Rear Views
Front View
Rear View
Docking SA2TB2 User Manual
3
SA2TB2 connects to Host (PC/Workstation/Server)
SA2TB2 connects to other Devices (TB, SAS)
3. The System Connections
Thunderbolt 2 External
non-RAID Storage Enclosures
SAS III 12G External
Storage non-RAID Enclosure
Docking SA2TB2 User Manual
4
1. Use your Windows username and password to log into the MSU. If you have a username but no
password, then leave the password eld blank.
4. Hardware Requirements and Precautions
1. Only one interface connection may be used at once per computer system.
2. Whenever turning off or unplugging your SA2TB2 from your computer system, please always
remember to safely remove it from your operating system rst.
3. While the In-chassis temperature reaches up to 55 degree-C (131 degree-F), in order to get rid of
the heat efficiently, your SA2TB2 will turn fan parts to full speed automatically.
And once the In-chassis temperature drops down to 50 degree-C (122 degree-F), you could
then set fan speed at Fan Speed Switch manually to reduce its fan noise for a better green
environment at both of a lower fan noise and the power saving.
Thru connecting your miniSAS device to SA2TB2, you could use this MSU (Marvell Storage Utility) to
congure a RAID mode.
6. The MSU, and easy RAID configurator
A. Set up RAID Mode:
5. System Fan Failure Management
If the alarm indicator has lit up red and the audio alarm sounds, this could mean that either a system
fan has stopped operating entirely. When this occurs, you may press the mute button at the rear
of the system to shut off the audio alarm and power off the system immediately if in the allowed
operational state to let the system cool. Check and see if the overall operation environment is well
ventilated and make sure there are no blockages to the enclosed fan and then re-power on the
system to continue use. If the problem persists, please turn o the system and contact your supplier
or the STARDOM tech support for further assistance.
Docking SA2TB2 User Manual
5
2. Click 【Operation】and 【Create Array】.
3. Click at the selected HDDs.
4. Select【RAID 5】（or other RAID）.
• The more Stripe Sizes helps a better data transfer for large data les which is
good for video and audio editing works.
• The less Stripe Sizes helps a better efficiency at randon les which is good for
daily word processing, frequent read-&-write works.
Docking SA2TB2 User Manual
6
5. Setup Stripe Size.
6. Type Storage Name and Submit RAID setting.
7. After submitting RAID setting:
Docking SA2TB2 User Manual
7
9. After submit, you get a New_VD.
8. Click 【Create VD】, 【Initialize】option is set to 【No Initialization】; 【Gigabyte Rounding】
options set to 【10G】, then click 【Submit】.
P.S. VD is the abbreviation of Virture Disk.
10.To initiate and format HDD/SSD at OS level.
Docking SA2TB2 User Manual
8
1. Click 【Operation】and 【Delete VD】.
2. Click 【OK】 at rst warning message.
B. Delete a RAID for a new RAID setting
11. After completing the format, you couyld start using your SA2TB2.
