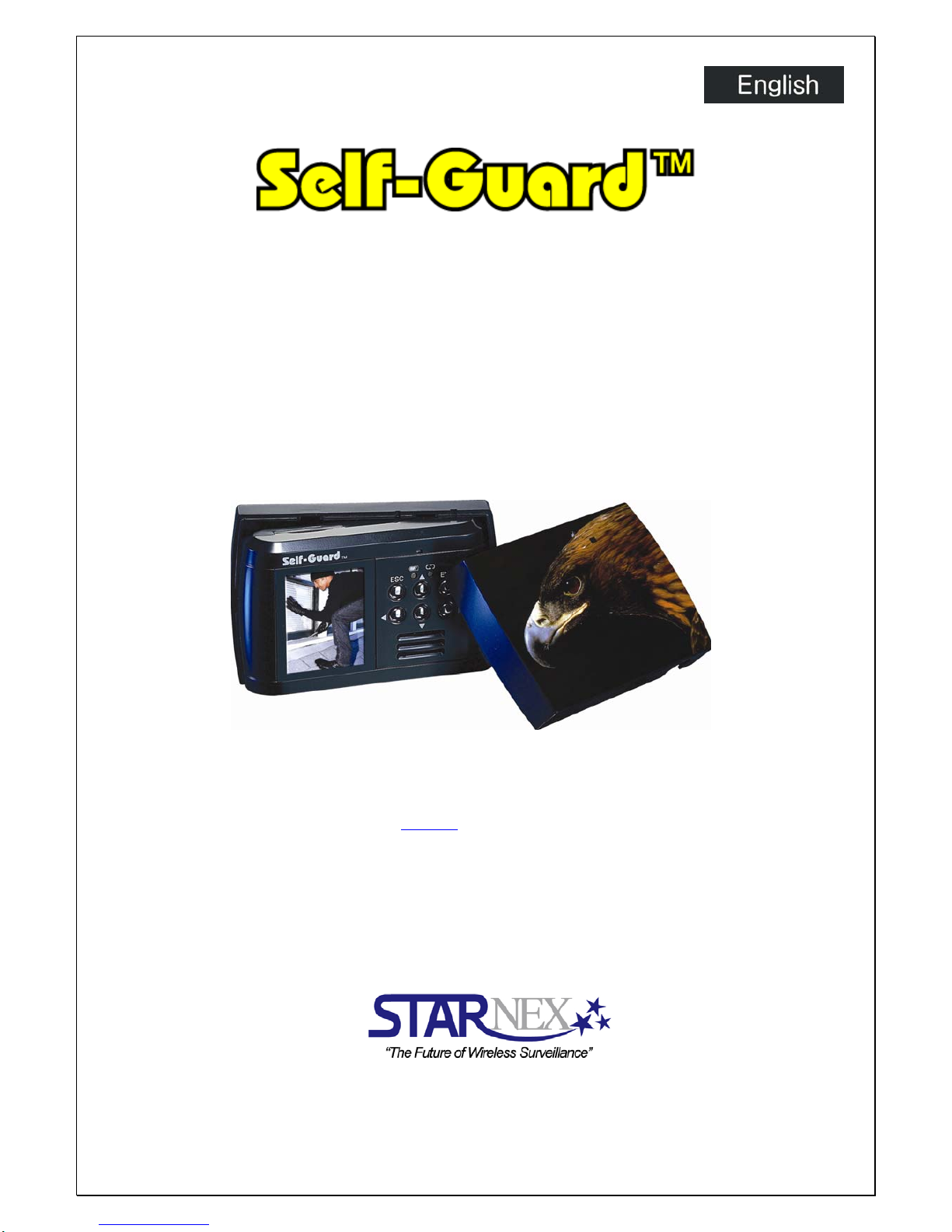

Starnex Self-Guard SG-100 Bedienungsanleitung

Micro-sized, Portable, Wireless, Covert DVR

General Version: SG-100/ SG-200/ SG-300

Special Version: SG-110/ SG-210/ SG-310

MANUAL

*EXCEPT FOR SECURITY PURPOSE, DO NOT USE THIS PRODUCT FOR ANY OTHER PURPOSES

WHICH MAY DISTURB PRIVATE LIFE OF OTHERS.

THIS PRODUCT IS REGISTERED WITH ELECTROMAGNETIC WAVE STANDARDS AND CAN

BE USED FOR ANY PLACE INCLUDING RESIDENTIAL AREA. BEFORE USING THIS PRODUCT,

BE SURE TO READ THE PRECAUTIONS CONTAINED IN THE MANUAL.

Unpacking

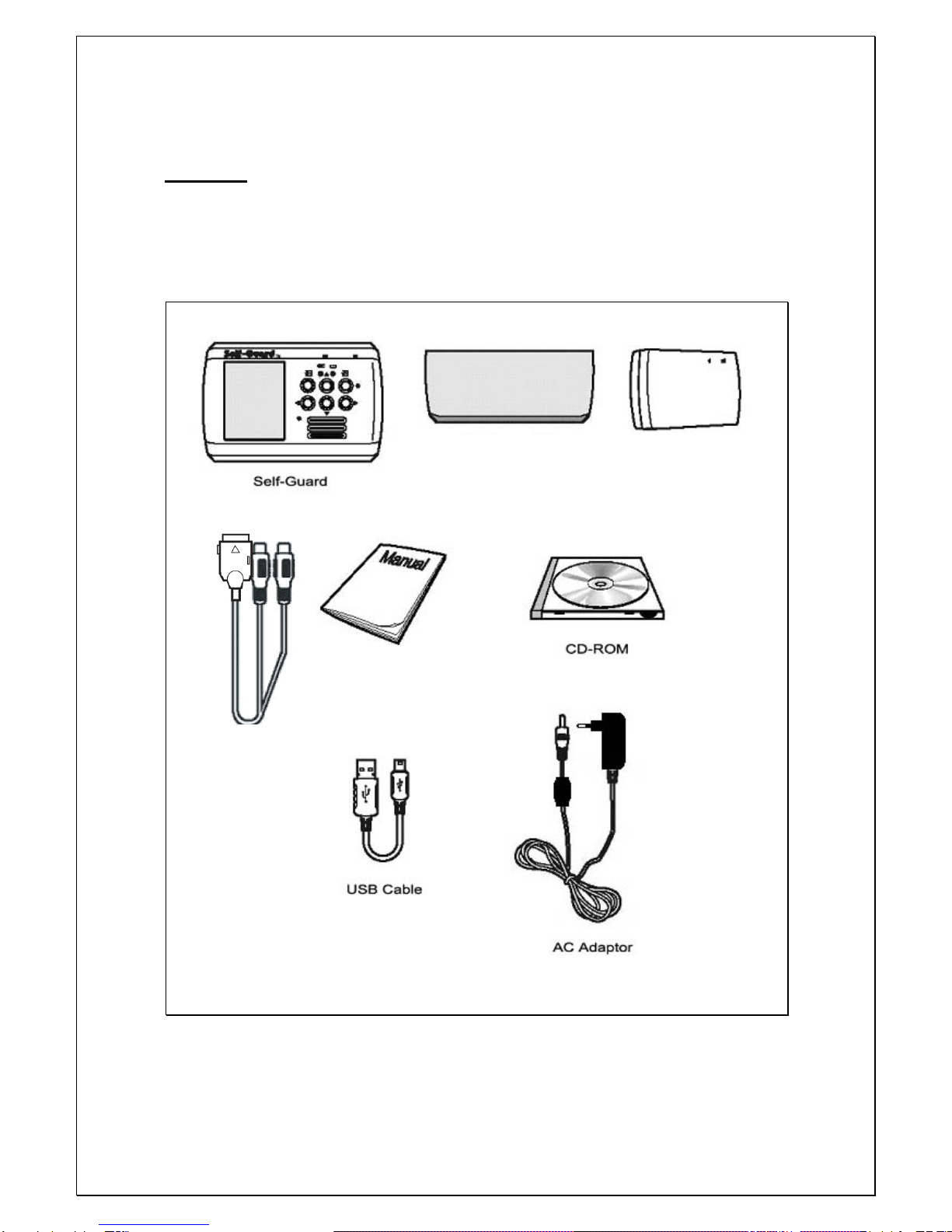

Check to make sure that all of the items shown below are included with your Self-

Guard. If something is missing, contact your dealer as soon as possible.

Concealment Case

Quick Start Guide (Manual & Software)

Rechargeable Battery

A/V Input Cable

(Special Ver. Only)

– Contents –

INTRODUCTION ----------------------------------------------------------------------------------- 6

1. Precautions --------------------------------------------------------------------------------------- 6

2. Features ------------------------------------------------------------------------------------------- 12

3. Specifications and Comparison of each Model ------------------------------------------ 14

4. Applications --------------------------------------------------------------------------------------- 16

QUICK START GUIDE -------------------------------------------------------------------------- 17

1. Charging the Battery ---------------------------------------------------------------------------- 17

2. Turning the Self-Guard On and Off --------------------------------------------------------- 17

3. To Configure Clock Settings ------------------------------------------------------------------ 17

4. To Record a Moving Image ------------------------------------------------------------------- 19

5. To Playback a Moving Image ---------------------------------------------------------------- 20

6. BLUETOOTH (SG-300, SG-310 Only) ------------------------------------------------------- 22

GETTING READY --------------------------------------------------------------------------------- 23

1. Self-Guard --------------------------------------------------------------------------------------- 23

GENERAL GUIDE --------------------------------------------------------------------------------- 28

I. Functions ------------------------------------------------------------------------------------------- 28

I-1. RECORD ------------------------------------------------------------------------------------- 28

I-2. CAMERA ------------------------------------------------------------------------------------- 30

I-3. SEARCH -------------------------------------------------------------------------------------- 31

I-4. OPTION --------------------------------------------------------------------------------------- 37

4-1. Camera Set ------------------------------------------------------------------------------ 38

4-2. Record Set ------------------------------------------------------------------------------- 41

4-3. Search Set ------------------------------------------------------------------------------- 48

4-4. Date/Time Set -------------------------------------------------------------------------- 51

4-5. Remote Set ------------------------------------------------------------------------------ 53

4-6. USB Set ---------------------------------------------------------------------------------- 57

4-7. Memory Set ---------------------------------------------------------------------------- 60

4-8. Others ------------------------------------------------------------------------------------- 62

4-8-1. Password Set -------------------------------------------------------------------- 62

4-8-2. Power Set ------------------------------------------------------------------------- 64

4-8-3. Alarm Set -------------------------------------------------------------------------- 68

4-8-4. SG-921 Set ------------------------------------------------------------------------- 71

4-8-5. Language -------------------------------------------------------------------------- 72

4-8-6. Upgrade --------------------------------------------------------------------------- 72

4-8-7. Default Set ------------------------------------------------------------------------- 73

4-8-8. SG Name -------------------------------------------------------------------------- 73

l-5. TRANSMIT -------------------------------------------------------------------------------------- 75

I-6. BLUETOOTH (SG-300, SG-310 Only) -------------------------------------------------- 76

II. Data Search/Playback Program ------------------------------------------------------------- 81

II-1. How to Install ------------------------------------------------------------------------------- 82

II-2. Data Search and Playback -------------------------------------------------------------- 88

II-3. Other Functions ---------------------------------------------------------------------------- 89

III. Others --------------------------------------------------------------------------------------------- 94

III-1. Button Camera (SG 110, 210, 310 only)----------------------------------------------- 94

Trouble Shooting Guide ------------------------------------------------------------------------ 95

(*SG is short for Self-Guard)

<< Copyright Restrictions >>

Except for the security purpose, unauthorized copy, reproduction and

circulation of snapshot or movie files violate copyright and international

contract laws. Distribution to third parties of such files over the Internet

without permission of the copyright holder, whether or not for profit violates

international contract law and strictly prohibited.

<< Important Notice >>

9The contents of this manual are subject to change without notice.

9STARNEX CO., LTD. has the responsibilities as the manufacturer of Self-

Guard to tell to each distributor that using the Self-Guard unit in the public

domain may be in violation of federal privacy statues.

9STARNEX CO., LTD. assumes no responsibility for any damage or loss

resulting from the use of this manual.

9STARNEX CO., LTD. assumes no responsibility for any loss or claims by third

parties which may arise through the use of the Self-Guard.

9STARNEX CO., LTD. assumes no responsibility for any damage or loss

caused by deletion of data as a result of malfunction, repairs, or battery

replacement. Be sure to back up all import data on other media to protect

against its loss.

9Note that the example screens and product illustrations shown in this User’s

Guide may differ somewhat by the screens and configuration of the actual

product.

9The buttons and functions, which are not explained in this manual, are aimed

to improve the functions in the future.

9The features of this product can be changed at any time without notice for the

purpose of improvement of the product.

INTRODUCTION

1. Precautions

General Notice

¾The AC/DC adaptor of this product can be used for both 110V and 220V.

¾Never try to open the case of the Self-Guard or attempt your own repairs.

High-voltage internal components create the risk of electric shock when

exposed. Always leave maintenance and repair work up to a STARNEX

authorized service center.

¾Never look at the sun or other bright light through the LCD screen. Doing

so can damage your eyesight.

¾Keep the small parts and accessories of this Self-Guard out of the reach of

small children. If swallowed accidentally, contact your physician

immediately.

¾Keep the Self-Guard away from water and other liquids, and never let it get

wet. Moisture creates the risk of fire and electric shock. Never use the Self-

Guard outdoors in the rain or snow, at the seashore or beach, in the

bathroom, etc.

¾Should foreign matter or water ever get into the Self-Guard, immediately

turn it off. Next, remove the Self-Guard’s battery and/or unplug the AC/DC

adaptor power cord from the power outlet, and contact your dealer or

nearest STARNEX authorized service center. Using the Self-Guard under

these conditions creates the risk of fire and electric shock.

¾Should you ever notice smoke or a strange odor coming out of the Self-

Guard, immediately turn it off. Next, taking care you do not burn your

fingers, remove the Self-Guard’s battery and/or unplug the AC/DC adaptor

power cord from the power outlet, and contact your dealer or nearest

STARNEX authorized service center. Using the Self-Guard under these

conditions creates the risk of fire and electric shock. After making sure

there is no smoke coming from the Self-Guard, take it to your nearest

STARNEX authorized service center for repair. Never attempt your own

maintenance.

¾Never use the AC/DC adaptor to power any other device besides this Self-

Guard. Never use any other AC/DC adaptor besides the one that comes

with this Self-Guard.

¾Never cover the AC/DC adaptor with a quilt, blanket, or other cover while it

is in use, and do not use it near a heater.

¾At least once a year, unplug the AC/DC adaptor power cord from the power

outlet and clean the area around the prongs of the plug. Dust build up

around the prongs can create the risk of fire.

¾If the Self-Guard’s case should ever become cracked due to dropping it or

otherwise subjecting it to rough treatment, immediately turn it off. Next,

remove the Self-Guard’s battery and/or unplug the AC/DC adaptor power

cord from the power outlet, and contact your dealer or nearest STARNEX

authorized service center.

¾Never use the Self-Guard inside of an aircraft or in any other area where

its use is prohibited. Doing so creates the risk of accident.

¾Physical damage and malfunction of this Self-Guard can cause the data

stored in its memory to be deleted. Always keep backup copies of data by

transferring them to USB memory stick or USB Hard Disk.

¾Never remove the battery, disconnect the AC adaptor from the Self-Guard,

or unplug the AC/DC adaptor from the wall socket while a moving image is

being recorded. Doing so will not only make storage of the current image

impossible, it can also corrupt other image data already stored in the file

memory.

When you are not using the external antenna, do not open the cover of this to

prevent from getting in other substances into this hole, which may cause

problems to the product.

Test for proper operation before using the Self-Guard

Before using the Self-Guard to record important moving images, make sure

you first record a moving image and check the result to ensure that the Self-

Guard is configured correctly and operating properly.

Data Error Precautions

Your Self-Guard is manufactured using precision digital components. Any of

the following creates the risk of corruption of data in file memory.

¾Removing the battery, flash memory card, or USB memory devices while

the Self-Guard is performing a record or memory access operation.

¾Disconnecting the USB cable, removing the Self-Guard from the Docking

Station, or disconnecting the AC/DC adaptor from the Docking Station

while a data communication operation is being performed.

¾Low battery power.

¾Other abnormal operations.

Any of the above conditions can cause an error. Follow the instructions

provided by this manual to eliminate the cause of the error.

USB Memory Device Precautions

Do not insert or remove USB memory devices from the USB port in the Self-

Guard while recording or searching. When you remove the USB memory

device from the Self-Guard, you must exit from “RECORD” or “SEARCH”

mode, and select “REMOVE USB” from main menu and press [ENT] button.

After “REMOVE USB NOW” message appears on the LCD, you can remove

the USB memory device from the Self-Guard.

When you back up the Self-Guard’s data to your computer, first, copy the data

in the Self-Guard to a USB memory device, and then insert that USB memory

device to the USB port in the computer to copy the data in USB memory

device to the computer. Use only the USB cable provided in the package. It

may cause damage to both the Self-Guard and the computer if you connect

the Self-Guard to the computer using other USB cables directly.

When you want to use USB hard-disk, connect AC adaptor to the Self-Guard

before connecting the USB hard-disk to the Self-Guard. Otherwise it may

cause damage to the Self-Guard.

Flash Memory Card Precautions

Do not insert or remove the memory card from the Self-Guard while recording

or searching. If you want to remove the memory card from the Self-Guard,

then you must exit from “RECORD” or “SEARCH” mode, before removing the

memory card from the Self-Guard.

AUTO Off Function

The Self-Guard automatically turns off the power or goes into the power-

savings mode if you don’t press any button for a certain amount of time (1-9

minutes). This does not indicate malfunction of the system.

In “RECORD” and “TRANSMIT” modes, Self-Guard turns off only the LCD,

battery status LAMP, and recording status LAMP to save the battery. But, in

the rest of the modes except for “RECORD” or “TRANSMIT”, it turns off the

power completely. Set the time to 0 to deactivate “AUTO OFF” function.

Caution: To maximize the life of the battery, do not turn off “AUTO OFF”

function.

Discontinuance of audio sound during playback

You may encounter discontinuance of audio sound when you playback files.

This does not mean a product defect. Self-Guard is designed and set for the

power saving mode to intend longer battery life. Self-Guard goes into sleep

mode and does not record when there is no motion detected for selected time

(1-9 sec., default 5 sec.) after the very last motion detection. Self-Guard

comes out of the sleep mode every 2 seconds to check if there is a motion,

and if it does not detect a motion, then it repeats of going into sleep mode and

checking any motions in every two seconds. However, it does not record

audio when there is audio if there is no motion. This will result in

discontinuance audio sound during playback. Self-Guard can be programmed

to go into sleep mode even when there is audio sound but without a motion,

and this causes audio discontinuance during playback. If you want to record

audio sound without disruption, then you should turn ON audio detection

function from “Power Set”. For detailed information on this, refer to 4-7-2-7.

AUDIO DET: OFF

Operating conditions

This Self-Guard is designed for use in temperatures ranging from -10℃to

+50℃(14℉to 122℉).

Do not expose this product directly to intense sun-light or heat.

Do not expose to rain or extreme humidity or dirty environment.

Keep this product away from extreme vibration or any magnetic devices.

Only use the battery and adaptor provided by us.

Do not open the cover of this product. Otherwise, the warranty will be void.

Before using our product, read the user’s guide carefully and become familiar

with all the features and warnings associated with this product.

Do not touch this product with wet hands.

Condensation

¾When you bring the Self-Guard indoors on a cold day or otherwise expose

it to a sudden change of temperatures, there is the possibility that

condensation can form on the exterior or on interior components.

Condensation can cause malfunction of the Self-Guard, so you should

avoid exposing it to conditions that might cause condensation.

¾To keep condensation from forming, place the Self-Guard into the Carry-

Along Bag before moving it into a location that is much warmer or colder

than your current location. Leave it in the plastic bag until the air inside the

bag has a chance to reach the same temperature as the new location. If

condensation does form, remove the battery from the Self-Guard for a few

hours.

Lens

¾Never apply too much force when cleaning the surface of the lens. Doing

so can scratch the lens surface.

¾Dust or any other soiling of the lens can interfere with proper image

recording. You can remove dust particles from the lens surface by using a

lens blower to blow them off. Next, wipe the surface of the lens with a soft

lens cloth.

Others

¾The Self-Guard may become slightly warm during use. This does not

indicate malfunction.

¾If the exterior of the Self-Guard needs cleaning, wipe it with a soft, dry

cloth.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Starnex DVR Handbücher

Starnex

Starnex SG-3000 Bedienungsanleitung

Beliebte DVR Handbücher anderer Marken

FLIR

FLIR M3100E Series Bedienungsanleitung

VTRACKPRO

VTRACKPRO FPRO300 Bedienungsanleitung

Swann

Swann NVR-7085 models Bedienungsanleitung

XtendLan

XtendLan DVR-1670C Bedienungsanleitung

urmet domus

urmet domus 1093/004AHD Bedienungsanleitung

Holux

Holux M1 Bedienungsanleitung

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Bedienungsanleitung

Whistler

Whistler D16VRS Bedienungsanleitung

Defender Security

Defender Security 82-20235 Bedienungsanleitung

MISUMI

MISUMI MP-WF100M Bedienungsanleitung

Speco

Speco D8HU Bedienungsanleitung

UST

UST DDR-E04AA Gebrauchsanweisung

Consolidated

Consolidated Digital Video Recorder Bedienungsanleitung

Mace

Mace DVR0404RW Kurzanleitung

RCA

RCA RTD315W Bedienungsanleitung

FSM

FSM Colibri Grande PRO Bedienungsanleitung

Hauppauge

Hauppauge HD PVR 2 Bedienungsanleitung

Identivision

Identivision ICR-PH161i PIONEER Bedienungsanleitung
