StarTech.com USB2HDMI Bedienungsanleitung

USB to HDMI Video Adapter

USB 2.0 to HDMI External

Multi Monitor Video Adapter

with Audio

USB2HDMI

Instruction Manual

Manual Revision:11/08/2010

For the most up-to-date information, please visit www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes

only and do not represent an endorsement of a product or service by StarTech.

com, or an endorsement of the product(s) to which this manual applies by the

third-party company in question. Regardless of any direct acknowledgement

elsewhere in the body of this document, StarTech.com hereby acknowledges

that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Table of Contents

Introduction .............................................................................................. 1

Packaging Contents.................................................................................................. 1

System Requirements .............................................................................................. 1

Top View ................................................................................................................... 2

Rear View ................................................................................................................. 2

Installation................................................................................................ 3

Windows 2000/XP/Vista/7 ........................................................................................ 3

Mac OS X (10.4.11/10.5.6)....................................................................................... 4

Conﬁguration ........................................................................................... 5

Windows 2000/XP/Vista/7 ........................................................................................ 5

Mac OS X (10.4.11/10.5.6)....................................................................................... 9

Speciﬁcations........................................................................................... 11

Technical Support.................................................................................... 12

Warranty Information ............................................................................... 12

Introduction

The USB2HDMI USB HDMI External Dual or Multi Monitor Video Adapter (with Audio)

turns an available USB 2.0 port into an HDMI output with high resolution video support

(up to 1920x1080) and audio.

The USB HDMI video adapter can be used to mirror your primary desktop, showing the

same image on each display, or to extend your desktop to double your workspace and

increase your productivity.

This external graphics card is a cost-saving multi-monitor or dual display solution for

either laptop or desktop applications, offering the ability to connect an additional HDMI

(or DVI) display to your computer setup without the hassle of opening the computer case

to install a new video card.

Backed by a StarTech.com 1-year warranty and free lifetime technical support.

Packaging Contents

• 1 x USB2HDMI video adapter

• 1 x USB cable

• 1 x Installation CD

• 1 x Instruction Manual

System Requirements

• USB 2.0 enabled computer system with available USB port

• HDMI enabled display device (e.g. monitor, projector, HDTV, etc)

• Microsoft®Windows®2000/XP (32-bit)/Vista/7 (32/64-bit),

or Apple®Mac OS®10.4.11/10.5.6

Top View

Rear View

Installation

Please note: The following installation steps must be completed prior to connecting USB

video adapter to the host computer, to ensure proper functionality.

Windows 2000/XP/Vista/7

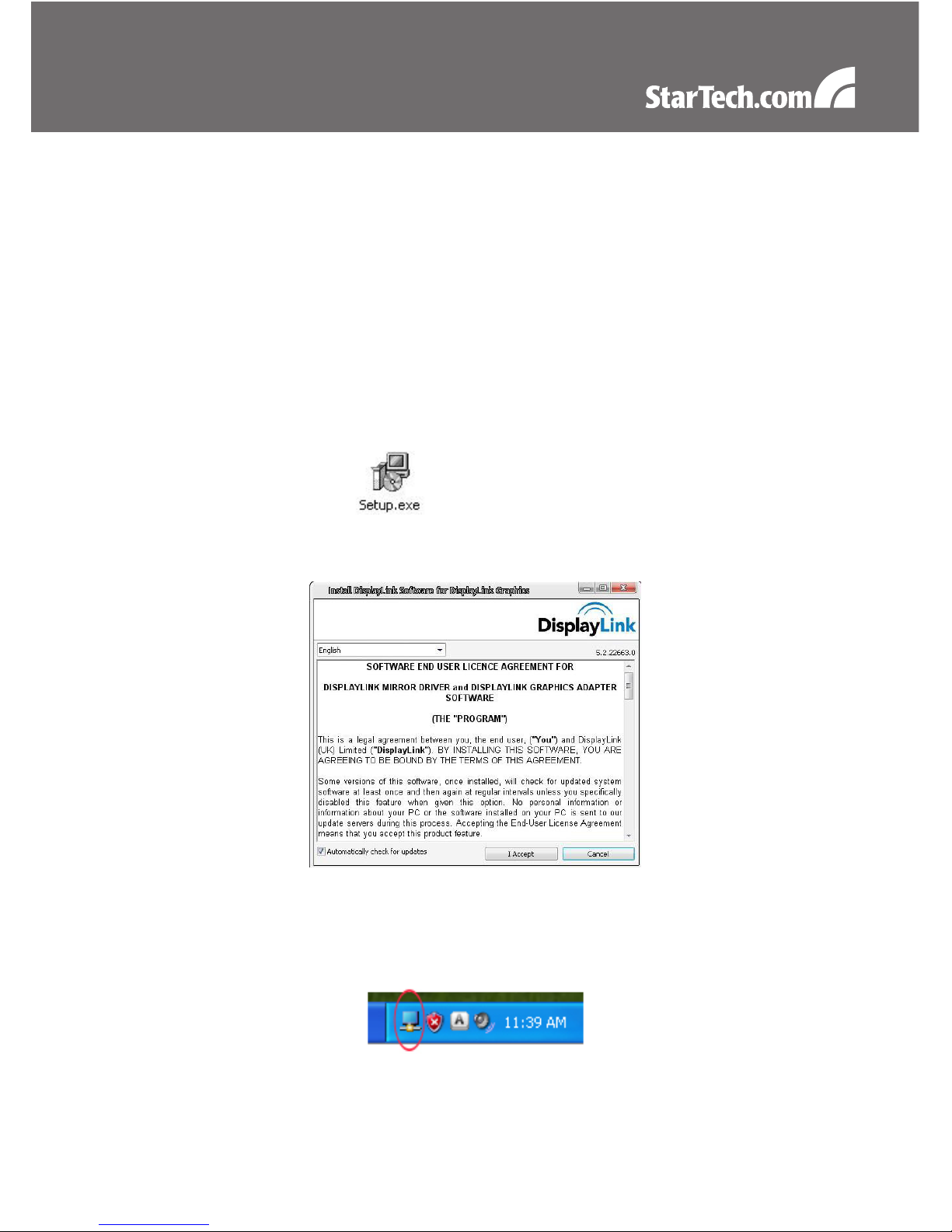

1. Insert the Driver CD (included) into the CD/DVD-ROM drive.

2. AutoPlay should launch a Window, giving the option to install the drivers. If AutoPlay is

not enabled, browse through the Driver CD and locate the “Setup.exe” ﬁle in the USB

2.0 to HDMI folder. Double-click on the installer ﬁle to begin the installation process:

*actual ﬁle name may vary

3. When the End User License Agreement appears, please read and accept it, then click

Next.

4. Please wait while the installation package copies the necessary ﬁles.

5. Once completed, connect the USB video adapter to the computer. Windows should

start to automatically load the drivers. Once complete, you should see this icon in your

System Tray:

6. To verify the installation, right-click on “My Computer” and select Manage to open the

Computer Management window.

7. In the left pane of the Computer Management window, click on Device Manager.

8. In the right pane of the Computer Management window, click on Universal Serial Bus

Controllers, and ensure that the USB display adapter device is listed underneath.

9. If you wish to add additional USB video adapters, simply plug them into available USB

2.0 ports. A maximum total of 6 USB video adapters can be used on a computer.

Mac OS X (10.4.11/10.5.6)

1. Insert the Driver CD (included) into the CD/DVD-ROM drive.

2. Browse through the Driver CD and locate the “DisplayLink-OSX” .dmg ﬁle in the USB

2.0 to HDMI folder. Double-click on this ﬁle to begin the installation process:

*actual ﬁle name may vary

3. Double Click the “DislpayLink Software Installer.pkg” to install the software.

4. Once the installation is complete, click the “Restart” button. The computer will

automatically reboot, so make sure to close/save any ﬁles you have opened, before

pressing this button.

5. After the computer has restarted, plug in the USB video adapter to an available USB

2.0 port. The adapter should now be ready to use.

6. If you wish to add additional USB video adapters, simply plug them into available USB

2.0 ports. A maximum total of 4 USB video adapters can be used on a computer.

Conguration

Windows 2000/XP/Vista/7

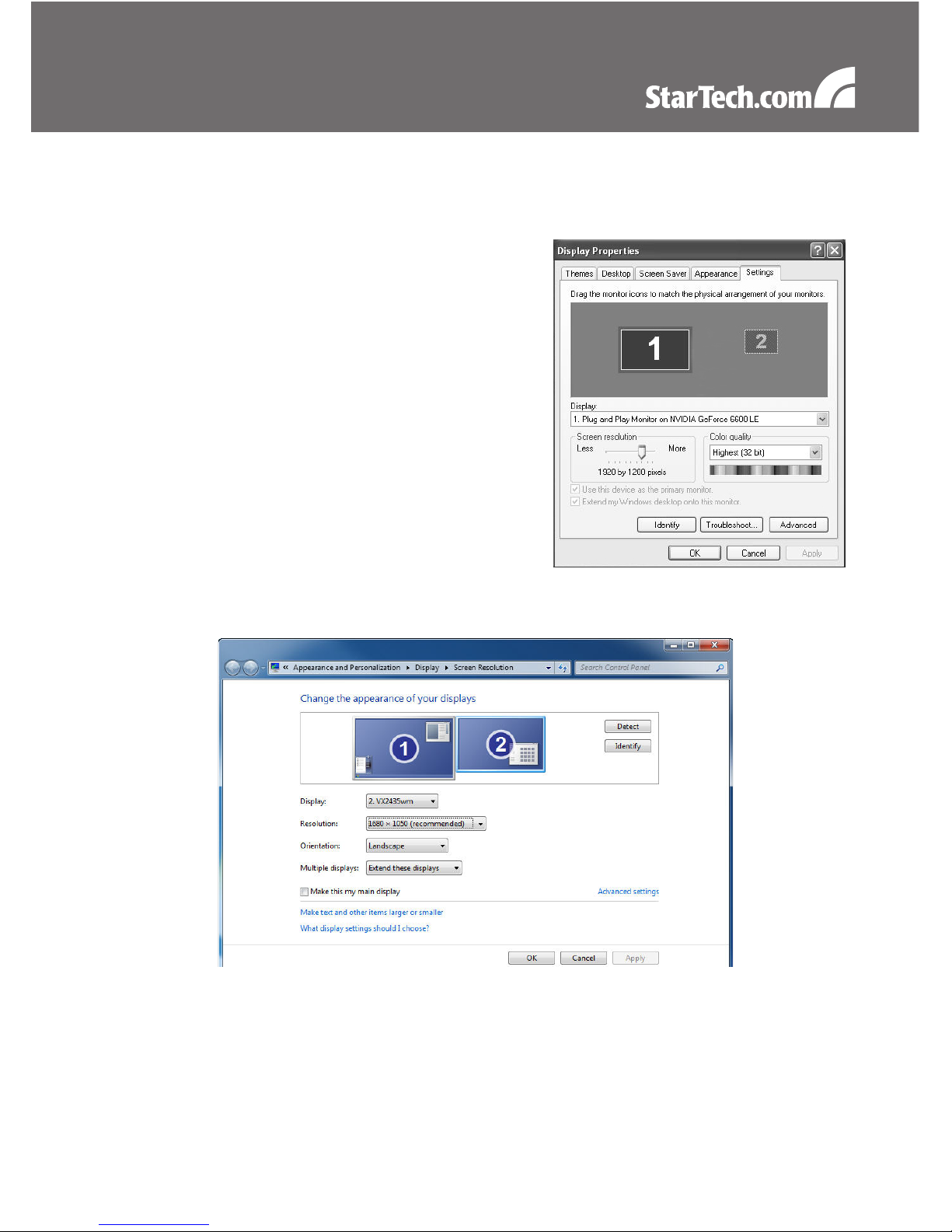

To conﬁgure the image being displayed by the

monitor that is connected to the USB video adapter,

right-click on a blank section of the desktop, select

Properties, then click on the Settings tab to display

the following screen:

For Vista, right-click on a blank section of the

desktop and select Personalize, then select Screen

Resolution on the next screen. For Windows 7,

simply right-click and select Screen Resolution.

Conﬁgure the secondary display by selecting it from the dropdown menu, then adjusting

the desired settings:

Using the Second Display in Extended Mode

In Extended Mode, the monitor that is connected to the USB video adapter creates an

extension of the Windows Desktop displayed on the primary monitor. To set the display

to function in this mode (once selected from the dropdown menu), check the box marked

Extend my windows desktop onto this monitor, then arrange its position (virtually) with

respect to the primary monitor by dragging the monitor icons (shown above as Primary/

Secondary orientation) to reﬂect the physical orientation of the displays.

Using the Second Display in Clone/Mirror Mode (default)

In Clone/Mirror Mode, the monitor that is connected to the USB video adapter simply

mirrors the image displayed on the primary monitor. To set the display to function in this

mode (once selected from the dropdown menu), uncheck the box marked Extend my

windows desktop onto this monitor.

Designating the Primary Display

To select which of the connected monitors will act as the primary display, select the

monitor that will be used as the Primary Display from the Dropdown menu, and place

a checkmark next to Use this device as the primary monitor. On some displays it is

necessary to disable the main display (i.e. uncheck the box marked Extend my Windows

display onto this monitor for the main display).

Following this change, the monitor connected to the USB video adapter will remain

set as the primary display even if the computer enters hibernate mode or operation is

suspended or powered down. If the monitor is disconnected from the USB video adapter,

or the USB video adapter is removed from the host computer, the original monitor will

revert to being the primary display.

Alternate Conﬁguration

Following the software installation for the USB video adapter, you

may have noticed an icon in the taskbar as illustrated below. Clicking

on this icon will open a menu that offers conﬁguration of the display

(connected to the USB video adapter):

Here, you can set the secondary display to act as an extension of

the primary desktop (Extend), or as a mirror image that duplicates

the contents on the primary display (Mirror) or set the display on the adapter as the

primary display (Set as Main Monitor). If using a laptop, once the adapter is set as the

primary display, the screen on the laptop can be disabled (Notebook Monitor Off).

Similarly, the screen resolution, color quality, position of the screen and rotation of the

screen can be adjusted from this menu.

To disable the secondary display, select Off.

Screen Rotation

Will rotate the entire video output in 90 degree increments.

Media Playback

Please note that while operating in Extended Mode, the USB video adapter can display

media ﬁles and DVDs using a broad variety of media players, however in Clone Mode,

limited support is available for video playback.

Audio Playback

The audio component of the USB video adapter adds a new USB sound device to the

system. This will be selected by default, but on some system it may need to be selected

manually through the Sound and Audio Devices in the Control Panel. Audio will only

be passed through the converter to the HDMI display. Any speakers connected directly

to the computer system will not be active, while audio is being sent to the USB video

adapter. If multiple USB video adapters are connected to the computer system, only

one audio device can be used. So audio can only be output to one of the USB video

adapters.

Optimize For Video (Windows Vista/7 only)

Optimize video play back when using Windows Vista/7.

Regular text may appear blurry while this is enabled.
