StarTech.com TB3DK2DPWUE Bedienungsanleitung

Manual Revision: 01/27/2016

For the latest information, technical specications, and support for

this product, please visit www.startech.com/TB3DK2DPWUE

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

TB3DK2DPWUE

Thunderbolt 3 Dual-4K Docking Station for

Laptops - Windows Only

*actual product may vary from photos

Instruction manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction manual

Table of Contents

Introduction............................................................................................1

Packaging contents.................................................................................................................................. 1

System requirements............................................................................................................................... 1

Product diagram ....................................................................................2

Front view .................................................................................................................................................... 2

Rear view...................................................................................................................................................... 2

About Thunderbolt 3.............................................................................3

About DP alt mode (DisplayPort alternative mode)..................................................................... 3

About USB power delivery 2.0.............................................................................................................. 3

Thunderbolt temperature...................................................................................................................... 3

About USB 3.0 and USB 3.1 Gen 1 .......................................................3

About the docking station’s USB-C (USB Type-C™) ports ................4

About the docking station ports .........................................................4

Install the docking station....................................................................5

Power the docking station..................................................................................................................... 5

Connect the docking station ................................................................................................................ 5

Install the drivers....................................................................................................................................... 5

Charge a device .....................................................................................6

Congure a display device....................................................................6

Connect a display to the DisplayPort port....................................................................................... 6

Connect a display to the Thunderbolt 3 USB-C port.................................................................... 6

Connect multiple Thunderbolt 3 displays in a daisy chain........................................................ 7

Supported video resolutions ...............................................................7

Instruction Manual

Technical support...................................................................................8

Warranty information............................................................................8

Instruction manual

Introduction

Packaging contents

• 1x Thunderbolt™ 3 dual-4K docking station for laptops

• 1x Thunderbolt 3 cable - 40Gbps - 0.5m

• 1x universal power adapter

• 2x power cords (EU/UK)

• 1x quick start guide

System requirements

• Host laptop with an available Thunderbolt 3 port

• Available AC electrical outlet

• DisplayPort™ equipped display(s) with cable(s) as needed (for additional external

display)

• Thunderbolt 3 equipped display(s) with cable(s) as needed (for additional external

display)

Note: To connect a second display, you must use one of the docking station’s

Thunderbolt 3 USB-C™ ports. Additional adapter purchases might be required to use

the docking station with HDMI, DVI, or VGA displays. See the Congure a display

device section for further details

• A 4K-capable display is required to achieve 4096 x 2160p resolution (4K is also

known as 4K x 2K)

• A 5K-capable display is required to achieve 5120 x 2880p resolution

• Any of the following operating systems:

o Windows® 10 (32-bit or 64-bit)

o Windows 8 / 8.1 (32-bit or 64-bit)

o Windows 7 (32-bit or 64-bit)

Notes:

o The docking station does not support Mac operating systems.

o Video output capabilities are dependent on the video card and hardware

specication of your connected host laptop.

Operating system requirements are subject to change. For the latest requirements,

please visit http://www.startech.com/TB3DK2DPWUE.

Instruction manual

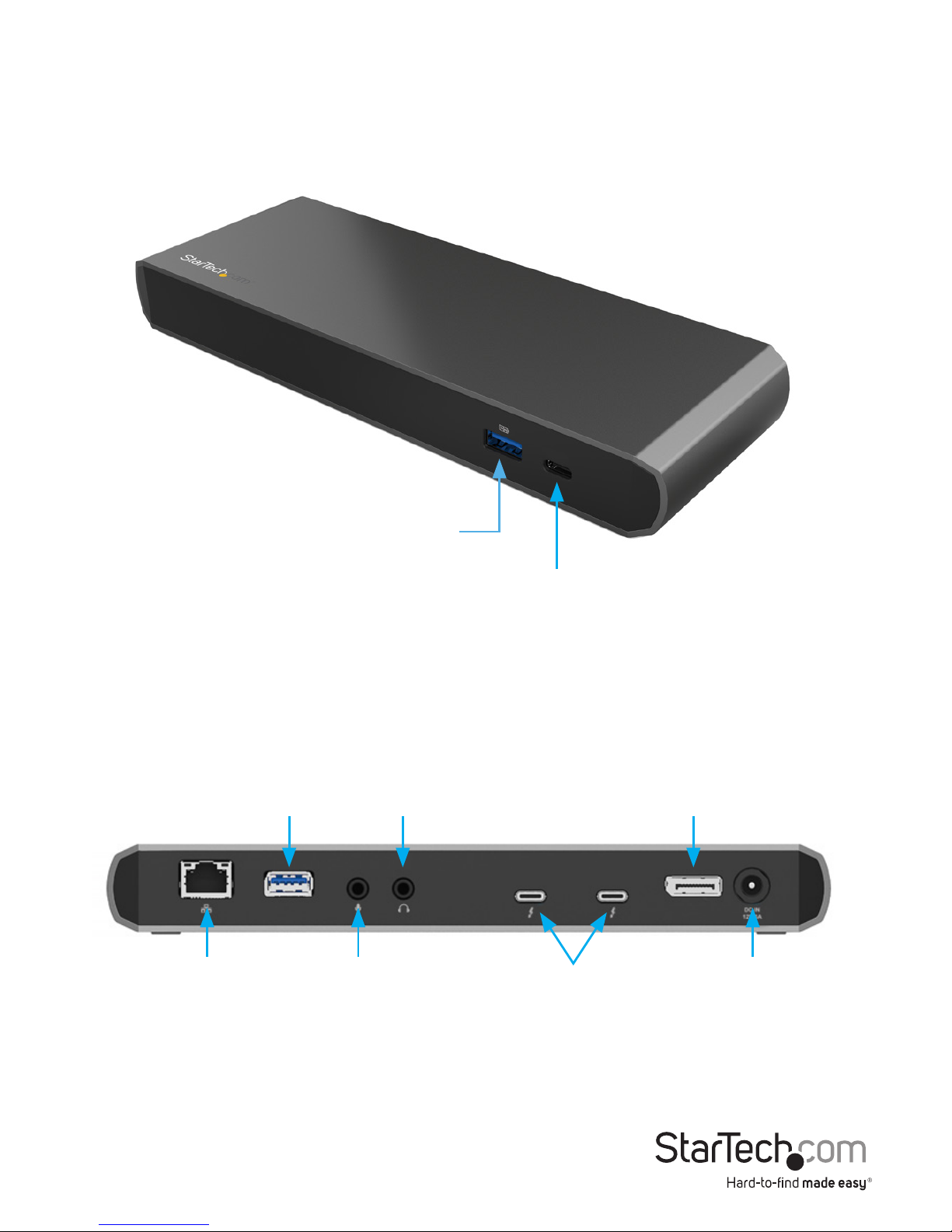

Product diagram

Front view

Rear view

USB 3.0 fast-

charge-and-sync

USB-C (USB 3.0 - 5Gbps)

downstream (data only)

Gigabit

RJ45

DC input

USB 3.0

DisplayPort

(DP++)

3.5mm

audio output

3.5mm

microphone

input

Thunderbolt 3

USB-C

Instruction manual

About Thunderbolt 3

Thunderbolt 3 technology uses the USB-C connector, with bandwidth up to 40Gbps.

It supports USB 3.1, DisplayPort 1.2, PCI Express 3.0, Thunderbolt 2, rst-generation

Thunderbolt, and increased power delivery to connected devices.

Thunderbolt technology supports both video and data throughput. However, it

prioritizes video bandwidth to help ensure seamless display performance. The

performance of the remaining dock functions depends entirely on your display

conguration.

Thunderbolt 3 products must be used with Thunderbolt 3 cables.

About DP alt mode (DisplayPort alternative mode)

DP alt mode is a specication that allows a DisplayPort video signal to transfer over

USB-C. It enables the use of the USB-C interface for DisplayPort signals. Thunderbolt

3 supports the full USB-C standard, including support for DP alt mode. Because the

docking station supports DP alt mode, you can connect Thunderbolt 3 or USB-C based

video devices, cables, or adapters to the secondary Thunderbolt 3 port on the rear of

the docking station.

About USB power delivery 2.0

USB power delivery 2.0 is a specication that allows power (up to 100 watts) to be sent

over a USB-C or Thunderbolt 3 cable that supports the specication.

The TB3DK2DPWUE supports USB power delivery 2.0 prole 1, delivering up to 15

watts of power to each Thunderbolt 3 USB-C port.

Thunderbolt temperature

Due to the high-performance of Thunderbolt technology, Thunderbolt products

sometimes generate more heat than traditional hardware. Therefore, it’s normal for the

docking station to warm up when in use. Placing your laptop on the docking station’s

surface will result in even higher temperatures.

These higher temperatures do not represent a safety hazard to users or to hardware.

About USB 3.0 and USB 3.1 Gen 1

USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard oers speeds up

to 5Gbps. Any mention of USB 3.0 in this manual or on the StarTech.com website for

TB3DK2DPWUE refers to the 5Gbps USB 3.1 Gen 1 standard. Any mention of USB 3.1

Gen 2 refers to the 10Gbps Gen 2 standard.

Instruction Manual

About the docking station’s

USB-C (USB Type-C™) ports

Not all USB-C ports support the full functionality of the USB Type-C standard. Some

ports might only provide data transfer, and might not support video (DP alt mode) or

USB power delivery 2.0.

The docking station includes two USB-C ports:

• Front-panel USB-C port: This is not a Thunderbolt 3 port. It’s a USB-C port that lets

you connect peripherals using USB 3.0 (5Gbps) technology. This port supports data

throughput only. The port does not support DP alt mode or USB power delivery

2.0.

• Rear panel Thunderbolt 3 USB-C port(s): These USB-C ports are Thunderbolt 3

ports with a USB-C connector. One port is for connection to a host laptop, while the

second can be used as a Thunderbolt 3 port, or a USB-C port. When used as a USB-C

port, it lets you connect peripherals using USB 3.1 Gen 2 (10Gbps) technology. This

port supports DP alt mode, and USB power delivery 2.0 prole 1, up to 15W.

Note: Either of the Thunderbolt 3 USB-C ports on the docking station can be used to

connect to your host laptop.

About the docking station ports

The USB-A (USB 3.0) port located at the back of the docking station is a standard USB

3.0 throughput port. When the dock is connected to a host laptop, this port provides a

trickle charge to a selection of USB-charged devices.

The front USB-A (USB 3.0) port is compliant with Battery Charging Specication

Revision 1.2 (BC1.2), which means that you can use the port to connect and charge a

device faster than you can using a traditional standard USB 3.0 port.

This front USB 3.0 port can fast-charge a connected device even when the dock isn’t

connected to a host laptop. When the docking station is connected to a host laptop,

the front USB 3.0 port functions as a Charging Downstream Port (CDP), which has

simultaneous charge and sync capabilities.

The provided power adapter must always be connected to the docking station in order

to charge a device using the front-panel USB fast-charge port.

Instruction Manual

Install the docking station

The docking station is natively supported when connected to a compatible operating

system (see the System requirements section for supported operating systems).

It should automatically detect and install the required drivers once connected to a

Thunderbolt 3 port on your host laptop.

Follow the below sections and steps to properly set up the docking station.

Power the docking station

When the docking station is plugged in and powered, you can use USB power delivery

to power and charge your laptop through its Thunderbolt 3 USB-C port. The docking

station cannot receive power from the host laptop, so the power adapter must always

be connected to the docking station.

The docking station is congured to USB power delivery prole 1, providing

approximately 15 watts to each Thunderbolt 3 port. The rate at which the docking

station charges your laptop depends entirely on how much power the laptop typically

draws using its included power adapter.

1. Select the appropriate power cord for your region and connect it to the power

adapter.

2. Connect the power adapter to an AC electrical outlet and then to the docking

station’s DC IN (power input) port. The docking station should now be receiving

power.

Connect the docking station

1. Connect your external display(s) to the docking station (example, DisplayPort or

Thunderbolt 3 displays).

Note: See the Congure a display device section for dual-display conguration

requirements.

2. Connect your peripherals to the docking station (example, USB devices, RJ 45

network).

3. Connect the provided Thunderbolt 3 cable to a Thunderbolt 3 port on your host

laptop and to one of the Thunderbolt 3 USB-C ports on the docking station.

Note: Either of the Thunderbolt 3 USB-C ports on the docking station can be used to

connect to your host laptop.

Install the drivers

Once the docking station is powered and connected to your host laptop, the required

drivers should automatically install.

You might see a pop-up message requesting permission to allow the docking station

to connect to your computer. If you see this pop-up message, do the following:

Instruction Manual

1. Click on the pop-up message.

2. On the following prompt, select Always Connect from the drop-down list.

3. Click OK. If required, follow any other on-screen instructions to complete the

installation.

The drivers can also be found under the Support tab on our website at

http://www.startech.com/TB3DK2DPWUE.

Charge a device

If you’re only using the front USB 3.0 port to charge a device, a connection to a host

laptop isn’t required.

• To charge a device, connect it to the USB 3.0 port located on the front of the

docking station.

Note: This front USB 3.0 port can only fast-charge connected devices that comply with

USB Battery Charging Specication Revision 1.2.

Congure a display device

Use your Windows operating system to adjust display settings for multiple monitors.

Your laptop hardware must support dual external displays through its Thunderbolt 3

port.

Connect a display to the DisplayPort port

The docking station’s DisplayPort connection supports DisplayPort 1.2, as well as

DP++. Because the port supports DP++, you can use passive adapters or cables to

connect dierent types of monitors to the DisplayPort port.

Type of Display Adapter Needed (sold separately)

DisplayPort None

HDMI display DisplayPort to HDMI Adapter (DP2HDMIADAP)

DVI display DisplayPort to DVI Adapter (DP2DVI)

VGA display DisplayPort to VGA Adapter (DP2VGA2)

Connect a display to the Thunderbolt 3 USB-C port

You can also connect a display (or a display adapter) to one of the docking station’s

Thunderbolt 3 USB-C ports. One of the docking station’s Thunderbolt 3 ports must

remain connected to your host laptop.

Visit www.StarTech.com for a range of USB-C video adapters and cables.

Inhaltsverzeichnis

Andere StarTech.com Dockingstation Handbücher

StarTech.com

StarTech.com SATDOCKU3SEF Bedienungsanleitung

StarTech.com

StarTech.com SDOCK4U33E Bedienungsanleitung

StarTech.com

StarTech.com DK31C3HDPDUE Bedienungsanleitung

StarTech.com

StarTech.com DK31C2DHSPD Bedienungsanleitung

StarTech.com

StarTech.com USB3SMDOCKV Bedienungsanleitung

StarTech.com

StarTech.com SATHDDDOCKU2 Bedienungsanleitung

StarTech.com

StarTech.com SATDOCK22U3S Bedienungsanleitung

StarTech.com

StarTech.com Thunderbolt 3 Series Bedienungsanleitung

StarTech.com

StarTech.com TB2DOCK4K2DP Bedienungsanleitung

StarTech.com

StarTech.com SATADOCK22UE Bedienungsanleitung

StarTech.com

StarTech.com DK30C2DPPD Bedienungsanleitung

StarTech.com

StarTech.com DK31C3HDPD Bedienungsanleitung

StarTech.com

StarTech.com 101N-USBC-DOCK Bedienungsanleitung

StarTech.com

StarTech.com SDOCK4U33E Bedienungsanleitung

StarTech.com

StarTech.com 8STSATDOCK5U3ER Bedienungsanleitung

StarTech.com

StarTech.com TB4CDOCK Bedienungsanleitung

StarTech.com

StarTech.com USB3SDOCKHD Systemhandbuch

StarTech.com

StarTech.com SDOCKU33EBV Bedienungsanleitung

StarTech.com

StarTech.com DKM30CHDPD Bedienungsanleitung

StarTech.com

StarTech.com DKT31CHDVCM Bedienungsanleitung

StarTech.com

StarTech.com SDOCK1EU3P Bedienungsanleitung

StarTech.com

StarTech.com SATDOCKU3S Bedienungsanleitung

StarTech.com

StarTech.com 8STSATDOCKU3S Bedienungsanleitung

StarTech.com

StarTech.com DKM31C3HVCPD Bedienungsanleitung

Beliebte Dockingstation Handbücher anderer Marken

Sony

Sony Dream Machine XDR-DS12iP Bedienungsanleitung

Acer

Acer USB Type-C Dock II Bedienungsanleitung

ATEN

ATEN UC-2000 Bedienungsanleitung

Xcellon

Xcellon HDD-202 Bedienungsanleitung

Dok

Dok CR09 Bedienungsanleitung

Philips

Philips BTM630/12 Bedienungsanleitung

IOGear

IOGear Travel Pro GUD3C09 Bedienungsanleitung

RKI

RKI SDM-E2 Bedienungsanleitung

iHome

iHome iP15 Bedienungsanleitung

VITURE ONE

VITURE ONE MOBILE DOCK Bedienungsanleitung

Lindy

Lindy 42984 Bedienungsanleitung

CipherLab

CipherLab 8001 Bedienungsanleitung

Pyle

Pyle PIPDSP2 Bedienungsanleitung

Avol

Avol AS2350 Bedienungsanleitung

Datalogic

Datalogic JoyaTouch Bedienungsanleitung

Philips

Philips DC190/79 Bedienungsanleitung

Targus

Targus DOCK315EUZ Bedienungsanleitung

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Bedienungsanleitung
