IDE Hard Drive Enclosure

3.5” Black External USB 2.0 IDE

Hard Drive Enclosure

IDE3510U2

IDE3510U2GB

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Front View....................................................................................2

Rear View ....................................................................................2

Installation....................................................................... 3

Hardware Installation...................................................................3

Driver Installation.........................................................................4

Verifying Installation.....................................................................4

How to Use ...................................................................... 4

Speciﬁcations.................................................................. 6

Technical Support........................................................... 7

Warranty Information...................................................... 7

Introduction

The IDE3510U2/GB USB 2.0 IDE Hard Drive Enclosure provides cost-

effective external storage, letting you connect a 3.5” IDE hard drive to a

computer through USB 2.0, perfect for extending the useful life of older

IDE (ATA) hard drives.

Packaging Contents

1 x IDE3510U2/GB hard drive enclosure•

1 x USB cable•

1 x Enclosure Stand•

1 x Power Adapter•

1 x Instruction Manual•

System Requirements

3.5” ATA/66/100/133 hard drive•

Microsoft Windows 2000/XP/Vista/7, Mac OS X, or Linux•

Thumb screws

Disk Activity

LED

Power

LED

Power Switch

USB

connector

Power connector

Front View

Rear View

Installation

WARNING: Hard drives require careful handling, especially when

being transported. If you are not careful with your hard disk, lost data

may result. Always handle your hard drive and storage device with

caution.

Hardware Installation

Remove the 4 thumb screws from both sides of the enclosure (81.

thumb screws in total) and remove the side panels.

Lay the hard drive into the drive tray and connect the IDE ribbon2.

cable and LP4 molex power connectors to the hard drive.

Turn the enclosure over, or onto it’s side and use the 4 small drive3.

screws (included) to secure the hard drive from below.

Once the drive is securely mounted, replace the side panels with the4.

thumb screws.

Connect the power cable a power outlet and into the rear of the5.

enclosure. Switch the enclosure on, by setting the switch to ‘1’.

Connect the USB cable from rear of the enclosure to the computer.6.

Driver Installation

Windows 2000/XP/Vista/7, Mac OS X, Linux

No driver installation is required for these operating systems, as this

enclosure is natively supported, so the drivers are already installed.

Verifying Installation

Windows 2000/XP/Server 2003/Vista

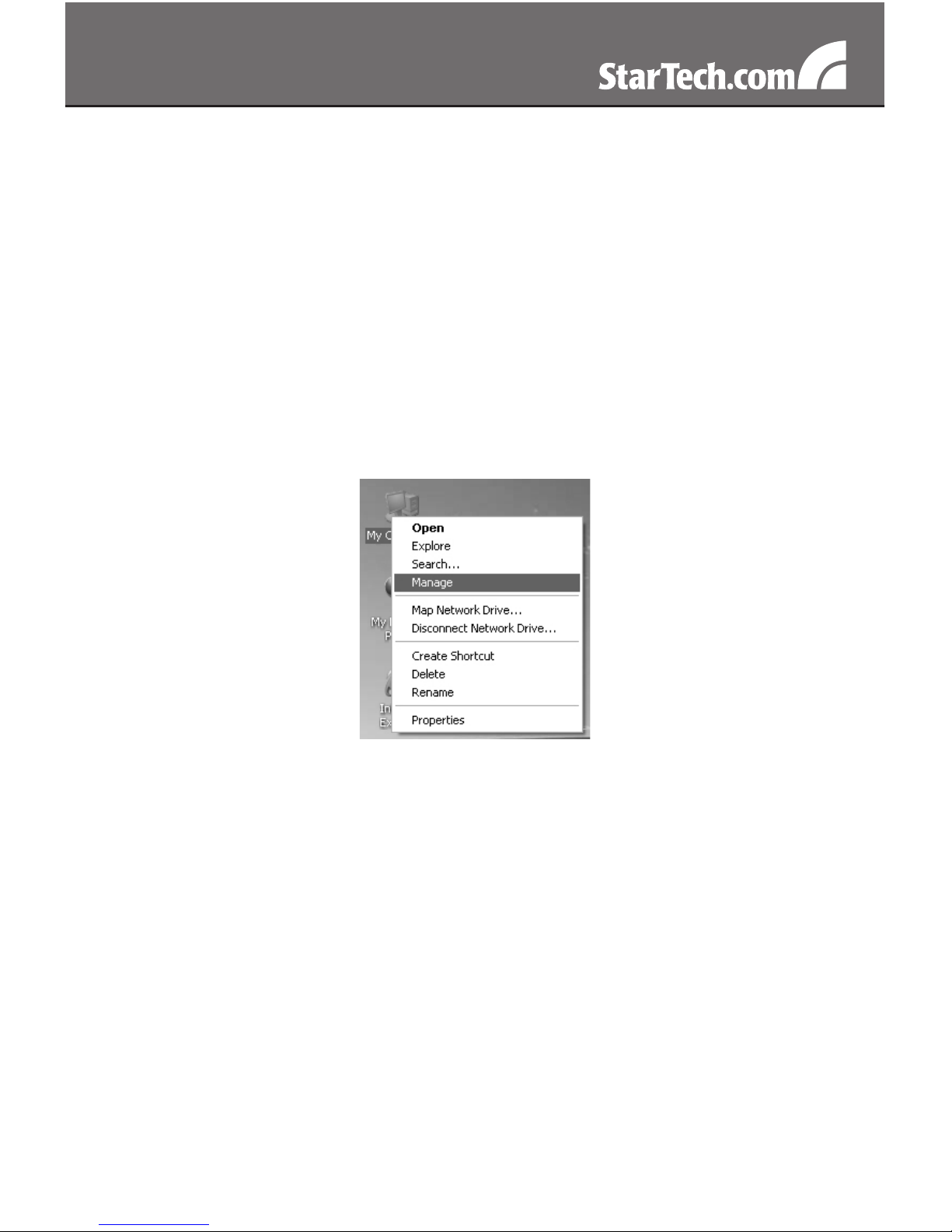

From the main desktop, right-click on “My Computer” (“Computer” in

Vista), then select Manage. In the new Computer Management window,

select Device Manager from the left window panel.

Double-click on the “Disk Drives” option. A new disk drive should be

listed under this category. It will typically contain the make/model of

the hard drive you have installed in the enclosure.

How to Use

Windows 2000/XP/Server 2003/Vista

If a new hard drive does not show up in My Computer, right-click on1.

My Computer, and select Manage.

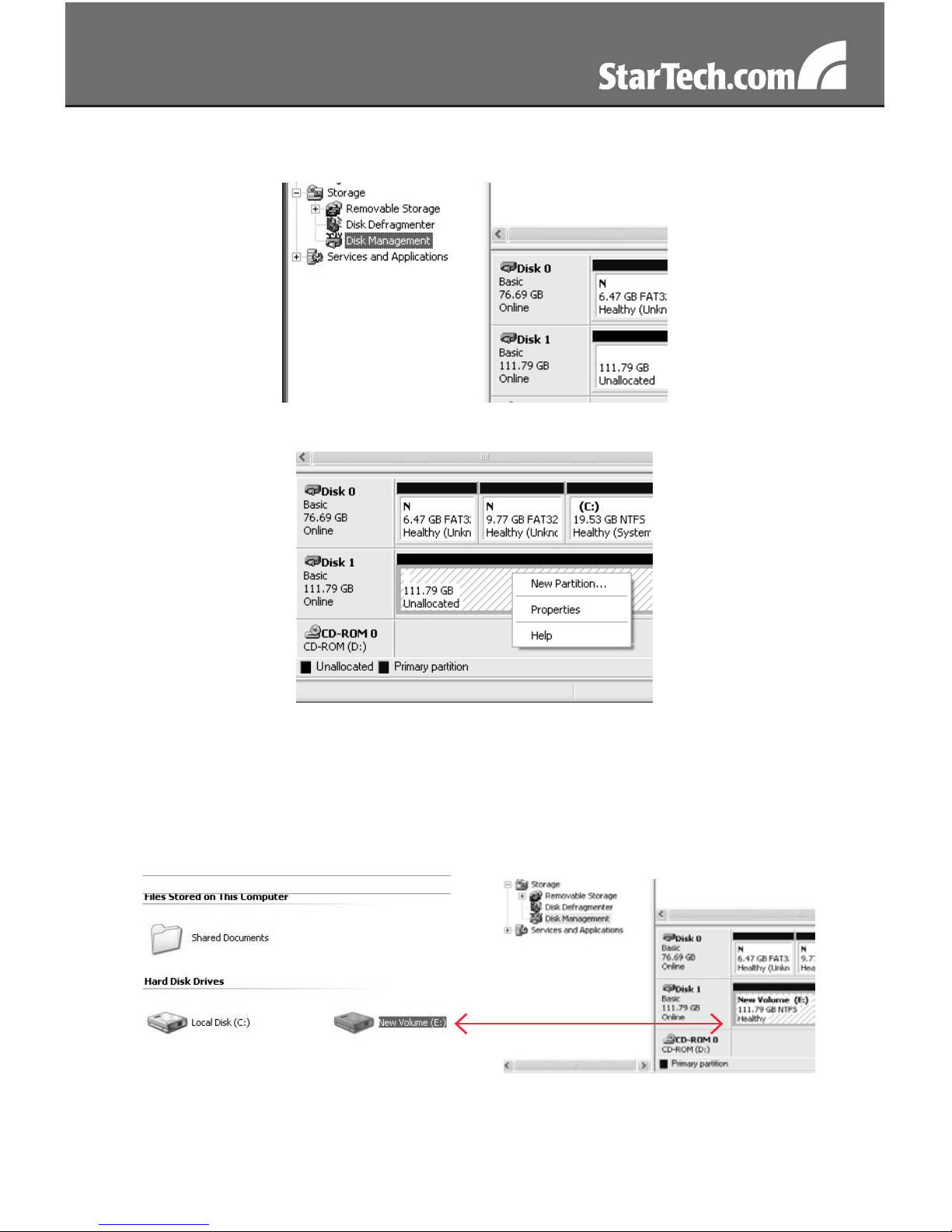

Select Disk Management, in the left pane. In the right pane, you2.

should notice the new hard drive:

Right-click on the Unallocated block, and select New Partition.3.

This will launch the New Partition Wizard. Please follow the4.

instruction provided by the Wizard, to partition the drive for use.

Once the partition has been created, the drive installed within the5.

hard drive enclosure will be recognized as a New Volume in Disk

Management, as well as in My Computer:

Specications

Bus Interface USB 2.0

External Connectors 1 x USB type B

1 x Power Connector

Chipset Initio INIC-151

LEDs Power, Activity

Maximum Data Transfer Rate USB: 480Mb/s

Hard Drive Compatibility 3.5” ATA/66/100/133 hard drive

up to 750GB in capacity

Power Adapter 12VDC, 2A, center positive

Dimensions 222.0mm x 33.0mm x 124.0mm

Weight 499g

Compatible Operating

Systems

Windows 2000/XP/Vista/7, Mac

OS X, Linux

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.
