StarTech.com PCI1PM Bedienungsanleitung
PCI Parallel Adapter
1-Port Remappable PCI Parallel
Adapter Card
PCI1PM
Instruction Manual
Manual Revision:01/10/2011
For the most up-to-date information, please visit www.startech.com
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an
endorsement of the product(s) to which this manual applies by the third-party company
in question. Regardless of any direct acknowledgement elsewhere in the body of
this document, StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this
manual and related documents are the property of their respective holders.
i
Table of Contents
Introduction..................................................................... 1
Packaging Contents..................................................................... 1
System Requirements ................................................................. 1
Installation....................................................................... 2
DIP Switch Settings..................................................................... 2
Hardware Installation................................................................... 3
Driver Installation......................................................................... 3
Legacy ISA Address Mode...................................................... 3
Standard Plug-and-Play Mode ................................................ 9
Pinout............................................................................... 10
Specifications.................................................................. 11
Technical Support........................................................... 12
Warranty Information...................................................... 12
1
Introduction
The PCI1PM Re-mappable 1 Port PCI Parallel Card adds one fully
featured I/O mapped IEEE 1284 parallel port to your system using a
PCI expansion slot.
Saving time and money in costly upgrades of legacy hardware, the
re-mappable parallel card can be installed and configured using legacy
memory ranges (278, 378, and 3BC legacy ISA addresses) under
DOS® and Windows® operating systems for compatibility with legacy
devices such as security dongles that require a specific memory I/O
range for operation.
The card also supports standard installations, with plug-and-play
WHQL certified drivers for Windows® as well as support for DOS® and
Linux®.
Packaging Contents
• 1 x PCI Parallel card
• 1 x Low Profile Installation Bracket
• 1 x Driver CD
• 1 x Instruction Manual
System Requirements
• PCI enabled computer with available full or low profile PCI slot
• Microsoft®Windows®XP/Server 2003/Vista/Server 2008 R2/7
(32/64-bit), or DOS, or Linux®kernel 2.4.x/2.6.x
2
Installation
WARNING! PCI cards, like all computer equipment, can be severely
damaged by static electricity. Be sure that you are properly grounded
before opening your computer case or touching your PCI card.
StarTech.com recommends that you wear an anti-static strap when
installing any computer component. If an anti-static strap is unavailable,
discharge yourself of any static electricity build-up by touching a large
grounded metal surface (such as the computer case) for several
seconds. Also be careful to handle the PCI card by its edges and not
the gold connectors.
DIP Switch Settings
This card supports both standard PCI Plug-and-Play mode, as well as
the legacy ISA addresses 278, 378 and 3BC. Set the switches on the
card to the desired mode, prior to installation.
System Assigned
(PnP)
1 - OFF
2 - OFF
3 - OFF
4 - OFF
378 (Legacy ISA)
1 - ON
2 - ON
3 - OFF
4 - OFF
278 (Legacy ISA)
1 - ON
2 - OFF
3 - ON
4 - OFF
3BC (Legacy ISA)
1 - ON
2 - OFF
3 - OFF
4 - ON
3
Hardware Installation
1. Turn your computer off and any peripherals connected to the
computer (i.e. Printers, external hard drives, etc.). Unplug the power
cable from the rear of the power supply on the back of the computer
and disconnect all peripheral devices.
2. Remove the cover from the computer case. Refer to documentation
for your computer system for details.
3. Locate an open PCI or PCI-X slot and remove the metal cover plate
on the rear of the computer case.
4. Insert the card into the open PCI or PCI-X slot and fasten the card’s
bracket to the rear of the case.
NOTE: If installing the card into a small form factor/low profile system,
replacing the pre-installed full profile bracket with the included low
profile installation bracket may be necessary.
5. Place the cover back onto the computer case.
6. Insert the power cable into the socket on the power supply and
reconnect all other connectors removed in Step 1.
Driver Installation
Legacy ISA Address Mode
Windows 2000/XP/Server 2003/Vista

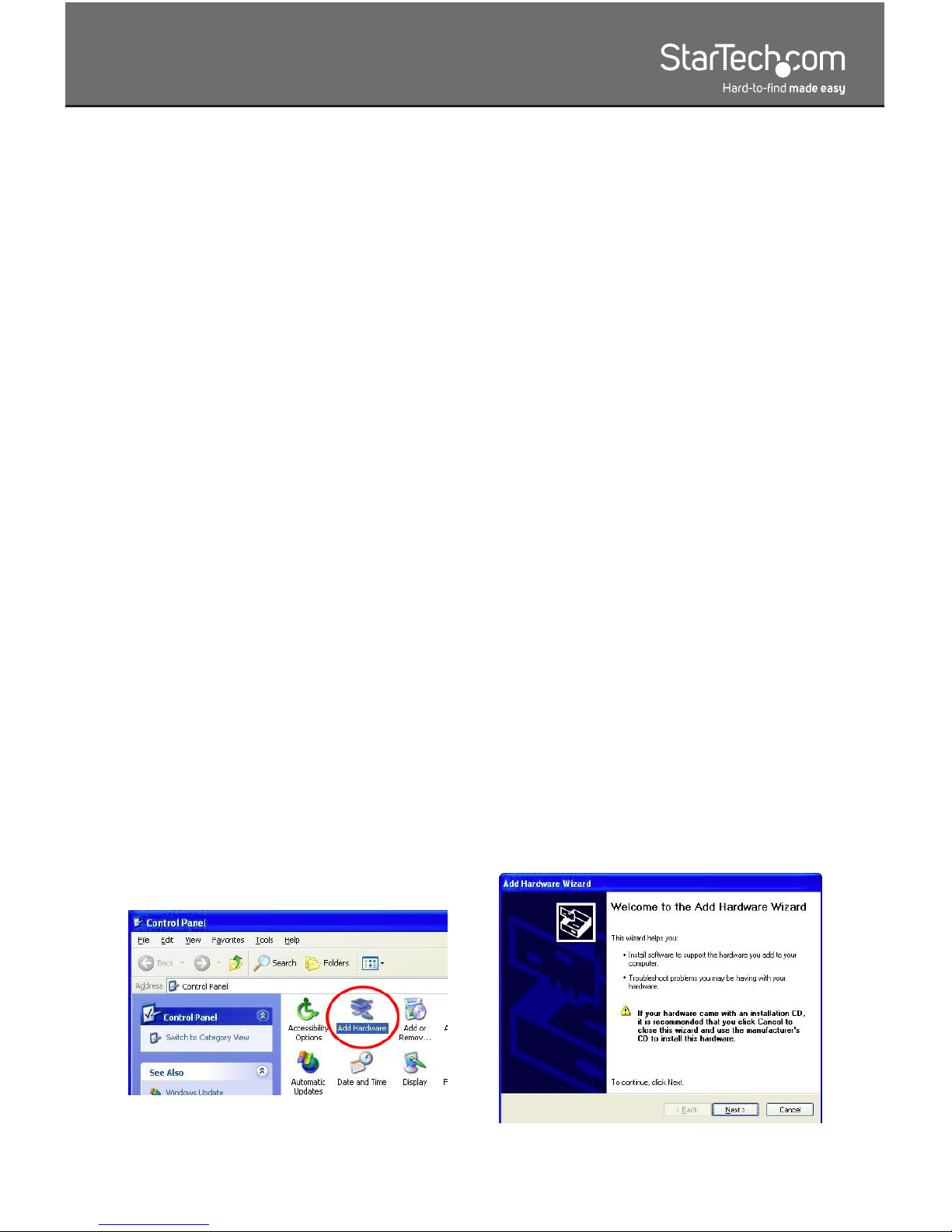

1. In Windows, open the Control Panel and run the Add New Hardware
wizard.
4
2. When prompted, select that the hardware is already installed, then
choose the “Add a new hardware device” from the list of device
types.
3. Select the option to install the hardware manually, then select “Ports”
has the hardware type.
5
4. From the Standard Port Types, select ECP Printer Port, then
proceed to complete the installation.
5. Once the hardware wizard has completed, access the Device
Manager by right-clicking on My Computer and selecting the
“Manage” option. In the Computer Management window, select
Device Manager from the left window panel.
6. Locate the new port under the “Ports” category and right-click on it
and select “Properties”.
7. In the Properties window, select the “Resources” tab along the top
and click the “Set Configuration Manually” button.
6
8. Select “I/O Range” under the Resource Settings then click the
“Change Settings” button.
9. Select the “Value” that matches the DIP switch settings used for the
adapter card and note any conflicts that appear. Accept the settings
and reboot the computer.
10. If a conflict is not reported in Device Manager, then the port should
be ready for use. Otherwise contact the system or motherboard
manufacturer for a possible work around.
Windows 7/Server 2008 R2
1. Access the Device Manager by right-clicking on My Computer
and selecting the “Manage” option. In the Computer Management
window, select Device Manager from the left window panel.
7
2. Click on “Action” from the top menu and select the “Add Legacy
Hardware” option. This will launch the Add Hardware wizard.
3. When prompted, select the option to install hardware manually, then
select “Ports” as the hardware type.
4. From the Standard Port Types category, select ECP Printer Port,
then proceed to complete the wizard.
