Supermicro AOC-SLG3-4E2P Bedienungsanleitung

User's Guide

Revision 1.0

AOC-SLG3-4E2P

User's Guide Revision 1.0

Release Date: April 11, 2017

Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

The information in this User's Guide has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

and makes no commitment to update or to keep current the information in this user's guide, or to

notify any person or organization of the updates. Please Note: For the most up-to-date version

of this user's guide, please see our Website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this user's guide at any time and without notice. This product, including software and

documentation, is the property of Supermicro and/or its licensors, and is supplied only under a

license. Any use or reproduction of this product is not allowed, except as expressly permitted by

the terms of said license.

IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT,

SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE

USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC.

SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED

WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,

INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between the manufacturer and the customer shall be governed by the laws of

Santa Clara County in the State of California, USA. The State of California, County of Santa Clara

shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for

all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class

A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the manufacturer’s instruction manual, may cause harmful

interference with radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference, in which case you will be required to correct the interference at your

own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate

warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”.

WARNING: Handling of lead solder materials used in this

product may expose you to lead, a chemical known to

the State of California to cause birth defects and other

reproductive harm.

Preface

About this User's Guide

This user's guide is written for system integrators, IT technicians, and

knowledgeable end users. It provides information for the installation and use of the

AOC-SLG3-4E2P expansion card.

About this Expansion Card

The Supermicro NVMe AOC-SLG3-4E2P features four internal NVMe OCuLink con-

nectors for high-performance storage connectivity. This HBA card is built around a

PLX PEX9733 PCIe switch IC, which is a proven NVMe technology with optimum

performance for increased bandwidth. Streamlined for the growing demand for

increased data throughput and scalability requirements across the enterprise-class

server platforms, this appeals most to embedded/IPC solutions and desktop/gam-

ing solutions that must leverage maximum performance and reliability. Designed

for port extension, high performance peer-to-peer transfers, and error isolation.

In contrast to retimer and redriver NVMe AOC solutions, the AOC-SLG3-4E2P is

capable of enabling hot-plug without the use of a Vpp header. Ideal for near-line

cache storage solutions.

Comes with both full height and low prole mounting brackets.

An Important Note to the User

All images and layouts shown in this user's guide are based upon the latest PCB

revision available at the time of publishing. The card you have received may or may

not look exactly the same as the graphics shown in this user's guide.

Preface

iii

AOC-SLG3-4E2P Expansion Card User's Guide

Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required be-

fore any warranty service will be rendered. You can obtain service by calling your

vendor for a Returned Merchandise Authorization (RMA) number. When returning

the AOC-SLG3-4E2P card to the manufacturer, the RMA number should be promi-

nently displayed on the outside of the shipping carton, and the shipping package

is mailed prepaid or hand-carried. Shipping and handling charges will be applied

for all orders that must be mailed when service is complete. For faster service, you

can also request a RMA authorization online http://www.supermicro.com/RmaForm/.

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alternation, misuse, abuse or improper

maintenance of products.

Preface

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Information)

[email protected] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Website: www.supermicro.nl

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3992

Email: [email protected]

Website: www.supermicro.com.tw

Table of Contents

Preface

About this User's Guide ................................................................................................iii

About this Expansion Card............................................................................................iii

An Important Note to the User...................................................................................... iii

Returning Merchandise for Service...............................................................................iv

Contacting Supermicro...................................................................................................v

Chapter 1 Overview

1-1 Overview ......................................................................................................... 1-1

1-2 Technical Specications .................................................................................. 1-1

General............................................................................................................ 1-1

OS Support ..................................................................................................... 1-1

Power Consumption........................................................................................ 1-1

Physical Dimensions ....................................................................................... 1-1

Chapter 2 Hardware Components

2-1 Expansion Card Layout and Components ...................................................... 2-1

2-2 Major Components.......................................................................................... 2-2

2-3 Front Connectors ............................................................................................ 2-3

NVMe Connectors ...................................................................................... 2-3

2-4 Front Jumper Location and Settings............................................................... 2-4

Explanation of Jumpers .................................................................................. 2-4

Chapter 3 Installation

3-1 Static-Sensitive Devices.................................................................................. 3-1

Precautions ..................................................................................................... 3-1

Unpacking ....................................................................................................... 3-1

3-2 Before Installation ........................................................................................... 3-2

3-3 Installing the Expansion Card ......................................................................... 3-2

3-4 Installing and Uninstalling NVMe Drivers........................................................ 3-4

AOC-SLG3-4E2P Expansion Card User's Guide

Chapter 1: Overview

1-1

Chapter 1

Overview

1-1 Overview

Congratulations on purchasing your expansion card from an acknowledged leader

in the industry. Supermicro products are designed with the utmost attention to detail

to provide you with the highest standards in quality and performance. For product

support and updates, please visit our website at http://www.supermicro.com/

1-2 Technical Specications

General

• Quad port PCIe x8 Gen-3 NVMe controller

• Four internal lanes per OCuLink port, 6.4GB/s aggregate performance

• Supports four physical NVMe devices

• Pure HBA

• Ambient operating temperature from 10°C - 55°C

OS Support

Windows, Linux

Power Consumption

24 Watts

Physical Dimensions

Card PCB dimensions: 6.1" x 2.71 " (L x H)

AOC-SLG3-4E2P Expansion Card User's Guide

1-2

Notes

Chapter 2: Hardware Components

2-1

Chapter 2

Hardware Components

2-1 Expansion Card Layout and Components

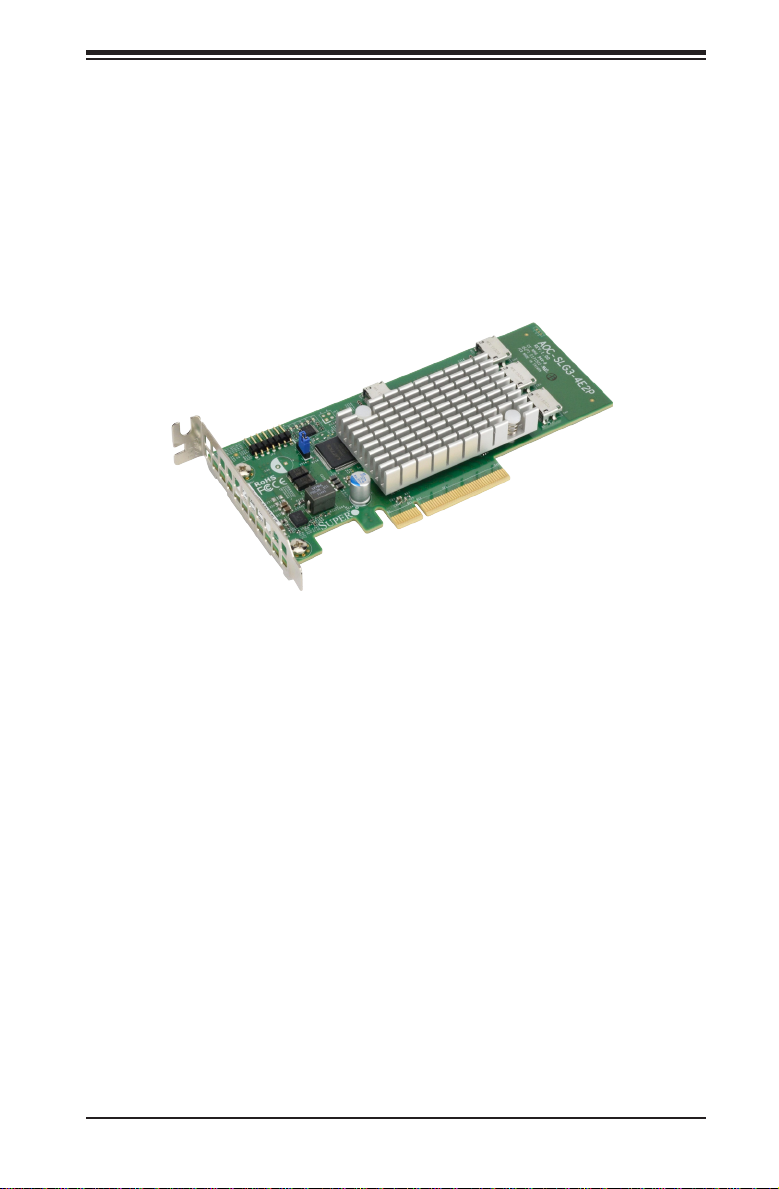

Figure 2-1. AOC-SLG3-4E2P

The AOC-SLG3-4E2P is a low-prole 4-port expansion card with an aggregate

performance of 6.4 GB/s. The following pages describe the components and set-

tings for the AOC-SLG3-4E2P.

AOC-SLG3-4E2P Expansion Card User's Guide

2-2

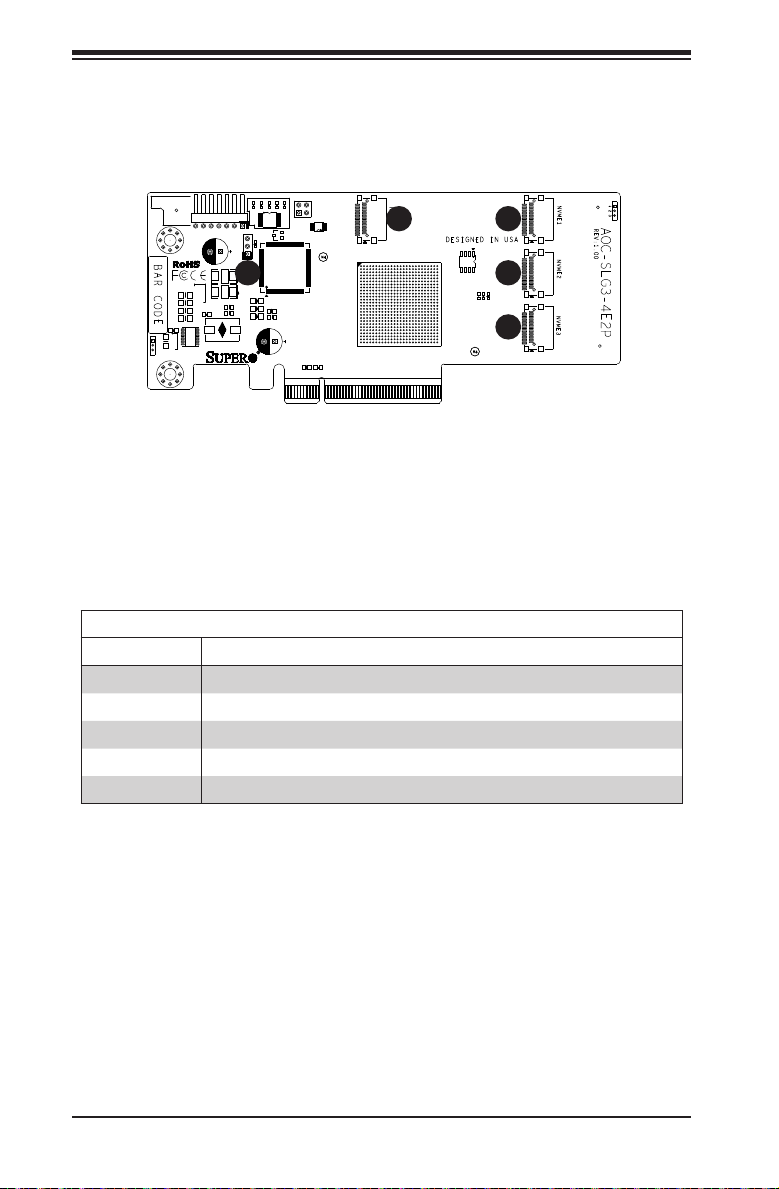

Figure 2-2. AOC-SLG3-4E2P Layout

2-2 Major Components

The following are the major components that make up the AOC-SLG3-4E2P ex-

pansion card:

AOC-SLG3-4E2P

Component Description

1 NVMe Connector NVMe0

2 NVMe Connector NVMe1

3 NVMe Connector NVMe2

4 NVMe Connector NVMe3

5 Jumper J1
