Synology DiskStation DS411 Bedienungsanleitung

Synology DiskStation DS411/ DS411+II

Quick Installation Guide

Synology_QIG_4BayCL_20110628

Table of Contents

Chapter 1: Before You Start

Package Contents .............................................................................................................................................................. 3

Synology DiskStation at a Glance.................................................................................................................................... 4

Safety Instructions .............................................................................................................................................................. 5

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation....................................................................................................................... 6

Install Hard Disks................................................................................................................................................................ 6

Turn On Server ................................................................................................................................................................. 10

Chapter 3: Install DSM on DiskStation

Install from Windows ........................................................................................................................................................ 11

Install from Mac OS X ...................................................................................................................................................... 13

Install from Linux............................................................................................................................................................... 13

Learn More ........................................................................................................................................................................ 15

Appendix A: Specifications

Appendix B: LED Indication Table

Chapter

Chapter 1: Before You Start

Before you start setting up DiskStation, please check the package contents to verify that you have received the

items below. Please also read the safety instructions carefully before use to prevent your DiskStation from any

damages.

Package Contents

Main Unit x 1 AC power cord x 1

AC power adapter x 1

Cable lock x 1 2M RJ-45 LAN cable x 1 Installation disc x 1

Screws for 3.5" hard drives x 18 Screws for 2.5” hard drives x 18

Screws for securing

hard disk trays x 8

4 Chapter 1: Before You Start

Synology DiskStation at a Glance

See below for the basic features on your DiskStation (using DS411+II for example).

No. Name Location Description

1) Power Button Front Panel

The power button is used to turn Synology DiskStation on or off.

To turn off Synology DiskStation, press the power button and hold it until you

hear a beep sound and the Power LED starts blinking.

2) LED Indicators Front Panel

The LED indicator is used to display the status of the internal disk and the

system. For more information, see "Appendix B: LED Indication Table" on Page

17.

3) USB Port Back Panel The Synology DiskStation offers USB ports for adding additional external hard

drives, USB printers, or other USB devices.

4) Fan Back Panel

The fan is built to exhaust waste heat out of Synology DiskStation. It will start

automatically when the server starts. If the fan is malfunctioning, system will

beep every 1 second.

5) eSATA Port Back Panel The eSATA port is for connecting with an external SATA HDD.

6) RESET Button Back Panel 1.To restore IP, DNS, passwords for the admin account to default value.

2.To reinstall the Synology DiskStation.

7) LAN Port Back Panel The LAN port is where you connect RJ-45 cable to Synology DiskStation.

8) Power Port Back Panel The power port is where you connect the AC power adapter to

Synology DiskStation.

5 Chapter 1: Before You Start

Safety Instructions

Keep away from direct sunlight and away from chemicals. Make sure the environment does not

experience abrupt changes in temperature or humidity.

Keep Synology product upright. Do not lay it down horizontally.

Do not place the Synology product close to any liquid.

Before cleaning, unplug the power cord first. Wipe Synology product with damp paper towels. Do

not use chemical or aerosol cleaners to clean it.

Do not place the Synology product on a cart, table, or desk, which is not stable to avoid the

product from falling over.

The power cord must plug in to the right supply

voltage. Make sure that the supplied AC voltage

is correct and stable.

To remove all electrical current from the device, ensure that all power cords are disconnected

from the power source.

Chapter

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation

A screwdriver

At least one 3.5” or 2.5” SATA hard disk

(Please visit www.synology.com for compatible hard disk models.)

Warning: If you install a hard disk that contains data, the system will format the hard disk and erase all data. If you

need the data in the future, please back it up before installation.

Install Hard Disks

1 Remove the four screws fixed on the back cover.

2 Put the back cover down carefully.

7 Chapter 2: Hardware Setup

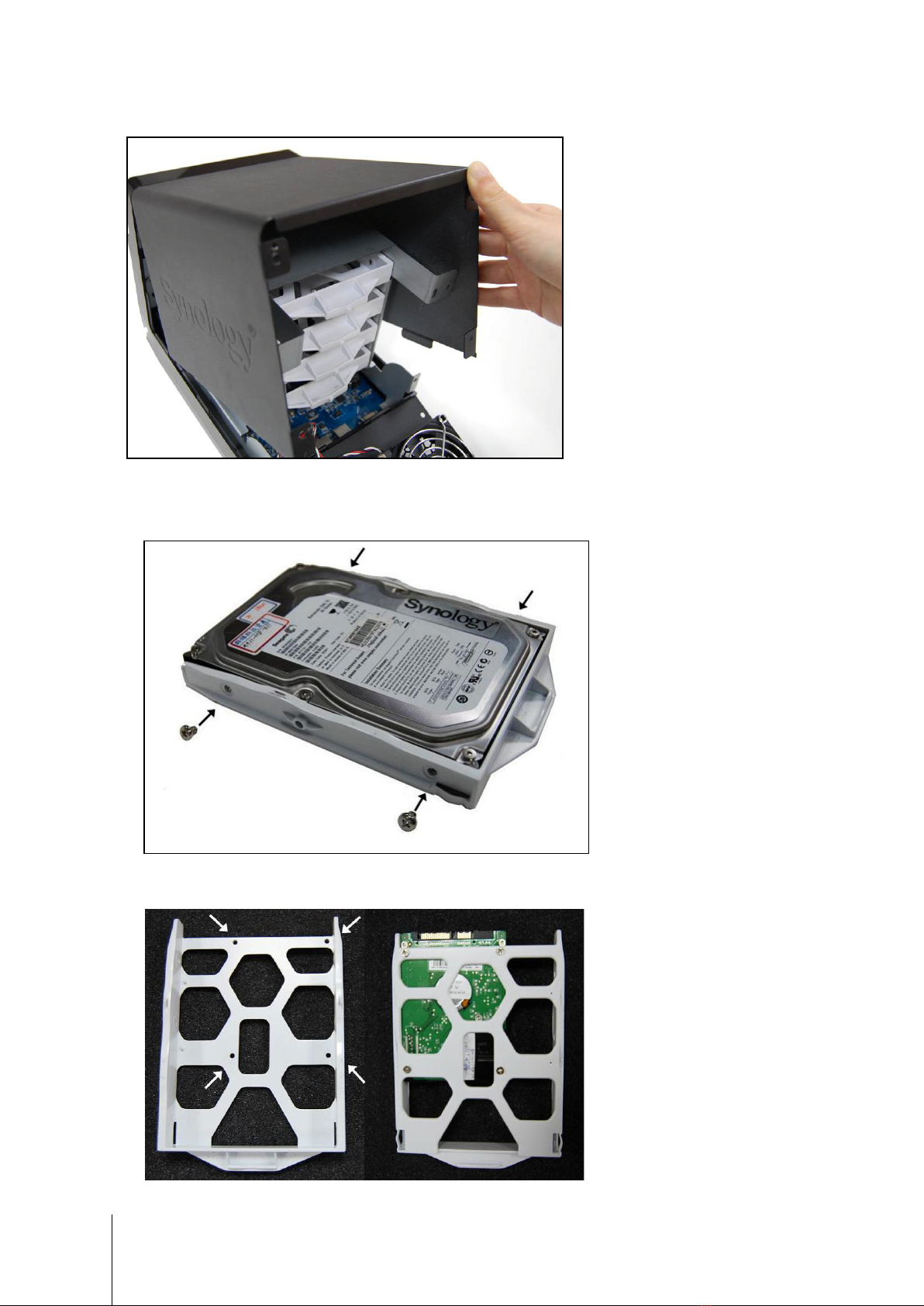

3 Lift the upper case and then pull it out.

4 You will see four hard disk trays. Pull one hard disk tray out.

If you are using 3.5” hard disks, place the hard disk into the hard disk tray. Secure the hard disk on the two

sides with the 4 screws (for securing 3.5” hard drives) provided.

If you are using 2.5” hard disks, align the hard disk with the 4 smaller holes on the hard disk tray, and secure

the hard disk from the bottom with the screws (for securing 2.5” hard drives) provided.

8 Chapter 2: Hardware Setup

5 Put the hard disk tray back in the DiskStation and repeat step 4 for each hard disk. Make sure the hard disk

trays are pushed all the way to the back.

6 If you are using 3.5" hard disks, tighten the screws to secure the hard disk tray in place.

9 Chapter 2: Hardware Setup

7 Place the upper case back to its position.

8 Attach the cable lock to the corresponding hole above the power port on the back cover. Make sure the cable

lock is hooked on the inner side of the back cover.

9 Close the back cover and fix it with the four screws.

10 Chapter 2: Hardware Setup

Turn on Server

1 Connect the AC adapter to the power port, fix the cable to the cable lock, and then plug the power cord into a

power socket.

2 Use the LAN cable to connect DiskStation to your switch/router/hub.

3 Press and hold the power button to turn on your DiskStation.

–

Your DiskStation is now online and detectable from a network computer.
