Synology DS2413+ Bedienungsanleitung

Synology DiskStation DS2413+

Quick Installation Guide

Synology_QIG_DS2413+_20120423

Table of Contents

Chapter 1: Before You Start

Package Contents .............................................................................................................................................................. 3

Synology DiskStation at a Glance.................................................................................................................................... 4

Safety Instructions .............................................................................................................................................................. 5

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation....................................................................................................................... 6

Install Hard Disks................................................................................................................................................................ 6

Start Up Your DiskStation.................................................................................................................................................. 9

Add a RAM Module on DiskStation................................................................................................................................ 10

Chapter 3: Install DSM on DiskStation

Install from Windows ........................................................................................................................................................ 12

Install from Mac OS X ...................................................................................................................................................... 14

Install from Linux............................................................................................................................................................... 14

Learn More ........................................................................................................................................................................ 16

Appendix A: Specifications

Appendix B: LED Indication Tables

Chapter

Chapter 1: Before You Start

Before you start setting up DiskStation, please check the package contents to verify that you have received the

items below. Please also read the safety instructions carefully before use to prevent your DiskStation from any

damages.

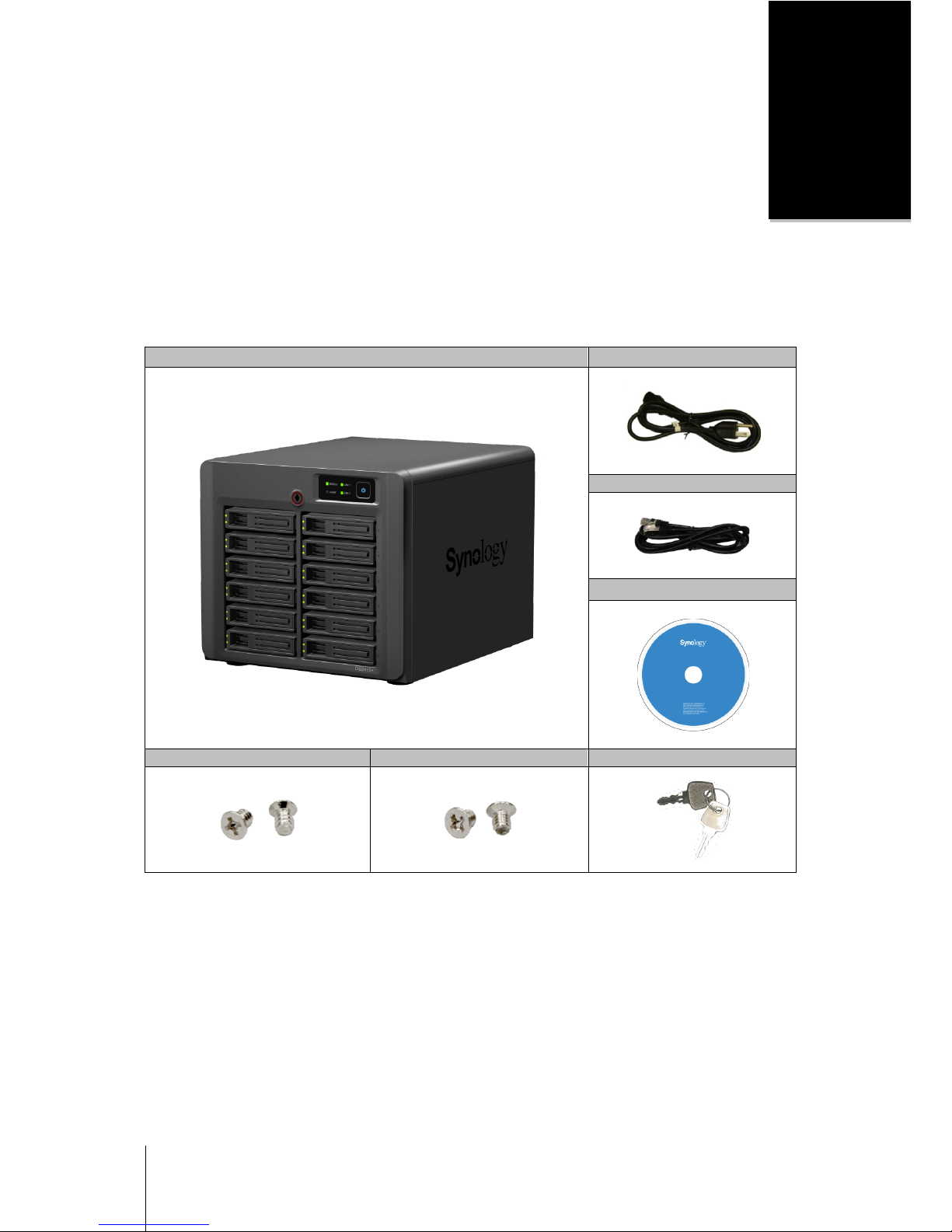

Package Contents

Main Unit x 1 AC power cord x 1

RJ-45 LAN cable x 2

Installation disc x 1

Screws for 3.5" hard drives x 52 Screws for 2.5" hard drives x 52 Hard drive tray key x 2

4 Chapter 1: Before You Start

Synology DiskStation at a Glance

No. Name Location Description

1) Power Button Front Panel

The Power Button is used to turn Synology DiskStation on or off.

To turn off Synology DiskStation, press the Power Button and hold it until you

hear a beep sound and the Power LED starts blinking.

2) LED Indicators Front Panel

The LED indicator is used to display the status of the internal disk and the

system. For more information, see "Appendix B: LED Indication Tables" on

Page 18.

3) Hard Drive Tray

Lock Front Panel The hard drive tray lock is designed for locking/unlocking the trays to the

DiskStation.

4) Hard Drive Tray Front Panel The hard drive tray is designed for loading the hard drives used in

Synology DiskStation.

5) RESET Button Back Panel 1.To restore IP, DNS, passwords for the admin account to default value.

2.To reinstall the Synology DiskStation.

6) Expansion Port Back Panel The Expansion port is used to connect Synology Expansion Unit1

Synology DiskStation.

7) Fan Back Panel The fan is built to exhaust waste heat out of Synology DiskStation. If the fan is

malfunctioning, the system will play beep sounds.

8) USB 3.0 Ports

Back Panel The Synology DiskStation offers USB ports for adding additional external hard

drives, USB printers, or other USB devices.

9) USB 2.0 Ports

10) Console Port Back Panel This port is used for manufacturing use only.

11) LAN Ports Back Panel The LAN port is where you connect RJ-45 cable to Synology DiskStation.

12) Power Port Back Panel The power port is where you connect the power cord to Synology DiskStation.

---------

1Synology Expansion Unit is supported on certain DiskStations only.

5 Chapter 1: Before You Start

Safety Instructions

Keep away from direct sunlight and away from chemicals. Make sure the environment does not

experience abrupt changes in temperature or humidity.

Do not place the Synology product close to any liquid.

Before cleaning, unplug the power cord first. Wipe Synology product with damp paper towels. Do

not use chemical or aerosol cleaners to clean it.

Do not place the Synology product on a cart, table, or desk, which is not stable to avoid the

product from falling over.

The power cord must plug in to the right supply voltage. Make sure that the supplied AC voltage

is correct and stable.

To remove all electrical current from the device, ensure that all power cords are disconnected

from the power source.

Chapter

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation

A screwdriver

At least one 3.5” or 2.5” SATA hard disk

(Please visit www.synology.com for compatible hard disk models.)

Warning: If you install a hard disk that contains data, system will format the hard disk and erase all data. If you need

the data in the future, please back it up before installation.

Install Hard Disks

1 Insert the hard drive tray key into the hard drive tray lock, and turn the key 90˚clockwise (to the Unlock

position) to unlock the handles of the hard drive trays.

2 Pull the hard drive tray handle in the direction as indicated below to remove the hard drive tray.

7 Chapter 2: Hardware Setup

3 Load the hard disk in the hard drive tray.

For 3.5” Hard Disk: Place the hard disk in the hard drive tray, turn the tray upside down, and then tighten

the screws to secure the hard disk.

For 2.5” Hard Disk: Place the hard disk in the blue area (shown below) of the hard drive tray, turn the tray

upside down, and then tighten the screws to secure the hard disk.

4 Insert the loaded hard drive tray into the empty hard disk bay.

Important: Make sure the tray is pushed in all the way. Otherwise, the hard disk might not be able to function

properly.

5 Push the hard drive tray handle to secure the hard drive tray.

8 Chapter 2: Hardware Setup

6 Turn the hard drive tray key 90˚counter-clockwise (to the Lock position) to lock the handles of the hard drive

trays.

7 Repeat the steps above to assemble all hard disks you have prepared.

8 The disks’ positions are numbered as shown below.

Note: If you want to set up a RAID set, it is recommended that all installed hard disks are of the same size to make

the best use of hard disk capacity.

9 Chapter 2: Hardware Setup

Start Up Your DiskStation

1 Connect one end of the power cord to the power port of DiskStation, and the other to the power outlet. Make

sure the power supply on/off switch is switched to "-".

2 Use the LAN cable to connect DiskStation to your switch/router/hub.

3 Press and hold the power button to turn on your DiskStation.

Your DiskStation is now online and detectable from a network computer.

10 Chapter 2: Hardware Setup

Add a RAM Module on DiskStation

Synology RAM module 1GB/2GB is designed for DiskStation memory expansion, and is optional for your choice.

Follow the steps below to install, check, or remove your RAM module.

Install the RAM Module

1 Press and hold the power button until you hear a beep sound to shut down your DiskStation. Disconnect all

cables connected to your DiskStation to prevent any possible damages.

2 Remove the 2 screws that secure the side cover. Then remove the cover and place it aside.

Important: When you pull out the cover, you expose sensitive internal components. Avoid touching anything other

than the memory assembly when you remove or add memory.

3 Insert the new memory module in the slot:

a Align the notch on the gold edge of the module with the notch in the lower memory slot.

b Tilt the card and push the memory into the slot. Make sure the module is pushed in all the way.

c Use two fingers with firm, even pressure to push down on the memory module. You should hear a click

when the memory is inserted correctly.
