Taurus LAT PULLDOWN IT95 Bedienungsanleitung

Owner‘s Manual

LAT

PULLDOWN IT95

TF-IT9502

TAURUS® is a registered brand of the company Sport-Tiedje GmbH.

Table Of Contents

CAUTION!

Read all precautions and instructions in this manual before using this equipment.

Please assemble according to the actual Weights you buy !

Important Safety Instructions----------------------------------------------------------- 3

Instructions-------------------------------------------------------------------------------- 5

Exploded View and Parts List------------------------------------------------------------ 6

Measurement Guide--------------------------------------------------------------------- 18

Assembly Instructions------------------------------------------------------------------ 19

Assembly--------------------------------------------------------------------------------- 20

Adjust Instructions---------------------------------------------------------------------- 31

Exercise Instructions-------------------------------------------------------------------- 32

Maintenance Schedule------------------------------------------------------------------ 33

General Maintenance Information----------------------------------------------------- 34

Weight Training Tips-------------------------------------------------------------------- 35

Important Safety Instructions

Before beginning any fitness program, you should obtain a complete physical

examination from your physician. When using exercise equipment, basic

precautions should always be taken, including the following:

1. Read all instructions before using the equipment.

These instructions are written to ensure your safety and to protect the unit.

2. Use the equipment only for its intended purpose as described in this guide.

Do not use accessory attachments that are not recommended by the

manufacturer: such attachments might cause injuries.

3. The product should only be used on a level surface and is with 0.5 meters

space around the product.

Do not use the equipment outdoors.

4. Do not allow children on or near the equipment. And children are not allowed

to use this equipment.

Teenagers should use this equipment with adult supervision.

5. Do not overexert yourself or work to exhaustion.

Do not attempt to lift more weight than you can control safely.

If you feel any pain or abnormal symptoms, stop your workout immediately

and consult your physician.

6. This equipment is not used as medical apparatus and instruments.

7. Never operate the unit when it has been dropped or damaged.

Never drop or insert anything into any opening in the equipment.

Always check the unit and its cables before each use. Make sure that all

fasteners and cables are secure and in good working condition.

Frayed or worn cables can be dangerous and may cause injury. Periodically

check these cables for any indication of wear.

Keep hands, limbs, loose clothing and long hair well out of the way of moving

parts.

8. Be careful when getting on or off the equipment.

9. Wear proper exercise clothing and shoes for your workout, no loose clothing.

Specifications

Class: S

Maximum Wt. Capacity: 134kg/ 295lbs

Maximum User Weight: 150kg/ 330lbs

Product Total Surface: 1440*1384mm

Product Total Mass: 147.7kg/ 326lbs

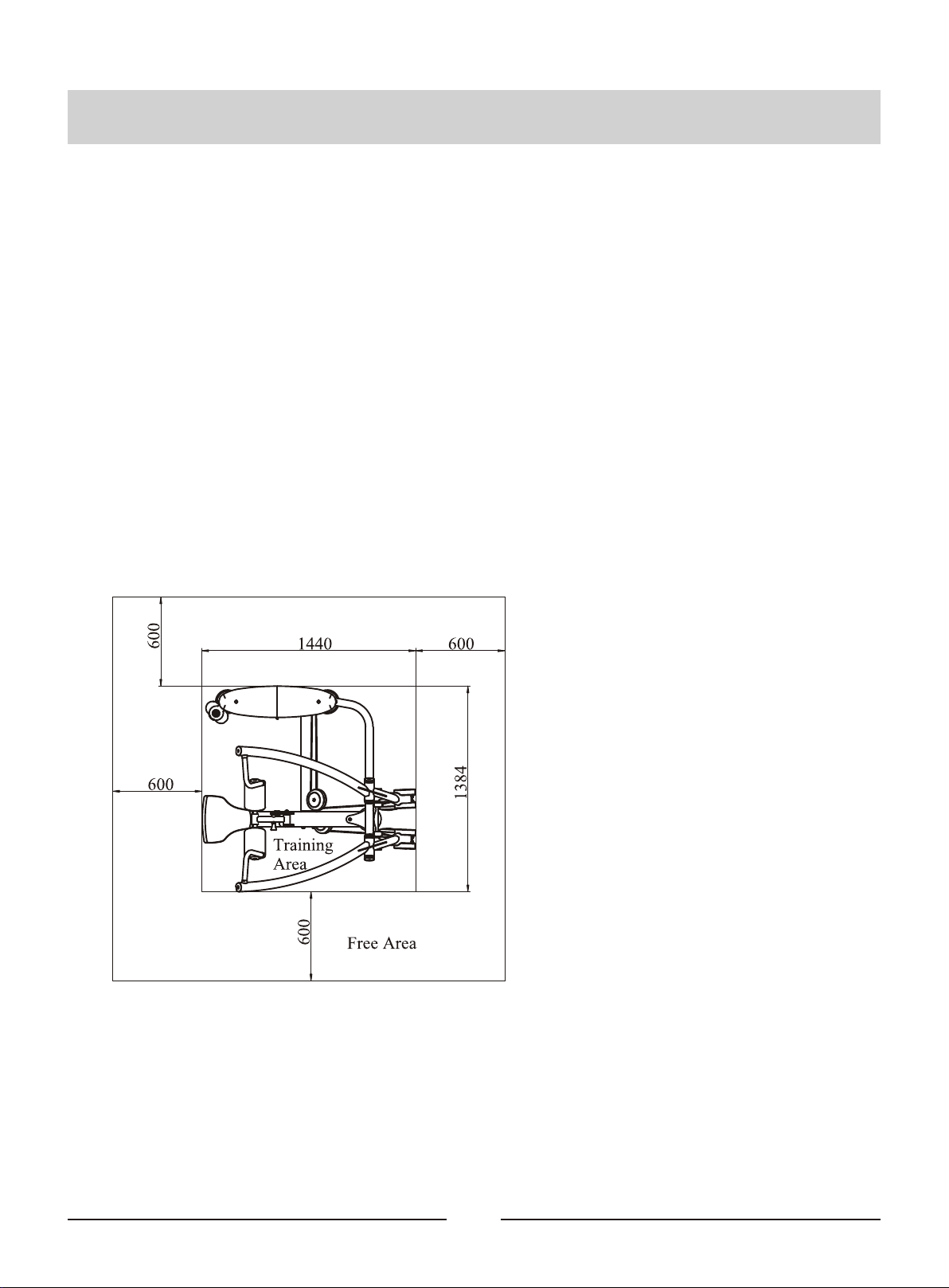

Training Area and Free Area

Important Safety Instructions

Personal Safety During Assembly

Read each step in the assembly instructions and follow the steps in sequence.

Do not skip ahead. If you skip ahead, you may learn later that you have to

disassemble components and that you may have damaged the equipment.

Assemble and operate the equipment on a solid, level surface. Locate the unit

a few feet from walls or furniture to provide easy access. The equipment is

designed for your enjoyment. By following these precautions and using

common sense, you will have many safe and pleasurable hours of healthful

exercise with the equipment.

Instructions

Tools Required

The equipment is designed to provide the smoothest, most effective exercise

motion possible. After assembly, you should check all functions to ensure correct

operation. If you experience problems, first recheck the assembly instructions to

locate any possible errors made during assembly. If you are unable to correct the

problem, call your authorized dealer. Be sure to have your serial number and this

manual when calling. When all parts have been accounted for, continue on.

Ratchet Wrench and Socket

Adjustable Wrench

Rubber Mallet

Hex Key Wrench Set

Phillips Screwdriver

Before beginning assembly please take the time to read instructions thoroughly.

Please use the various lists in this manual to make sure that all parts have been

included in your shipment. When ordering, use part number and description from

the lists. Use only our replacement part when servicing. Failure to do so will void

your warranty and could result in personal injury.

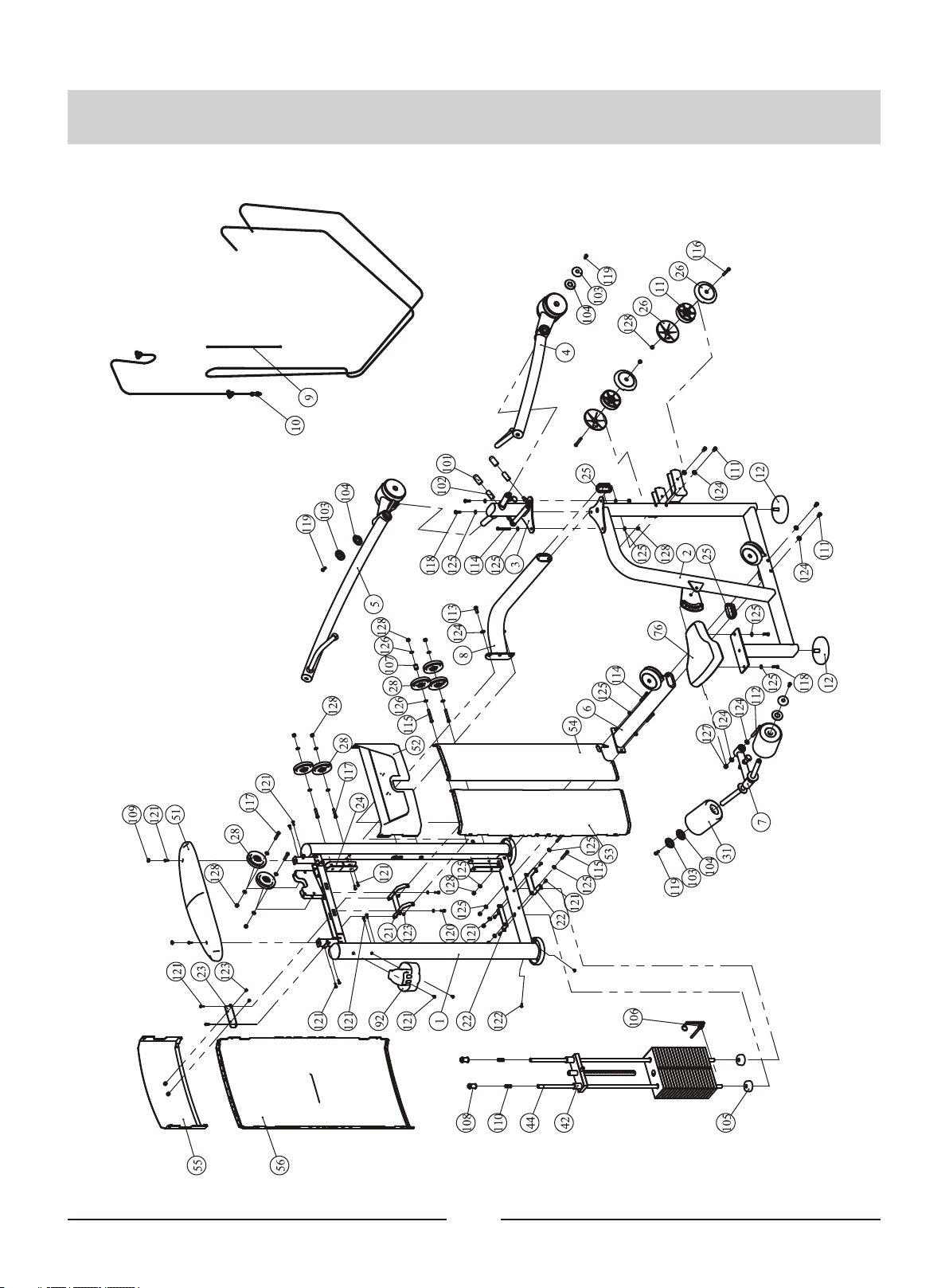

Exploded View and Parts List

Overall

Item No. Grade No. Part No. Description QTY

1 1 IT950101A SSY Weight Stack Frame ASSY 1

2 2 IT950201A SSY Front Frame ASSY 1

3 3 IT950202V1A SSY Top Connection Fram e A SSY 1

4 4 IT950203V1A SSY Right Arm Frame ASSY 1

5 5 IT950204V1A SSY Left Arm Fram e A SSY 1

6 6 IT950205A SSY Bottom Cross Brace ASSY 1

7 7 IT950206A SSY FOA M Fram e A SSY 1

8 8 IT9505030 0 Rear Connection Frame 1

9 9 IT9502070 0 DIP Cable 1

10 10 IT9512080 0 Tension Cable ASSY 1

11 11 PL9 010 1200 V-type Pulley 2

12 12 SD10 00B300 0AS SY Adjustable Foot Plate 2

13 21 IT950121A SSY Top Bracket ASS Y 1

14 22 IT950122A SSY Bottom Bracket ASSY 2

15 23 IT9501230 0 Rear Bracket 1

16 24 IT9501240 0 Double Pulley Bracke t 1

17 25 IT9501600 0 Plastic C over 2

18 26 IT9501640 0 Pulley Cover 4

20 28 SG500 110 400V5 4.5 " Pulley 7

21 31 IE9502 21A SSY Shot FOA M AS SY 2

22 42 IT9501420 0 Top Plate 1

23 44 IT9501440 0 Guide Rod Φ19 *124 2 2

24 51 IT9501510 0 Top Cov er 1

25 52 IT9501520 0 Training Placard Cover 1

26 53 IT9501530 0 Front Shroud 1

27 54 IT9501540 0 Right Front Shroud 1

28 55 IT9501550 0 Top Rear Shroud 1

29 56 IT9501560 0 Rear Shroud 1

30 76 IT9501760 0 Seat Pad 1

31 92 IT8012103 00P11C Cup Holder 1

Exploded View and Parts List

Overall

Item No. Grade No. Part No. Description QTY

32 101 FE97 011 3100 Cable Connector Jacket 2

33 102 FE97 011 3200 Cable Connector 2

34 103 FE97 211 900 Cap Φ60 4

35 104 FE97 212 000 Circle Ring Φ62.5 *5 4

36 105 IT8002300 0 Weight Rubber Bum per 2

37 106 IT9001200 0V1 Selector Pin W /Coil 1

38 107 FE97 193 400 Pulley Spacer 1

39 108 IT9501610 0 Guide Rod Fixing Sleeve Φ25*Φ1 9*45 2

40 109 IT9501650 0 Spout Plug Φ1 6.5*6 .88 2

41 1 10 HFOP T900 -04A 0602 Spring 2

42 111 GB7 0BTM12 *135 DN18 Socket Head Cap Screw M12 *135 4

43 112 GB7 0BTM12 *105 DN18 Socket Head Cap Screw M12 *30 1

44 113 GB7 0BTM12 *30DN18 Socket Head Cap Screw M10 *80 2

45 114 GB7 0BTM10 *80DN18 Socket Head Cap Screw M10 *80 3

46 115 GB7 0BTM10 *75DN18 Socket Head Cap Screw M10 *80 4

47 116 GB7 0BTM10 *70DN18 Socket Head Cap Screw M10 *80 2

48 117 GB7 0BTM10 *50DN18 Socket Head Cap Screw M10 *80 4

49 118 GB7 0BTM10 *30DN18 Socket Head Cap Screw M10 *80 4

50 119 GB7 0BTM10 *25DN18 Socket Head Cap Screw M10 *80 4

51 120 GB7 0M8 *20N19 Socket Head Cap Screw M8* 20 2

52 121 GB8 18M 6*20 DHS2 Cross Recessed Pan Head S crew M 6*1 6 18

53 122 GB8 18M 6*16 DHS2 Cross Recessed Pan Head S crew M 6*1 6 4

54 123 GB8 18M 6*10 DHS2 Cross Recessed Pan Head S crew M 6*1 6 4

55 124 GB9 512 DN2 Flat Was her Φ13* Φ24*2 .5 8

56 125 GB9 510 DN2 Flat Was her Φ11* Φ20*2 2 8

57 126 GB9 58DN2 Flat Was her Φ9*Φ1 6*1. 6 2

58 127 NM12 DN2 Nylon Lock Nut M12 1

59 128 NM10 DN2 Nylon Lock Nut M10 15

60 129 NBS6DHS Hex Key S=6 1

61 130 NBS8DHS Hex Key S=8 1

62 131 LW 200BS Wrench Φ6*117 1

63 132 YHY Lube 1

Exploded View and Parts List

Overall

Exploded View and Parts List

Weight Stack Frame ASSY

Item No. Grade No. Part No. Description QTY

1 1.1 IT95010100 Weight Stack Frame 1

2 1.2 GB17880.5M6*16.5DS17 Rivet Nut M6 14

3 1.3 AC32705800 U-nut M6 4

4 1.4 IT95015700 Foot Plate 2

5 1.5 IT95015900 Plastic Block 2

6 1.6 IT95015800 Plug Φ95*81.1 2

7 1.7 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 2

Exploded View and Parts List

Front Frame ASSY

Item No. Grade No. Part No. Description QTY

1 2.1 IT95020100 Front Frame 1

2 2.2 IT95057800 4.5" Pulley 1

3 2.3 IT95016400 Pulley Cover 1

4 2.4 IT90021100 Lining Board 1

5 2.5 FE97122100 Pulley Spacer 1 1

6 2.6 IN-S10111200 Rubber Sleeve Φ17*10.5 2

7 2.7 GB70BTM10*25DN18 Socket Head Cap Screw M10*25 1

8 2.8 GB70M8*20DS20 Socket Head Cap Screw M8*20 2

9 2.9 DQ10N19B Flat WasherΦ11*Φ25*2 1

10 2.10 GB958DN2 Flat Washer Φ9*Φ16*1.6 2

11 2.11 NM8DN2 Nylon Lock Nut M8 2
