S E L E C T I O N

T H E S T R E N G T H E V O L U T I O N

Cable Jungle

User manual

All equipment

Cable Jungle

Contents

Identification of the manufacturer and equipment ............................ 3

Description of the equipment............................................................ 4

Technical data ................................................................................... 5

Safety devices and warnings ............................................................ 6

Place of installation ........................................................................... 8

Lifting and moving the equipment..................................................... 9

Assembly......................................................................................... 11

Anchoring to the floor...................................................................... 19

Fitting the number holder ................................................................ 21

Routine maintenance ...................................................................... 22

Replacing the padded parts............................................................ 23

Replacing the cables....................................................................... 24

Replacing the spring hook .............................................................. 29

Technical Service............................................................................. 30

Storage............................................................................................ 31

Disposal........................................................................................... 32

Using the equipment ....................................................................... 33

User manual ...................................................................................... 1

Contents............................................................................................ 2

Cable Jungle

B C F

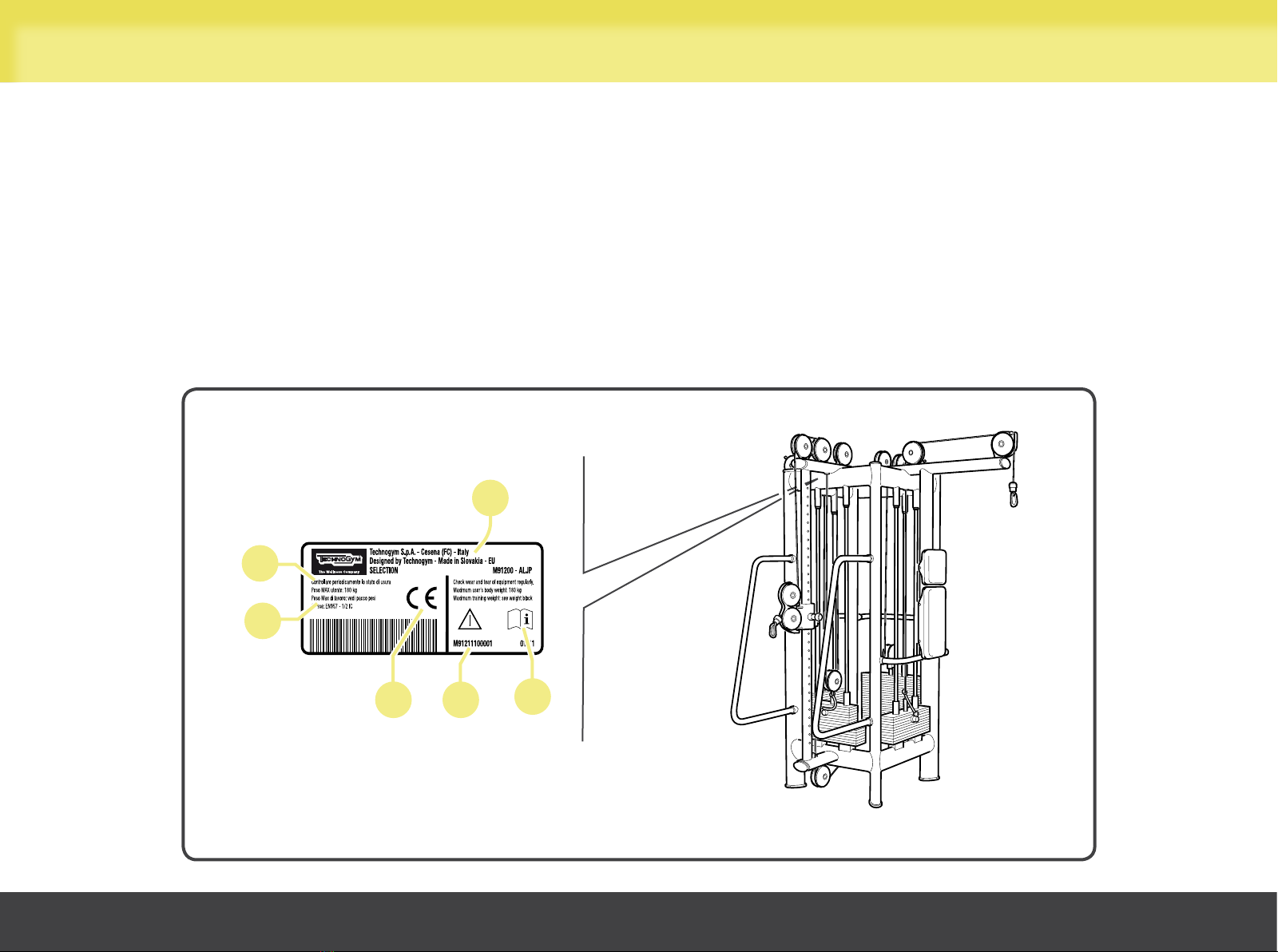

Identification of the manufacturer and equipment

The equipment and manufacturer identification plate, fixed to the upper inside part of the frame, gives the following details:

AManufacturer's name and address

BCE Mark

CSerial number

DMaximum user weight

EEquipment classification

FConsultation of user manual required

Cable Jungle

Description of the equipment

A Frame: load-bearing structure of the equipment. The user stands in front of any of the four sides of the frame to perform the

exercises. On sides 2and 4there are high pulleys; on side 1there is an adjustable output pulley; on side 3there is a low pulley

and a high pulley.

B Adjustable cable outlet: adjust height using knob (D).

C Weight stacks: each pulley, operated by the user, moves the weights along two guide rails by means of a cable. A pin (E) is used

to select the workload, to adjust the exercise effort level.

Cable Jungle

2 1

1918 mm

(76")

2290 mm

(90")

1679 mm

(66")

Technical data

518 kg (1142 lb)

250 kg (100 lb) 155 kg (110 lb). Effective handgrip workload: 27.5 kg (55 lb)

470 kg (140 lb) 3100 kg (200 lb). Effective handgrip workload: 50 kg (100 lb)

Cable Jungle

Safety devices and warnings

The maximum user weight is 180 kg.

The equipment has no sharp corners.

All parts which come into contact with the user's body are suitably protected with rubber coverings or padding.

Pay particular attention to the parts of the equipment with labels indicating “BEWARE OF

CRUSHING”.

This symbol accompanies safety warnings. It is used to draw attention to potential risks of personal injury. Pay attention

to all safety warnings accompanied by this symbol to avoid possible injury.

WARNING

During all operations involving transport, maintenance and cleaning, pay attention to any part of the equipment where

body parts may become trapped.

Cable Jungle

Safety devices and warnings

WARNINGS

Attention must be paid to the labels attached to the equipment, as they provide

information about possible risks and hazards.

We recommend immediately replacing the labels when they become damaged or difficult

to read.

67 x 259

WARNING

SERIOUS INJURIES CAN OCCUR

ON THIS EQUIPMENT. YOU MUST

ALWAYS TAKE THE FOLLOWING

PRECAUTIONS TO AVOID INJURY!

Before using the equipment, read all the

warnings and all the instructions. Be

certain on the use of the equipment.

Use the equipment only for its intended use.

Do NOT modify the equipment.

Always consult with a qualified and

licensed medical professional before

starting any exercise program.

If you feel any pain or abnormal symptoms,

stop your workout immediately and consult

your physician.

Keep body, hair and clothing away from all

moving parts.

Check the equipment before use.

Do not use the equipment if you see signs

of wear or damages. In this case notify the

staff immediatley.

Before using the equipment check that the

cables are correctly routed inside the races

of all the pulleys, and check the state of

wear of the cables and their connections.

If you see signs of wear, notify the staff

immediatley.

Be certain that the weight pin is completely

inserted. Use only the pin provided by the

manufacturer. If unsure, seek assistance.

Never pin the weights in an elevated

position. DO NOT use the equipment if found

in this condition. Seek assistance from floor

staff.

Do not use attachments not recommended

by the manufacturer.

Do not allow children unsupervised access

to the equipment. Close supervise

teenagers.

DO NOT REMOVE THIS LABEL.

REPLACE IF DAMAGED.

ENG

WARNING

Before use be certain that the equipment

is secured to the wall or to the floor.

If not, notify the staff immediatley.

If unsure, seek assistance.

Cable Jungle

Place of installation

To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements;

in particular, before choosing where to install the equipment we recommend that you check that the following conditions are available:

- a temperature between +10°C and +25°C;

- sufficient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;

- sufficient lighting to make the area a safe and relaxing place to exercise;

- sufficient clearance on all sides of the equipment, taking into account its maximum dimensions when in use, to ensure safety;

- a flat, stable and vibration-free floor surface, with sufficient load bearing capacity for the equipment’s weight.

If the equipment is to be installed in a public recreation area, the place of installation must comply with all the requirements of the

regulations currently in force.

WARNINGS

The equipment must be installed and used in a place where access and supervision are specifically controlled by the

owner.

When installing the equipment, use suitable personal protective equipment.

Cable Jungle

01083016

Lifting and moving the equipment

Use the four castor wheels (optional) to move the equipment.

If the equipment has already been anchored to the floor, it needs to be released

from the anchorage and its original feet refitted: follow the instructions in the

paragraph describing anchoring to the floor in reverse order.

WARNING

Move the equipment very carefully, because it may become unstable

and tip over.

The castors for moving the equipment snap on underneath the feet of the

equipment, after it has been raised, and are held in place by the special straps.

Raise the equipment using a pallet truck or fork-lift truck; and for greater safety

place a wedge under the frame to keep the equipment raised.

WARNING

We recommend placing padded material between the frame and the

wedge and between the frame and the machinery used to lift it.

Fit two of the wheels: fit the castor stems (A) into the holes provided under the

equipment feet, then push hard until they snap in.

Cable Jungle

Proceeding in the same way, lift the equipment from the other side and insert

the other two wheels.

Lastly, lift the equipment again, remove the safety wedges and place the wheels

on the floor.

WARNINGS

Do not use the equipment with the castors fitted. The castors are to

be used only for moving the equipment and must be removed before

exercising on it. After moving the equipment, it must be anchored to

the floor before use.

Lifting and moving the equipment
