Technogym Selection Cables Crossed Bedienungsanleitung
S E L E C T I O N
T H E S T R E N G T H E V O L U T I O N
1
Cables Crossed
User manual
All equipment
2
Cables Crossed
Contents
Identification of the manufacturer and equipment ............................ 3
Description of the equipment............................................................ 4
Technical data ................................................................................... 5
Safety devices and warnings ............................................................ 6
Assembling the number holder ......................................................... 8
Place of installation ........................................................................... 9
Lifting and moving the equipment................................................... 10
Adjusting the equipment ................................................................. 12
Assembling the equipment.............................................................. 13
Securing the equipment .................................................................. 15
Removing the pulley mount............................................................. 19
Routine maintenance ..................................................................... 20
Replacing the cable......................................................................... 21
Replacing the spring hook .............................................................. 22
Technical Service............................................................................. 23
Storage............................................................................................ 24
Disposal........................................................................................... 25
Using the equipment ....................................................................... 26
3
D
E
A
B C F
Cables Crossed
Identification of the manufacturer and equipment
The equipment and manufacturer identification plate, placed behind frame bar, gives the following details:
AManufacturer’s name and address
BCE Mark
CSerial number
DMaximum user weight
EEquipment classification
FConsultation of user manual required
4
F
B
AE
D
C
A
C
D
Cables Crossed

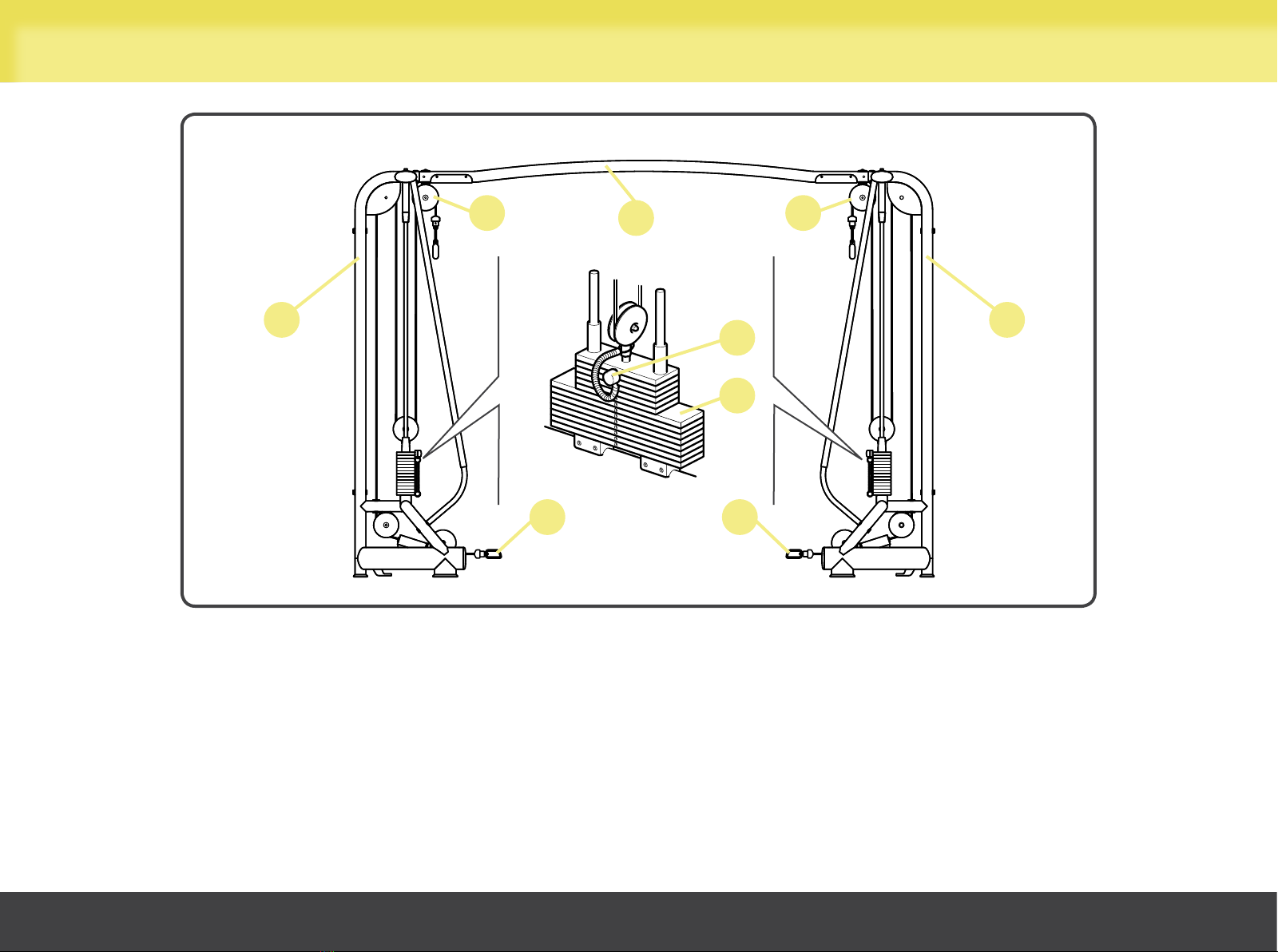

Description of the equipment
A Frame: load-bearing structure of the equipment.
B Weight stack: each pulley, i.e. high (C) or low (D), operated by the user, moves the weights along two guides by means of a cable.
A pin (E) is used for selecting the load, to adjust the exercise effort level.
F Beam: the component connecting the two frames.
5
2308 mm
(91")
3213 mm
(127")
686 mm
(27")
275 kg (606 lb)
Cables Crossed
Technical data
6
Cables Crossed
Safety devices and warnings
The maximum user weight is 180 kg (397 lb).
The equipment has no sharp corners.
All parts which come into contact with the user’s body are suitably protected with rubber coverings or padding.
Pay particular attention to the parts of the equipment with labels indicating “BEWARE OF
CRUSHING”.
This symbol accompanies safety warnings and is used to draw attention to potential risks of personal injury. Pay attention
to all safety warnings accompanied by this symbol to avoid possible injury.
WARNING
During all operations involving transport, maintenance and cleaning, pay attention to any part of the equipment where
body parts may become trapped.
7
Cables Crossed
Safety devices and warnings
WARNINGS
Attention must be paid to the labels attached to the equipment, as they provide
information about possible risks and hazards.
We recommend immediately replacing the labels when they become damaged or difficult
to read.
8
B
A
Cables Crossed

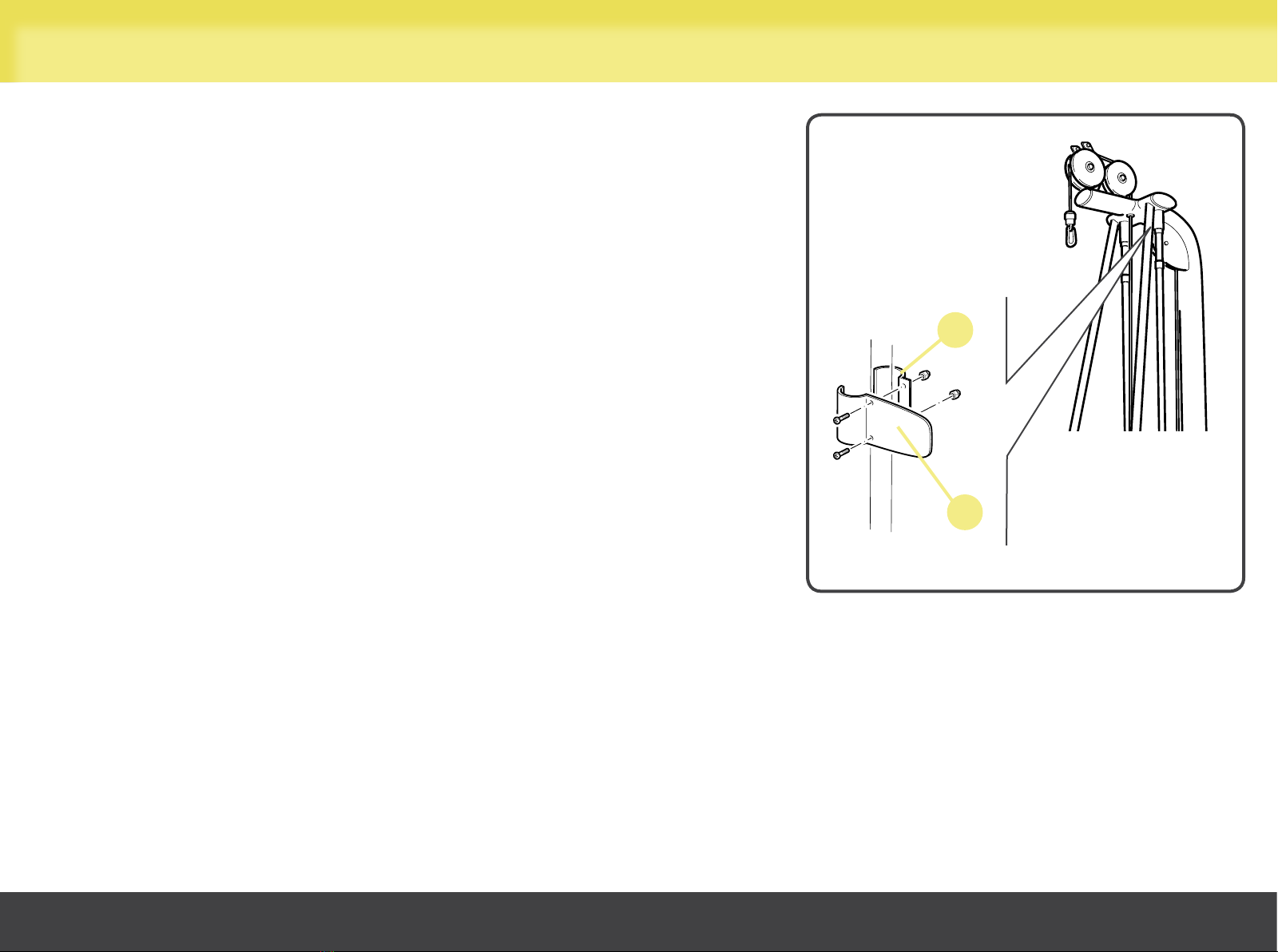

Assembling the number holder
The number holder must be assembled immediately underneath the beams:
standing facing the equipment, affix the number holder on the left tube supporting
the guide, so that it is flush with the rubber stop of the guide.
The number holder is divided into two pieces: the larger section (A) goes on the
front, while the crescent closure (B) goes on the back of the equipment.
Insert the two screws (M5x6 Z) from the front of the equipment, mating them with
the two M5 cap nuts at the rear; then lock down using the appropriate spanners.
The number holder is optional.
9
Cables Crossed
Place of installation
To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements;
in particular, before choosing where to install the equipment we recommend that you check that the following conditions are available:
- a temperature between +10°C and +25°C;
- sufficient ventilation to maintain a humidity level between 20% and 90%, when the equipment is in use;
- sufficient lighting to make the area a safe and relaxing place to exercise;
- sufficient clearance on all sides of the equipment, taking into account its maximum dimensions when in use, to ensure safety;
- a flat, stable and vibration-free floor surface, with sufficient load bearing capacity for the equipment’s weight.
If the equipment is to be installed in a public recreation area, the place of installation must comply with all the requirements of the
regulations currently in force.
WARNINGS
The equipment must be installed and used in a place where access and supervision are specifically controlled by the
owner.
When installing the equipment, use suitable personal protective equipment.
10
Cables Crossed
Lifting and moving the equipment
Before moving the equipment, firstly release it from the fastening and remove the
fastening beam (follow the instructions for assembling, in reverse order).
To move the equipment it is necessary to use three wheels: two fixed wheels and
one castor wheel.
WARNING
Move the equipment with great care to avoid it tipping over.
The wheels for moving the equipment snap on underneath the feet of the
equipment, after it has been lifted, and are held in place by the special straps.
Lift the equipment from the weight stack side using a transpallet or lift truck.
WARNING
Insert a rigid board between the equipment and the transpallet forks.
