IU_TechMaster_04_eng 3 of 27

User instructions

TechMaster

Table of contents

COMPANY 2

TABLE OF CONTENTS 3

IMPORTANT NOTES! 5

GENERAL INFORMATION 6

OVERVIEW FUNCTIONS 9

OPENING THE LOCKS 10

USERS (OR OVERRIDE USERS): OPENING WITHOUT TIME DELAY 10

USERS: OPENING WITH TIME DELAY 10

MANAGER (OR OVERRIDE MANAGER): OPENING WITHOUT TIME DELAY 10

MANAGER (OR OVERRIDE MANAGER): OPENING WITH TIME DELAY 10

OPENING WITH DYNAMIC CODES (DALLAS KEY OPTION) 11

OPENING WITH DYNAMIC CODES (PIN OPTION) 11

DUAL MODE OPENING WITHOUT TIME DELAY 12

DUAL MODE OPENING WITH TIME DELAY 12

MASTER MENU 12

TIME & DATE SETTINGS 12

TIME LOCK SETTINGS 13

WEEKLY TIME LOCK SETTINGS – ADDING NEW VALUES 13

WEEKLY TIME LOCK SETTINGS – VERIFY OR DELETE VALUES 14

CLOSING PERIODS (OFF DAYS) – ADD NEW VALUES 14

OPENING PERIODS - ADD NEW VALUES 15

OPENING PERIODS - VERIFY OR DELETE VALUES 16

PC CONNECTION 16

MANAGER MANAGEMENT 16

DYNAMIC CODES – ENABLING/DISABLING 17

DYNAMIC CODES ACTIVATION WITH STATIC CODES DELETING 17

MANAGER MENU 17

USERS MANAGEMENT 18

TIME DELAY 18

VARIABLE TIME DELAY – ADDING NEW VALUES 18

VARIABLE TIME DELAY – VERIFY OR DELETE VALUES 19

PC CONNECTION 19

OVERRIDE MANAGER MENU 20

OVERRIDE USERS MANAGEMENT 20

CODE CHANGING 20

CHANGE CODE FOR STANDARD AND OVERRIDE USERS 20

CHANGE CODE FOR MANAGER 21

CHANGE CODE FOR OVERRIDE MANAGER 21

4 of 27 IU_ TechMaster_04_eng

User instructions

TechMaster

CHANGE CODE FOR MASTER 21

TIME MENU 21

OPENING EXTENSION 22

IMMEDIATE TIME LOCK 22

CONFIGURATION MENU 22

INSTALL LOCKS 22

REMOVE LOCKS 23

LOCK RECLOSURE MODE 23

CONFIGURE I/O INTERFACE 24

REMOVE I/O INTERFACE 24

DISPLAY CONTRAST 24

KEYPAD LANGUAGE 24

MEMBRANE TEST 25

SYSTEM INFO 25

NOTES 25

CONTACTS 27

IU_TechMaster_04_eng 5 of 27

User instructions

TechMaster

Important notes!

 Before installing this product, please read carefully the installation and operating

instructions.

 Locks have been designed to correctly operate in a temperature range from -5°C to +

50°C and and in an environment with non-condensing humidity between 25% and 90%.

 The lock must not be oiled/lubricated/greased.

 If installed in normal domestic or office environments, the locks do not require

maintenance; in any case, after 10,000 opening/locking cycles, it is recommended to

run a test that verifies the correct and complete operation of the product.

 Use only DURACELL™ 9 Volt Alkaline batteries, or battery holders with DURACELL™ 1.5

Volt Alkaline batteries. Alternatively, it is possible to use a 12VDC - 1A power adapter

(p.n. N1212) with relative power supply interface (p.n. T6005/W or p.n. T6005).

 A long beep together with the message “LOW BATTERY” on the display, indicate a low

battery level which need immediate replacing.

 It is strongly recommended to change the default codes before the usage and to keep

safely the new codes.

 Do never use codes easy to be guessed such as 123456, birth dates or others, based on

own personal information.

 After changing a code, perform several opening/closing tests before closing the door.

Should the lock label be removed, warranty is void.

6 of 27 IU_ TechMaster_04_eng

User instructions

TechMaster

General information

Using your keypad

 Press any button to power up the keypad. LCD which shows: ENTER CODE

X X – X X X X X X

If more locks are installed, LCD shows:

Enter the lock number to select it.

SELECT LOCK

 To enter a code, power up the LCD and enter the

corresponding digits.

 LCD automatically switches OFF if no buttons are pressed

within 30s.

 To scroll the menu, press .

 To confirm an operation or enter a menu press .

 To leave a menu and come back to the main menu, scroll the

functions until “EXIT?” and press OK.

 To enter a code plus Dallas key (if set), enter the code digits

and insert the Dallas key in the keypad reader.

 To enter a user provided with Dallas key only (if set), insert the

Dallas key in the keypad reader. LCD shows:

DALLAS USER

 To start a time delay counting (if set), enter a code. LCD

shows:

TIME DELAY

00:59

 To stop a time delay counting, press and then confirm

with

STOP DELAY

COUNTING?

After time delay counting, LCD shows open window counting:

Press and enter a code for opening.

OPEN WINDOW

00:01

 If a wrong code is entered, LCD displays the message: WRONG CODE

 If a wrong dynamic/activation code is entered, LCD displays

the message:

WRONG DYNAMIC

CODE

IU_TechMaster_04_eng 7 of 27

User instructions

TechMaster

 If a dynamic/activation code is entered more than 30 minutes

before its beginning validity time, LCD shows:

WRONG DYNAMIC

CODE

 If a dynamic/activation code is entered more than 30 minutes

later than its beginning validity time, LCD shows: WRONG DYNAMIC

CODE

 To open or access the menu in dual mode (if set), enter the

first code. LCD shows:

Then, enter the second code.

ENTER 2° CODE

X X – X X X X X X

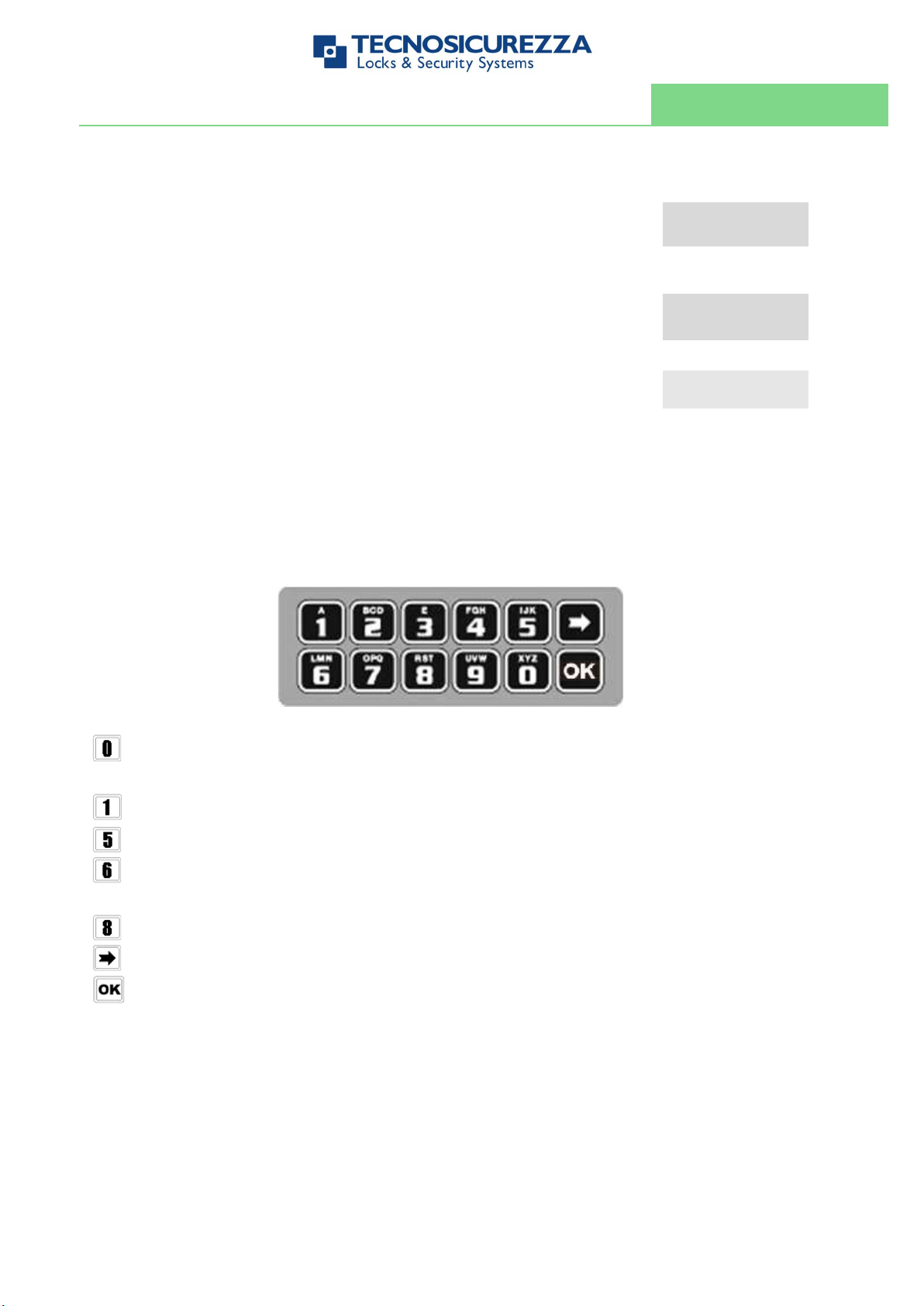

Shortcuts

Press and hold for 2 seconds the button related to the needed function:

= Change Manager code (01), users, override users, Master and Manager ovr (if

configured)

= PIN entering for dynamic codes (after dynamic codes activation)

= Test mode

= access to Manager menu, Manager ovr menu (if configured) Change code menu, Time

menu, Configuration menu and Master menu.

= System info and time and date info

= Exit and back to the main menu

= Master menu

User properties and default codes

Users can be set for opening with code only, code + Dallas key or with Dallas key only. It is also

possible to set a dual mode opening: in this case, entering the two users codes is required to

open the lock.

Default codes are:

Master: 1-2-3-4-5-6-7-8.

Manager: 123456.

8 of 27 IU_ TechMaster_04_eng

User instructions

TechMaster

Users from 02 to 90: 02-020202, 03-030303, and so on. They always open with time delay if

set.

Override users: thanks to the setup software, it is possible to configure users in between 10

and 90 (10-101010, 11-111111, and so on) as override users. They always open without time

delay.

The table below reports the main users functions.

Master Manager

Access to Master Menu

Set time and date

Set Time Lock periods

Audit download

Manager Management

Enable/disable OTCs

Change code

PC Link

Access to Manager Menu

Standard users management

Override users management

Set time delay

Set variable time delay

PC Link

Audit download

Opening

Code changing

Set opening extension

Set immediate time lock

Override manager Configuration menu

Access to Ovr. Manager menu

Override users management

Code changing

Install/remove locks

Set display contrast

Change language

Test mode

Check system Informations

Override users Standard users

Opening

Change code

Opening

Set opening extension, if enabled

Set immediate time lock, if enabled

Code changing

This user manual describes the standard programming. According such programming and

unless different requests while ordering the product, an opening can be performed by

entering single users codes (no dual mode) and without time delay. Thus, the user manual

must be adapted according the configuration selected.

It is strongly recommended to change the default codes before using the lock.

IU_TechMaster_04_eng 9 of 27

User instructions

TechMaster

Overview functions

Lock opening

After entering an opening code, it is possible to open the lock within 3 seconds. It’s no

necessary instead with motorized locks: in this case indeed, the motor moves the bolt which

remains in opening position for about 8 seconds before returning in closing position. In the

manual closing version instead, the bolt can be closed by pressing key for few seconds.

Penalty

Four consecutive wrong codes initiate a four minutes penalty time. During this period, LCD

shows the message “PENALTY” and no operation is allowed.

Time Delay

Programmable time delay in between 0 and 99 minutes. Programmable opening window in

between 1 and 19 minutes.

Dallas keys

It can be programmed for any lock. Available as option for Manager and users (not for

Master).

TechMaster keypad only works with Dallas keys created by TECNOSICUREZZA. Upon express

request, the keypad can be set in order to work also with different Dallas keys models.

Power supply

Lock can be powered with:

 an ALKALINE 9V battery located in the battery compartment below the keypad;

 an internal battery box provided by Tecnosicurezza (6 ALKALINE 1.5 batteries);

 A power adapter (ref. N1212) with power supply interface (ref. T6005/W or T6005)

both provided by Tecnosicurezza.

Low battery warning

A long beep together with the message “LOW BATTERY” on the display, indicate a low battery

level which need immediate replacing.

Silent Alarm

It can be programmed on each lock.

Audit

The lock is able to save the last 6000 operations with time, date, user and operations

description. The keypad can save the last 250 operations. It’s possible to download the events

for locks and keypad by using the Tecnosicurezza DMT Audit software. For further information

refer to the IU_DMT_Audit_XX.

10 of 27 IU_ TechMaster_04_eng

User instructions

TechMaster

IMPORTANT

Some options/characteristics reported in this user manual, can only be used if previously

enabled through the setup software. Thus, please refer to the user manual

IU_TechMaster_setup_XX.

Please contact Tecnosicurezza for further information.

Opening the locks

Users (or Override users): opening without time delay

Power up the keypad. Enter an opening code and insert the Dallas

key, if set-up. LCD shows:

OPEN

Open the lock within 3 seconds.

Users: opening with time delay

Power up the keypad. Enter an opening code and insert the Dallas

key, if set-up.

LCD shows the time delay counting:

TIME DELAY

00:59

At time elapsed, the LCD shows the open window counting time. OPEN WINDOW

00:01

Press , LCD shows: ENTER CODE

X X – X X X X X X

Enter an opening code and insert the Dallas key, if set-up. LCD shows: OPEN

Open the lock within 3 seconds.

Manager (or Override Manager): opening without time delay

Power up the keypad. Press for opening with Manager code or

press it two times for opening with Manager Ovr code. LCD shows:

MANAGER CODE

X X X X X X

Enter Manager code and insert the Dallas key, if set-up (or enter

Manager Ovr code and insert the Dallas key, if set-up). LCD shows:

OPEN

Open the lock within 3 seconds.

Manager (or Override Manager): opening with time delay

Power up the keypad. Press for opening with Manager code or

press it two times for opening with Manager Ovr Code. LCD shows:

MANAGER CODE

X X X X X X

Enter Manager code and insert the Dallas key, if set-up (or enter

Manager Ovr Code and insert the Dallas key, if set-up). LCD shows the

time delay counting:

TIME DELAY

00:59

At time elapsed, the LCD shows the open window counting time. OPEN WINDOW

00:01

Press , LCD shows: ENTER CODE

Andere Handbücher für TechMaster

Inhaltsverzeichnis

Andere Tecnosicurezza Sperren Handbücher

Tecnosicurezza

Tecnosicurezza AuditLine T6530/DL Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza MiniTech Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza Pulse Pro Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza TechMaster T9530/GR Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza DigiTech Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza StraightBolt EM3520 Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza DigiTech Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza KL3909 Montageanleitung

Tecnosicurezza

Tecnosicurezza Pulse T6430 Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza MiniTech Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza Pulse 2 Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza Pulse Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza Pulse Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza MiniTech TSMINI-4 Handbuch

Tecnosicurezza

Tecnosicurezza T6530/DL Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza Pulse Pro Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza TechMaster Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza Pulse Pro Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza TechMaster Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza DigiTech Series Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza T9510/BR Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza TechMaster Bedienungsanleitung

Tecnosicurezza

Tecnosicurezza MiniTech Betriebsanleitung

Tecnosicurezza

Tecnosicurezza MiniRotoboIt UR4020 Benutzerhandbuch

Beliebte Sperren Handbücher anderer Marken

Magic

Magic 105 Bedienungsanleitung

Gantner

Gantner GAT NET.Lock 7020 System Kurzanleitung

Wittkopp

Wittkopp Insys 7202 Bedienungsanleitung

Dorma

Dorma Studio Classic Bedienungsanleitung

Securam

Securam ECSL-601 Bedienungsanleitung

Sudhaus

Sudhaus 3003 Bedienungsanleitung

Safety 1st

Safety 1st 48517 Bedienungsanleitung

Pado

Pado FDS-10 Bedienungsanleitung

Esco

Esco systeQ Series Bedienungsanleitung

COMPX

COMPX National D8951 Bedienungsanleitung

secureo

secureo Key Box Bedienungsanleitung

Stock Loks

Stock Loks C8713 Bedienungsanleitung

COMPX

COMPX 1T-058 Betriebsanleitung

Auslock

Auslock T11 Bedienungsanleitung

ELCOM

ELCOM 7205 Bedienungsanleitung

Stealth SAFES

Stealth SAFES ShadowVault Bedienungsanleitung

Knox

Knox KeySecure 5 Bedienungsanleitung

Kwikset

Kwikset 48334/01 Bedienungsanleitung
