ZigBee Light Link Development Kit Quick Start Guide

Opening the Box and Setting up a ZLL Network in 3 Simple Steps

1. Kit Contents

•3 x Zlight2 LED boards

•1 x CC2531 USB dongle

•3 x micro-USB cables

•Documentation

2. Regulatory Information

The Zlight2 boards and the CC2531 USB dongle are

FCC- and IC certified and are tested/compliant with

ETSI/R&TTE over temperature from 0 to +35°C. The

CC2530 USB dongle has an on-board meandered

inverted F PCB antenna while the Zlight2 has an on-

board half wave dipole PCB antenna.

Caution! The kit contains ESD sensitive

components. Handle with care to prevent

permanent damage.

3. Purpose of the Kit

The CC2531 ZigBee Light Link (ZLL) development

kit is intended for customers who would like to

evaluate ZLL lighting control for LED light products,

and develop simple applications and demonstrators

based on this standard.

The kit contains everything needed to set up a ZLL

network and switch the lights on and off individually

or in groups. More advanced ZLL control such as

hue, saturation, groups and scenes can be tested

using a command line tool, or even cloud based

control solutions such as Ninja blocks

(http://www.ninjablocks.com/). Information about this

can be found by following the links supplied at the

end of the document.

4. Power Options

The lights and the USB dongle are powered

through the USB connector. It is

recommended that the lights are powered

from a dedicated USB power supply capable

of supplying at least 800mA and max 5.5V.

The CC2531 USB dongle is used to control

the lights, and can be powered from most

USB ports. In order to use the command line

control tool, it is recommended that the USB

dongle is connected to the USB port of a PC.

5. Powering the Boards

(Step 1)

•Connect the Zlight2 boards to your USB power

supply using the supplied cables.

•Connect CC2531 USB dongle to an available USB

port on your PC.

Do not leave the boards powered when not in

use or unattended.

6. Starting the Network

(Step 2)

In ZLL, the process of pairing a new lamp with a

remote control is called touch linking.

During the touch linking process described in the

next paragraph, beware that it is important not to

release S1 until the light has completed its single

flash and the LEDs on the dongle have given a

small series of green flashes. This takes about 5

sec. (continued)

Starting the Network (cont.)

Touch link the Zlight2 boards one at a time

by holding the light close to the CC2531

USB dongle (see picture above) and

pressing and holding button S1 on the

dongle until the LED on the dongle has

flashed green.

When this has been done for all 3 Zlight2

boards, they will all be on the same

network, controlled by the dongle

7. Operating the Zlight2

(Step 3)

Caution! To minimize the risk of fire or

equipment damage, make sure that

ambient temperature air is allowed to

circulate freely around the Zlight2 board

when operating. Avoid touching

components during operation if symbolized as hot. A

thermal shutdown routine is implemented in the

included firmware running on the lights. Always make

sure that this routine is implemented if you flash your

own firmware. The easiest way to do that is to base it

on ZStack-Lighting-1.0.2 or later releases from Texas

Instruments.

Caution! DO NOT STARE DIRECTLY

INTO LED LIGHT SOURCE. Intense

light sources have a high secondary

exposure potential due to their blinding

effect. A temporary reduction in visual

acuity and afterimages can occur, leading to irritation,

annoyance, visual impairment, and even accidents,

depending on the situation. Always consider the use

of light filtering/darkening protective eyewear and be

fully aware of surrounding laboratory type set-ups

when viewing intense light sources to

minimize/eliminate such risks in order to avoid

accidents related to temporary blindness.

RISK GROUP 2

CAUTION

Possible hazardous optical

radiation emitted from this product.

Do not stare at operating lamp.

Maybe harmful to eyes.

•Do not stare at operating LEDs –

(Risk Group 1 (RG1) @ 0.9m)

•Per IEC 62471 ed 1.0: 2006-07

(“Photobiological Safety of Lamps and Lamp

Systems”) this product has been classified in

Risk Group 2. Products classified as Risk

Group 2 do not pose a hazard due to the

aversion response to very bright light sources or

due to thermal discomfort. It should be noted

that INTENTIONALLY staring at the lamp for

extended lengths of time from short distances

could lead to a potential risk of eye damage due

to a retinal blue-light hazard. In order to reduce

the potential of exposure to a retinal blue-light

hazard, the operator must avoid any direct view

of the LEDs while in operation, from a distance

of 0.9m, or closer.

Switch S1

Touch Link

Switch S2

Short press (<2s): Toggle on/off

Long

press

2s): Select next device

Press

and hold

S1 to touch link

Operating the Zlight2 (cont.)

Once connected to the ZLL network by touch

linking, the Zlight2s can be toggled on/off by

quickly pressing and releasing S2 on the

dongle.

The on/off commands will be sent to the

selected light, or group of lights. When a light

is touch linked, it becomes the selected light,

and it is also automatically added to group 1

in the ZLL network.

When more than one light has joined the

network, the lights can be selected by

pressing S2 for more than 2 seconds. This

will cause the selected light to identify by

blinking.

Operating the Zlight2 (cont.)

Consecutive >2s presses will cycle through the

available lights and groups, that will identify in the

same way. When the USB dongle is power cycled, it

will revert to a state where group 1 is selected.

A simple way to bring your network to a state

where you can switch all the lamps on or off

simultaneously, is to do the following: Power cycle

(unplug and then re-

plug) the USB

dongle. Wait a few

seconds for the

network to re-join.

Quickly press and

release S2 on the

dongle to toggle.

8. Next Steps

For more advanced use and colour control, go to the

TI ZigBee Light Link wiki page by following the link

found at the end of this document.

Additional Tools and Links

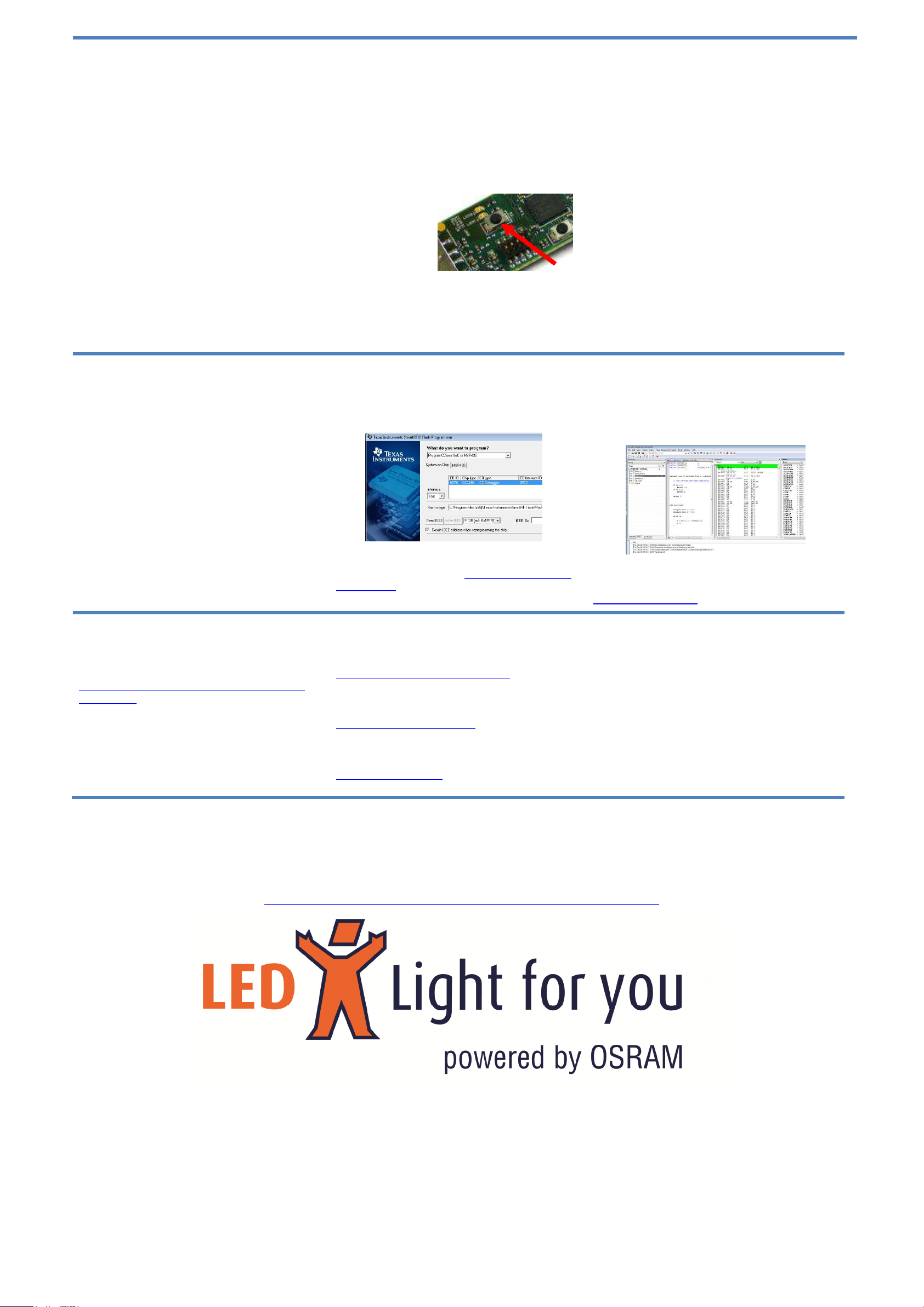

CC Debugger

The CC debugger is a tool that allows you to flash

and debug the Zlight2 using SmartRF Flash

Programmer or IAR Embedded Workbench. It

connects to a USB port on your PC and to the

debug header on the Zlight2 board.

SmartRF Flash Programmer

Texas Instruments has a simple tool which can

be used to program and flash the Zlight2.

SmartRF Flash Programmer can be

downloaded from www.ti.com/tool/flash-

programmer

IAR Embedded Workbench

To develop software, program, and debug the

Zlight2, you should use IAR Embedded

Workbench for 8051.

More information on IAR EW8051, including a free

evaluation version download, can be found at

www.iar.com/ew8051.

Useful Links

TI ZigBee Light Link wiki page:

http://processors.wiki.ti.com/index.php/ZStack-

Lighting_Kit

Useful Links

Kit Product Page

http://www.ti.com/tool/cc2530zdk-zll

CC2531 User’s Guide

http://www.ti.com/lit/swru191

For additional help, visit the TI E2E Forum

www.ti.com/lprf-forum

The Zlight2 lights supplied in this kit are powered by OSLON LEDs from Osram. Please visit the LED Light for you web

site to learn more about LED lighting and ZigBee Light Link wireless control examples.

http://www.ledlightforyou.com/Partners/Highlights/en-ZigBee-Lighting-Control.php
