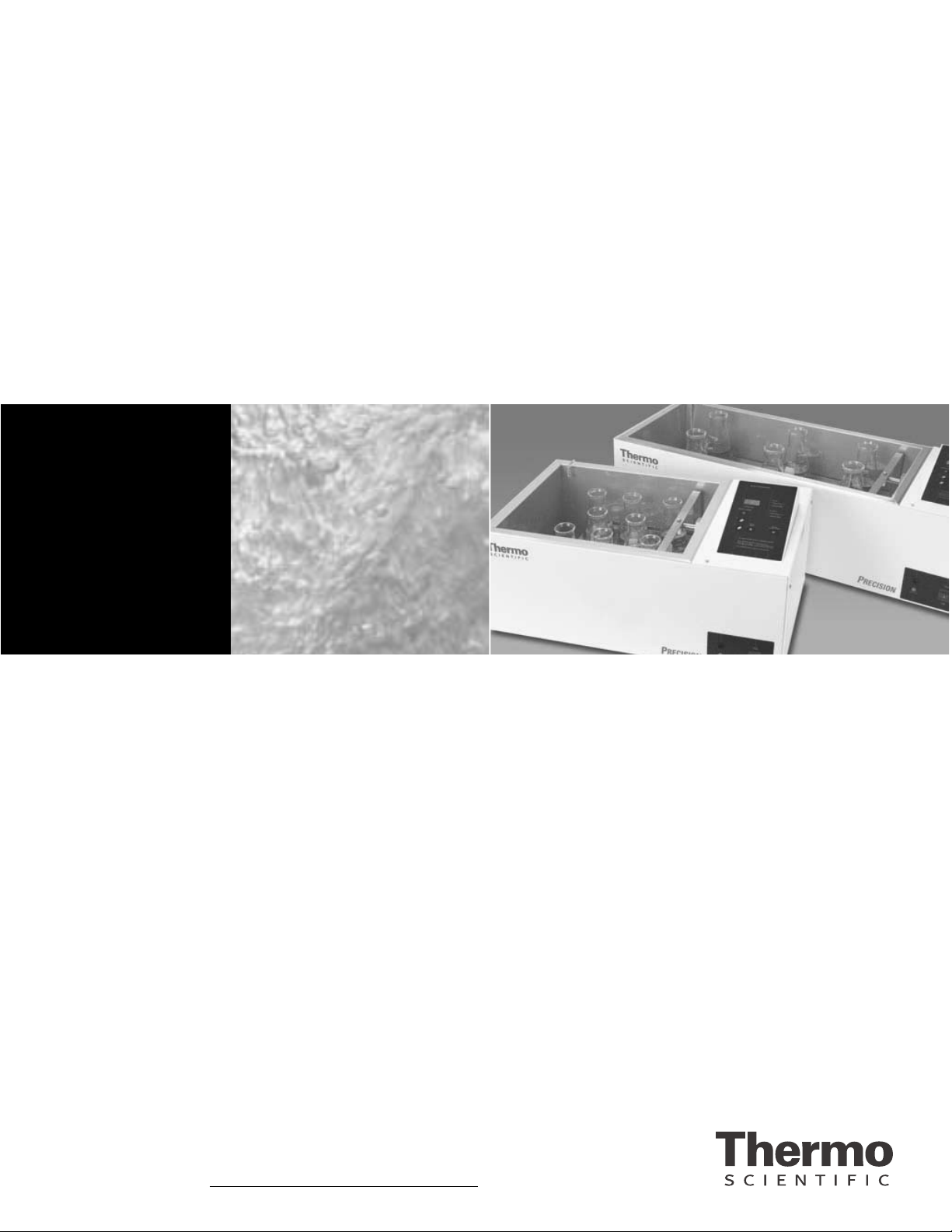

Model 2862/2863 (253)

Coliform Incubator Bath

Operating and Maintenance Manual 3177876 Rev. M

Visit us online to register your warranty

www.thermoscientific.com/warranty

Thermo Scientific

MANUAL NUMBER 3177876

M 30674/BA-828 3/14 Revert to Rev K ccs

L 30674/BA-828 1/14 Corrrected Model 2863 line cord, added receptacle in parts list pg 9-1 ccs

K 25227/BA-667 5/09 pg 24 - half coupler

J 25448/BA-670 4/09 UL information

I 24808 9/08 Revised water specs

H 23443/23496 6/06 Consolidated w/ 3177688, removed CE symbol and declaration

G 23196/BA-612 4/06 Modified drain assembly (connection to H2O regulator

F 4/05 New manual #, manufacture location (was 31600111)

E 3/03 Update performance specs, add chamber dimensions - pg 2

D 4/02 Add inlet screen info, correct wire color - pgs 5, 8, 27

Preface

Coliform Incubator Bath i

Models covered by this manual

Catalog No. Volts Hertz Watts Amps Mains Fuse Power Board Fuse

3166678 120 50/60 1550 12.9 N/A N/A

3166679 240 50/60 1550 6.5 FST-5x20-10A FST-6.3x32-6.3mA

Thermo Scientificii Coliform Incubator Bath

Preface

Important Read this instruction manual. Failure to read, understand and follow the instructions in this manual

may result in damage to the unit, injury to operating personnel, and poor equipment performance. s

Caution All internal adjustments and maintenance must be performed by qualified service personnel. s

Note The 240V units described in this manual were designed specifically for the European market and are

supplied with a European style power cord. For domestic use, a U.S. style power cord (P/N 3176836) must be

ordered separately. s

Material in this manual is for information purposes only. The contents and the product it describes are subject to

change without notice. Thermo Fisher Scientific makes no representations or warranties with respect to this

manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to

the use of this manual.

Thermo Scientific Coliform Incubator Bath iii

Preface

Important operating and/or maintenance instructions. Read the accompanying text carefully.

Potential electrical hazards. Only qualified persons should perform procedures associated with this

symbol.

Equipment being maintained or serviced must be turned off and locked off to prevent possible injury.

Hot surface(s) present which may cause burns to unprotected skin, or to materials which may be

damaged by elevated temperatures.

Marking of electrical and electronic equipment, which applies to electrical and electronic equipment

falling under the Directive 2002/96/EC (WEEE) and the equipment that has been put on the market

after 13 August 2005.

This product is required to comply with the European Union’s Waste Electrical & Electronic

Equipment (WEEE) Directive 2002/96/EC. It is marked with the WEEE symbol. Thermo Fisher

Scientific has contracted with one or more recycling/disposal companies in each EU Member State

European Country, and this product should be disposed of or recycled through them. Further

information on Thermo’s compliance with this directive, the recyclers in your country and

information on Thermo products will be available at www.thermofisher.com.

4Always use the proper protective equipment (clothing, gloves, goggles, etc.)

4Always dissipate extreme cold or heat and wear protective clothing.

4Always follow good hygiene practices.

4Each individual is responsible for his or her own safety.

Thermo Scientificiv Coliform Incubator Bath

Preface

Do You Need Information or Assistance on

Thermo Scientific Products?

If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:

1-740-373-4763 Direct

1-800-438-4851 Toll Free, U.S. and Canada

1-877-213-8051 FAX

http://www.thermoscientific.com Internet Worldwide Web Home Page

service.led.marietta@thermofisher.com Tech Support Email Address

Certified Service Web Page

Thermo Fisher Scientific

401 Millcreek Road, Box 649

Marietta, OH 45750

Our staff can provide information on pricing and give you quotations. We can

take your order and provide delivery information on major equipment items or make

arrangements to have your local sales representative contact you. Our products are listed on the

Internet and we can be contacted through our Internet home page.

Our staff can supply technical information about proper setup, operation or

troubleshooting of your equipment. We can fill your needs for spare or replacement parts or

provide you with on-site service. We can also provide you with a quotation on our Extended

Warranty for your Thermo Scientific products.

Whatever Thermo Scientific products you need or use, we will be happy to discuss your

applications. If you are experiencing technical problems, working together, we will help you

locate the problem and, chances are, correct it yourself...over the telephone without a service

call.

When more extensive service is necessary, we will assist you with direct factory trained

technicians or a qualified service organization for on-the-spot repair. If your service need is

covered by the warranty, we will arrange for the unit to be repaired at our expense and to your

satisfaction.

Regardless of your needs, our professional telephone technicians are available to assist you

Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by

telephone or fax. If you wish to write, our mailing address is:

International customers, please contact your local Thermo Scientific distributor.

Sales Support

Service Support

www.unitylabservices.com

Coliform Incubator Bath vThermo Scientific

Table of Contents

Introduction and Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Unpacking and Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Water Level Regulator (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

Inlet Screen Assembly (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5

Explanation of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3

Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4

Parts Replacement Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1

Temperature Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1

Spare Parts and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1

Assembly Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-3

Electrical Schematics and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . .9-11

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1

Section 1

Section 2

Section 3

Section 4

Section 5

Section 6

Section 8

Section 7

Section 9

Section 10

Coliform Incubator Bath 1-1Thermo Scientific

General Information

Section 1 Introduction and Unpacking

Your satisfaction and safety are important to Thermo and a complete

understanding of this unit is necessary to attain these objectives.

As the user of this apparatus, you have the responsibility to understand the

proper function and operational characteristics of your bath. This

operating manual should be thoroughly read and all operators given

adequate training before attempting to place this unit in service.

Awareness of the stated cautions and warnings, and compliance with

recommended operating parameters — together with maintenance

requirements — are important for safe and satisfactory operation. The

unit should be used as described and for its intended application;

alterations or modifications will VOID THE WARRANTY.

Warning As a routine laboratory precaution, always wear safety glasses

when working with this apparatus.

This product is not intended, nor can it be used, as a sterile or patient

connected device. In addition, this apparatus is not designed for use in

Class I, II or III locations as defined by the National Electrical Code. s

Caution When unpacking this product, two persons are required to lift the

water bath and place it on a bench.

The bench top must be rigid and strong enough to comfortably support

the weight of the unit when filled with water. s

Precision Circulating Baths are widely used in research and quality control.

Their superb temperature uniformity and stability makes them especially

desirable for legal or reference tests.

The microprocessor control panel houses all functions necessary to operate

the bath. The 4 push-button switches and single digital display window

allow the operator to adjust bath temperature and temperature calibration

via a single set of controls.

The proportional integral temperature control coupled with agitation

supplied by a centrifugal pump located in the control housing allows

precise temperature control. Use of the gable cover provided is required to

maintain optimal temperature sensitivity.

1-2 Coliform Incubator Bath Thermo Scientific

Section 1

Introduction and Unpacking

A high limit thermostat is provided and can be set to prevent heater

runaway in the event of temperature control failure.

The interior of the bath is constructed of stainless steel and is designed for

operation with distilled water or water solutions, such as water /ethylene

glycol with corrosion inhabitants added. The body is made from

galvanized steel and is painted for added protection. A drain is located at

the far left hand end of the bath. A stainless steel gable cover is also

provided with the bath.

The 240-volt units are identical in appearance to the 120-volt units.

The following table identifies the specifications for the Coliform Baths.

Technical Specifications

Temperature Settings (factory preset)

35.0°C 41.5°C

44.5°C 45.5°C

Sensitivity (cover on) . . . . . . . . . . . . . . . . . .±0.05°C

Uniformity (cover on) . . . . . . . . . . . . . . . . . .±0.05°C

Chamber Size

Length . . . . . . . . . . . . . . . . . . .27 inches (68.6cm.)

Width . . . . . . . . . . . . . . . . . . . .12 inches (30 cm.)

Height . . . . . . . . . . . . . . . . . . 7.5 inches (19 cm.)

Capacity (1.5" from top) . . . . . . .9.1 gallons (34.5L.)

General Information

(continued)

Performance Data

Coliform Incubator Bath 1-3Thermo Scientific

Section 1

Section title

Save all packing material until unit is put into service. This merchandise

was carefully packed and thoroughly inspected before leaving our factory.

Responsibility for safe delivery was assumed by the carrier upon acceptance

of the shipment; therefore, claims for loss or damage sustained in transit

must be made upon the carrier by the recipient as follows:

•Visible Loss or Damage: Note any external evidence of loss or damage

on the freight bill, or express receipt, and have it signed by the carrier's

agent. Failure to adequately describe such external evidence of loss or

damage may result in the carrier's refusing to honor your damage

claim. The form required to file such claim will be supplied by the

carrier.

•Concealed Loss or Damage: Concealed loss or damage means loss or

damage which does not become apparent until the merchandise has

been unpacked and inspected. Should either occur, make a written

request for inspection by carrier's agent within fifteen (15) days of the

delivery date; then file a claim with the carrier since the damage is the

carrier's responsibility.

If you follow the above instructions carefully, we will guarantee our full

support of your claim to be compensated for loss or concealed damage.

DO NOT — FOR ANY REASON — RETURN THIS UNIT

WITHOUT FIRST OBTAINING AUTHORIZATION. In any

correspondence to Thermo, supply the nameplate data, including catalog

number and serial number.

Unpacking and

Damage

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Thermo Scientific Zubehör Handbücher

Thermo Scientific

Thermo Scientific IMH 60 Bedienungsanleitung

Thermo Scientific

Thermo Scientific BB 150 Bedienungsanleitung

Thermo Scientific

Thermo Scientific 314 Bedienungsanleitung

Thermo Scientific

Thermo Scientific 310 Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific 3110 Betriebsanleitung

Thermo Scientific

Thermo Scientific Cytomat 2 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Phadia 100 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Ramsey MINI CK100 Service-Handbuch

Thermo Scientific

Thermo Scientific Steri-Cycle i160 CR Bedienungsanleitung

Thermo Scientific

Thermo Scientific Unity Lab Services 3307 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Lab-Line Imperial 3 Betriebsanleitung

Thermo Scientific

Thermo Scientific Thermo Fisher 3900 Series Betriebsanleitung

Thermo Scientific

Thermo Scientific invitrogen EVOS OSI-2 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Emerald Wireless Remote Sensor Betriebsanleitung

Thermo Scientific

Thermo Scientific IMP 180 Bedienungsanleitung

Thermo Scientific

Thermo Scientific 60-12 Service-Handbuch

Thermo Scientific

Thermo Scientific 3010 Betriebsanleitung

Thermo Scientific

Thermo Scientific 3010 Betriebsanleitung

Thermo Scientific

Thermo Scientific 61-12N-64P Service-Handbuch

Thermo Scientific

Thermo Scientific 3554-35A Montage- und Wartungsanleitung

Thermo Scientific

Thermo Scientific 61-12C Service-Handbuch

Thermo Scientific

Thermo Scientific AquaSensors AnalogPlus Bedienungsanleitung

Thermo Scientific

Thermo Scientific AquaSensors AnalogPlus 1.0 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Heracell 150i Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung
