Thermo Scientific A 40B Bedienungsanleitung

Visit our Web site at:

http://www.thermo.com/tc

Product Service Information, Applications

Notes, MSDS Forms, e-mail.

ADVANCED Series Thermostats

AC 150

AC 200

ARCTIC Series Refrigerated Bath Circulators

A 5B A 10

A 10B A 25

A 25B A 28

A 28F A 24B

A 40 A 40B

GLACIER Series Refrigerated Bath Circulators

G 50

SAHARA Series Heating Bath Circulators

S 3 S 12T S 14P

S 7 S 19T S 21P

S 13

S 15

S 21

S 30

S 45

S 49

Thermo Scientiﬁc

Laboratory

Temperature

Control Products

Manual Part Number U01046

Rev. 03/29/10

Thermo Fisher Scientic

25 Nimble Hill Road

Newington, NH 03801

Tel : (800) 258-0830 or

(603) 436-9444

Fax : (603) 436-8411

www.thermo.com/tc

Sales, Service, and Customer Support

25 Nimble Hill Road

Newington, NH 03801

Tel: (800) 258-0830

Sales: 8:00 am to 5:00 pm

Service and Support: 8:00 am to 6:00 pm Monday

through Friday (Eastern Time)

Fax: (603) 436-8411

service.tc.us@thermosher.com

Dieselstrasse 4

D-76227 Karlsruhe, Germany

Tel : +49 (0) 721 4094 444

Fax : +49 (0) 721 4094 300

info.tc.de@thermosher.com

Statement of Copyright

This manual is copyrighted by Thermo Fisher Scientic.

Users are forbidden to reproduce, republish, redistribute, or resell any materials from this manual in either machine-

readable form or any other form.

Thermo Scientiﬁc

Table of Contents

Preface ...................................................................................................................... i

Compliance ..............................................................................................................i

WEEE ......................................................................................................................i

After-Sale Support .................................................................................................ii

Feedback..................................................................................................................ii

Warranty ..................................................................................................................ii

Unpacking ...............................................................................................................ii

Section 1 Safety ..................................................................................1-1

Safety Warnings..................................................................................................1-1

Section 2 General Information................................................................2-1

Description .........................................................................................................2-1

  ThermostatSpecications................................................................................2-1

  Bath/CirculatorSpecications.........................................................................2-3

Wetted Materials.................................................................................................2-4

Section 3 Installation ...........................................................................3-1

Ambient Conditions..........................................................................................3-1

Ventilation...........................................................................................................3-2

Electrical Requirements ....................................................................................3-2

External Circulation ..........................................................................................3-5

Tubing Requirements ........................................................................................3-5

Tubing..................................................................................................................3-6

Fluids ...................................................................................................................3-7

Additional Fluid Precautions ...........................................................................3-8

Filling Requirements .......................................................................................3-11

Draining.............................................................................................................3-11

Section 4 Operation .............................................................................4-1

ADVANCED Thermostat..............................................................................4-1

Setup ....................................................................................................................4-2

Initial Start Up....................................................................................................4-2

Daily Start Up.....................................................................................................4-3

Status Display .....................................................................................................4-3

Changing the Setpoint Window.......................................................................4-4

Menu Displays....................................................................................................4-5

Menu ....................................................................................................................4-6

Menu Tree ...........................................................................................................4-7

Editor - Setpoints...............................................................................................4-8

Editor - Ramp Program....................................................................................4-9

Editor - Auto start ...........................................................................................4-11

Contents

Thermo Scientiﬁc

Settings - Basic settings...................................................................................4-12

Settings - App. Settings - Limits ....................................................................4-13

Settings - App. Settings - Fluids Type...........................................................4-15

Settings - Password/Reset ..............................................................................4-15

System - Adjustment .......................................................................................4-16

System - Calibration ........................................................................................4-17

System - Interfaces...........................................................................................4-17

Installation - Information...............................................................................4-18

Installation - Diagnosis ...................................................................................4-18

Stopping the Unit.............................................................................................4-19

Power Down.....................................................................................................4-19

Shut Down........................................................................................................4-19

Section 5 Accessories .............................................................................................5-1

Optional Lifting Platform Installation............................................................5-1

Optional Immersion Cooler Bridge Installation..........................................5-2

Optional Rack Assembly Instructions............................................................5-3

Optional Serial Communication Adapter.......................................................5-4

Tubing..................................................................................................................5-5

Section 6 Preventive Maintenance..........................................................6-1

Cleaning ...........................................................................................................6-1

Condenser Fins ..................................................................................................6-1

Testing the Safety Features...............................................................................6-2

Section 7 Troubleshooting............................................................................................... 7-1

Error Displays ....................................................................................................7-1

Appendix Serial Communications..................................................................................A-1

Declaration of Conformity

Return Materials Authorization Form

Warranty

Thermo Scientiﬁc i

Preface

Compliance Products tested and found compliant with the requirements dened in the

EC Directives as well as Low Voltage Directive (LVD) can be identied by

the CE Mark on the rear of the unit. The Declaration of Conformity can

be found in the appendix of this manual.

The conformity assessment were performed following dened procedures

according to each applicable directive.

The council decision 93/465/EEC shall be authoritative concerning the

modules of the various phases of the conformity assessment procedures

and the rules for the afxing and use of the CE Mark), which are intended

to be used in the technical harmonization directives.

To conrm compliance with the EC-Directive 2004/108/EC

Electromagnetic Compatibility (EMC) our products were tested according

to the EMC requirements for emission and immunity for electrical

equipment for measurement, control and laboratory use.

Some electrical equipment displaying the CE Mark, e.g., monitors or

analytical instruments, can be affected if their manufacture accepts

interference, e.g., ickering of a monitor, as a minimum operating quality

with electromagnetic compatibility. We recommend a minimum distance of

approximately one meter from this type of equipment.

For any additional information, refer to the Declaration of Conformity.

Visit www.ul.com/global/eng/pages to view the UL listings for

Thermo Fisher Scientic. Reference le #E164214 for these products.

WEEE This product is required to comply with the European Union’s Waste

Electrical & Electronic Equipment (WEEE) Directive 2002/96/EC. It is

marked with this symbol.

Thermo Fisher Scientic has contracted with one or more recycling/

disposal companies in each EU Member State, dispose of or recycle this

product through them. Further information on Thermo Fisher Scientic’s

compliance with these Directives is available at:

www.thermo.com/WEEERoHS

Preface

Thermo Scientiﬁc

After-sale Support Thermo Fisher Scientic is committed to customer service both during

and after the sale. If you have questions concerning the unit operation,

or questions concerning spare parts or Service Contracts, call our Sales,

Service and Customer Support phone number, see this manual's inside

cover for contact information.

CAUTION

There can be up to three nameplates located on the rear of the unit. Before

calling, please obtain the serial number printed on the complete system

nameplate located on the upper rear of the bath.

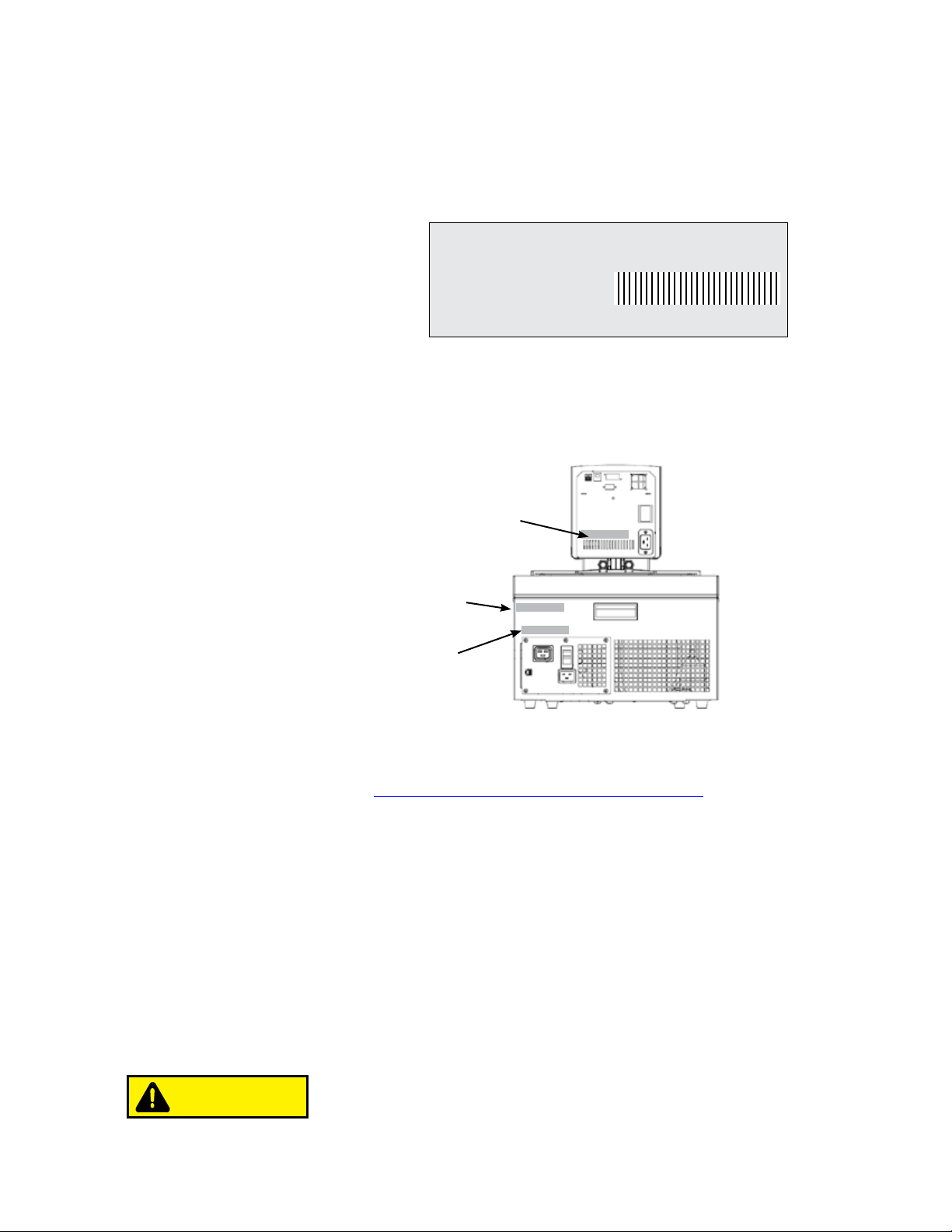

Sample Name Plate

Thermo Fisher Scientific

Newington, NH 03801 U.S.A.

(800)258-0830 / (603)436-9444

BOM#: XXXXXXXXXXXX

S/N: XXXXXXXXX

XXX VOLTXXHZXPH X.X AMP

Nameplates (Typical Locations)

Complete System

Nameplate

Refrigerant

Nameplate

Thermostat Nameplate

Feedback We appreciate any feedback you can give us on this manual. Please e-mail

us at thermoscienticmanuals@thermosher.com. Be sure to include the

manual part number and the revision date listed on the front cover.

Warranty Thermo Scientic Laboratory Temperature Control Products have a

warranty against defective parts and workmanship for 36 months from date

of shipment. See back page of this manual for more details.

Unpacking Retain all cartons and packing material until the unit is operated and found

to be in good condition. If the unit shows external or internal damage

contact the transportation company and le a damage claim. Under ICC

regulations, this is your responsibility.

Refrigerated units should be left in an upright position for 24 hours

before starting. This will ensure the lubrication oil has drained back

into the compressor. 

Thermo Scientiﬁc 1-1

Make sure you read and understand all instructions and safety precautions

listed in this manual before installing or operating your unit. If you have

any questions concerning the operation of your unit or the information in

this manual, please contact us. See inside cover for contact information.

DANGER indicates an imminently hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury. It is also be used to alert

against unsafe practices.

The lightning ash with arrow symbol, within an equilateral triangle, is

intended to alert the user to the presence of non-insulated "dangerous

voltage" within the unit's enclosure. The voltage magnitude is signicant

enough to constitute a risk of electrical shock.

This label indicates the presence of hot surfaces.

This label indicates read the manual.

The unit construction provides protection against the risk of

electrical shock by grounding appropriate metal parts. The

protection will not function unless the power cord is connected to a

properly grounded outlet. It is the user's responsibility to assure a

proper ground connection is provided. 

Never place the unit in a location or atmosphere where excessive

heat, moisture, or corrosive materials are present. 

Never use corrosive uids with this unit. Use of these uids will void

the manufacturer’s warranty. 

Observe all warning labels. 

Never remove warning labels. 

Refrigerated units should be left in an upright position for 24 hours

Safety Warnings

Section 1 Safety

DANGER

WARNING

CAUTION

1-2

Section 1 Safety

Thermo Scientiﬁc

Other than water, before using any uid, or when performing maintenance where

contact with the uid is likely, refer to the manufacturer’s MSDS and EC Safety

Data sheet for handling precautions. 

Ensure the tubing you select will meet your maximum temperature and pressure

requirements. 

Never operate damaged or leaking equipment. 

Never operate the unit without uid in the reservoir. 

Never operate the unit or add uid to the reservoir with panels removed. 

Never operate the unit with the immersion circulator removed from the bath. 

Do not mount the immersion circulator backwards on the bath; the line cord could

contact the reservoir uid. Ensure the electrical cords do not come in contact with

any of the plumbing connections or tubing. 

Operate the unit using only the supplied line cords, never operate equipment with

damaged cords. 

Ensure all communication and electrical connections are made prior to starting

the unit. 

If the unit's power cord is used as the disconnecting device, it must be easily

accessible at all times. 

Always turn the unit off and disconnect the supply voltage from its power

source before moving the unit or before performing any service or maintenance

procedures. 

Ensure, that no toxic gases can be generated by the uid. Inammable gases can

build up over the uid during usage. 

Transport the unit with care. Sudden jolts or drops can damage the unit's

components. 

Ensure the uid is at a safe temperature (20°C to 55°C) before handling or

draining. 

Drain the unit before it is transported and/or stored in near or below freezing

temperatures, see Draining in Section 3. 

Do not clean the unit with solvents, a soft cloth and water is normally sufcient. 

Refer service and repairs to a qualied technician. 

Performance of installation, operation, or maintenance procedures other than

those described in this manual may result in a hazardous situation and will void

the manufacturer's warranty. 

2-1

Thermo Scientiﬁc

Section 2 General Information

The Thermo Scientic ADVANCED Series of thermostat are used with

refrigerated and heated baths. All thermostats can pump to an external

system. All controllers have a digital display and easy-to-use touch pad, ve

programmable setpoint temperatures, acoustic and optical alarms, and offer

adjustable high temperature protection.

Description

ADVANCED

Themostat

Speciﬁcations

• Performance specications established in accordance with DIN 12 876 (using water at 70°C).

• Lower temperature ranges available with supplemental cooling.

• Thermo Fisher Scientic reserves the right to change specications without notice.

AC 150 AC 200

Temperature Ambient +13°C to +150°C Ambient +13°C to +200°C

Range Ambient +23°F to +302°F Ambient +23°F to +392°F

Temperature Stability ±0.01°C ±0.01°C

Heater Capacity 230V/115V 2000/1200 Watts 2000/1200 Watts

Immersion Depth mm 75 to 145 75 to 145

inches 3.0 to 5.7 3.0 to 5.7

Dimensions (H x W x D) mm 372 x 165 x 199 372 x 165 x 199

inches 14.6 x 6.4 x 7.8 14.6 x 6.4 x 7.8

Net Weight kg 4.2 4.2

lb 9.3 9.3

Pumping Capacity

Max ow rate lpm/gpm 20/5.3 20/5.3

Max pressure (mbar/psi) 475/6.89 475/6.89

Max suction 330/4.85 330/4.85

Pump speed steps 3 3

Electrical Requirements 100 V/50 Hz 100 V/60 Hz or 100 V/50 Hz 100 V/60 Hz or

(Voltage ±10%) 115 V/60 Hz or 115 V/60 Hz or

230 V/50..60 Hz 230 V/50..60 Hz

Connectivity

Remote sensor port Yes Yes

USB port No Yes

Multi function port No Yes

RS232 Optional Optional

RS485 Optional Optional

Ethernet/LAN Optional Optional

Analog I/O No Yes

Section 2 General Information

2-2 Thermo Scientiﬁc

• Thermo Fisher Scientic reserves the right to change specications without notice.

Stainless Steel Refrigerated Baths/Circulators

A5B A10B A25B A28F A10

Temperature Range -5 to 200°C

23 to 392°F

-10 to 200°C

14 to 392°F

-25 to 200°C

-13 to 392°F

-28 to 200°C

-18 to 392°F

-10 to 200°C

14 to 392°F

Bath Volume liters

gallons

12 - 20

3.2 - 5.3

17 - 30

4.5 - 7.9

13 - 21

3.4 - 5.5

6 - 10

1.6 - 2.67

4 - 6

1.1 - 1.6)

Cooling Capacity watts 200 250 500 320 240

Refrigerant R134a R134a R134a R134a R134a

Dimensions (H x W x D)*

inches

509 x 429 x 738

20.0 x 16.9 x 29.0

509 x 429 x 913

20.0 x 16.9 x 36.0

778 x 324 x 541

30.6 x 12.7 x 21.3

558 x 514 x 426

22.0 x 20.2 x 16.8

670 x 220 x 414

26.4 x 8.7 x 16.3

Net Weight kg

40.0

88.9

44.5

97.9

42.3

93.1

35.6

78.3

27.5

60.6

Electrical Requirements**

(Voltage ±10%)

100 V/50 Hz 100 V/60 Hz or

115 V/60 Hz or

230 V/50 Hz

Stainless Steel Refrigerated Baths/Circulators

A25 A28 A24B A40 A40B

Temperature Range -25 to 200°C

-13 to 392°F

-28 to 200°C

-18 to 392°F

-24 to 200°C

-11 to 392°F

-28 to 200°C

-18 to 392°F

-28 to 200°C

-18 to 39 2°F

Bath Volume liters

gallons

7 - 12

1.8 - 3.2

6 - 10

1.6 - 2.6

16 - 27

4.2 - 7.1

7 - 12

1.8 - 3.2

6 - 12

1.6 - 3.2

Cooling Capacity watts 500 320 700 800 1000

Refrigerant R134a R134a R404 R404 R404

Dimensions (H x W x D)*

inches

749 x 273 x 483

29.5 x 10.7 x 19.0

749 x 273 x 483

29.5 x 10.7 x 19.0

612 x 765 x 610

24.1 x 30.1 x 24.0

787 x 385 x 519

31.0 x 15.1 x 20.4

850 x 415 x 550

33.5 x 16.3x

21.7

Net Weight kg

36.1

79.5

36.0

79.1

58.6

128.9

55.2

121.5

117

Electrical Requirements**

(Voltage ±10%)

100 V/50 Hz 100 V/60 Hz or

115 V/60 Hz or

230 V/50 Hz

*Add ~26 mm (1 inch) to D for drain tting.

**See Section 3 for additional information.

ARCTIC Refrigerated Bath/Circulator Speciﬁcations

G 50 Ultra-Low Refrigerated Circulator

Temperature Range* -50° to 200°C

-58°F to 392°F

Bath Volume liters

gallons

6 - 12

1.6 - 3.2

Cooling Capacity at 20°C 850 watts

Dimensions* mm

(H x W x D) inches

850 x 415 x 550

33.5 x 16.5 x 21.5

Net Weight kg/lb 53/117

Electrical Requirements**

(Voltage ±10%)

200 V/50 Hz 200 V/60 Hz or

208 V/60 Hz or

230 V/50 Hz
