Preface

MicroPlate Shaker i

Important Before using this product, read this entire operation manual carefully. Users should

follow all of the operational guidelines contained in this manual and take all necessary safety

precautions while using this product. Failure to follow these guidelines could result in potentially

irreparable bodily harm and/or property damage. ▲

Caution All internal adjustments and maintenance must be performed by qualified service personnel. ▲

Material in this manual is for information purposes only. Thermo Fisher Scientific is committed to a continuing

program of product development and improvement, and reserves the right to change information, such as

specifications, appearance, and dimensions, described in this document without notice. Thermo makes no

representations or warranties with respect to this manual. In no event shall Thermo be held liable for any

damages, direct or incidental, arising out of or related to the use of this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, including

photocopying, recording, or using information storage and retrieval systems, for any purpose other than the

purchaser's own use, without the express written permission of the manufacturer.

Any other product names and services identified in this manual are trademarks or registered trademarks of their

respective owners. No such use, or the use of any trade name, is intended to convey endorsement or other

affiliation with Thermo Fisher Scientific.

Thermo Scientificii MicroPlate Shaker

Preface

This manual contains important safety and operation information. You must carefully read, understand, and

follow all the instructions in this manual prior to operating this instrument. Keep this manual in a safe place

nearby for reference and make it easily available to all users.

1) This manual highlights DANGER/WARNING/CAUTION/NOTICE alerts to prevent injury or property

damage and also to achieve optimum performance of your instrument.

(2) These alerts are classified into four types in this manual depending on the importance and the risk levels as

described below:

3) The claim which is out of the quality guarantee published by the Manufacturer is out of Manufacturer’s

responsibility.

4) The damage which is from unexpected fault or damage of user by Acts of God is out of Manufacturer’s

responsibility.

Symbols Meaning

Indicates a hazardous situation which, if not avoided, will result in

death or serious injury.

Ignoring this warning could cause serious injury or even death.

Ignoring this caution could cause injury or property damage.

Ignoring this notice could cause operational problems.

Thermo Scientific MicroPlate Shaker iii

Preface

Do You Need Information or Assistance on

Thermo Scientific Products?

If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:

1-740-373-4763 Direct

1-800-438-4851 Toll Free, U.S. and Canada

1-877-213-8051 FAX

http://www.thermoscientific.com Internet Worldwide Web Home Page

service.led.marietta@thermofisher.com Tech Support Email Address

Certified Service Web Page

Thermo Fisher Scientific

401 Millcreek Road, Box 649

Marietta, OH 45750

Our staff can provide information on pricing and give you quotations. We can

take your order and provide delivery information on major equipment items or make

arrangements to have your local sales representative contact you. Our products are listed on the

Internet and we can be contacted through our Internet home page.

Our staff can supply technical information about proper setup, operation or

troubleshooting of your equipment. We can fill your needs for spare or replacement parts or

provide you with on-site service. We can also provide you with a quotation on our Extended

Warranty for your Thermo Scientific products.

Whatever Thermo Scientific products you need or use, we will be happy to discuss your

applications. If you are experiencing technical problems, working together, we will help you

locate the problem and, chances are, correct it yourself...over the telephone without a service

call.

When more extensive service is necessary, we will assist you with direct factory trained

technicians or a qualified service organization for on-the-spot repair. If your service need is

covered by the warranty, we will arrange for the unit to be repaired at our expense and to your

satisfaction.

Regardless of your needs, our professional telephone technicians are available to assist you

Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by

telephone or fax. If you wish to write, our mailing address is:

International customers, please contact your local Thermo Scientific distributor.

Sales Support

Service Support

www.unitylabservices.com

MicroPlate Shaker ivThermo Scientific

Table of Contents

Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

Section 2 Functional Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Checking Instrument Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Installation Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Connecting to the Mains Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

Plate Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Start and Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

How to Set the Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

Stop Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3

Safety Device for Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

Cleaning of Tray and Unit Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

Keeping Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1

Tube Support 1.5ml . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1

Tube Support 15ml . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2

Tube Support 50ml . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1

Disposing of the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1

Section 1

Section 2

Section 3

Section 4

Section 5

Section 6

Section 8

Section 7

Section 9

MicroPlate Shaker 1-1Thermo Scientific

Section 1 Warnings and Cautions

Ignoring the following warnings could cause serious injuries or even fatal

accidents.

Check and connect properly -the voltage, phase and capacity of power

supply on the ID plate before installation.

Power supply must be properly grounded. Abnormal grounded connection

causes serious damage. Grounded connection must not be on the water

pipe and gas pipe.

Use correct and provided power cord.

Do not install the product in the place that the gas could leak out. Do not

use in a place that has industrial oil smoke and metallic dust. It causes

fire or electric shock.

Do not use the machine near places where explosion can occur due to

organic evaporating gases.

Explosive materials: Acid, Esther, Nitro compound

Inflammable materials: salt peroxides, inorganic peroxide, salt acids.

Check equipment for permissible environmental conditions when used

inside Temp. & Humid. Chamber or Incubator. It can be cause of fire or

trouble by shaker electricity, electronic, and damage of motor.

Shaker Permissible environmental condition; Temperature 2°C to 60°C,

Maximum relative humidity 80%.

Wear your personal protective equipment in accordance with the hazard

category of the medium to be processed. Splashing liquids, projectile

parts, body parts, hair, clothing and jeweler getting caught.

Unplug, when there is strange sound, smell and smoke from the product.

Stop operating and request service.

Keep out of the direct sunlight. It may influence that product life and

operation properly.

Do not use the machine at places where moisture is high and flooding can

be happened.

Do not assemble, repair, modify on your own. The product may not work

well and electric shock change the efficiency of the product. Also this

will void the warranty.

1-2 MicroPlate Shaker Thermo Scientific

Section 1

Warnings and Cautions

Indicates a hazardous situation which, if not avoided, may result in minor or

moderate injury.

Do not put heavy things on the power line. Do not put the machine on

the line. It may take off the wire coating and cause electric shock or fire.

Do not touch it with wet hands and connect the main plug correctly. It

may cause the electric shock or injuries.

Install power outlet near instrument for convenience.

Do not install the stirrer near machinery generating high frequency noise.

Avoid installing near high frequency- welding machine, sewing

machine, and mass SCR controller.

Do not inject any liquid and inflammable things inside of product.

Do not pure water or put liquid on the top of the product when cleaning.

Intercept the main power immediately and request the service when water

may be in the product.

Do not let the product take any strong shock or vibration. It causes

abnormal operation or trouble. It may deteriorate the ability of the

product and not obtain correct results.

Do not sprinkle insecticide or flammable spray on the product. Use

smooth cloths. Cleaning with solvent can cause fire and deformity.

Power off while product cleaning. It may cause the electric shock or fire.

Disconnect the power plug if some sounds and burning smell, smokes

occur. And request service.

Do not let the product take shock by falling down. It will cause wrong

operation and malfunction.

MicroPlate Shaker 2-1Thermo Scientific

Section 2 Functional Descriptions

Compact Digital MicroPlate Shaker can be operating large amount of

sample (4 Microplates in same time). And the shaker is designed for

conveniences and safety of the experiment.

Performance

• Rotation diameter 3mm, 150 ~ 1,200 rpm rotational speed with stable

rotation speed can be selected to user suitable purpose.

• The shaker is designed to operate high temp.(~ 60°C) and suitable to use

in Hybridization reaction.

• Low profile design, silicone pads, and rubber feet are minimizing noise

and vibration to safety of the experiment. During the high mixing sam-

ple, the shaker is not easily slid.

Safety

• Smooth starting function to protect the split out of sample.

• The structure can be minimized some liquid passes through into the

product. So the shaker can be protecting user from electrical hazards, fire

or explosion.

• During overload situation, the built-in safety device can show overload

sign, alarm, and stop operating. After power re-play, the product will

operating.

• Use of BLDC motor provides low noise and strong durability.

Ease of Use

• The controller display adopts VFD (Vacuum Fluorescent Display). It is

easy to indicate shaker setup and operating condition.

• User can do Timer setting conveniently (1 min to 99 hour 59 min).

Also, the Timer can be used to check remaining time.

• Possible to use 1.5ml Micro-tube, 15ml, 50ml conical tube.

Features

2-2 MicroPlate Shaker Thermo Scientific

Section 2

Functional Descriptions

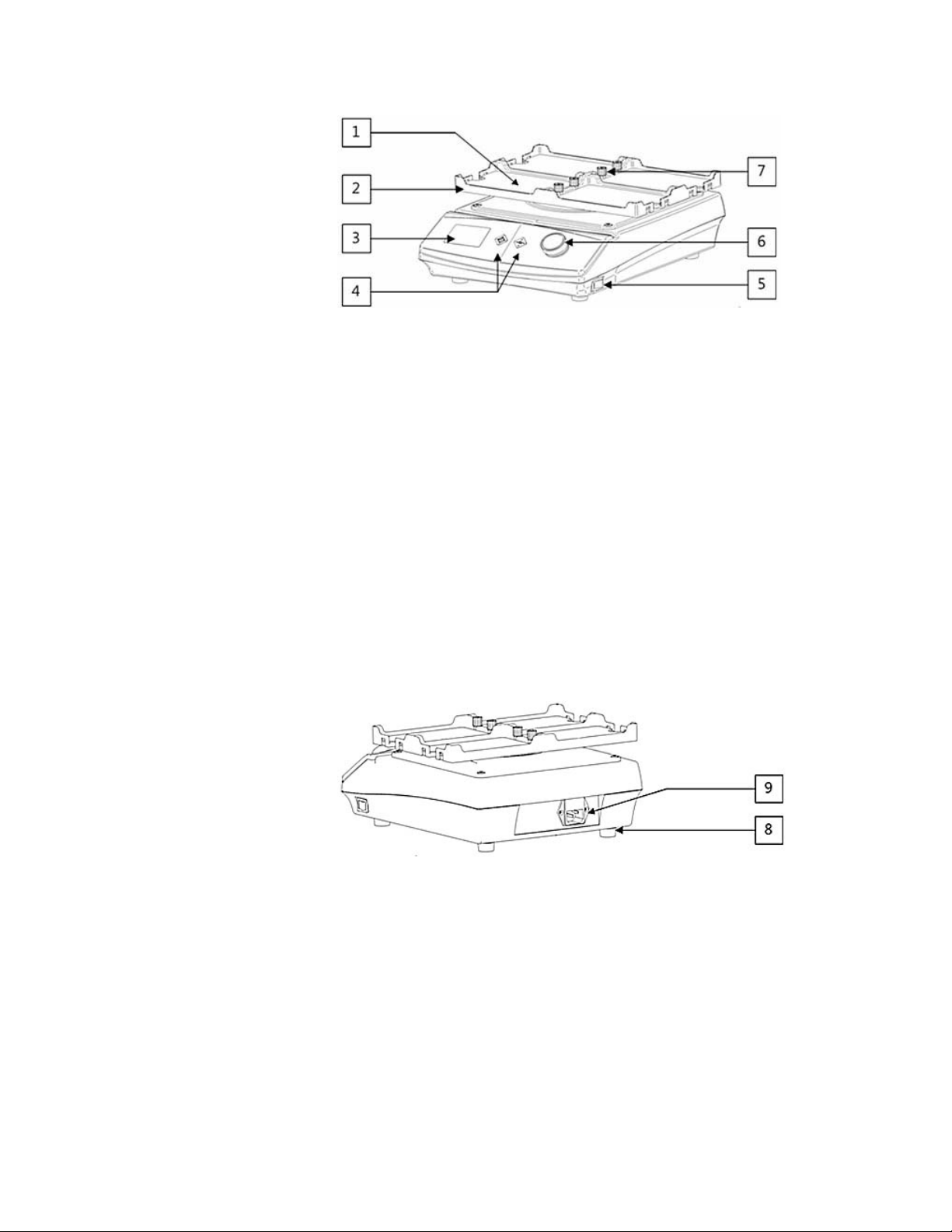

Construction

(1) Silicone Pad: to protect sliding of glass flask.

(2) Plate Tray: to be placed Microplate, Adapter (Acc. Refer: 7-1).

(3) VFD panel & Controller: The panel indicates product setting and

control condition.

(4) Touch Button: to choose RPM or TIMER individually, operating by

orange and green LED lamp.

(5) Power switch: It is the main ON/OFF switch and supplying power of

the product.

(6) Dial knob : to set a shaking speed / Timer and start / stop.

(7) Fixing Rubber: to be placed Microplate on the plate.

(8) Foot: to prevent from slippery and support main body

(9) Socket: Connect the power cable on the socket.

MicroPlate Shaker 3-1Thermo Scientific

Section 3 Installation

Check to see if there is any damage in the instrument packaging before

unpacking. Then unpack the instrument carefully. Inspect to see that the

instrument was not damaged during transportation.

Check the instrument components supplied in the package after

unpacking. If a noticeable issue or an omission is found, immediately

notify your local Thermo Scientific dealer’s Service Department.

▪Temperature: 2°C ~ 60°C

▪Relative Humidity: RH 10% ~ 80%

▪Maximum Altitude: Up to 2000m

• The unit should be located away from naked flame sources, direct sunlight.

It can cause a malfunction or lower the function.

• Do not place the unit near other laboratory equipment which can be readily

influenced, even by weak motor vibration.

Checking Instrument

Components

BASIC COMPONENT QUANTITY/ RECEIVED DESCRIPTION

Operating Manual 1/OK -

Body 1/OK -

Power cord 1/OK -

Installation

Environment

Inhaltsverzeichnis

Andere Thermo Scientific Laborausrüstung Handbücher

Thermo Scientific

Thermo Scientific ARL EQUINOX 5000 Bedienungs- und Wartungshandbuch

Thermo Scientific

Thermo Scientific DSQ II Bedienungsanleitung

Thermo Scientific

Thermo Scientific 1300 Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific Jewett 5030 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Dionex ED50A Bedienungsanleitung

Thermo Scientific

Thermo Scientific 3881 Betriebsanleitung

Thermo Scientific

Thermo Scientific VF-F20-A Bedienungsanleitung

Thermo Scientific

Thermo Scientific Dionex ICS-5000+ Bedienungsanleitung

Thermo Scientific

Thermo Scientific 7452 Betriebsanleitung

Thermo Scientific

Thermo Scientific HM 450 Bedienungsanleitung

Thermo Scientific

Thermo Scientific A 40B Bedienungsanleitung

Thermo Scientific

Thermo Scientific Neslab EX-7 Betriebsanleitung

Thermo Scientific

Thermo Scientific 7450 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Thermo Scientific 3906 Bedienungsanleitung

Thermo Scientific

Thermo Scientific 7470 Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific Agilent 1100 Series Bedienungsanleitung

Thermo Scientific

Thermo Scientific SL40 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Omni FTIR Multi Gas CEMS Bedienungsanleitung

Thermo Scientific

Thermo Scientific Shandon TissueWave 2 Handbuch

Thermo Scientific

Thermo Scientific EVOS AMEP4947 Bedienungsanleitung

Thermo Scientific

Thermo Scientific ISQ EC Bedienungsanleitung

Thermo Scientific

Thermo Scientific MaxQ 4000 Bedienungsanleitung

Thermo Scientific

Thermo Scientific IonPac CS16 Bedienungsanleitung

Thermo Scientific

Thermo Scientific Orion Versa Star Bedienungsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

IKA

IKA IC control Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Agilent Technologies

Agilent Technologies 5800 ICP-OES Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung
