Topfield TBF - 7110 Bedienungsanleitung

TBF - 7110

User Guide

High Deﬁnition

Digital Terrestrial Receiver

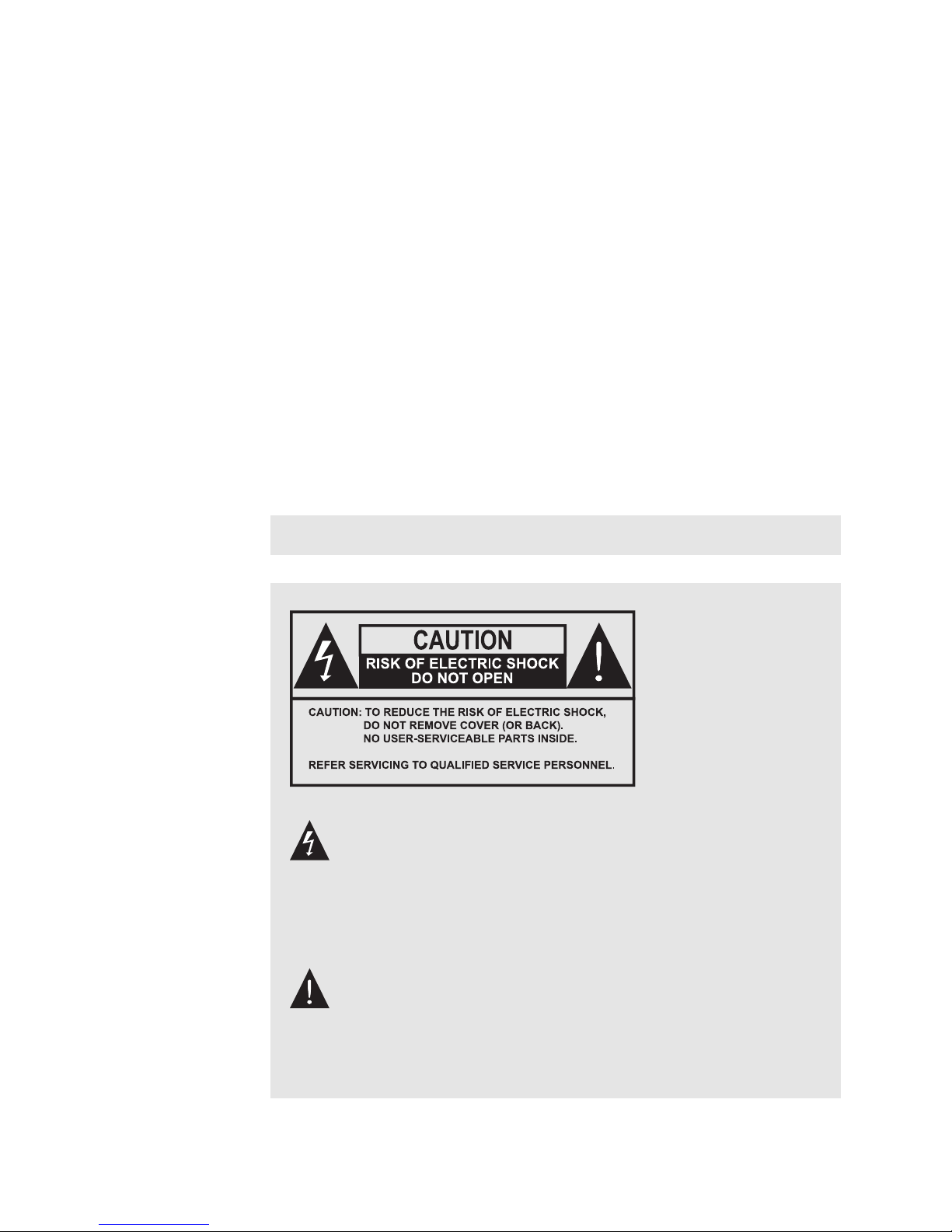

The lightning ﬂash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufﬁcient magnitude

to constitute a risk of electric shock to a person.

The exclamation point, within an equilateral triangle, is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the product.

iv CONTENTS

Contents

Contents iv

1 Introduction 1

1.1 Features ............................... 1

1.2 Controlling the digital receiver .................. 2

1.2.1 The front panel ....................... 3

1.2.2 The remote control ..................... 4

2 Setup 6

2.1 Unpacking .............................. 6

2.2 Safety precautions ......................... 6

2.3 Rear panel connections ....................... 8

2.4 Connecting up your digital receiver ............... 9

2.4.1 Connecting the antenna .................. 9

2.4.2 Connecting to your television set ............ 10

2.5 Inserting batteries in the remote control ............. 12

2.6 Switching on for the ﬁrst time ................... 12

2.6.1 Powering on and checking picture ............ 12

3 Preference Settings 13

3.1 Language settings .......................... 13

3.2 Video and audio settings ...................... 14

3.2.1 Television aspect ratio ................... 14

3.2.2 High deﬁnition television ................. 16

3.2.3 Audio mode ........................ 16

CONTENTS v

3.3 Local time setting .......................... 17

3.4 Parental control ........................... 19

3.5 Adjusting the On-Screen Display ................. 21

3.6 Displaying the time in standby mode .............. 21

4 Service Search 22

4.1 Searching broadcasting services .................. 22

4.2 Resetting to factory settings .................... 23

5 Daily Usage 24

5.1 Volume control ........................... 24

5.2 Watching television ......................... 24

5.2.1 The services list ....................... 24

5.2.2 The favourite services list ................. 26

5.2.3 Viewing programme information ............ 27

5.2.4 Selecting audio tracks ................... 27

5.2.5 Selecting subtitle tracks .................. 28

5.2.6 Viewing teletext ...................... 28

5.3 Viewing electronic programme guide .............. 28

5.4 Making timer events ........................ 30

6 Listing Services 32

6.1 Editing the favourite list ...................... 32

6.2 How to use on-screen keyboard .................. 34

7 Firmware Update 35

7.1 Checking the ﬁrmware information ............... 35

7.2 From a USB memory ........................ 36

7.3 From your computer via RS-232 port ............... 37

Index 38

Chapter 1

Introduction

The TBF - 7110 digital receiver is fully compliant with the inter-

national Digital Video Broadcasting (DVB) standard, and thus

is able to receive digital broadcasts of that standard.

For its operation you need an antenna, which must be installed

appropriately.

NOTE

In general we equate a channel with a frequency. However,

unlike analogue broadcasts, digital broadcasts are not all as-

signed to their own frequencies; instead, multiple television

broadcasts are transmitted through a single frequency. The fre-

quency in digital broadcasting is usually called transponder. To

reduce confusion in this manual, the word

service

is preferably

used than

channel

as a term to indicate one television or radio

broadcast.

1.1 Features

The TBF - 7110 digital receiver has the following features:

2 Introduction

• Supports the Australian Freeview Phase 1.

• Can store up to 2000 television and radio services.

• Can create favourite lists of your favourite services.

•

Can view information about the current television or

radio programme.

•

Has an electronic programme guide that provides an

overview of scheduled programmes.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control or

the buttons on the front panel.

NOTE

When the digital receiver is off but plugged into a wall outlet,

we say that it is in standby mode; on the other hand, when it is

on, it is in operation mode. Even when you are not using the

digital receiver, you should keep it plugged into a wall outlet

to be in standby mode so that it can run timer events at any

time.

1.2 Controlling the digital receiver 3

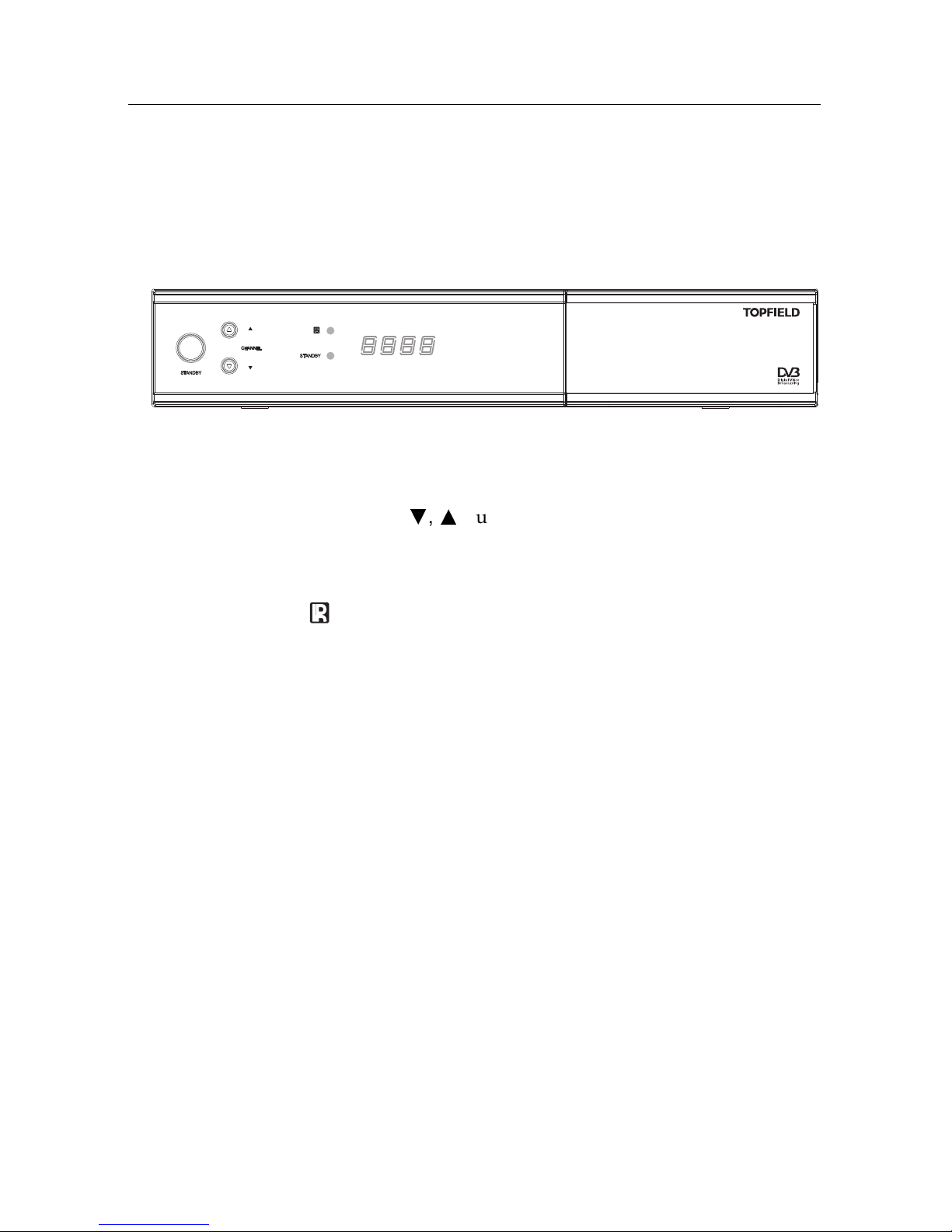

1.2.1 The front panel

The front panel of the digital receiver has buttons to control

the digital receiver, speciﬁc lamps and a display to indicate its

status. The following indicates what they mean.

STANDBY

button switches the digital receiver between

standby mode and operation mode.

CHANNEL

buttons switch to previous or next service.

They are also used to navigate in menus and interactive

screens.

lamp blinks whenever you press a button on the remote

control.

STANDBY

lamp lights up while the digital receiver is in

standby mode.

Front display

shows the current time in standby mode, and

displays the current service in operation mode.

4 Introduction

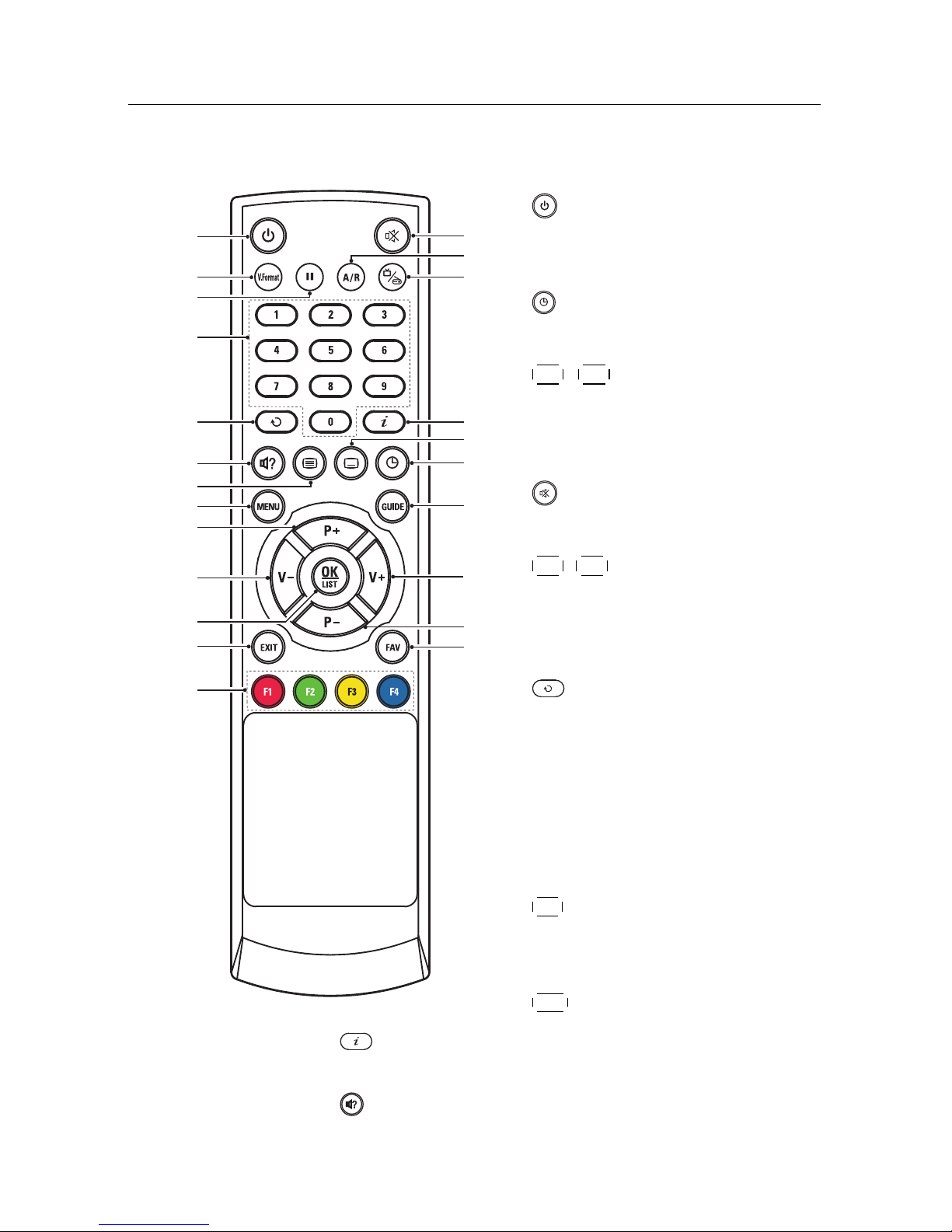

1.2.2 The remote control



button switches the digital re-

ceiver between standby mode and

operation mode.



is used to set a sleep timer in 10

minute increments.









V−









V+

buttons decrease or in-

crease the volume. They are also

used to change values for menu op-

tions.



mutes the sound. Press again

to switch it back on.









P−









P+

buttons switch to previ-

ous or next service. They are also

used to navigate in menus and in-

teractive screens.



switches between the current

service and the previously viewed

one.



Numeric buttons are used to en-

ter a service number for service

change or to specify values for

menu options.









displays the services list. See

5.2.1 for more details. It is also

used to select a menu item.









FAV displays the favourite lists.



displays the service information box. It is also used

to display more information about a programme.



is used to select an audio track and a sound mode, or
