1
Chapter 1
Introduction
The TF MMDS 100 digital receiver is fully compliant with the
international Digital Video Broadcasting (DVB) standard, and
can receive digital broadcasts.
NOTE
In general we equate a channel with a frequency. Unlike
analogue broadcasts, however, digital broadcasts are not all
assigned to their own frequencies; instead, multiple televi-
sion broadcasts are transmitted through a single frequency.
The frequency in digital broadcasting is usually called trans-
ponder. To reduce confusion in this manual, the word service
is preferably used than channel as a term to indicate one tele-
vision or radio broadcast.
1.1 Features
The TF MMDS 100 digital receiver has the following features:
• Can store up to 2000 television and radio services.
• You can edit the services list.
2 Introduction
• You can make a favourite list with your favourite ser-
vices.
• You can view information about the current television
or radio programme.
• Has an electronic programme guide that provides an
overview of programme schedules for next few hours.
• You can update the firmware of the digital receiver to
the latest version, which will be provided by the manu-
facturer.
1.2 Controlling the digital receiver
The digital receiver can be operated with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
1.2.1 The front panel
The front panel of the digital receiver has buttons to control
the digital receiver, and specific lamps and a display to indi-
cate its status. The following indicates what they mean.
w~y{mGttkzXWWjohuuls
1.2 Controlling the digital receiver 3
Front display displays the current time in standby mode,
and displays the current service in operation mode.
lamp lights up whenever you press a button on the re-
mote control.
PWR lamp lights up while the digital receiver is in standby
mode.
CHANNEL
a
,
c
buttons switch to the previous or next
service. They are also used to navigate in menus and
interactive screens.
button switches the digital receiver between standby
mode and operation mode.
You have to insert your subscription card into the front slot to
watch pay services.
4 Introduction

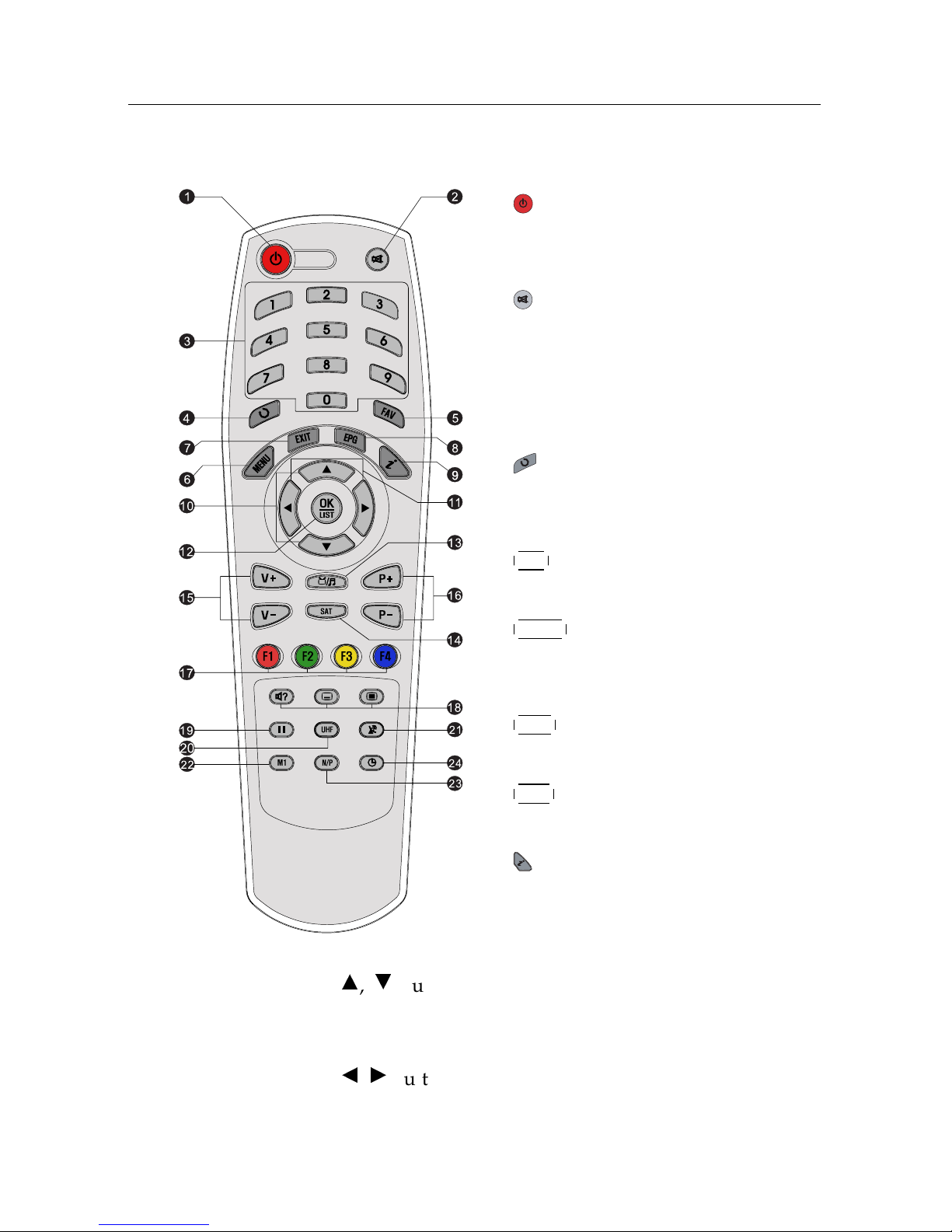

1.2.2 The remote control
1
button switches the digital re-
ceiver between standby mode and
operation mode.
2
button mutes the sound. Press
again to switch it back on.
3
Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
4
button switches between the
current service and the previously
viewed one.
5
FAV button displays the favourite
list.
6
MENU button displays the main
menu. It is also used to return to the
previous menu from a submenu.
7
EXIT button is used to leave the cur-
rent screen.
8
EPG button displays the electronic
programme guide.
9
button displays more information
about the current programme or the
highlighted programme in the elec-
tronic programme guide.
10
a
,
c
buttons switch to the previous or next service.
They are also used to navigate in menus and interactive
screens.
11
b
,
d
buttons decrease or increase the volume. They are
also used to change values for menu options.
