Topfield TF 5000 CI Bedienungsanleitung
TOPFIELD
TF 5000 CI
TF 5100 CI
User Guide
Digital Satellite Receiver
Common Interface
Contents iii
Contents
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 2
1.2.2 The remote control ..................... 4
1.3 What is common interface? .................... 5
2 Setup 7
2.1 Unpacking .............................. 7
2.2 Safety precautions ......................... 7
2.3 Rear panel connections ....................... 9
2.4 Connecting up your digital receiver ............... 10
2.4.1 Connecting the antenna .................. 10
2.4.2 Connecting to your television .............. 11
2.4.3 Connecting to your video cassette recorder ....... 13
2.4.4 Inserting batteries in the remote control ......... 13
3 Preference Settings 14
3.1 Language settings .......................... 14
3.2 Video and audio settings ...................... 15
3.2.1 Television standard .................... 15
iv Contents
3.2.2 Colour model ........................ 16
3.2.3 Video cassette recorder .................. 16
3.2.4 Television aspect ratio ................... 17
3.2.5 Sound mode ........................ 17
3.2.6 Radio frequency output .................. 18
3.3 Local time setting .......................... 18
3.4 Parental control ........................... 19
3.5 Adjusting the on-screen display .................. 21
4 Service Search 23
4.1 Searching broadcasting services .................. 23
4.1.1 Configuring LNB settings ................. 23
4.1.2 Configuring DiSEqC 1.2 settings ............. 25
4.1.3 Configuring USALS settings ............... 27
4.1.4 Searching services ..................... 28
4.2 Editing the transponder list .................... 31
4.3 Resetting to factory settings .................... 32
4.4 Resetting to installer settings ................... 32
5 Daily Usage 34
5.1 Volume control ........................... 34
5.2 Watching television ......................... 34
5.2.1 The services list ....................... 34
5.2.2 The favourite services list ................. 36
5.2.3 Viewing programme information ............ 36
5.2.4 Selecting audio tracks ................... 37
5.2.5 Selecting subtitle tracks .................. 38
5.2.6 Viewing teletext ...................... 38
5.3 Viewing electronic programme guide .............. 38
5.4 Watching multifeed programme ................. 40
5.5 Making timer events ........................ 40
Contents v
6 Listing Services 42
6.1 Editing the services list ....................... 42
6.2 Editing the favourite list ...................... 44
6.3 How to use on-screen keyboard .................. 46
6.4 Transferring receiver data ..................... 46
7 Firmware Update 48
7.1 From your computer via RS-232 port ............... 49
7.2 From another digital receiver via RS-232 port .......... 50
Index 51
1
Chapter 1
Introduction
The TF 5000CI / TF 5100 CI digital receiver is fully compliant
with the international Digital Video Broadcasting (DVB) stan-
dard, and can receive digital broadcasts. For its operation, you
need an antenna, which must be installed appropriately.
NOTE
In general we equate a channel with a frequency. How-
ever, unlike analogue broadcasts, digital broadcasts are not
all assigned to their own frequencies; instead, multiple tele-
vision broadcasts are transmitted through a single frequency.
The frequency in digital broadcasting is usually called trans-
ponder. To reduce confusion in this manual, the word service
is preferably used than channel as a term to indicate one tele-
vision or radio broadcast.
1.1 Features
The TF 5000CI / TF 5100 CI digital receiver has the following
features:
• Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-
ALS.
2 Introduction
• Can store up to 5000 television and radio services.
• You can edit the services list.
• You can make a favourite list with your favourite ser-
vices.
• You can view information about the current television
or radio programme.
• Has an electronic programme guide that provides an
overview of programme schedules for next few hours.
• You can update the firmware of the digital receiver to
the latest version, which will be provided by the manu-
facturer.
1.2 Controlling the digital receiver
The digital receiver can be operated with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
1.2.1 The front panel
The front panel of the digital receiver has buttons to control
the digital receiver, and specific lamps and a display to indi-
cate its status. The following indicates what they mean.
1.2 Controlling the digital receiver 3
STANDBY
CHANNEL
VOLUME
TV/STB
REMOTE
STANDBY
STANDBY button switches the digital receiver between
standby mode and operation mode.
CHANNEL
a
,
c
buttons move to the next or previous ser-
vice. They are also used to navigate in the menus and
interactive screens.
VOLUME
b
,
d
buttons increase and decrease the volume.
They are also used to change options for a menu item.
TV/STB lamp lights up while your video recorder operates
instead of the digital receiver. See § 3.2.3 for more de-
tails.
REMOTE lamp lights up whenever you press a button on
the remote control.
STANDBY lamp lights up while the digital receiver is in
standby mode.
Front display displays the current time in standby mode,
and displays the current service in operation mode.
Pull the right edge of the front panel to open the flap. You
have to insert your subscription card into the slot to watch
pay services.
4 Introduction

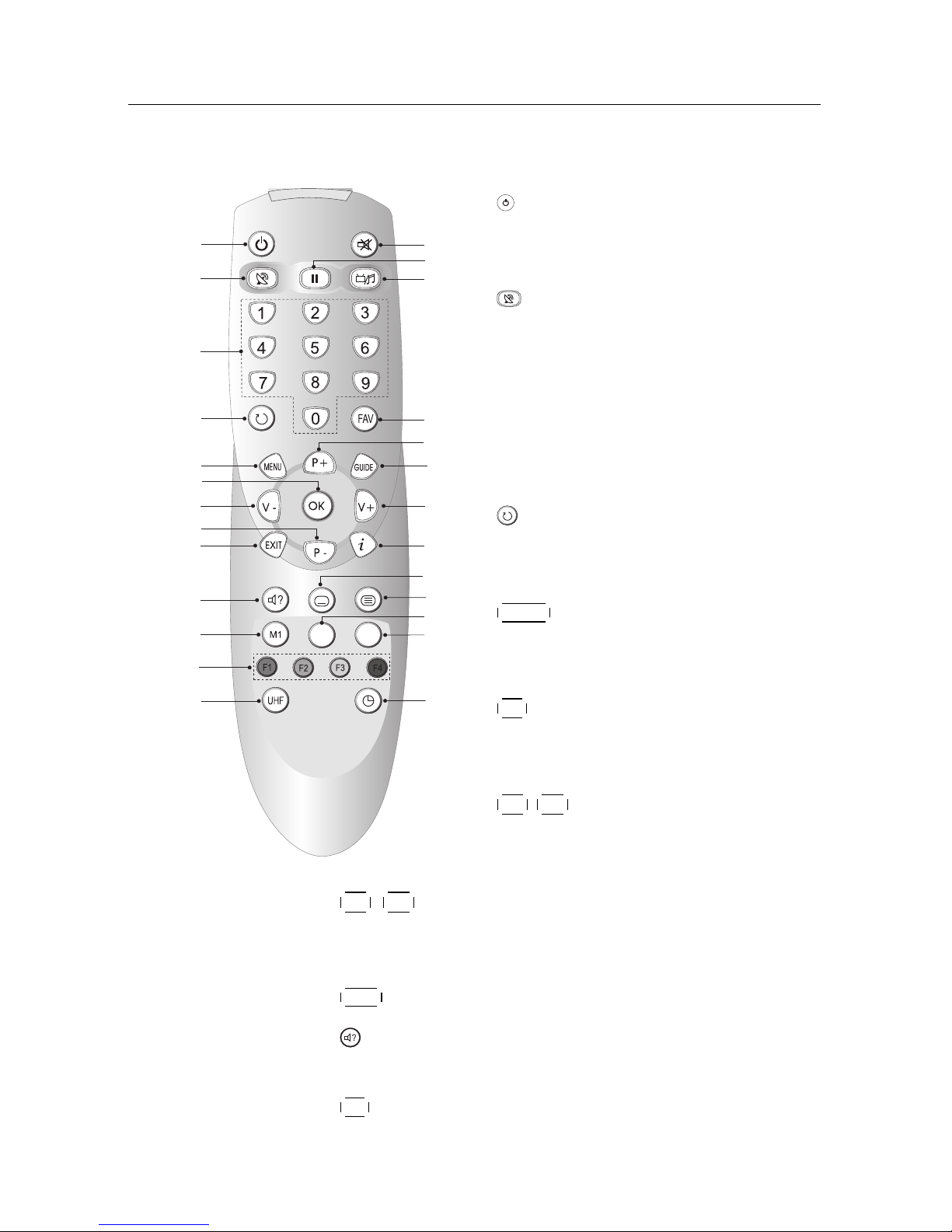

1.2.2 The remote control
SAT N/P
1
2
3
4
5
6
77
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
button switches the digital receiver
between standby mode and operation
mode.
2
button switches the output of the
TV SCART socket between the digital
receiver and the device connected to
the VCR SCART socket. See § 3.2.3 for
more details.
3
Numeric buttons are used to enter ser-
vice numbers and menu options.
4
button switches between the cur-
rent service and the previously viewed
one.
5
MENU button displays the main menu.
It is also used to return to the previous
menu from a submenu.
6
OK button displays the services list. It
is also used to select menu items. See
§5.2.1 for more details.
7
V+,
V−buttons increase and decrease
the volume. They are also used to
change options for a menu item.
8
P+,
P−buttons move to the next or previous service.
They are also used to navigate in the menus and interac-
tive screens.
9
EXIT button is used to leave the current screen.
10
button is used to select an audio track and sound
mode, or a video track of multifeed programme.
11
M1 button is not used in this model.
