Topfield TF7750HDPVR Bedienungsanleitung

TOPFIELD

TF7750HDPVR

User Guide

High Deﬁnition

Digital Satellite Receiver

Personal Video Recorder

Common Interface

ii CONTENTS

Contents

Contents ii

1 Introduction 1

1.1 Features .............................. 1

1.2 Controlling the digital receiver .................. 2

1.2.1 Front panel ........................ 3

1.2.2 Remote control ...................... 4

1.3 Common Interface ......................... 6

2 Setup 8

2.1 Unpacking ............................. 8

2.2 Safety precautions ......................... 8

2.3 Rear panel connections ...................... 10

2.4 Connecting up your digital receiver ............... 12

2.4.1 Connecting to the antenna ................ 13

2.4.2 Connecting to your television set ............ 14

2.4.3 Connecting to your video recorder ........... 17

2.5 Switching on for the ﬁrst time .................. 17

3 Service Search 19

3.1 Searching for broadcasting services ............... 19

3.1.1 Conﬁguring LNB settings ................ 20

3.1.2 Conﬁguring DiSEqC 1.2 settings ............ 22

3.1.3 Conﬁguring USALS settings ............... 23

3.1.4 Searching for services .................. 25

CONTENTS iii

3.2 Copying services ......................... 28

3.3 Editing the transponder list ................... 28

3.4 Resetting to factory settings ................... 29

4 Preference Settings 31

4.1 Language settings ......................... 31

4.1.1 Menu language ...................... 31

4.1.2 Subtitle language ..................... 32

4.1.3 Hard of Hearing ..................... 32

4.1.4 Audio language ...................... 32

4.2 Video and audio settings ..................... 33

4.2.1 High deﬁnition television ................ 33

4.2.2 Television aspect ratio .................. 34

4.2.3 Colour format ....................... 35

4.2.4 Another video device ................... 35

4.2.5 Audio mode ........................ 36

4.3 Local time setting ......................... 37

4.4 Parental control .......................... 39

4.5 Adjusting the On-Screen Display ................ 40

4.6 To enable time-shifting ...................... 41

4.7 Advanced Settings ......................... 42

4.7.1 Recording Settings .................... 42

4.7.2 Auto Decoding ...................... 43

5 Every Day Use 44

5.1 Volume control .......................... 44

5.2 Watching television ........................ 44

5.2.1 The services list ...................... 44

5.2.2 The favourite service lists ................ 46

5.2.3 Viewing programme information ............ 47

5.2.4 Selecting audio tracks .................. 48

5.2.5 Selecting subtitle tracks ................. 48

5.2.6 Viewing teletext ...................... 48

5.3 Viewing electronic programme guide .............. 49

5.4 Watching multifeed programme ................. 49

5.5 Using time-shift .......................... 50

iv CONTENTS

6 Organising Services 52

6.1 Editing the services list ...................... 52

6.2 Editing the favourite lists ..................... 54

6.3 How to use on-screen keyboard ................. 56

6.4 Transferring receiver data .................... 56

6.5 Editing channel data on your computer ............. 57

7 Recording and Playback 59

7.1 Recording a programme ..................... 59

7.1.1 Instant recording ..................... 60

7.1.2 Timer recording ...................... 62

7.1.3 Scheduling recordings using the programme guide . . 64

7.1.4 Recording a pay service programme .......... 65

7.2 File archive ............................. 65

7.2.1 To delete a recording ................... 66

7.2.2 To sort recordings ..................... 66

7.2.3 To lock a recording .................... 66

7.2.4 To rename a recording .................. 67

7.2.5 To make a new folder ................... 67

7.2.6 To move a recording to another folder ......... 67

7.3 Playing back a recording ..................... 68

7.3.1 To navigate using the progress bar ........... 69

7.3.2 To play in slow motion .................. 69

7.3.3 To play in fast motion ................... 69

7.3.4 To make a bookmark ................... 70

7.3.5 To play back a recording repeatedly .......... 70

7.3.6 To play back recordings in sequence .......... 71

7.3.7 To play back a scrambled recording ........... 71

7.4 MP3 playback ........................... 72

7.5 Formatting the hard disk ..................... 72

8 Accessing via Network 73

8.1 Conﬁguring the router ...................... 74

8.1.1 To access within the local area network ......... 74

8.1.2 To access over the Internet ................ 75

8.2 Conﬁguring the network setting on the digital receiver . . . . 76

CONTENTS v

8.3 Accessing the web server ..................... 77

9 Firmware Update 79

9.1 From a memory stick ....................... 79

9.2 From the ﬁrmware server via the Internet ........... 80

9.3 From your computer via RS-232 port .............. 81

9.4 From another digital receiver via RS-232 port ......... 82

9.5 Over the air ............................ 83

Index 85

Chapter 1

Introduction

The TF7750HDPVR digital receiver is fully compliant with the

international Digital Video Broadcasting (DVB) standard, and

thus is able to receive digital broadcasts of that standard. For

its operation you need an antenna, which must be installed ap-

propriately.

NOTE

In general we equate a channel with a frequency. However,

unlike analogue broadcasts, digital broadcasts are not all

assigned to their own frequencies; instead, multiple televi-

sion broadcasts are transmitted through a single frequency.

The frequency in digital broadcasting is usually called trans-

ponder or multiplex. To reduce confusion in this manual,

the word service is preferably used than channel as a term

to indicate one television or radio broadcast.

1.1 Features

This digital receiver has the following features:

• Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-

ALS protocols.

2 Introduction

• Can store up to 5,000 television and radio services.

• You can edit the services list.

• Can create lists of your favourite services.

• Can view information about the current television or ra-

dio programme.

• Has an electronic programme guide that provides an

overview of scheduled programmes.

• You can record one service while you are currently

watching another.

• You can record many programmes using a built-in hard

drive with large storage capacity.

• Time-shift is a special technical feature available on this

digital receiver. You can pause a programme you are

watching and resume it again at a later time. Then you

can quickly go to any part of the current programme by

fast forward or rewind search.

• If you have an external hard drive connected to the dig-

ital receiver via the USB port, you can record television

programmes into it.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control or

the buttons on the front panel.

NOTE

When the digital receiver is oﬀ but plugged into a wall

socket, we say that it is in standby mode; on the other hand,

when it is on, it is in active mode. Even when you are not

using the digital receiver, you should keep it plugged into

a wall socket to be in standby mode so that it can run timer

events at any time.

1.2 Controlling the digital receiver 3

1.2.1 Front panel

The front panel of the digital receiver has buttons to control

the digital receiver, speciﬁc lights and a display to indicate its

status. The following indicates what they mean.

button switches the digital receiver between standby mode

and active mode.

VOLUME −,+buttons decrease or increase the volume. They

are also used to change values for menu options.

CHANNEL −,+buttons switch to the previous or next ser-

vice. They are also used to navigate in menus and in-

teractive screens.

Front display shows the current time in standby mode, and

displays the current service in active mode.

There is a USB port on the front panel for

ﬁrmware update and data transfer.

4 Introduction

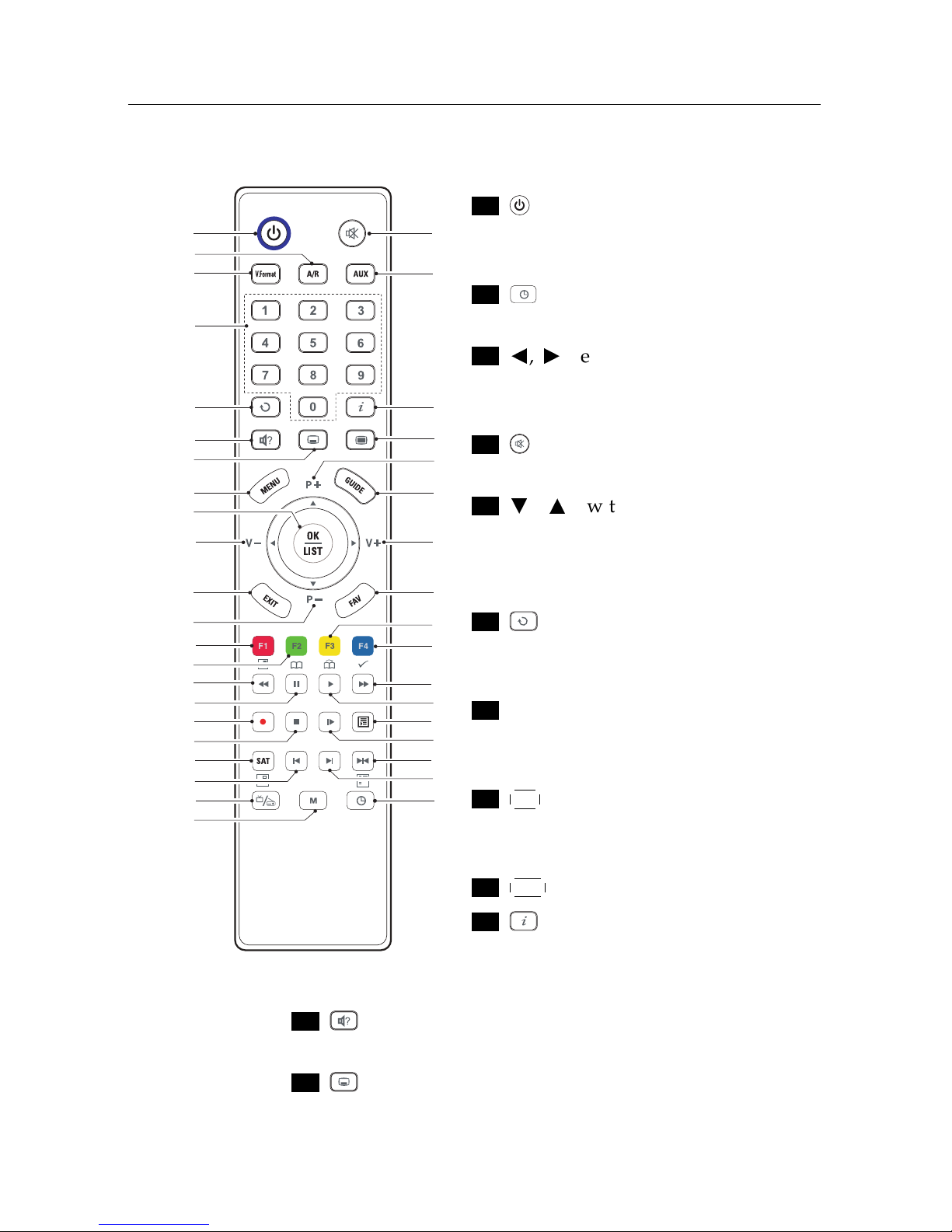

1.2.2 Remote control

27 28

30 31

.1button switches the digital re-

ceiver between standby mode and

active mode.

.2is used to set a sleep timer in 10

minute increments.

decrease or increase the vol-

ume. They are also used to change

values for menu options.

.4mutes the sound. Press again to

switch it back on.

switch to the previous or

next service. They are also used to

navigate in menus and interactive

screens.

.6switches over between the

current service and the previously

viewed one.

.7Numeric buttons are used to enter a

service number for service change or

to specify values for menu options.

.8







OK displays the services list. See

§5.2.1 for more details. It is also used

to select a menu item.

.9







FAV displays the favourite lists.

10 displays the service information

box. It is also used to display more

information about a programme.

11 is used to select an audio track and a sound mode, or

a video track of multifeed programme.

12 is used to select a subtitle track.
