Topfield TRF-2470 Service-Handbuch

TOPFIELD

TRF-2470

User Reference

High Deﬁnition

Digital Terrestrial Receiver

Personal Video Recorder

ABC iView

Home Media Share

Quick Setup in ﬁve easy steps

1. Connect the antenna to ANT IN on the back of the PVR unit.

2. Connect your desired audio-video cables from the back

of the PVR unit to the back of the television.

(Composite, Component, HDMI)

3. Plug into the power point and turn the unit ON using

the switch on the back of the unit.

4. Switch television ON, then use the television remote to

select the correct video input channel for the PVR unit.

(for example, AV1, AV2, Component, HDMI, etc)

5. On the main menu go to Installation/Searching then

scroll to Start Search, press 







OK .

Wait till progress bar on bottom of screen reaches 100 %

then press 







OK to save and 







EXIT .

CONTENTS iii

Contents

Contents iii

1 Introduction 1

1.1 Features .............................. 1

1.2 Controlling the digital receiver .................. 2

1.2.1 Front panel ........................ 3

1.2.2 Remote control ...................... 5

2 Setup 8

2.1 Unpacking ............................. 8

2.2 Safety precautions ......................... 8

2.3 Rear panel connections ...................... 9

2.4 Connecting up your digital receiver ............... 11

2.4.1 Connecting to the antenna ................ 12

2.4.2 Connecting to your television set ............ 12

2.5 Switching on for the ﬁrst time .................. 15

3 Service Search 17

3.1 Searching for broadcasting services ............... 17

3.2 Resetting to factory settings ................... 18

3.3 Resetting to user settings ..................... 19

3.4 Clearing the services list ..................... 19

4 Preference Settings 20

4.1 Video and audio settings ..................... 20

4.1.1 High deﬁnition television ................ 20

iv CONTENTS

4.1.2 Television aspect ratio .................. 21

4.1.3 Audio mode ........................ 22

4.2 Local time setting ......................... 23

4.3 Parental control .......................... 24

4.4 Options for recording ....................... 26

4.5 Options for playback ....................... 27

4.6 Options for on-screen display .................. 28

4.7 Options for the front display ................... 29

4.8 Options for Photo Album ..................... 30

4.9 Options for standby mode .................... 30

5 Every Day Use 32

5.1 Volume control .......................... 32

5.2 Watching television ........................ 32

5.2.1 The services list ...................... 32

5.2.2 The favourite service lists ................ 34

5.2.3 Viewing programme information ............ 35

5.2.4 Selecting audio tracks .................. 35

5.2.5 Selecting subtitle tracks ................. 36

5.3 Viewing electronic programme guide .............. 36

5.4 Using time-shift .......................... 37

6 Organising Services 39

6.1 Editing the favourite lists ..................... 39

6.2 How to use on-screen keyboard ................. 41

7 Recording and Playback 42

7.1 Recording a programme ..................... 43

7.1.1 Instant recording ..................... 44

7.1.2 Timer recording ...................... 45

7.1.3 Scheduling recordings using the programme guide . . 48

7.1.4 Storing a time-shifted programme ........... 49

7.2 File archive ............................. 50

7.2.1 To delete a recording ................... 51

7.2.2 To sort recordings ..................... 51

7.2.3 To lock a recording .................... 51

CONTENTS v

7.2.4 To rename a recording .................. 51

7.2.5 To set the playback option ................ 52

7.2.6 To make a new folder ................... 52

7.2.7 To move a recording to another folder ......... 52

7.3 Playing back a recording ..................... 52

7.3.1 To navigate using the progress bar ........... 53

7.3.2 To play in slow motion .................. 53

7.3.3 To play in fast motion ................... 54

7.3.4 To make a bookmark ................... 54

7.3.5 To play back a recording repeatedly .......... 55

7.3.6 To play back recordings in sequence .......... 55

7.4 Editing a recording ........................ 56

7.5 Copying a recording ....................... 56

8 Entertainment 57

8.1 Catching up the programmes (ABC iView) ........... 57

8.1.1 Searching for a favourite show .............. 58

8.1.2 Watching the selected programme ........... 58

8.2 Copying ﬁles ............................ 59

8.3 Playing back MP3 ﬁles ...................... 60

8.4 Viewing image ﬁles ........................ 61

8.4.1 How to move a ﬁle to the photo album ......... 61

8.5 Playing back a video ﬁle ..................... 62

8.6 Playing back YouTube contents (optional) ........... 63

8.7 Sharing image ﬁles by Yahoo Flickr (optional) ......... 63

8.8 SHOUTcast Internet radio (optional) .............. 65

8.9 Google weather forecast (optional) ............... 66

8.10 Sharing media content with other devices ........... 66

8.11 Network game ........................... 69

8.11.1 Single mode ........................ 69

8.11.2 Network mode ...................... 73

9 Accessing via Network 74

9.1 Conﬁguring the router ...................... 75

9.1.1 To access within the local area network ......... 75

9.1.2 To access over the Internet ................ 76

vi CONTENTS

9.2 Network setup ........................... 77

9.2.1 For a wired connection .................. 77

9.2.2 For a wireless connection ................ 78

9.3 Accessing the web server ..................... 78

9.4 Accessing the FTP server ..................... 80

10 Toppro Application Program 83

11 Firmware Update 86

11.1 From a memory stick ....................... 86

11.2 From the ﬁrmware server via the Internet ........... 87

A Troubleshooting 88

B Universal Remote Control 94

B.1 Code list for television sets .................... 97

B.2 Code list for DVD players .....................111

B.3 Code list for audio-video receivers ...............113

1 Introduction

Chapter 1

Introduction

The TRF-2470 digital receiver is fully compliant with the inter-

national Digital Video Broadcasting (DVB) standard, and thus

is able to receive digital broadcasts of that standard. For its

operation you need an antenna, which must be installed ap-

propriately.

For the latest news and information, join the Topfield forum at

http://www.topfield.com.au.

NOTE

In general we equate a channel with a frequency. However,

unlike analogue broadcasts, digital broadcasts are not all

assigned to their own frequencies; instead, multiple televi-

sion broadcasts are transmitted through a single frequency.

The frequency in digital broadcasting is usually called trans-

ponder or multiplex. To reduce confusion in this manual,

the word service is preferably used than channel as a term

to indicate one television or radio broadcast.

1.1 Features

This digital receiver has the following features:

2 Introduction

• Can store up to 2,000 television and radio services.

• Can create lists of your favourite services.

• Can view information about the current television or ra-

dio programme.

• Has an electronic programme guide that provides an

overview of scheduled programmes.

• You can record up to four services while you are cur-

rently watching another.

• You can record many programmes using a built-in hard

drive with large storage capacity.

• Time-shift is a special technical feature available on this

digital receiver. You can pause a programme you are

watching and resume it again at a later time. Then you

can quickly go to any part of the current programme by

fast forward or rewind search.

• If you have an external hard drive connected to the dig-

ital receiver via the USB or eSATA port, you can record

television programmes into it.

• You can play back video ﬁles of various formats includ-

ing DivX.

• You can play a built-in network game with other users

via the Internet.

• You can use various Web services including YouTube.

(optional)

• You can share media ﬁles with other device across the

same home network.

• You can catch up the past programmes using the iView

service.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control or

the buttons on the front panel.

1 Introduction

1.2 Controlling the digital receiver 3

NOTE

When the digital receiver is oﬀ but plugged into a wall

socket, we say that it is in standby mode; on the other hand,

when it is on, it is in active mode. Even when you are not

using the digital receiver, you should keep it plugged into

a wall socket to be in standby mode so that it can run timer

events at any time.

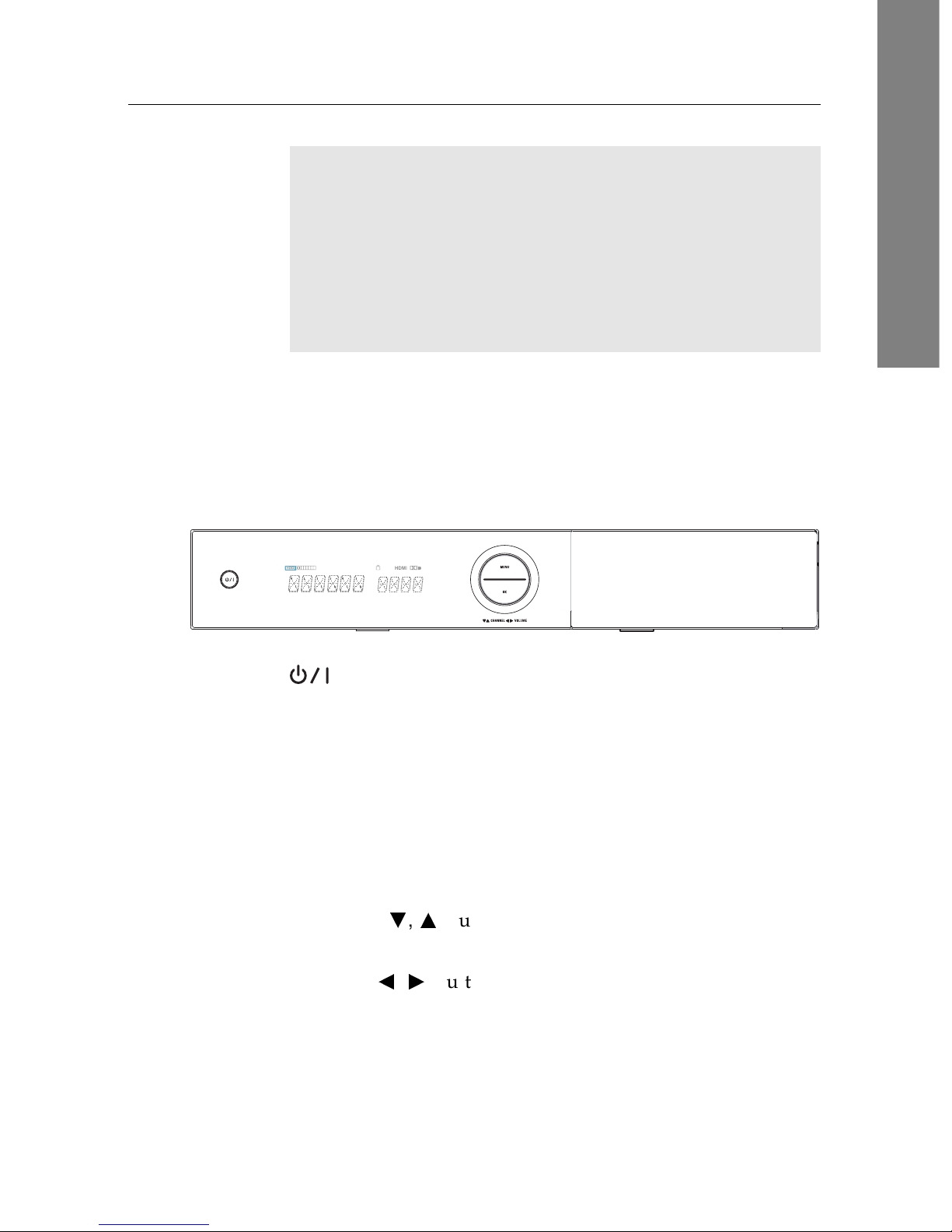

1.2.1 Front panel

The front panel of the digital receiver has buttons to control

the digital receiver, speciﬁc lights and a display to indicate its

status. The following indicates what they mean.

button switches the digital receiver between standby mode

and active mode.

Front display shows the current time in standby mode, and

displays the current service in active mode.

MENU button displays the main menu. It is also used to return

to the previous menu from a submenu.

OK button displays the services list. See §5.2.1 for more de-

tails. It is also used to select a menu item.

CHANNEL

buttons switch to the previous or next ser-

vice.

VOLUME

buttons decrease or increase the volume.

You have to insert your subscription card into the front slot to

watch pay services.

4 Introduction

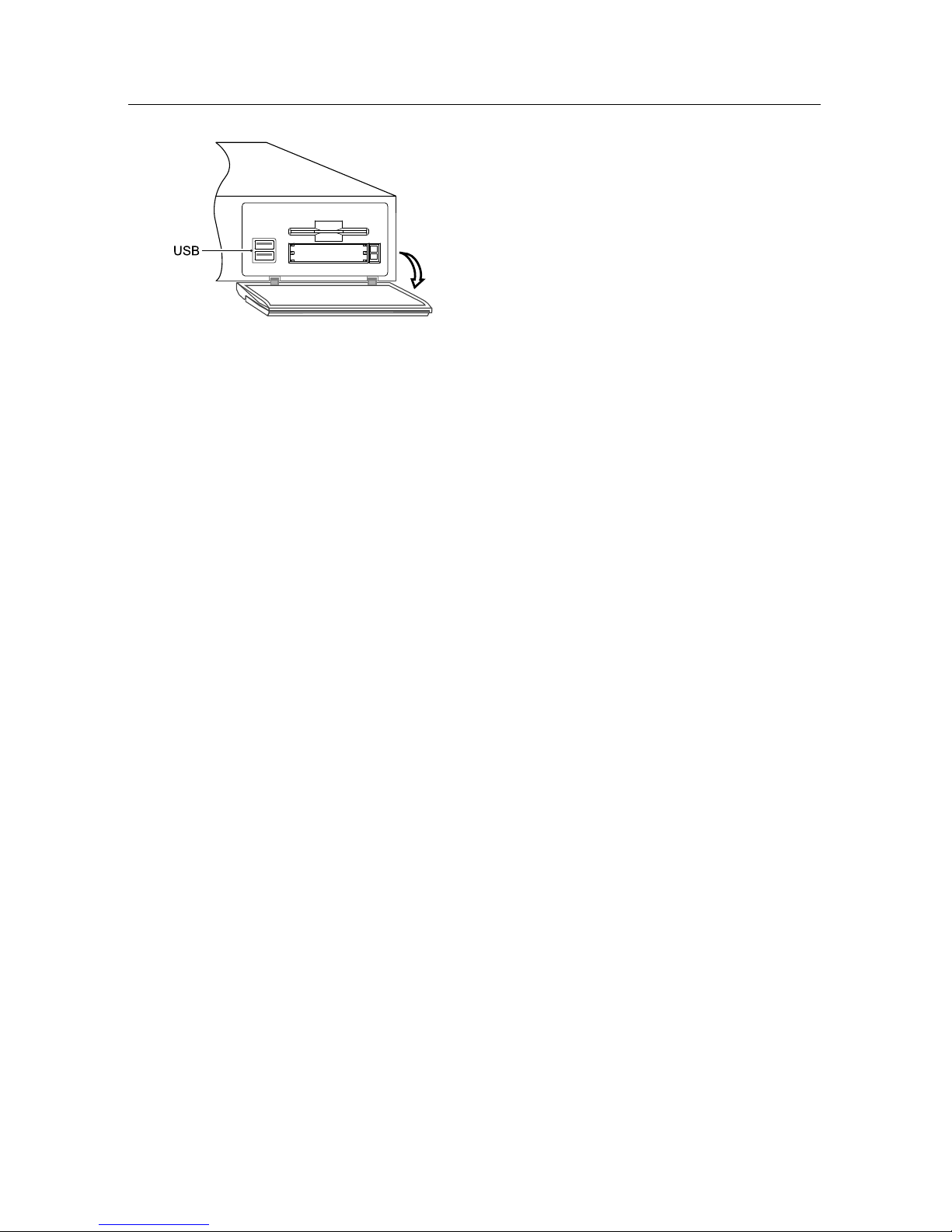

There is a USB port on the front panel for

ﬁrmware update and data transfer.
