User Guide
Digital Satellite Receiver
Contents iii
Contents
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
2 Setup 6
2.1 Unpacking .............................. 6
2.2 Safety precautions ......................... 6
2.3 Rear panel connections ....................... 8
2.4 Connecting up your digital receiver ............... 9
2.4.1 Connecting the antenna .................. 9
2.4.2 Connecting to your television .............. 9
2.5 Switching on for the first time ................... 12
2.5.1 Inserting batteries in the remote control ......... 12
2.5.2 Powering on and checking picture ............ 12
3 Preference Settings 13
3.1 Language settings .......................... 13
3.2 Video and audio settings ...................... 14
3.2.1 Television standard .................... 14
iv Contents
3.2.2 Colour model ........................ 15
3.2.3 Television aspect ratio ................... 15
3.2.4 Sound mode ........................ 16
3.2.5 Radio frequency output .................. 16
3.3 Local time setting .......................... 17
3.4 Parental control ........................... 19
3.5 Adjusting the on-screen display .................. 20
4 Service Search 21
4.1 Searching broadcasting services .................. 21
4.1.1 Configuring LNB settings ................. 21
4.1.2 Configuring DiSEqC 1.2 settings ............. 24
4.1.3 Configuring USALS settings ............... 25
4.1.4 Searching services ..................... 26
4.2 Editing the transponder list .................... 29
4.3 Resetting to factory settings .................... 30
4.4 Resetting to installer settings ................... 30
5 Daily Usage 32
5.1 Volume control ........................... 32
5.2 Watching television ......................... 32
5.2.1 The services list ....................... 32
5.2.2 The favourite services list ................. 34
5.2.3 Viewing programme information ............ 35
5.2.4 Selecting audio tracks ................... 36
5.2.5 Selecting subtitle tracks .................. 36
5.2.6 Viewing teletext ...................... 36
5.3 Viewing electronic programme guide .............. 36
5.4 Watching multifeed programme ................. 38
5.5 Making timer events ........................ 38
Contents v
6 Listing Services 40
6.1 Editing the services list ....................... 40
6.2 Editing the favourite list ...................... 42
6.3 How to use on-screen keyboard .................. 44
6.4 Transferring receiver data ..................... 44
7 Firmware Update 46
7.1 Checking the firmware information ............... 46
7.2 From your computer via RS-232 port ............... 48
7.3 From another digital receiver via RS-232 port .......... 49
Index 50
1
Chapter 1
Introduction
The TF 5000 Fe/TF 4000 Fe digital receiver is fully compliant
with the international Digital Video Broadcasting (DVB) stan-
dard, and can receive digital broadcasts. For its operation you
need an antenna, which must be installed appropriately.
NOTE
In general we equate a channel with a frequency. Unlike ana-
logue broadcasts, however, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 5000 Fe/TF 4000 Fe digital receiver has the following
features:
•
Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-
ALS.
2 Introduction
• Can store up to 5000 television and radio services.
• You can edit the services list.
• You can create favourite lists of your favourite services.
•
You can view information about the current television or
radio programme.
•
Has an electronic programme guide that provides an
overview of scheduled programmes.
•
You can update the firmware of the digital receiver to the
latest version, provided by the manufacturer.
1.2 Controlling the digital receiver
The digital receiver can be operated with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY
CHANNEL
VOLUME
TV/STB
REMOTE
STANDBY
STANDBY
button switches the digital receiver between
standby mode and operation mode.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
VOLUME
b
,
d
buttons decrease or increase the volume.
They are also used to change values for menu options.
TV/STB lamp lights up while the digital receiver is on.
REMOTE
lamp lights up whenever you press a button on
the remote control.
STANDBY
lamp lights up while the digital receiver is in
standby mode.
Front display
displays the current time in standby mode,
and displays the current service in operation mode.
4 Introduction

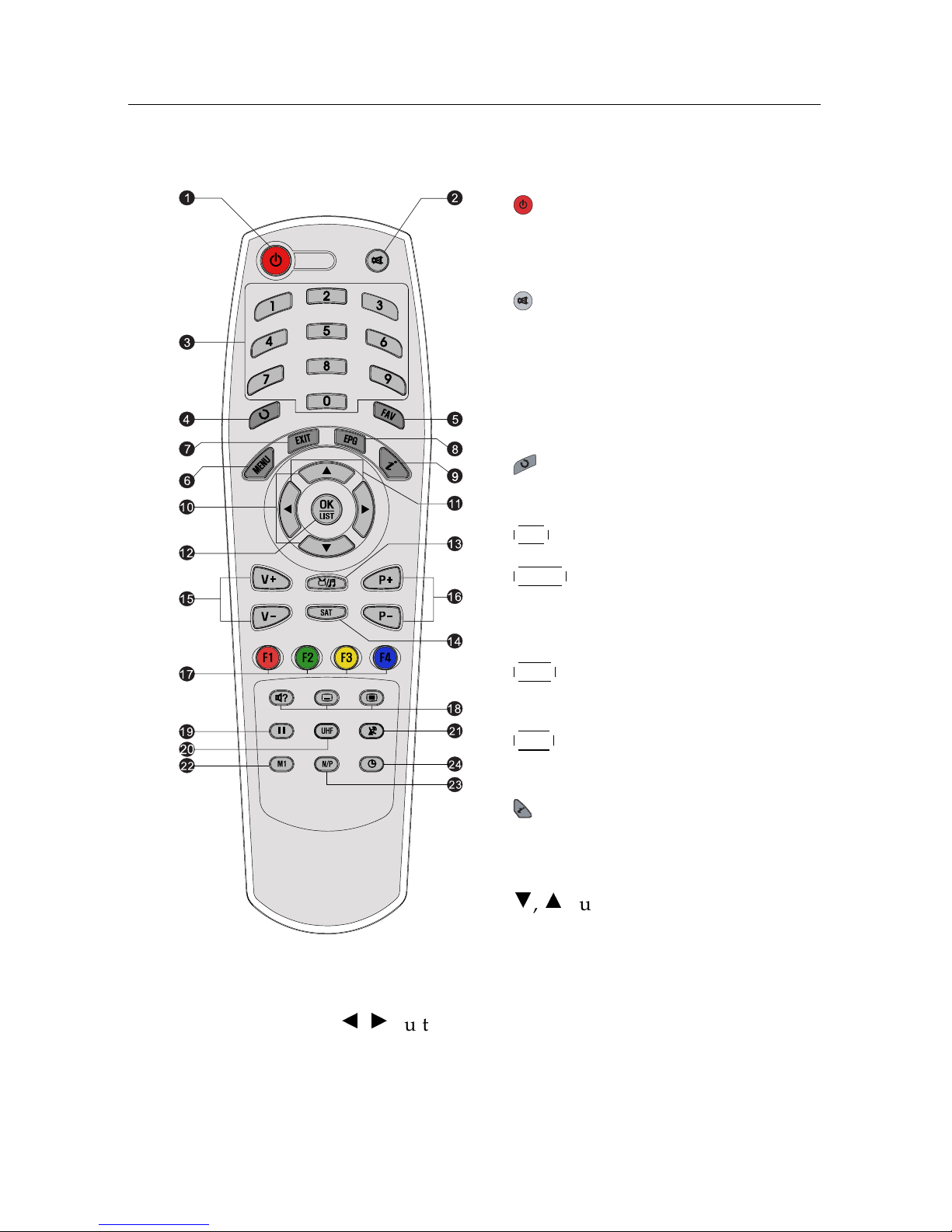

1.2.2 The remote control
1
button switches the digital re-
ceiver between standby mode and
operation mode.
2
mutes the sound. Press again to
switch it back on.
3
Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
4
switches between the current ser-
vice and the previously viewed one.
5
FAV displays the favourite lists.
6
MENU
displays the main menu. It is
also used to return to the previous
menu from a submenu.
7
EXIT
is used to exit the current
screen.
8
EPG
displays the electronic pro-
gramme guide.
9
displays the service information
box. It is also used to display more
information about a programme.
10
c
,
a
buttons switch to previous or
next service. They are also used to
navigate in menus and interactive
screens.
11
b
,
d
buttons decrease or increase the volume. They are
also used to change values for menu options.
