TRENDnet TV-NVR2216 Bedienungsanleitung
TV-NVR2208/TV-NVR2216/TV-NVR2432(V1)
Quick Installation Guide
Table of Content
1 English
1. Before you start
2. Installation
3. App
1
Package Contents
Minimum System Requirements
ŸMonitor/TV with VGA or HDMI connection
ŸHard drive
1. Before You Start
ŸNVR (No HDD installed)
ŸCD-ROM (Utility & User's Guide)
ŸPower Adapter or Power Cord (depending on your model)
ŸNetwork cable (1.8 m / 6 ft.)
ŸHDMI cable (1.8 m / 6 ft.)
ŸOptical Mouse
ŸRemote Control
ŸSATA data cable / power cable
ŸQuick Installation Guide
ŸRack mount hardware
2
2. Installation
Note: Before you install the NVR please ensure that all cameras are configured and available on the network.
2.1 Hard Drive Installation
Note:
ŸStatic Electricity can damage the NVR. Before handling the unit, discharge any static electricity, or use an anti-static wrist strap.
ŸThe NVR supports SATA I and II drives.
1. Remove the retaining screws from the top panel of the NVR.
2. Slide the cover off the unit by pulling the top cover towards the rear panel.
3
3. Attach the SATA data and power cables to the hard disc drive, then connect the SATA cable and the molex connect or the control
board.
4. Mount the hard drives to the drive bays of the NVR using the mounting screws, screwing from the underside of the NVR into the hard
drive case.
5. Slide the top cover back on the NVR, and reinstall the screws holding the panel in place.
4

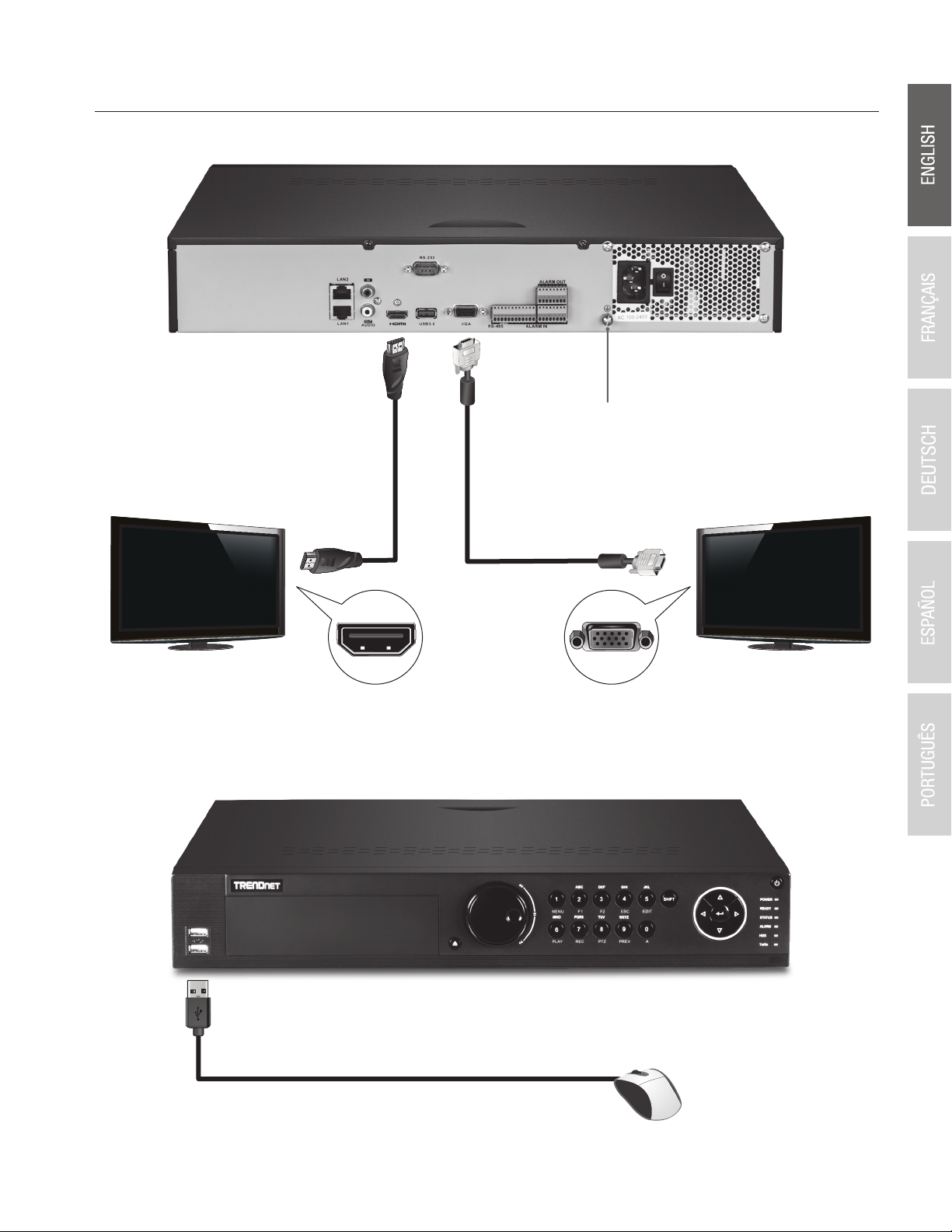

2.2 Wiring
1. Connect an HDMI cable or a VGA cable (not included) from your display to the NVR's HDMI or VGA port on the rear panel.
2. Connect the included mouse to the front or rear USB port on the NVR. For ease of configuration you can also connect a USB keyboard
(not included) to the NVR.
(Not included)
VGA IN
(Not included)
HDMI
Display DisplayVGA cable
not included
Grounding point
or
5
4. Attach the power adapter or power cord (rear panel) and plug the unit into an electrical outlet.
3. Connect network cable to the LAN1 port and connect the other end to your network.
6
2.3 System Setup
1. Turn the NVR by toggling the power switch to the “on” position. Follow the onscreen wizard to configure the NVR. The first screen
requires you to change the password, for security purposes TRENDnet recommends that you change the default password on the
NVR. Enter a new password, confirm it and then click OK.
2. Select the desired System Language, then click “Apply”.
Enter new password. For your security new password
must be between 8 and 16 characters and contain at
least one: Special character ( !, @, #, $ ) Alphanumeric
(1, 2, 3, etc.) Upper case character.
CancelOK
Username
New Password
Confirm Password...
admin
********
********
Weak
Set Password
Systerm Language
Language
English
Apply Exit
7
4. Enter the password again then click “Next”.
3. The Setup Wizard will start each time you restart the NVR. You can disable the wizard by unchecking “Start wizard when device
starts?” then click “Next”.
Start wizard when device starts?
Wizard
ExitNext
Wizard
Admin Password
Enter new password. For your security new password must be
between 8 and 16 characters and contain at least one: Special
character ( !, @, #, $ ) Alphanumeric (1, 2, 3, etc.) Upper case
character.
New Admin Password
New Password
Confirm
ExitNextPrevious
8

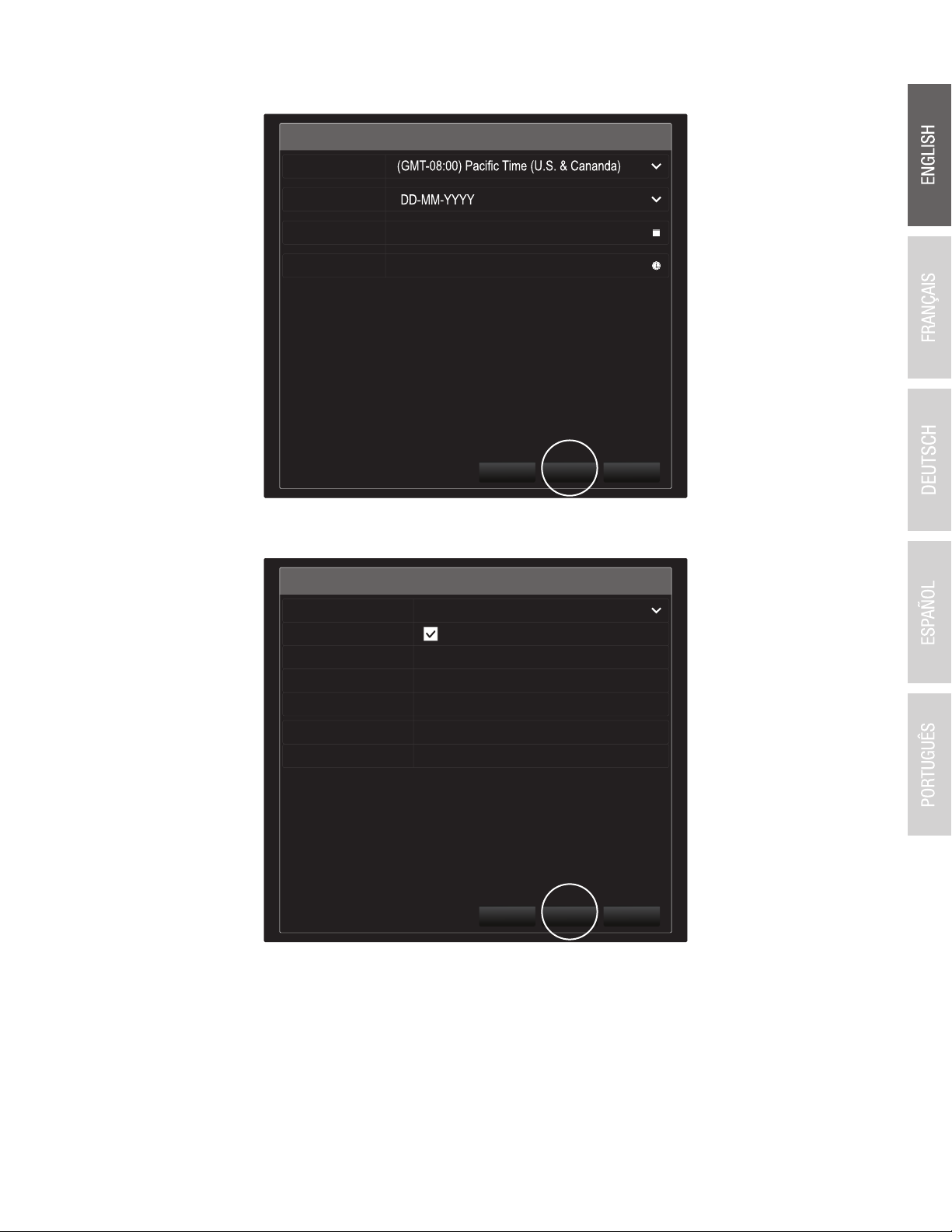

6. Configure the IPv4 address of the NVR, select DHCP to get an IP address from your network, then click “Next”.
5. Set the time and date on the NVR then click “Next”.
Wizard
Time Zone
Date Format
System Date
System Time
Previous
06: 15: 27
05: 05: 2016
ExitNext
Wizard
Network Type
Enable DHCP Clicent
Ipv4 Address
Ipv4 Subnet Mask 255 .255 .255 .0
192 .168 .10 .60
10/100/1000 Self-adaptive
Ipv4 Default Gateway . . .
Primary Default Server
Secondary DNS Se...
Previous ExitNext
