TRENDnet TW100 S4W1CA Bedienungsanleitung

TW100-S4W1CA

Quick Installation Guide

Table of Contents

Version 10.11.2006

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. Hardware Installation .........................................................................

.................................................................................

Configure the Router .........................................................................

Installation Requirements

Application

A computer with a wired or wireless network adapter properly installed.

Broadband Internet

Installed Cable or DSL Modem

Web Browser: Internet Explorer (5.0 or higher)

Package Contents

1. Before You Start

English

TW100-S4W1CA

Quick Installation Guide

User's Guide CD-ROM

1 x RJ-45 Ethernet Cable

Power Adapter

4-Port

(TW100-S4W1CA)

Cable/DSL Broadband Router

Workstations with

Fast Ethernet Adapter

(TE100-PCIWN)

Server with

Fast Ethernet Adapter

(TE100-PCIWN)

Cable/DSL

Modem

Internet

English

2. Hardware Installation

4. Connect the AC Power Adapter to

the TW100-S4W1CA and then to a

power outlet.

5. Verify that the following panel lights

are on: Power, LAN and WAN.

Note: Gather all information related to your Internet Connection before you

start. If necessary, contact your Internet Service Provider (ISP).

1. Verify that you have an Internet

connection when connecting your

computer directly to the Cable or

DSL modem.

Cable/DSL Modem

Internet

2. Connect one end of a RJ-45 cable

to the TW100-S4W1CA's WAN

port. Connect the other end of the

cable to your modem.

3. Connect one end of a RJ-45 cable

to one of the TW100-S4W1CA's

LAN ports. Connect the other end

of the cable to the computer's

Ethernet port.

English

3. Configure the Router

1. Open your web browser, type

http://192.168.0.1 in the

Address bar, and press Enter.

3. Click Quick Setup.

4. Select your Time Zone and then

click Next.

2. Enter User name and Password,

and then click LOGIN.

User name: admin

By default, there is no password.

English

Your configuration is now complete.

For detailed information regarding the TW100-S4W1CA's configuration and

advanced settings, please refer to the Troubleshooting section, User's Guide

CD-ROM, or TRENDnet's website at http://www.trendnet.com.

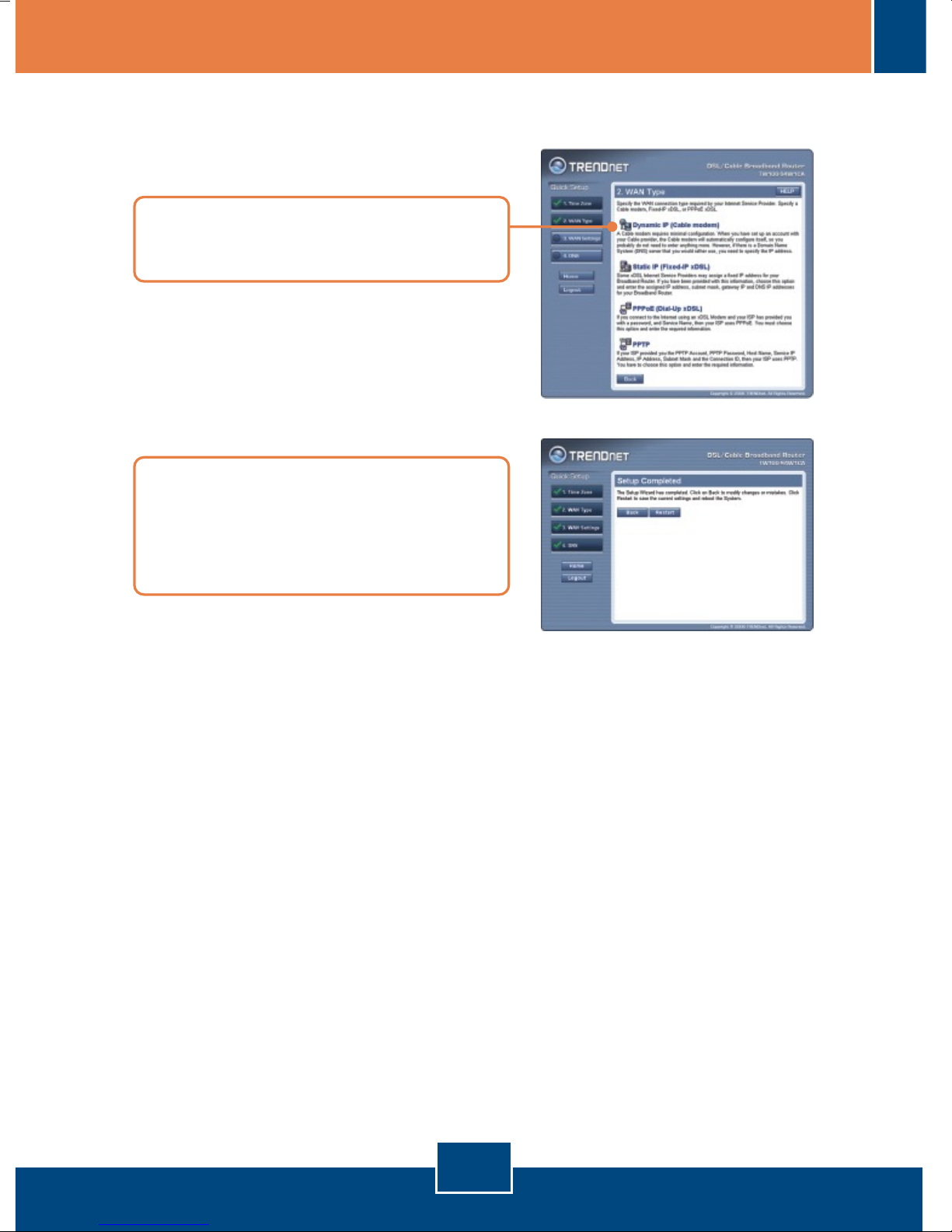

5. Select the proper Internet

Connection type.

6. Configure the settings based on

information provided by your ISP.

Follow the wizard instructions to

complete the configuration.

Troubleshooting

Q1:

A1:

I typed http://192.168.0.1 in my Internet Browser's Address Bar, but an error

message says “The page cannot be displayed.” How can I get into the

TW100-S4W1CA's web configuration page?

First, check your hardware settings again by following the instructions in

Section 2. Second, make sure the LAN and WLAN lights are lit. Third, make sure

your TCP/IP settings are set to Obtain an IP address automatically (see the

steps below).

1. Go into the Control Panel and double-

click the Network Connections icon,

right-click the Local Area Connection

icon and then click Properties.

2. Click Internet Protocol (TCP/IP) and

then click Properties. Then click on

Obtain an IP address automatically.

Fourth, press on the factory reset button for 15 seconds.

I am not sure what type of Internet Account Type I have for my Cable/DSL

connection. How do I find out?

Contact your Internet Service Provider's (ISP) support service for the correct

information.

Q2:

A2:

Q3:

A3:

I went through the Quick Setup, but I can not get onto the Internet. What

should I do?

First, verify that you can get onto the Internet with a direct connection into your

modem. Second, contact your ISP and verify all the information that you have in

regards to your Internet connection settings is correct. Third, power cycle your

modem and router. Unplug the power to the modem and router. Wait 30

seconds, and then reconnect the power to the modem. Wait for the modem to fully

boot up, and then reconnect the power to the router.

If you still encounter problems or have any questions regarding the TW100-S4W1CA,

please contact TRENDnet's Technical Support Department.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

20675 Manhattan Place

Torrance, CA 90501

USA

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com

TRENDnet Technical Support

US Canada

24/7 Tech Support

Toll Free Telephone: 1(866) 845-3673

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .
