TV-IP262PI

TRENDnet User’s Guide

Product Overview

TV-IP262PI

Features

The Megapixel PoE Dome Internet Camera with IR (model TV-IP262PI) is an indoor,

enterprise class surveillance camera capable of transmitting H.264 video at up to 1280 x

1024 resolution. View and manage the tamper resistant dome IP camera from any

computer with an internet connection.

Manually pan the camera side-to-side350 degrees and tilt it up-and-down 70 degrees to

fix its final viewing position. No need to install this camera near a power source, power

and data are received through a single Ethernet cable using Power over Ethernet (PoE)

technology. View this camera on your mobile device with TRENDnet’s free mobile App*.

Manage up to 32 TRENDnet cameras with the included complimentary camera

management software**. Define up to three motion detection windows with

email alert,

image snapshot, and continuous recording triggers. Scheduled recording sessions and

define video storage location with Samba client support. Multiple video streaming

support for H.264, MPEG-4, and MJPEG compression types. Other features include two-

way audio support (mic and speaker sold separately), date/time text overlay, mask

overlay to conceal sensitive areas, and image flip capabilities for upside down

installations. Integrated cabling allows for easy wall/ceiling mounting and the off-white

IP camera housing blends into most environments.

Package Contents

TV-IP262PI

Multi-Language Quick Installation Guide

CD-ROM (Utility &User’s Guide)

Network cable (1.5m / 5ft)

Power adapter (12V DC, 1.5A)

Camera mounting kit

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor that the item was purchased.

* TRENDnet’s Mobile APP supports iPhone®, iPad®, iPod® Touch and

Android. Search for SecurView Mobile from iTunes® or Google Play™.

For future updates, please check www.trendnet.com/App

for details.

** Monitoring multiple cameras may required a high performance CPU

TV-IP262PI

TRENDnet User’s Guide

Product Hardware Features

Rear Panel View

Power Connector: Connect the provided power adapter to supply power to the

camera for non-PoE installation.

SD Card Slot: Insert a memory card for expansion of storage.

Ethernet/PoE Connector: Connect the provided network cable (RJ-45 type) to

Ethernet/PoE port for wire or PoE connection.

* The connector supports Power over Ethernet standard, enabling the camera to

be powered by the Ethernet.

Mic In: Connect an external microphone .

Line Out: Connects an external active speaker.

Reset: Press and hold the reset button for five seconds to reset the camera to

factory default settings.

Front Panel View

TV-IP262PI

TRENDnet User’s Guide

Inside C

pon

LED

indicators

- Power: Indicate the camera is powered on with the steady amber

light.

- Link: Indicate the camera’s network connectivity with the flashing

green light.

Application Diagram

TV-IP262PI

TRENDnet User’s Guide

Installation

Hardware Installation

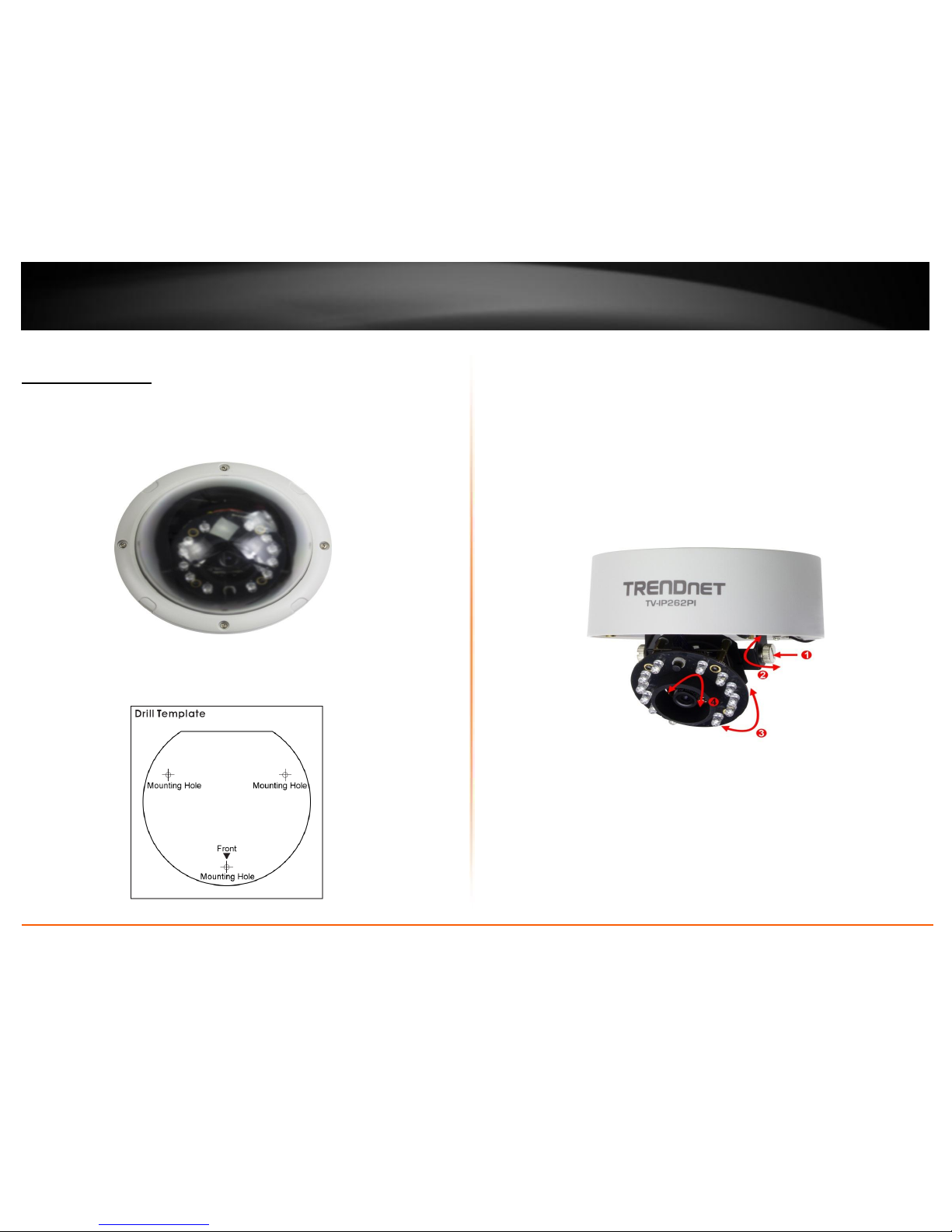

The camera can be mounted to the ceiling surface directly by following the steps below:

1. Remove the Dome cover by unscrewing the four screws.

2. Use the included drill template to drill three mounting holes on the desire location

and hammer the plastic anchors into the holes.

3. Secured the camera to the location with three screws.

4. Before put the Dome cover back, adjust the lens assembly by the following steps:

Tilt the camera lens to a proper position by losing the screws () and then

swinging the adjustable base ().

Rotate the camera lens by turning the base pedestal () in either clockwise or

counter clockwise direction.

Adjust the lens focus by turning the lens ring slowly () in either clockwise or

counter clockwise direction.

NOTE: You can review the image quality from the Web browser when you complete the

installation. If the image quality is poor, you have to disassemble the Dome cover to

adjust the lens focus until the desired image appears clearly.

5. Put the Dome cover back and secure with four screws.

TV-IP262PI

TRENDnet User’s Guide

Camera Installation

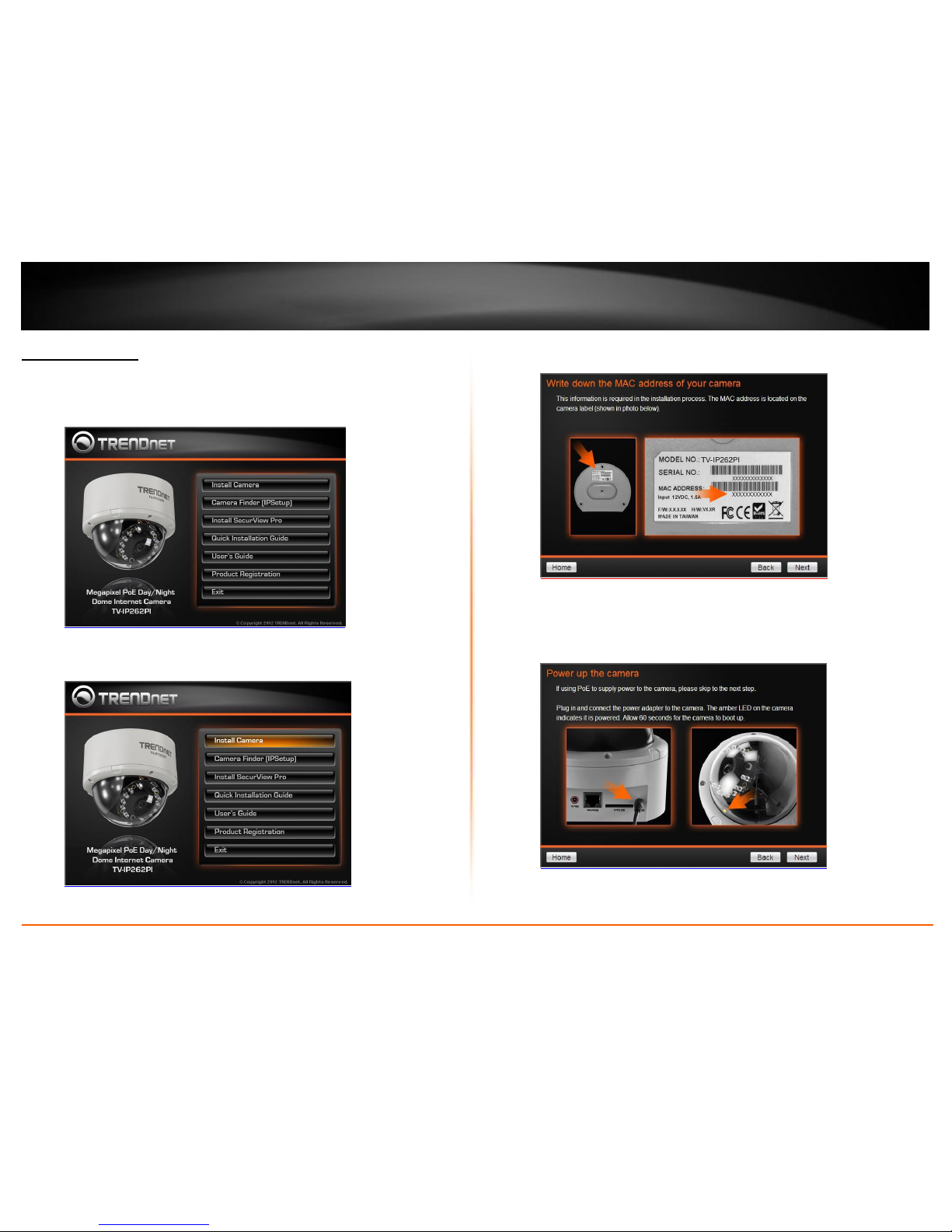

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate

the Auto-Run program.

2. lick the Install Camera.

3. Write down the MAC ID of the camera

4. Connect one end of the power adapter into the Power Connector, then click on

Next. Please click Next if you are using the PoE injector or switch.

TV-IP262PI

TRENDnet User’s Guide

5. Connect a network cable to the camera’s network port and then to your router.

If you are using PoE, please ensure the cable is connected to a PoE switch or

PoE injector.

6. Wait while camera is searching.

7. The founded cameras will show on the screen. The camera already selected by

default if you have only one camera installed. If you have more than

one

camera in the same Network, you will need to identify the camera by the MAC

ID.

8. You MUST change the default password of the camera. Enter the default password:

admin, Enter your new password: must be between 8 and 32 characters. (Alphanumeric:

a-z, A-Z,0-9)

TV-IP262PI

TRENDnet User’s Guide

9. Type in the new and confirm the new password by entering the password

twice.

10. Click TV-IP262P to access to the camera web page.

11. You can also click Finish to exit the program or click Home return to the main

screen.

TV-IP262PI

TRENDnet User’s Guide

Starting Camera Finder

The camera comes with a conveniently utility, IPSetup, which is included in the

Installation CD-ROM, allowing you to search the camera on your network easily.

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate

the Auto-Run program.

2. Click the Camera Finder (IPSetup) from the Auto-Run menu screen. Then the

IPSetup Wizard will appear. Click Install to install the utility.

3. When the Completing the IPSetup Setup Wizard appears, click Finish.
