TRENDnet TEG-S24R - DATA SHEETS Bedienungsanleitung

TEG-S16R

The 24-Port Gigabit Switch provides high bandwidth performance, ease of

use and reliability in a compact form factor.

Boost office efficiency with Gigabit speeds to the desktop. Move large

bandwidth intensive files faster and increase network backbone server

speeds.

The 11” wide metal chassis switch easily fits on a desk and comes with

a 19“ rack mount kit. Store-and-forward switching, broadcast storm

protection, a 48Gbps switching capacity and an 8kbytes MAC Address

table provides an optimum network experience. 802.3x Flow Control for

full-duplex mode and back pressure Flow Control for half-duplex mode

ensures seamless data.

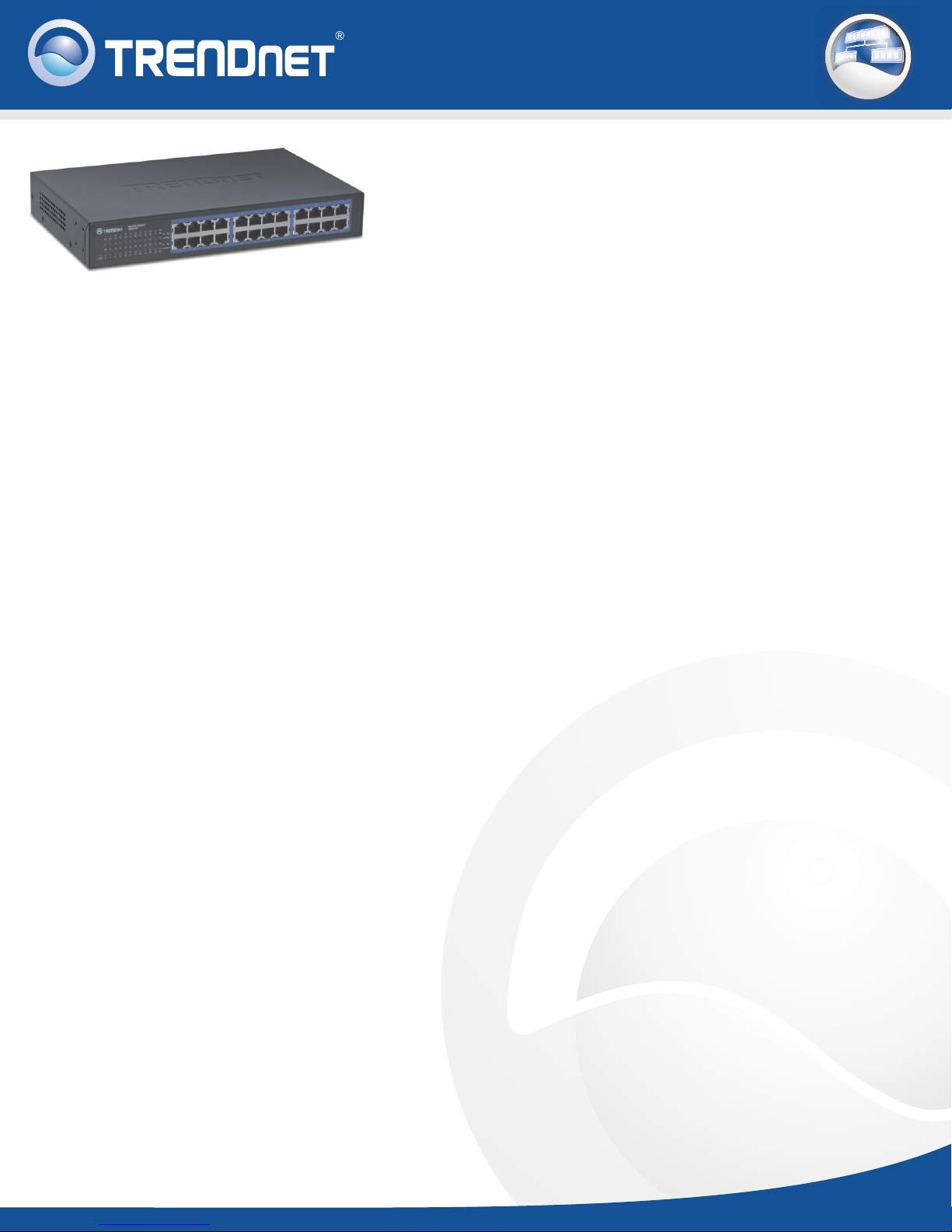

TEG-S24R (v1.0R)

24-Port Compact Gigabit Switch

gigabit

FEATURES

• Boost office efficiency with this high performance 24-port Gigabit switch

• 24 x 10/100/1000Mbps RJ-45 Auto-MDIX Gigabit ports

• Enjoy 500Kbytes data buffering RAM and non-blocking architecture

• Provides a robust 48Gbps switching capacity

• Supports Jumbo Frame packet transfer (Max size up to 12.2Kbytes)

• Supports up to 8Kbytes address entries

• Includes 802.3x Flow Control, Broadcast Storm protection and Store-and-Forward switching

• Windows, Linux, and Mac operating system ready

• Diagnostic LEDs and Plug & Play installation for quick troubleshooting and setup

• Rack mount or desktop ready

• Compact 11” wide, 1U design with rack mount kit included

• 5-Year Limited Warranty

TEG-S24R

rev:07.22.2009

Interface

Network Media

Switch Fabric

Data Transfer Rate

Data RAM Buffering

MAC Table

Protocol

Power

Power Consumption

Transmission Method

Diagnostic LED

Dimensions (W x H x D)

Temperature

Humidity

• IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX • IEEE802.3ab 1000Base-T

• 24 10/100/1000Mbps Auto-MDIX RJ-45 Ports

• CE,FCC

• 8Kbytes or 4096 Entries Per Device

• 1.8kg (4lb)

• Operating:0° C ~40°C (32°F ~104°F)

• 5%~90% (Non-Condensing)

• Power,Link/ACT,10/100Mbps,1000Mbps

• Storage:-20° C~-70° C(-4°F ~ 158°F)

Certification

Standards

Hardware

SPECIFICATIONS

Weight

• 280 x 180 x 45mm (11 x 7.09 x 1.77 in)

• CSMA/CD

• Ethernet: UTP/STP Cat.3,4,5,5e

• 48Gbps Forwarding Capacity

• Ethernet: 10Mbps/20Mbps (Half/Full Duplex) • Fast Ethernet: 100Mbps/200Mbps (Half/Full Duplex)

• 500KBytes Per Device

• Gigabit: UTP/STP Cat 5e,6

• Store-And-Forward

• Fast Ethernet: UTP/STP Cat.5e, 6

• 100-240VAC,50/60OH Internal Power Supply

• 20 Watts (Max)

• Operating:10% ~ 90% (Non-Condensing)

TEG-S24R (v1.0R)

24-Port Compact Gigabit Switch

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

RELATED PRODUCTS

TEG-160WS

TEW-633GR

8-Port 10/100Mbps Layer 2 Managed Switch

w/ 100Base-FX Port

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

PACKAGE CONTENTS

• TEG-S24R

• Quick Installation GuideMulti-Language

• Power cord

• Rack mounting kit

300Mbps Wireless N Gigabit Router

Gigabit PCI Adapter

Gigabit PC Card

TEG-PCITXR

TEG-PCBUSR

NETWORKING SOLUTIONS

10/100/1000Mbps

24-Port Compact Gigabit Switch

(TEG-S24R)

Printers

Workstations with PCI Adapter

(TEG-PCITXR)

Laptop with Gigabit PC Card

(TEG-PCBUSR)

Server with Gigabit PCI Adapter

(TEG-PCITXR)

10/100Mbps Multi-Port

Print Server

(TE100-P21)

300Mbps Wireless N

Gigabit Router

(TEW-633GR)

Cable /DSL Modem

Internet

• Gigabit: 2000Mbps (Full Duplex)
