Trikke DEFENDER Bedienungsanleitung

Specifications and Features

DEFENDER Owner’s manual

Page 2

TRIKKE Defender is a professional grade light electric vehicle for personal mobility.

It was developed to offer quick and efficient transport of an individual in a wide range

of terrain: street, sidewalk, walk paths, on and off-road, indoor and outdoors.

The maximum rider’s weight is 300lbs (135kg)

Rear wheels/motor

Decks

Rear fenders

Rear lights

Trailing arms

Swing arm

Cambering

mechanism

Front fork

Front wheel/motor

Brake caliper

Brake rotor

Front structure

battery

Controller box

Battery tray

handlebar

Brake levers

display

Front lights

horn

Steering lock

Folding mechanism

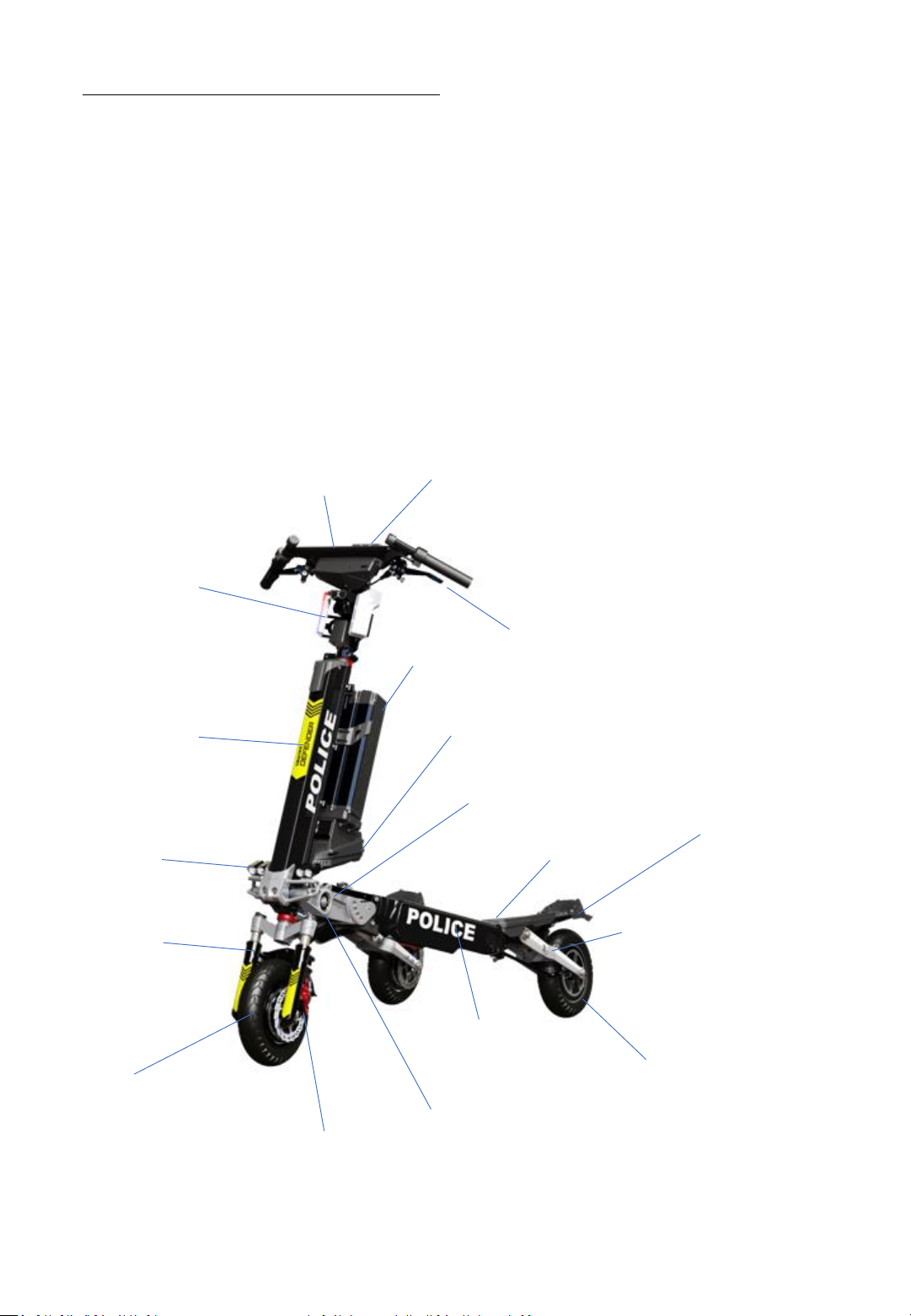

MAIN PARTS

DEFENDER Owner’s manual

Page 3

headlights

DEFENDER Owner’s manual

Specs and Features

FIRST ASSEMBLY (watch assembly video)

1) Remove the unit from the packing box

2) Unfold the frame, lock the folding levers.

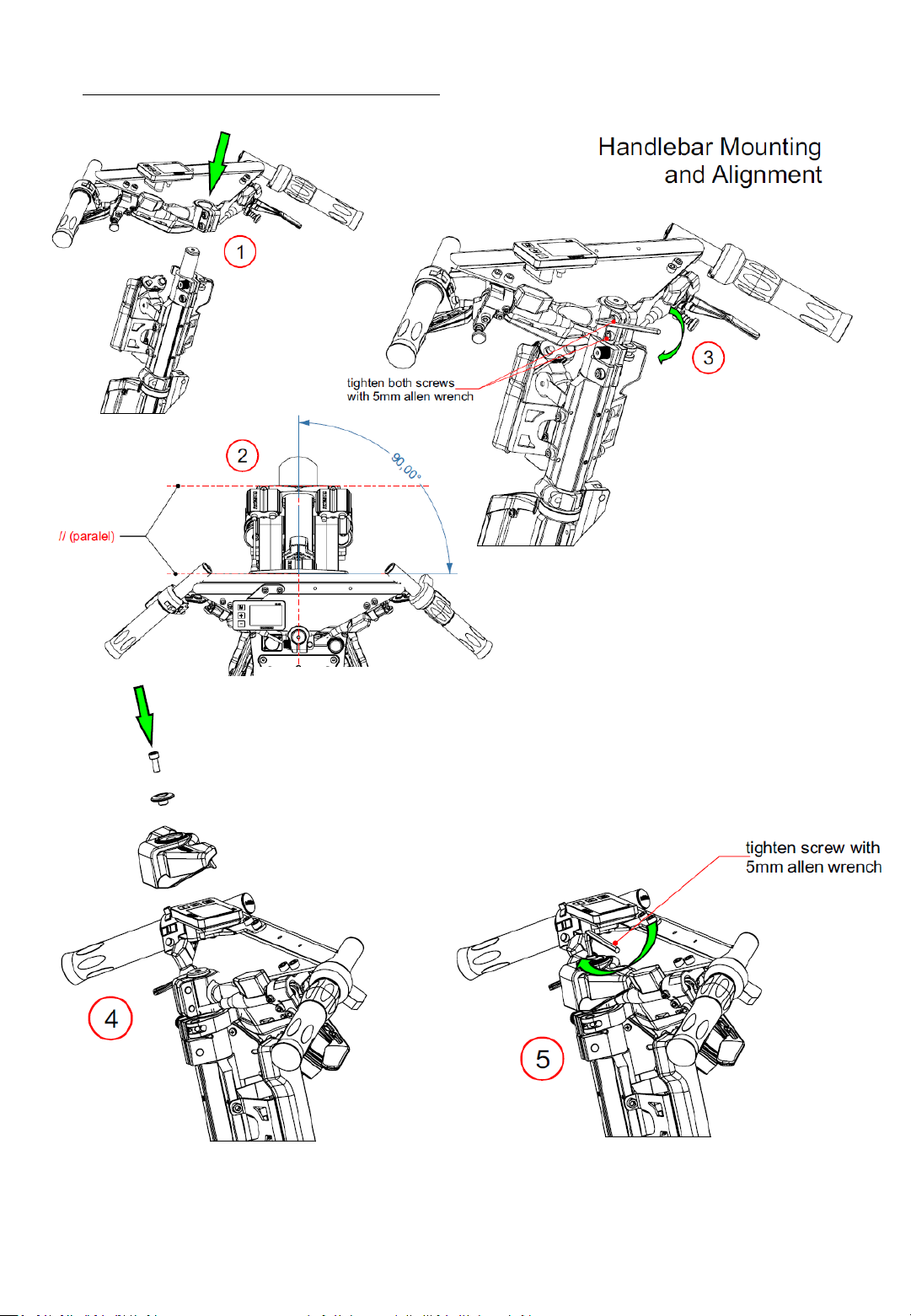

3) Attach handlebar, align with front wheel, tight handlebar clamp bolts.

4) Install the foam protector

5) Locate and connect the 4 wires of the front lights and horn. Keep the wires neat.

6) Install battery –a) make sure the key-lock pin is retracted (counterclockwise). b) identify

front and back side of the battery c) place the battery on the tray tilted to the back. d)

push the battery forward against the lock all the way and turn the key clockwise to lock.

You may remove the key from the lock and place in a safe place.

7) Check/calibrate tires pressure. Use a floor pump with a reliable gauge with a threaded

connector. Front 50psi, Rear 65psi.

DEFENDER Owner’s manual

Page 4

FOLDING

1) Retract the lock knob on each folding mechanism

2) Pull the knob up to unlock the tensioners (while leaning the vehicle to the opposite

side)

3) Fold the frame

4) Screw the knobs into the hole in order to lock the frame folded. This is imperative

for handling and transport.

UNFOLDING

1) Retract the lock knob on each folding mechanism (about 1cm)

2) Unfold the frame

3) Press down the tensioners (while leaning the vehicle to the opposite side) until it

snaps into locked position

4) Screw the knobs in until it locks. These will be on top of the tensioners as a safety

pin.

DEFENDER Owner’s manual

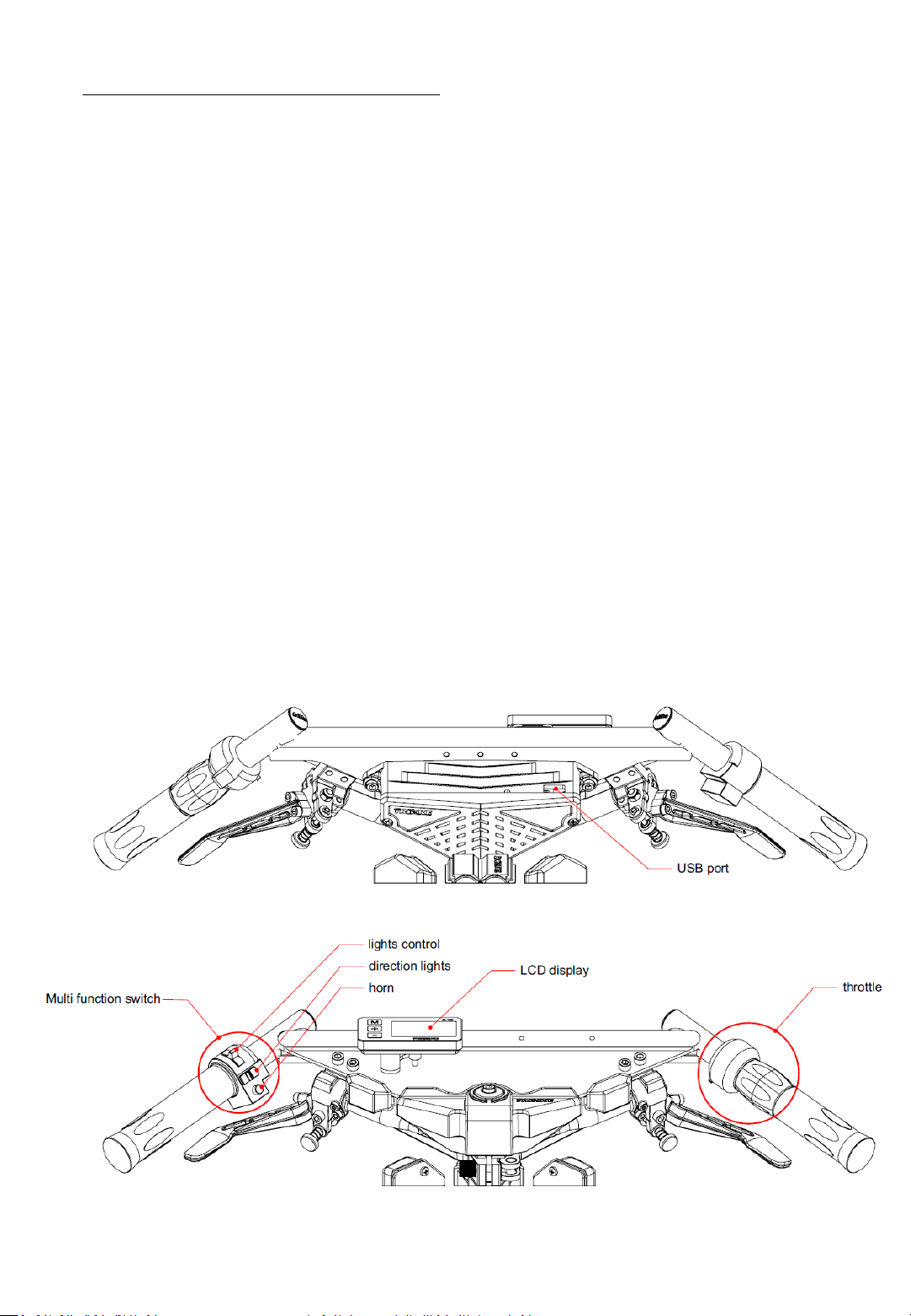

Handlebar mounted controls

DEFENDER Owner’s manual

OPERATION (watch operation tutorial video)

Turn On the battery power: press in the on-off switch. The battery LCD will light up

showing the % of remaining charge.

Push [M] button on Display to turn ON the drive system.

By default the display is selected to PAS 2 (power level 2 of 5). You can increase or

decrease the power by using the [+] and [-] buttons

Gently twist the throttle towards you to make the vehicle move forward. The more

angle you turn the throttle, the speed will increase.

Use the brake levers situated on both sides of the handlebar to apply brake and reduce

speed or stop. Apply brakes evenly and gently. Avoid squeezing the brakes too hard as it

cause the wheels to lock and skid. Right hand brake for rear wheels. Left hand brake for

front wheel. Do not use front brake heavily while turning, the front wheel may skid or

lock, causing loss of control.

LCD Display Operation:

Turning Display ON-OFF and sleep.

After switching the battery power ON you will have to press M button to turn the

display ON and start the system.

To turn the system OFF press and hold M button. You may also switch the battery power

OFF. After a preset time of non-operation, the display will turn OFF by itself (sleep).

Press M to wake the system up.

Changing Display Settings

Press and hold [+] and [-] simultaneously for 2 seconds to enter Settings.

Press [M] to cycle through parameters P01 ~ P14

Press [+] or [-] to change value

** careful to not change factory default parameters if you are not sure of the values.

Press and hold [+] and [-] simultaneously for 2 seconds to save changes and leave

settings.

Useful settings:

a) Speed limiter P01 –> example 2WD model 100 = top speed (23mph) ; 50 = 50% of the

top speed (11.5mph)

b) Time out P06 –> minutes to sleep

c) Starting power P07 –> 1-5.

DEFENDER Owner’s manual

Page 8
