UNINEX KOOLZONE SAC-3000AS Bedienungsanleitung

USER MANUAL

SAC-3000AS

KOOLZONE

MOBILE SPOT COOLER

A PORTABLE STREAM OF AIR FOR

INDOOR AND OUTDOOR USE

FOR MORE INFO

THANK YOU FOR PURCHASING THE KOOLZONE MOBILE SPOT COOLER.

PLEASE READ THE INSTRUCTIONS BEFORE USING.

KEEP THESE INSTRUCTIONS FOR REFERENCE.

KOOLZONE

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ································ PAGE 4,5

2. SPECIFICATIONS ············································ PAGE 6

3. ACCESSORIES ················································ PAGE 6

4. PARTS OF THE MACHINE ································ PAGE 7

5. INSTALLATION ··············································· PAGE 7

6. OPERATING INSTRUCTION ····························· PAGE 9

7. MAINTENANCE AND INSPECTION ··············· PAGE 13

8. TROUBLESHOOTING ···································· PAGE 14

KOOLZONE

1. SAFETY PRECAUTIONS

Please read “Safety Precautions” carefully before operating the unit to reduce the risk of injury or

damage.

Please read carefully. The following should be read and understood.

STOP

FORBIDDEN

AS DIRECTED

NOTIFICATIONS / CAUTION

FOR YOUR SAFETY, PLEASE FOLLOW THESE INSTRUCTIONS.

It may cause personal injury, re, or other property damage

if you neglect this mark and operate in the wrong way.

Please do not use the unit where ammable materials are used or stored (such as thinner,

gasoline, kerosene, LPG, aluminum, magnesium, and plumbum). They could cause possible re or

explosion.

Only a professional repair service should disassemble the unit in order to avoid warranty

voidance or safety issues such as re, electric shock, and injury. If you need repairs, please

contact the manufacture or qualied repair service.

This mark stands for under any circumstances this unit should

not be used.

This mark stands for only use as directed.

The power supply use only 115V single phase, otherwise it will cause the unit not to function

properly.

This mark stands for notication of use or to be aware of

possible hazardous or unsafe situations.

Please do not operate the unit in the rain or wet areas.

KOOLZONE

Keep unit away from excessive heat or re. It may cause damage to the unit.

Do not change or modify the unit. It could cause damage to the unit or property and will void

warranty.

Use only grounded outlet.

Turn off the unit to move location or lock casters.

Hold plug when pulling out of outlet. Otherwise, the plug may be damaged or sparking could

occur.

The unit operates in the temperature range from 64°F to 104°F, otherwise it may cause the unit to

slow the air ow or shutdown.

To prevent an accident or damage, the unit can not be used in the following locations:

• Not grounded.

• Unlevel ground.

• Stairs, emergency exit or entrance.

• Area of strong wind, heavy dust or metal powder.

Unplug unit for repair or installation.

Do not bend, pull, bind, clip, or change the power cord. It may cause accidents such as re or

electrical shock.

Do not use unit on a boat.

Unplug unit if storing or non-use for a period time.

If the unit is stopping, has excessive noise, or abnormal odor, please stop use immediately.

STOP

KOOLZONE

2. SPECIFICATIONS

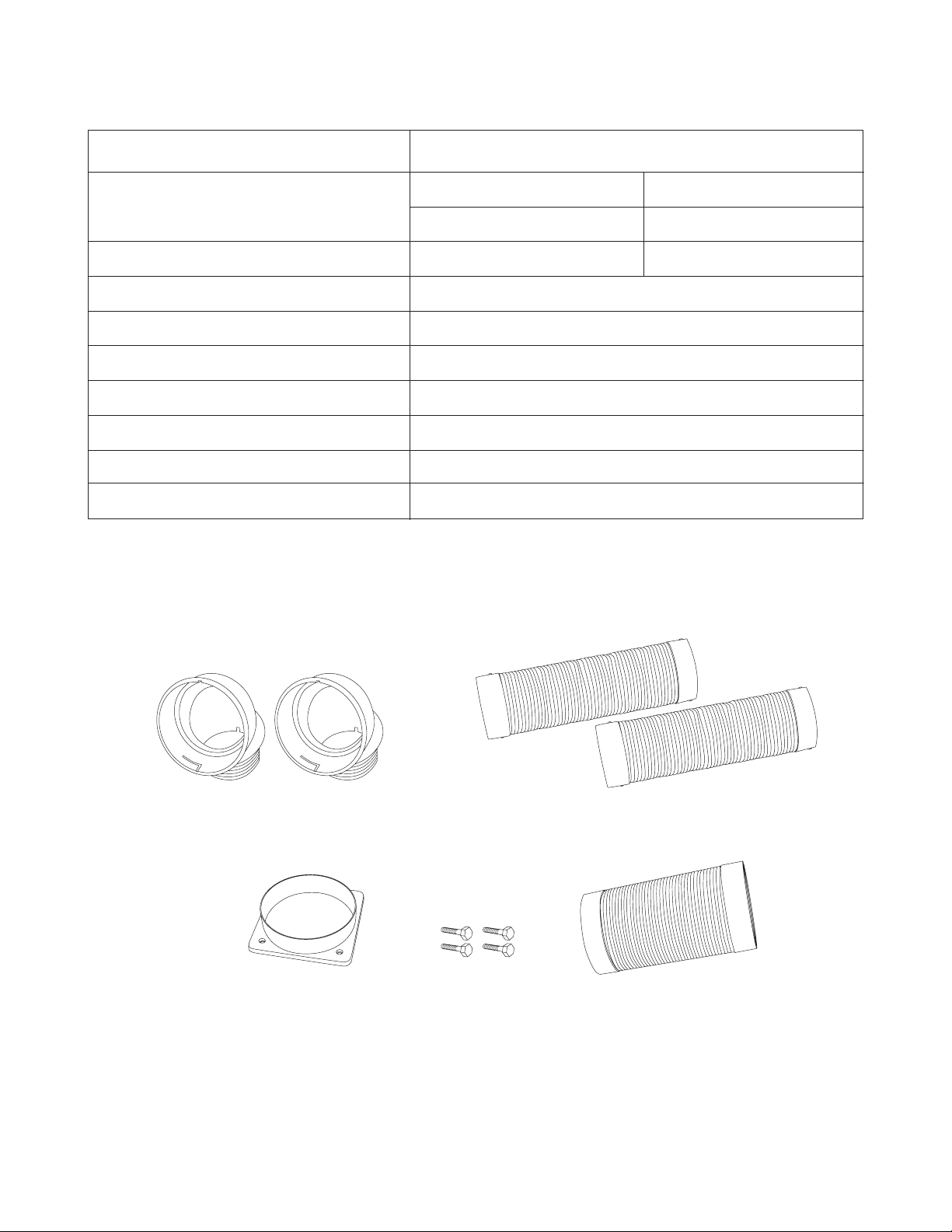

3. ACCESSORIES

POWER / FREQUENCY

LOAD CURRENT

CONSUMPTION POWER

COOLING CAPACITY

COMPRESSOR

REFRIGERANT

Curved Duct Cooling Duct

Heat Exhaust Duct Socket Screws Heat Exhaust Duct

REFRIGERANT (RATED CHARGE)

SIZE

WEIGHT

OPERATING TEMPERATURE LIMIT

Single phase 115 V / 60 Hz

High

10.8 A

1210 W

Low

10.4 A

1170 W

10,236 BTU

Fully Closed Type Rotary

R410 A

800 g

18.5” × 17.7” × 38.9”

126 LB

(77℉ - 113℉)

• Refrigeration capability and electric features are tested at 94℉room temperature and 60% humidity.

KOOLZONE

Heat Exust Duct

Cooling Duct

Control Panel

Curved Duct

Service Cover

Caster Wheel

Drain Tank (5L)

Raised Nub

Notch / Molded Arrow

Slotted Black Line

Slot

Curved Duct

Cooling Duct

Cold Air Exit

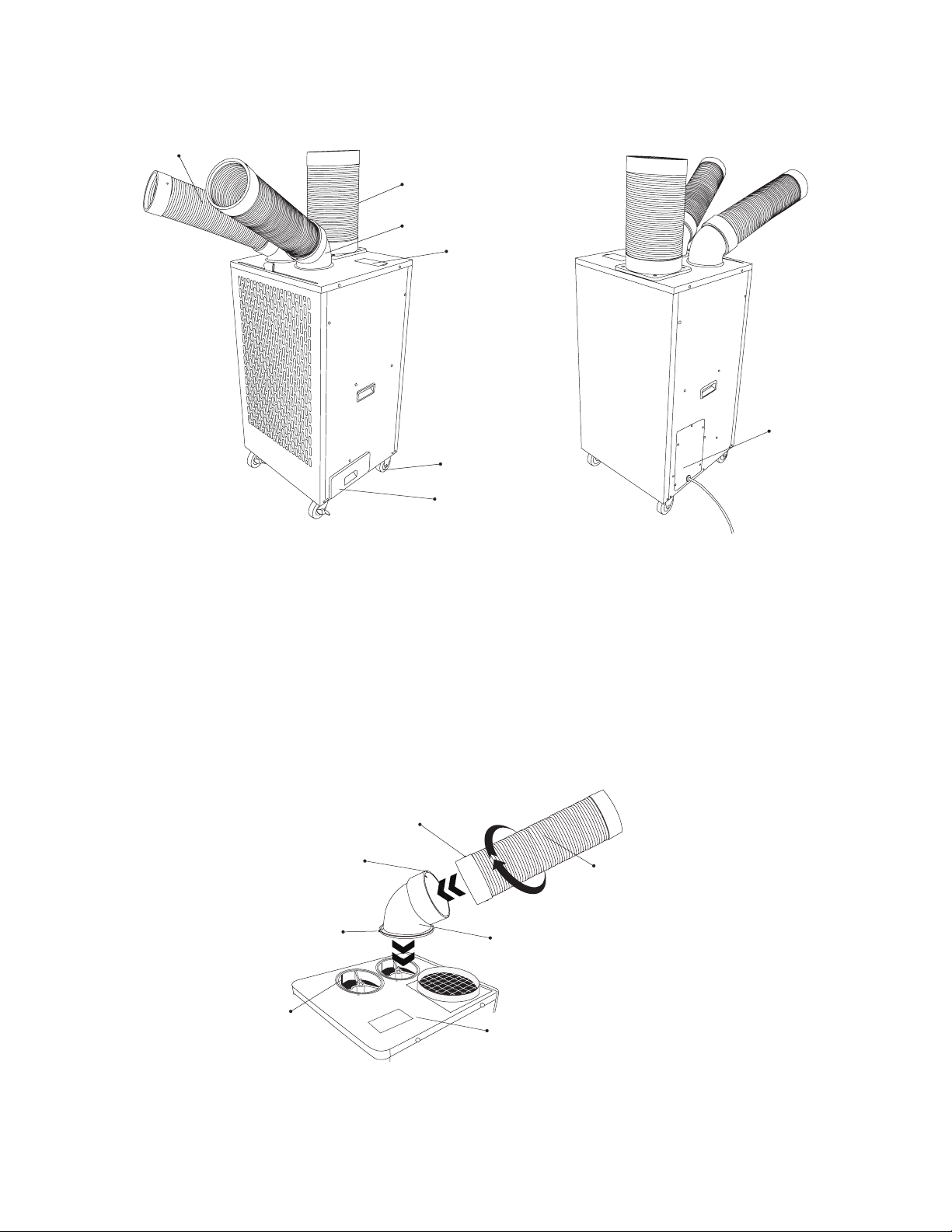

4. PARTS OF THE MACHINE

5. INSTALLATION

• INSTALLING THE CURVED DUCT

Make sure the notch part (molded arrow on duct) lines up with the slotted black line in the

cold air exit. Install and turn to center the curved duct with the front of the unit.

• INSTALLING THE COOLING DUCT

Slide the cooling duct raised nub into the slot of the curved duct. Then turn clockwise to lock.

Make sure the duct is connected properly before using. When adjusting the direction, turn the curved

duct instead of the cooling duct.

Cooling Duct Installation

KOOLZONE

Heat Exhaust Duct

Heat Exhaust Duct Socket

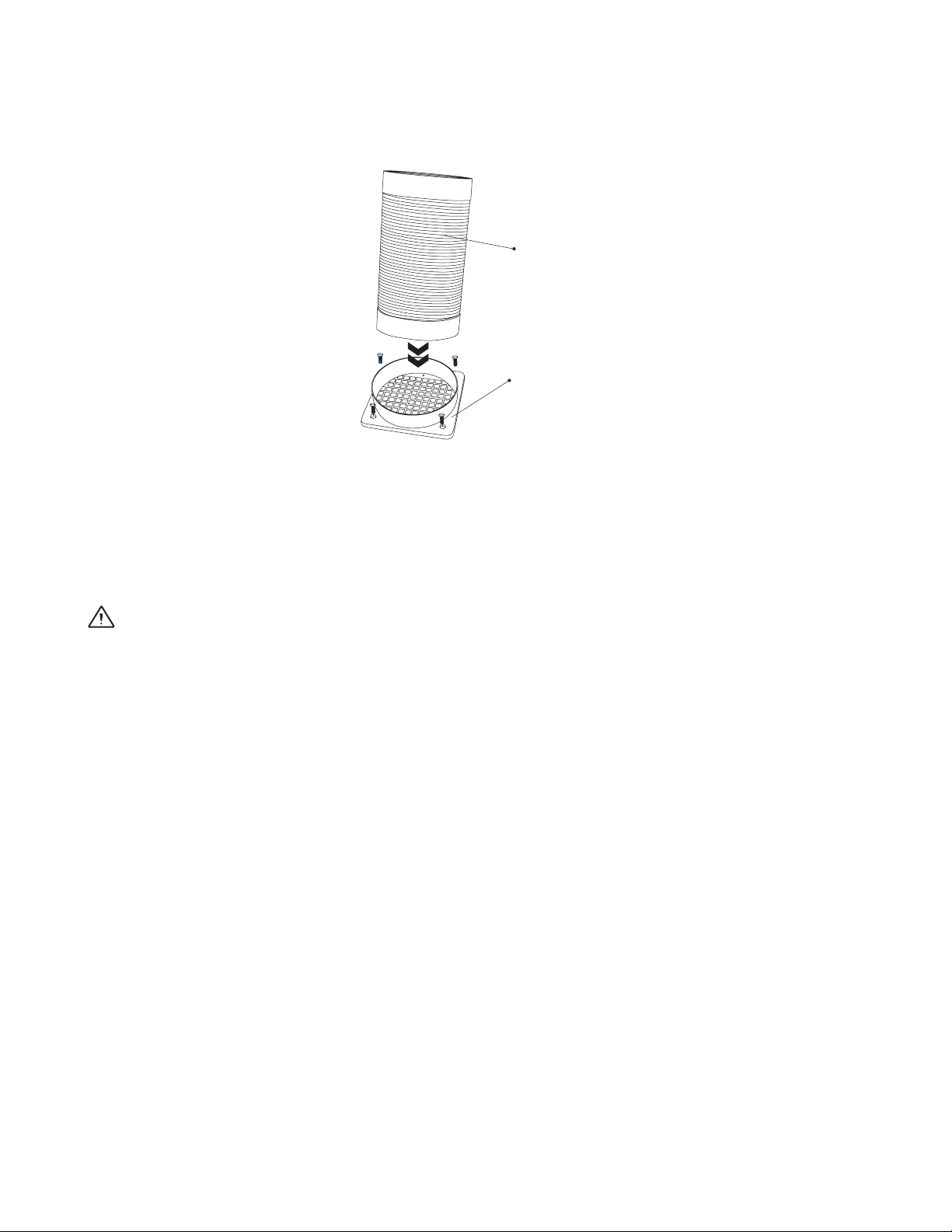

•INSTALLING THE HEAT EXHAUST DUCT AND SOCKET

The heat exhaust duct socket uses 4 ST4×12 bolts to x the heat vent.

• POWER SUPPLY CONNECTION

Please use a dedicated power outlet.

Please use a grounded circuit breaker with a 15A capacity.

• Operating temperature is between 77°F to 113°F.

• If you use the unit out of the temperature range, it may not work properly.

• If the unit is moved and/or tilted, please wait at least 3 hours for the refrigerant to stabilize before turning

on the unit.

• After pressing the power button to stop the unit, please wait at least 3 minutes before restarting.

The unit may not work sooner due to a built in safety protection.

• Before using the auto-swing function, make sure there are no obstructions.

• Do not use the auto-swing feature if a cooling extension duct is installed.

• Do not overload the electrical system by using too many devices off one outlet.

NOTIFICATION

KOOLZONE

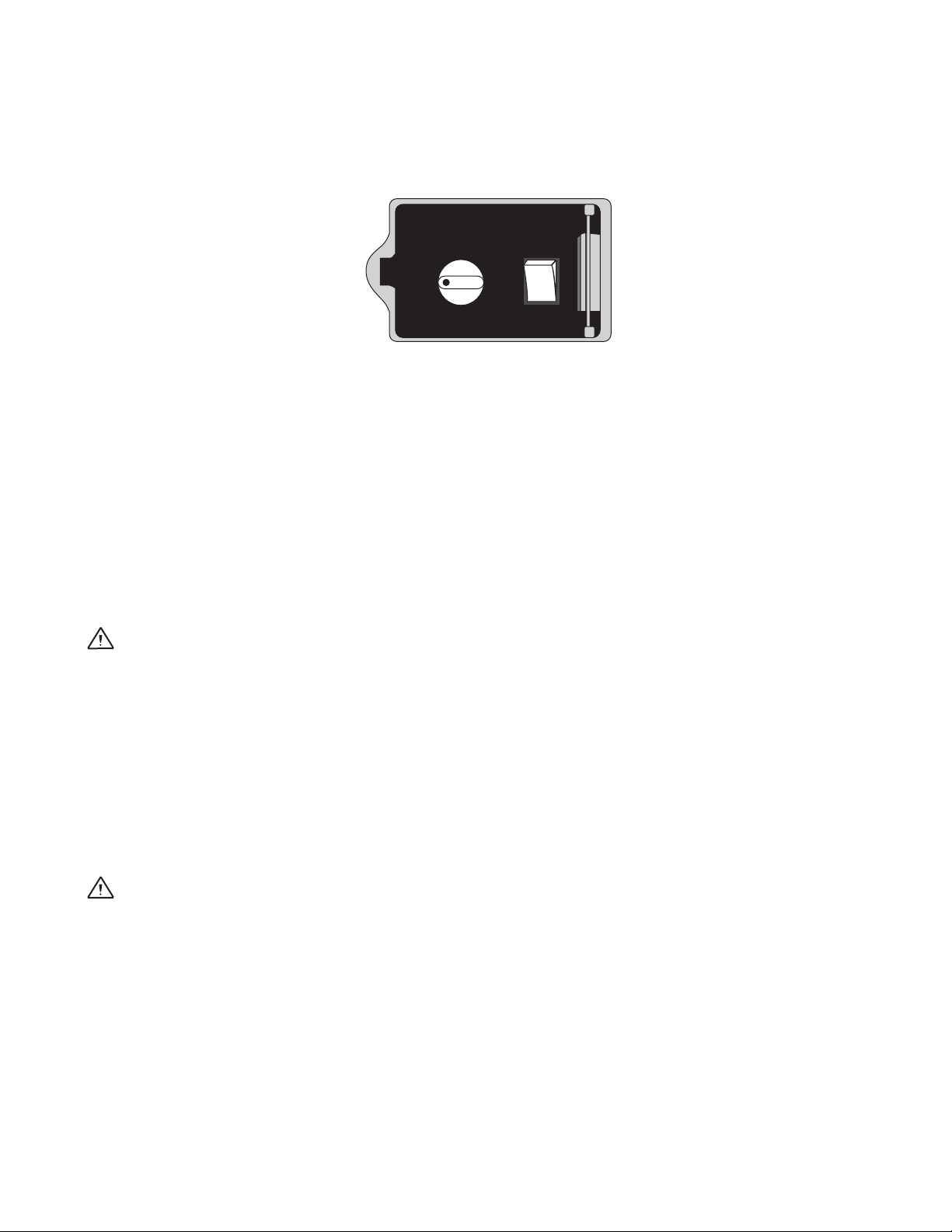

OPERATION SWITCH INFORMATION

6. OPERATING INSTRUCTION

OFF

LOW HIGH ON

OFF

SWING SWITCH

POWER

• To power on, turn on the switch at the top of the unit to low or high cooling for operation.

There are 2 options:

1. Low Cooling - Sends a ow of cold air at low fan speed.

2. High Cooling - Sends a ow of cold air at high fan speed.

• Swing swithch.

Press on and the two cold ducts will automatically oscillate.

Press off to stop.

•COMPRESSOR OVERLOAD / OVERHEAT PROTECTION

If the compressor overheats or overloads due to high or low voltage or high ambient temperature,

the built in safety protection for the compressor will start working and turn off the unit.

When the overload protection is working, the air ow from the unit will be at the ambient temperature of

the room, but will not cool the air.

If overload protection works frequently, nd out, and x the problem before using the unit.

NOTIFICATION

• If you use the unit out of the temperature range, it may not work properly.

• Do not overload the electrical system by using too many devices off one outlet.

NOTIFICATION

KOOLZONE

50°

40°

200°

Please adjust the angle of the cooling duct and heating exhaust duct before using the unit. Hold the

curved duct and bend the cooling duct for angle adjustment.

NOTIFICATION

•KEEP DISTANCE

Make sure the unit has minimum distance from any wall, ceiling, or object as illustrated below.

In order to prevent accidents, the unit should be placed on level ground. Unlevel ground, stairs,

emergency exits should not be used.

Minimum distance needed is 12” from any wall. While the unit operates, please do not place

obstructions in front of the lter, cooling, or heating exhaust duct.

Heating Outlet

Direction above 32”

Air Intake

Direction above 12 ”

Cooling Outlet

Direction above 12 ”

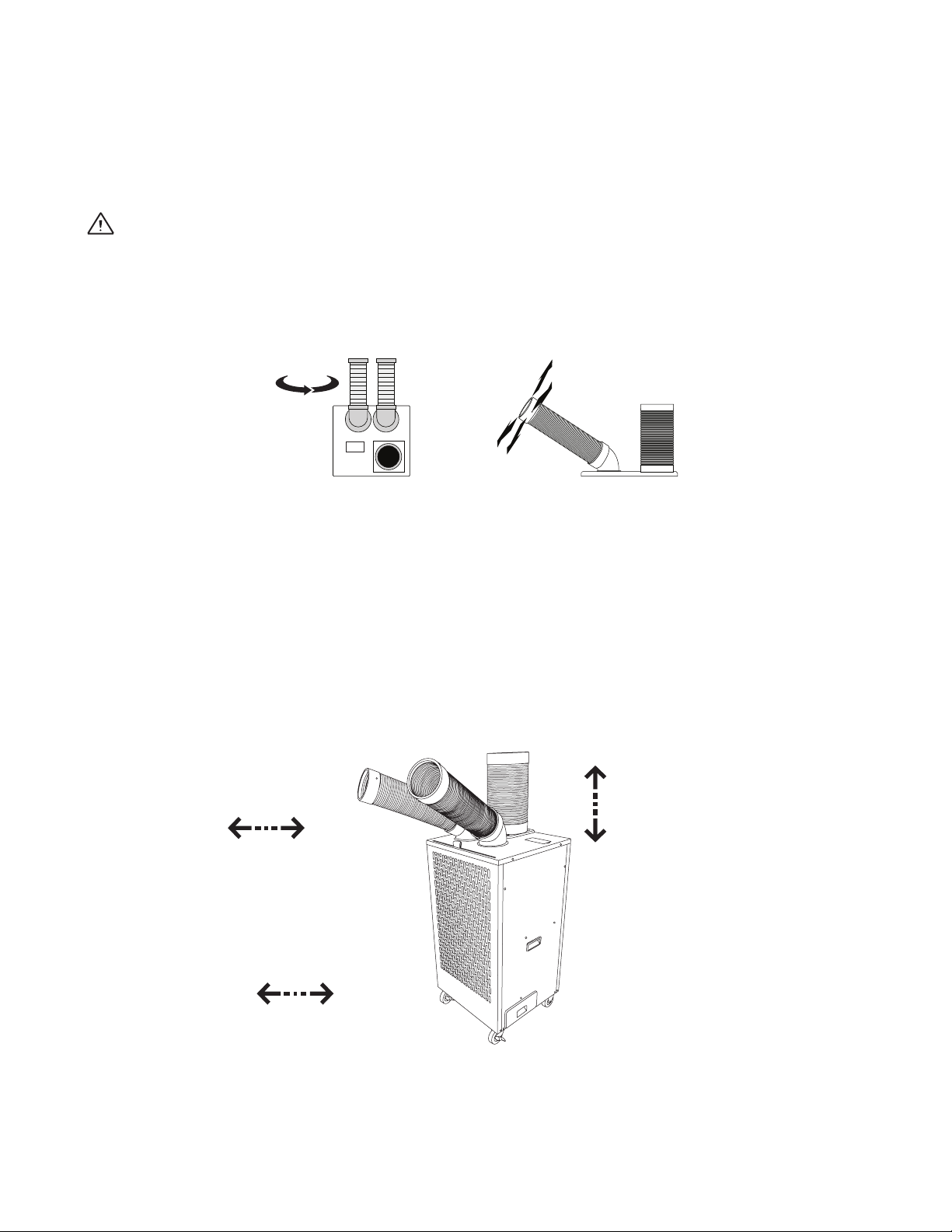

•ADJUSTING THE AIR FLOW DIRECTION.

Please adjust the duct to get the desired cooling and heating direction. The cooling duct adjustment

range is 200° horizontal and 50° vertical. The heat exhaust duct adjustment range is 40°.
