Uplift Desk MON001 Bedienungsanleitung

Zilker Single Monitor Arm

MON001

AI-MON001-1.0

Note: There are two ways to attach this monitor arm to your desktop: Clamp and Bolt-thru assembly. Determine if you need

to attach it around the back side of your desk (follow Step 1.1) or through a hole from .4’’ to 3.15’’ in diameter (follow Step 1.2).

Step 1.1 - Clamp

Peel the adhesive and attach the Base cushion to the underside of

the Base, and rest the Bottom plate onto the Base’s bolt. Fit the

Base around the back of the desk and tighten the Clamp-bolt &

Bottom plate into place using the 6.5mm Allen wrench.

Step 1.2 - Bolt-thru

To mount your monitor arm through a hole in your desktop (min

.4’’, max 3.15’’ in diameter) rst loosen the big screw inside the

clamp with the 6mm Allen wrench. Note: screw may be tight.

Once removed, separate the clamp assembly from the Base.

Line up the Base plate inside the Base. Remove the adhesive on

the Base cushion and apply across both parts, ensuring it is ad-

hered properly.

Cover the hole with the assembly, with the logo facing the front

of desk. Select a Long bolt. The 50mm Bolt ts desks .6’’ to 1.38’’

thick. The 70mm Bolt ts desks 1.38’’ to 2.13’’ thick. Insert the Long

bolt thru the Bottom plate. Note: Bottom Plate must be wide

enough to straddle the hole’s diameter. Thread the bolt into the

Base assembly by hand and tighten using the 6mm Allen wrench.

Step 2

Insert the Extension arm into the Base. *Note: The stopping-pin

in the Base restricts arm rotation to 180°. If you want a full 360°

rotation, remove this pin with the 1.5mm Allen wrench.

Insert the Spring arm into the Extension arm.

To prevent the arms from being lifted out, tighten the set

screws on the back of the Base where the Extension arm joins

it, and on the front of the Extension arm where the Spring arm

joins it with the 2.5mm Allen wrench.

Note:

If the Clamp does not t on your desk, increase or decrease the

span of the clamp by removing the Bottom clamp and Bolt, and

repositioning them. First, unscrew the two screws holding the

Bottom clamp with the 4mm Allen wrench (see g. 1).

For thin desks (.75’’ minimum) reassemble the clamp as shown

in Figure 2. For the thick desks (3.75’’ maximum) reassemble the

clamp as shown in Figure 3.

Once the Clamp has been set and ts your desktop, continue on

to Step 2 below.

g. 1 g. 2 g. 3

Bottom plate Base Plate

Base

Base Cushion

Parts for Bolt-thru assembly

Vesa mount

Monitor screw

(qty 4) Long bolts

(two sizes included:

50mm & 70mm)

Allen wrenches

(set of six:

1.5mm, 2.5mm, 4mm, 5mm, 6mm, 6.5mm)

Spring arm

Extension Arm

Package Contents

min. desk

thickness

.75’’

max desk

thickness

3.75’’

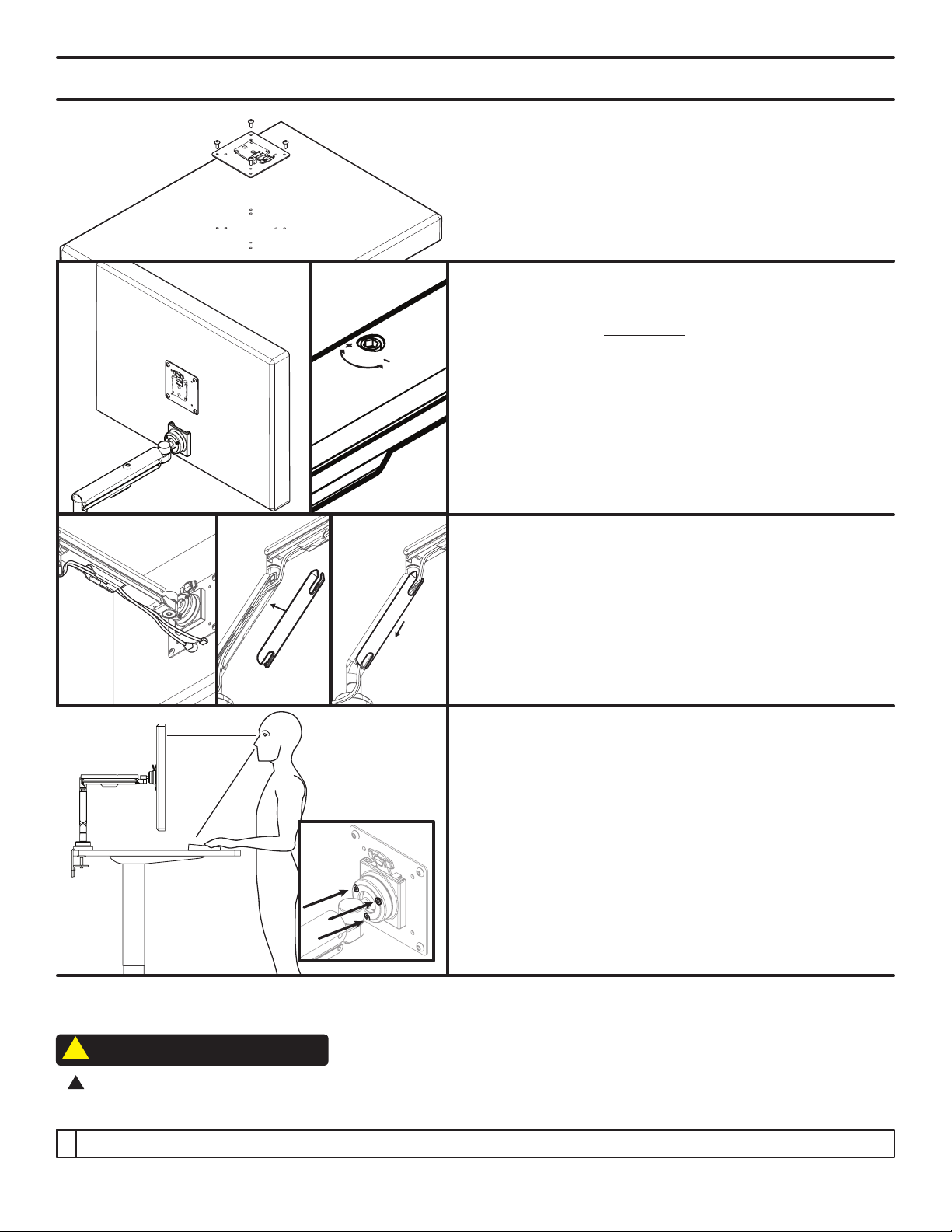

Step 3

Place monitor face down on a at surface, making sure not to

scratch the screen. Attach the VESA mount to the back of the

monitor using a Phillips screwdriver and the four (4) Monitor

screws provided. The mount is designed to t the industry stan-

dard VESA 75mm & 100mm hole patterns. Note: Make sure the

tab on the VESA mount is facing the top of the monitor.

Step 4

Slide the VESA mount down into the slot at the end of the Spring

arm until you hear it click in place.

When you move the monitor to new position, the arm should

hold that position. If it doesn’t, you’ll need to adjust the arm’s

counterbalance. Use the 5mm Allen wrench on the set-screw

located at the top-center of the Spring arm.

If the monitor is too heavy and pulls the arm down, turn toward

the “+” to increase arm resistance. If the monitor is too light

and rises up, turn toward “-” to reduce arm resistance. Keep

adjusting until the arm holds your monitor in place regardless

of where you move it.

Step 5

You can run your montior’s wires through the built-in wire man-

agement features.

Under the Spring arm, you can press the wires into this clip.

(see g. 1).

Inside the Extension arm is a channel accessible by a removable

cover. Slide the cover up & out to place your wires, then replace

the cover in the reverse motion, in & down. (see gs 2-3)

Step 6 Monitor Ergonomics

Screen Distance: Set screens about an arm’s length (approxi-

mately 18’’-28’’) from your eyes. If print is too hard to read, it is

better to make the print larger on your screen than to move the

screen closer.

Monitor Height: The top of the monitor should be level with

your eyes.

Monitor Tilt: The monitor should be tilted slightly up so it’s eas-

ier to see the screen when the top of the monitor is level with

your eyes. If the ball-joint holding the monitor does not move,

loosen each screw using the 4mm Allen wrench. This should

only take a couple of turns, each. If you loosen too much, and

the monitor does not stay in place, tighten slightly.

This guide is a component of the Zilker Single monitor arm. This guide is a part of the scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: upliftdesk.

com. Excerpts or copies may not be forwarded to third parties or used in any other published form without the prior written consent of UPLIFT Desk.

These instructions are subject to United States copyright law.

CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may

result in damage or personal injury. Retain manual for future reference.

CAUTIONS & WARNINGS

g. 1 g. 2 g. 3

IMPORTANT NOTE: Monitors weighing outside the weight range of 4.4lb min. and 11 lb. max. (2-5kg) will not work on this arm!
