Vacmaster VP205 Bedienungsanleitung

Wet/Dry Vacuums

Operator’s Manual

2.5 Gallon

Model No.

VP205

FOR YOUR SAFETY

Read and understand this manual before use

Keep this manual for future reference

Part No. VH05BZ.20.60.01

www.vacmaster.com

Cleva North America

44 Parkway Commons, Greer, SC 29650

SECTION Page

Thank you for purchasing this Vacmaster

wet/dry vacuum cleaner. Feel confident that with

Vacmaster

you are obtaining a high quality product engineered for optimal performance. This

vacuum is capable of picking up liquids and dry materials.

FOR YOUR SAFETY CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS

We take pride in producing a high quality, durable product. This Vacmaster

product carries a limited two (2)

year warranty against defects in workmanship and materials from date of purchase under normal household

use. If product is to be used for commercial, industrial or rental use, a 90 day limited warranty will apply.

Warranty does not apply to defects due to direct or indirect abuse, negligence, misuse, accidents, repairs or

alterations and lack of maintenance. Please keep your receipt as proof of purchase. This warranty gives

you specific legal rights, and you may have other rights, which vary form state to state. For product service

call Customer Service at (866) 384-8432

WARNING: THE POWER CORD ON THIS PRODUCT CONTAINS LEAD, A CHEMICAL KNOWN IN THE

STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS

AFTER HANDLING.

Warranty…………………………………………………………………………………………...…….

Safety Instructions and Warnings…………………………………………………………………….

Double Insulation Instructions………………………………………………………………………...

Extension Cord………………………………………………………………………………………….

Unpacking and Checking Carton Contents………….……………………..…………….………….

General Assembly Instructions…………………………………………………………….………….

Dry Vacuuming Operation……..………………………………………………………………………

Liquid Vacuuming Operation………………………………………………………………………….

Blowing Operation………………………………………………………………………………………

Maintenance……………………………………………………………………………….…………….

Installing & Cleaning Reusable Cloth Filter……….……………...………………..….……………..

Installing & Cleaning Foam Sleeve Filter………………...………………….…..….………………..

Troubleshooting…………………………………………………………………………………………

Exploded View and Parts List………………………………………………………………………….

WARRANTY

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all instructions before using this vacuum

Read and understand this owner’s manual and all labels on the Wet/Dry Vacuum cleaner before operating.

Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this

Wet/Dry Vac only as described in this manual. To reduce the risk of personal injury or damage to your

Wet/Dry Vac, use only Vacmaster

recommended accessories.

Household Type

SAVE THIS MANUAL

FOR FUTURE REFERENCE.

When using an electrical appliance, basic precautions should always be followed including the

following :

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• If appliance is not working as it should , has been dropped , damaged ,left outdoors , or dropped intowater ,

return it to a service center .

• Do not run vac unattended.

• Do not vacuum, or use this Wet/Dry Vac near flammable liquids, gases, or explosive vapors like gasoline

or other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal

dust, magnesium dust, grain dust, or gun power. Sparks inside the motor can ignite flammable vapors or

dust.

• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not use with damaged cord, plug or other parts.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or

corners.

• Do not run Wet/Dry Vac over cord.

• Do not handle plug or the Wet/Dry Vac with wet hands.

• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.

• Do not use or store near hazardous materials.

• Do not use this Wet/Dry Vac with a torn filter or without the filter installed except when vacuuming liquids

as described in the operation section of this manual.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.

• Do not leave Wet/Dry Vac unattended when plugged in. Unplug from outlet when not in use and before

servicing.

•Turn off Wet/Dry Vac before unplugging.

• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked;

keep free of dust, lint, hair or anything that may reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• To reduce the risk of falls, use extra care when cleaning on stairs.

When using as blower:

• Direct air discharge only at work area.

• Do not use Wet/Dry Vac as a sprayer.

• Do not direct air at bystanders.

• Keep children away when blowing.

• Wear safety goggles.

SAFETY INSTRUCTIONS & WARNINGS

This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only

identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before

servicing. Use this Wet/Dry Vac as described in this manual.

Observe the following warnings that appear on the motor housing of your Wet/Dry Vac.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY

IDENTICAL REPLACEMENT PARTS.

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK-DO NOT EXPOSE TO RAIN. STORE

INDOORS.

WARNING:

FOR YOUR OWN SAFETY, READ AND UNDERSTAND OPERATOR’S MANUAL. DO NOT

RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE OR OTHER

HAZARDOUS MATERIALS, DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

CAUTION:

• Do not vacuum drywall dust or fireplace soot or ash with standard Wet/Dry filter. This is a very fine dust

which will not be captured by the filter and may cause damage to motor. When vacuuming fine dust use a

fine dust filter.

WARNING:

SERVICING OF DOUBLE-INSULATED WET/DRY VACUUMM

WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE PROVIDED

INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A DOUBLE-INSULATED

APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE

INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM,

AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR

A DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS THEY REPLACE.

YOUR DOUBLE-INSULATED WET/DRY VAC IS MARKED WITH THE WORDS ‘DOUBLE INSULATED’

AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE

APPLIANCE.

• To reduce the risk of electric shock-unplug before cleaning or servicing.

• DO NOT use without filters in place.

CAUTION:

TO REDUCE THE RISK OF INJURY FROM MOVING PARTS- UNPLUG BEFORE

SERVICING.

When using an extension cord with your Wet/Dry Vac refer to the following table to determine the required

A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good

working conditions. Make repairs or replacements before using the vacuum cleaner. Only use extension

cords that are rated for outdoor use.

Length of Extension Cord

110V-120V

25 Feet

7.5 Meter

50 Feet

15.25 Meters

100 Feet

30.5 Meters

150 Feet

45.7 Meters

Amps A.W.G Wire Size

0-6 18 16 16 14

7-10 18 16 14 12

11-12 16 16 14 12

13-16 14 12 Not recommended

DOUBLE INSULATION INSTRUCTIONS

EXTENSION CORDS

UNPACKING AND CHECKING CARTON CONTENTS

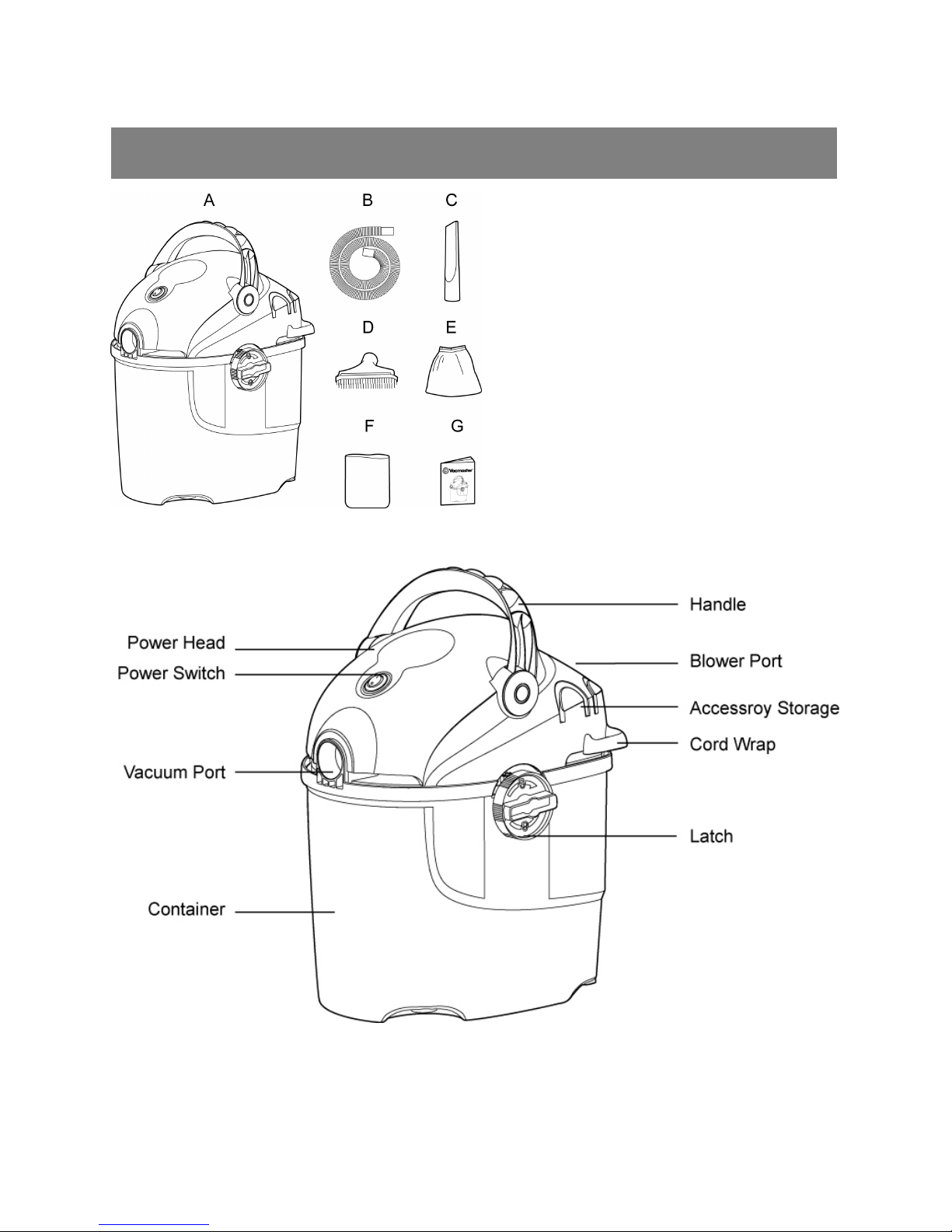

Key Description………………...

A Vac Assembly………….......

B Hose …………….... ………..

C Crevice Tool….…………….

D 2-in-1 Utility Nozzle.……….

E Cloth Filter……….…………

F Foam Filter…………………..

G Operator’s Manual………….

Remove entire contents of carton. Check

each item against the carton contents list.

QTY

WARNING:

DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS

DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. Turn the locking knobs towards the unlock position. (fig.2)

3. Lift the power head off the container. (fig.3)

4. Remove the contents from inside the container, make sure you have all contents as listed on page 5.

(fig.4)

5. Your vacuum comes ready for dry vacuum cleaning with the supplied reusable cloth filter installed. (fig.5)

6. For wet vacuum cleaning, install the supplied foam filter. (fig.6) See page 10 for filter installation.

7. Replace the power head back on the container. (fig.7)

8. Aligning the top section with the latches and turn the latches to the lock position. (fig.8)

9. Insert the hose into the vacuum port. (fig.9)

10. Choose the desired nozzle and insert onto the end of the hose. (fig.10)

POLARIZED PLUG

To reduce the risk of electrical shock, this appliance has a double polarized plug (one with the blade wider

than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet,

reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not

change the plug in any way. Double insulation eliminates the need for the three wire grounded power

cord and grounded power supply system.

GENERAL ASSEMBLY INSTRUCTIONS

DRY VACUUMING

WARNING:

BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY

INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS,

OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT

LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE,

ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO;

COAL, MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS

FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. Make sure the filter is completely covering the filter cage against the power head. (fig.2) (Your Wet/Dry

Vac comes with the reusable cloth filter pre-installed, if not, see page 10 for installation instructions.)

3. Place the power head back on the container, and secure it by locking the latches. (fig.3 & 4)

OPERATING INSTRUCTIONS: DRY VACUUMING

4. Insert the larger end of the hose into the vacuum port on the power head. Push the desired nozzle onto

the free end of the hose. (fig.5 & 6)

5. Ensure the switch is in the ‘O’ OFF position before plugging into the power supply. (fig.7)

6. Plug in the power cord into the outlet. (fig.8)

7. Turn the motor on by flipping the switch to the ‘I’ ON position and begin vacuuming. (fig.9)

8. Once you have completed vacuuming, flip the switch to the ‘O’ OFF position and unplug the power cord

from the outlet.

O = OFF I = ON

DO NOT USE THE REUSABLE CLOTH FILTER FOR LIQUID VACUUMING.

DRY

ACUUM OPERATION

LIQUID VACUUMING

WARNING:

BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY

INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS,

OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT

LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE,

ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO;

COAL, MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS

FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING:

DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS

DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VAC

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. Remove reusable cloth filter, then carefully install the foam sleeve filter over the filter cage and place the

power head back on the container. (fig.2) See filter installing instructions on page 10.

DO NOT USE THE REUSABLE CLOTH FILTER FOR LIQUID VACUUMING.

OPERATING INSTRUCTIONS – WET VACUUMING

3. Fit the desired nozzle to the vacuum hose. (fig.3)

4. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the outlet. (fig.4)

5. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig.5)

6. After use, empty the container, clean and dry the inside and outside before storage. (fig.6)

IMPORTANT!

When vacuuming large quantities of liquids, do not immerse the nozzle completely in the

liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve

that stops the suction action when the container reaches its maximum capacity. You will notice an increase

in motor speed. When this happens, turn off the machine, disconnect from power supply, and drain the

liquid into a suitable receptacle or drain. To continue vacuuming, refit the container with the drain cap. After

wet vacuuming, turn the machine off and remove plug from power supply. Empty the container, clean and

dry the inside and outside before storage.

REMEMBER!

The foam filter must be removed after wet vacuuming, and a reusable cloth filter must be

installed before dry vacuuming again.

UID VACUUM OPERATION

This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed.

WARNING:

ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA,

CSAZ94.3) BEFORE USING BLOWER.

WARNING:

KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.

WARNING:

WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. Make sure the container is empty before using as a blower.

3. Remove hose from the vacuum port.

4. Insert the larger end of the hose into the blowing port on the backside of the power head. (fig.2)

5. Ensure the power switch is turned off and plug into the power supply. (fig.3 & 4)

6. Before turning on the vac, firmly hold loose end of the hose. Turn the motor on by flipping the switch to

the ‘I’ ON position. (fig.5)

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. Disconnect the hose from the vacuum. (fig.2)

3. Undo the latches and remove the power head from the container. (fig.3 & 4)

4. Clear all dirt or debris from the container and hose. (fig.5)

For filter changing and maintenance see instructions on page 10.

IMPORTANT!

Clean or change the dust filter regularly for best performance. ALWAYS USE DUST

FILTER FOR DRY VACUUMING. If the machine is used with out the dust filter, the motor will burn out and

the warranty will be voided. Always keep spare filters on-hand.

BLOWING OPERATION

MAINTENANCE & FILTER CLEANING

NOTICE!

The filter included is made of high quality material designed to stop small dust particles. The filter

should be used for dry pick-up only. A dry filter is necessary to pick up dust. If the dust filter is wet, it will

clog quickly and be very difficult to clean. Handle the filter carefully when removing it for cleaning and

replacing it. Check the filters for tears or small holes, a small hole can let dust pass through and out of the

cleaner. Do not use a filter with holes or tears, replace it immediately.

WARNING:

ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING

THE POWER HEAD FROM CONTAINER.

Installing Reusable Cloth Filter

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. Remove power head and place in upside down position.

3. Slide reusable cloth filter down over the filter cage making sure the whole cage is covered. (ﬁg.2 & 3)

4. Replace and lock the power head on to the container.

Removing and Cleaning Reusable Cloth Filter

1. With the removed power head in the upside down position.

2. Carefully remove the reusable cloth filter from the filter cage. (fig. 4) Clean the filter by gently tapping or

brushing dirt off. Cleaning should not be done indoors in living areas.

3. Use a mild soap and water solution to wash reusable cloth filter and rinse with clean water. (fig. 5)

4. Allow the wet filter to air dry for 24 hours before installing onto the filter cage.

Installing Foam Sleeve Filter

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. Remove power head and place in upside down position. Follow instructions to remove cloth filter.

3. Carefully slide foam sleeve filter down over the filter cage making sure the whole cage is covered.

(ﬁg.2 & 3)

4. Replace the power head on to the container.

Cleaning Foam Sleeve Filter

1. With the removed power head in the upside down position, carefully remove foam sleeve filter. (fig. 4)

INSTALLING & CLEANING REUSABLE CLOTH FILTE

INSTALLING & CLEANING FOAM SLEEVE FILTER

Inhaltsverzeichnis

Andere Vacmaster Staubsauger Handbücher

Vacmaster

Vacmaster VJC1612PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VOC1218PF Bedienungsanleitung

Vacmaster

Vacmaster vmvK1650SWdc Bedienungsanleitung

Vacmaster

Vacmaster VSD1801 Bedienungsanleitung

Vacmaster

Vacmaster PROFESSIONAL VJE1412SW 0201 Bedienungsanleitung

Vacmaster

Vacmaster VSC2501EU Bedienungsanleitung

Vacmaster

Vacmaster DVTB2015 Bedienungsanleitung

Vacmaster

Vacmaster VQ1530SFDC Bedienungsanleitung

Vacmaster

Vacmaster VSH01 Bedienungsanleitung

Vacmaster

Vacmaster VK609PFR 0201 Bedienungsanleitung

Vacmaster

Vacmaster VJC1412PWT 0201 Bedienungsanleitung

Vacmaster

Vacmaster VJC1210PF Bedienungsanleitung

Vacmaster

Vacmaster VJ205 Bedienungsanleitung

Vacmaster

Vacmaster VJH2012PF 1101 Bedienungsanleitung

Vacmaster

Vacmaster VWMB508 0101 Bedienungsanleitung

Vacmaster

Vacmaster VMVQ1530SWDC Bedienungsanleitung

Vacmaster

Vacmaster VDK1138SWC-110 Bedienungsanleitung

Vacmaster

Vacmaster VJ206H Bedienungsanleitung

Vacmaster

Vacmaster VZA0708P Bedienungsanleitung

Vacmaster

Vacmaster VSB1801NA Bedienungsanleitung

Vacmaster

Vacmaster CDM0610P Bedienungsanleitung

Vacmaster

Vacmaster VF409 Bedienungsanleitung

Vacmaster

Vacmaster VQ407S Bedienungsanleitung

Vacmaster

Vacmaster VK811PH Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
