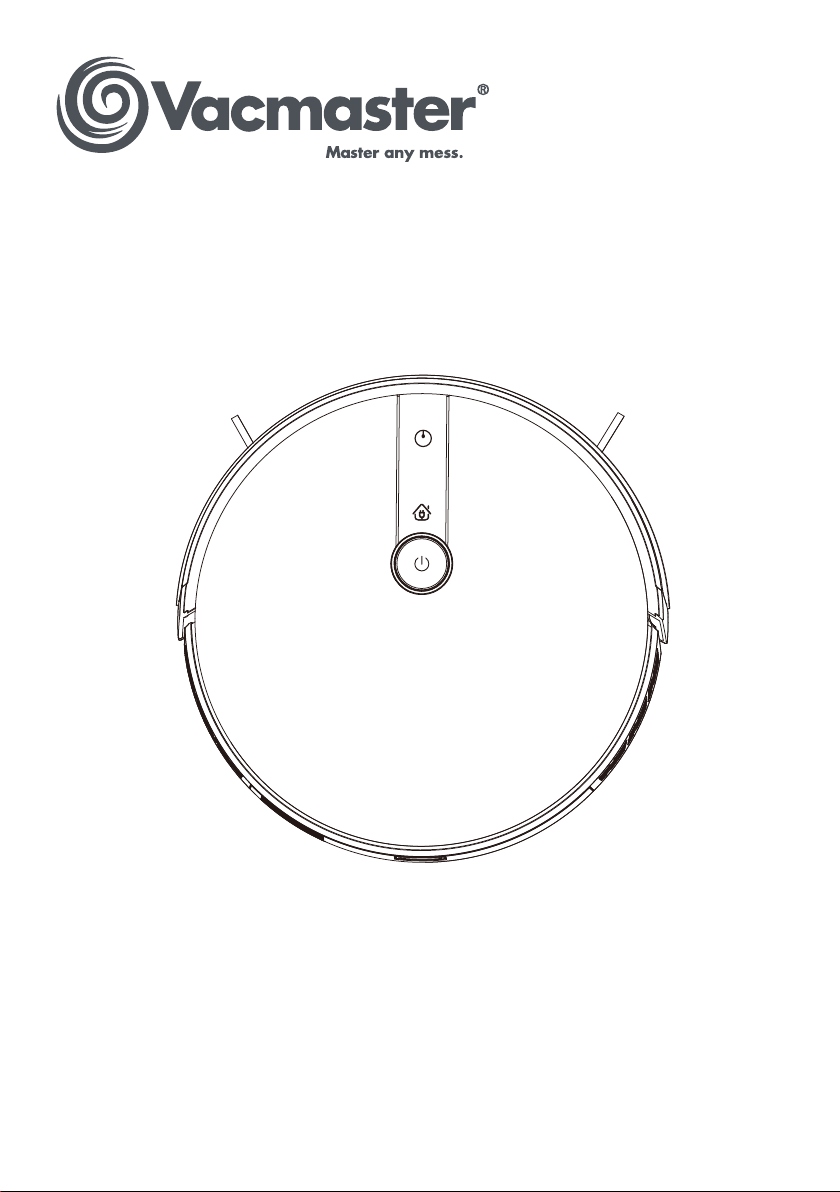

Vacmaster C12 Bedienungsanleitung
Use & Care Guide
MODEL NO. C12
ROBOT VACUUM CLEANER
www.vacmaster.com
Cleva North America, Inc.
Greenville, SC 29607
Made in China
(866) 384-8432
-3-
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS ROBOT VACUUM
CLEANER.
Failure to follow the warnings and instructions may result in electric shock, re
and/or serious injury.
WARNING - To reduce the risk of re, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by
or near children, pets or plants.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should,
has been dropped, damaged, left outdoors, or dropped into water, call (866)
384-8432 for assistance.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or
pull cord around sharp edges or corners. Do not run appliance over cord.
Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle charger, including charger plug, and charger terminals with wet
hands.
• Do not put any object into openings. Do not use with any opening blocked;
keep free of dust, lint, hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings
and moving parts.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or
use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Do not use without dust bin.
• Turn off the appliance before making any adjustments, changing accessories,
or storing appliance. Such preventive safety measures reduce the risk of
starting the appliance accidentally.
-4-
• Use only the charging dock specially equipped by the manufacturer.
• Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, ush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns.
• Do not use the appliance that is damaged or modied. Damaged or modied
batteries may exhibit unpredictable behavior resulting in re, explosion or risk of
injury.
• Do not expose the appliance to re or excessive temperature. Exposure to re
or temperature above 130°C (265°F) may cause explosion.
• It is recommended to operate appliance at room temperature between 39.2°F
(4°C) and 104°F (40°C).
• It is recommended to store the appliance between 32°F (0°C) and 104°F (40°C).
• It is recommended to apply the boundary strips (not included) to block off areas
on top stair where the appliance may fall.
• Follow all charging instructions and do not charge the appliance outside of
the temperature range specied in the instructions. Charging improperly or
at temperatures outside of the specied range may damage the battery and
increase the risk of re.
• Have servicing performed by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the appliance is
maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as
indicated in the instructions for use and care.
• Place the cords from other appliances out of the area to be cleaned.
• Do not operate the appliance in a room where an infant or child is sleeping.
• Do not operate the appliance in an area where there are lit candles, fragile
objects or a working heater on the oor to be cleaned. The appliance may
accidentally hit or bump into the heat resources resulting in re or risk of injury.
• Do not allow children to sit on the appliance.
WARNING: Any changes or modications to this unit not expressly
approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
-5-
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Product Disposal
This product contains an internal Lithium-ion battery pack formulated from
environmentally sensitive materials. This product must be disposed of properly
with due care for the environment.
Do not dispose of product with household garbage. Consult your local waste
authority for information regarding available recycling or disposal options.
SAVE THESE INSTRUCTIONS
Household use only.
-6-
FOR ONE YEAR from the date of sale, this product is warranted against defects
in material or workmanship when it is assembled, operated and maintained
according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web page:
www.vacmaster.com or call (866) 384-8432.
• This warranty does not cover lters, which are expendable parts that
can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private household
purposes.
• This warranty gives you specic legal rights, and you may also have other
rights which vary from state to state.
Robot Vacuum Cleaner
Rated Voltage: 14.4VDC
Rated Power: 28W
Model: C12
Battery Charger
Model: GQ12-190060-AU
Input: 100- 240VAC, 50/60Hz, 0.4A Max
Output: 19VDC, 0.6A
Battery
Type: 14.4V rechargeable Lithium-Ion 2500mAh
WARRANTY
TECHNICAL DATA
-7-
GETTING TO KNOW YOUR VACUUM
Included in the Box:
Robot Vacuum Cleaner
Charging Adapter
Use & Care Guide
Cleaning Tool
High Efciency
Filter (x2)
Quick Start Guide
Side Brush (x2 sets)
Dust Bin Charging Dock Remote Control
with 2 AAA Batteries
-8-
About Your Robot Vacuum
Front Robot
Back Robot
Front Bumper
Quick Start
Power Button
Charging Contacts
Front Swivel Wheel
Battery Cover
Brushroll Cover
Dust Bin Release
Button
Power Indicator Light
Docking Indicator Light
Anti-Drop Cliff
Sensors
Side Brushes
Brushroll
Dust Bin & Filter
Drive Wheels
-9-
Charging Dock
Remote Control
Dust Bin & Filter
High Efciency Filter
Start Cleaning Session
Start / Pause Cleaning Session
Schedule Cleaning Session
Filter Basket
Dust Bin Door
Charging Dock Indicator
DC Socket
Charging Pins
Return Robot to Charging Dock
Clock Set-Up
Control Cleaning Direction Manually
Screen Display
Select Cleaning Mode:Spot Cleaning
Mode,Single Room Cleaning Mode,
Edge Cleaning Mode
Filter Door
-10-
NOTE: Install 2 AAA batteries before using the remote control for the rst time.
Make sure the positive and negative ends are facing the correct polarity direction
as marked in the battery compartment.
REPLACEMENT PARTS
Available online at www.vacmaster.com or call (866) 384-8432.
Item Part No.
High Efciency Filter 611002101
Filter Basket 611002102
Side Brushes (L/R) 611002106 / 611002107
Remote Control 611002108
Cleaning Tool 611002103
Brushroll 611002105
Brushroll Cover 611002109
Front Swivel Wheel 611002110
Charging Dock 611002119
Charging Adapter 611002112
Battery 611002120
Dust Bin 611002111
Boundary Strip
(not included, but available on Vacmaster.com) 611002130
-11-
2. Fold tasseled edges of area rugs underneath to prevent these from getting
entangled or trapped. Your robot may have trouble with dark colored rugs.
Block off areas as necessary.
INSTALLATION INSTRUCTIONS
Important Tips Before Use
1. Remove power cords and other obstructions to prevent your robot from getting
entangled or trapped. You can use cable ties to organize your wires and power
cords.
3. To prevent your robot from becoming stuck, use furniture rises for spaces
lower than 3.15 inches (80mm). If necessary, place a physical barrier to block
off the problem areas.
