Vacron EN-VVH-MD40D Installations- und Betriebshandbuch

4/8 CH Vehicle Mobile DVR

2013 OCT V1.0

optional

Safety Precautions

Take and review some testing video initially to make sure the

images were recorded correctly. Please note that manufacturer,

its subsidiaries and affiliates, and its distributors are not liable for

consequential damages arising from any malfunction of main

device accessory, including memory device that results in the

failure of an image to be recorded or to be recorded in a way that

is machine readable.

Before using the product, please ensure that you read the safety precautions

described below. Always ensure that the product is used correctly.

• Please keep device away from children.

• Use only recommended power sources.

• Do not attempt to disassemble, alter or apply heat to the product.

• Avoid dropping or subjecting the product to severe impacts.

• To avoid the risk of injury, do not touch the interior of the product if it has

been dropped or otherwise damaged.

• Stop using the product immediately if it emits smoke, a strange smell, or

otherwise behaves abnormally.

• Do not use organic solvents such as alcohol, benzene, or thinner to clean

the product.

• Do not let the product come into contact with water (e.g. sea water) or other

liquids.

• Do not allow liquids or foreign objects to enter the VVR.

• Do not place the VVR near or in direct flame.

• Do not handle the power cord with wet hands.

• Do not use the equipment in a manner that exceeds the rated capacity of

the electrical outlet or wiring accessories. Do not use if the power cord or

plug are damaged, or not fully plugged into the outlet.

• Do not allow direct or metal objects (such as pins or keys) to contact the

terminals or plug.

Avoid using, placing or storing the product in the humid or dusty areas.

Index

A. Features ................................................................................................................. 1

B. Specification ........................................................................................................ 2

D. Record / Stop-Record ...................................................................................... 7

E. System operating instruction ....................................................................... 8

 Through IR Remote controller instruction .............................................. 8

 Main menu page switch .................................................................................. 9

 System Setup instruction ............................................................................. 10

 LIVE Display........................................................................................................ 17

 Playback mode ................................................................................................. 18

F. Carbox Player on PC site ............................................................................... 19

1. Through Carbox Player on PC site ................................................................. 19

(1). Snapshot ................................................................................................... 21

(2). Configuration .......................................................................................... 21

(3). Backup ........................................................................................................ 24

(4). Playback..................................................................................................... 26

(5). Format ........................................................................................................ 27

(6). Playback date selection ....................................................................... 28

G. 3G client software for viewing directly(select models with 3G

modules) ........................................................................................................................... 30

H. HDD Format ....................................................................................................... 36

(1) Format in your computer ............................................................................. 36

I. Restore Storage Device ................................................................................. 39

J. 3G INTERNET SETTING .................................................................................. 42

K. Capacity Evaluation of Continuous Recording Storage Device .... 4 6

A. Features

‧ Provide Video output for playing-back mode in mainframe.

‧ Recording format: D1 and CIF

‧ User friendly player software, easy to operation.

‧ Overall quick search event log.

‧ The full recording time and date can be showing in the

monitor directly.

‧ Auto recording after power supplied.

‧ Removable HDD Track compatible with 2.5" HDD or SSD.

‧ Firmware can be upgraded via USB port.

‧ Support recording audio, video, G-sensor and GPS data at

the same time.

‧ Optional 3G module, for real time monitoring the driving

statue, or talk to driver.

B. Specification

Type 8CH Vehicle DVR

Video Format NTSC/PAL

Operating System Embedded Linux

Video Input 8CH Input

Max. Cam Power

supplier 12V/250mA/Each

Video Output 1CH Output

Audio Input 1CH Input

Audio Output 1CH Output

Alarm Input 4 Alarm Input

Control Mode GUI

Multi-Language English / Chinese / Others

Display

Resolution

NTSC 240 fields/s (8x30 fields/s)

PAL 200 fields/s (8x25 fields/s)

Recording

Resolution

NTSC Max. 30fps@CIF (real time

recording)

PAL Max. 25fps@CIF (real time

recording)

Recording

Resolution

NTSC Max. 30fps@CIF (real time

playback)

PAL Max. 25fps@CIF (real time

playback)

Display Mode Full Screen, 4 / 9 Split

Triplex Record / Playback / Network

Resolution

Display NTSC 720 x 480

PAL 720 x 576

Recording

NTSC 360x240@CIF/

720x480@D1/

PAL 360x288@CIF

720x576@D1/

Compression

Algorithm H.264(1~ 5)

HDD 2.5”SATA HDD Caddy Max. 1Tb

Backup Device USB Storage or through Carbox Player

Playback Mode Search Function: Time / Event

Full Screen

LED Indicator 4 LED (LAN、REC、GPS、Power)

Signal Loss

Detector Yes

Buzzer Alarm

Output Yes

RS485 Yes

MOUSE Yes

GPS Yes

G-SENSOR Yes

Network Yes

3G optional

WIFI optional

IR Remote

Control Yes

Watchdog Yes

Extended Record

Mode Yes

Power Supply DC 8V~36V

Dimension 250mm x 174.8mm x 69.5mm

Operation

Temperature -20℃ ~ +65℃

Weight 1.85kg(with bracket and HDD)

*Version updating is not going to inform, please check the on-going updating information

C. Product Appearance

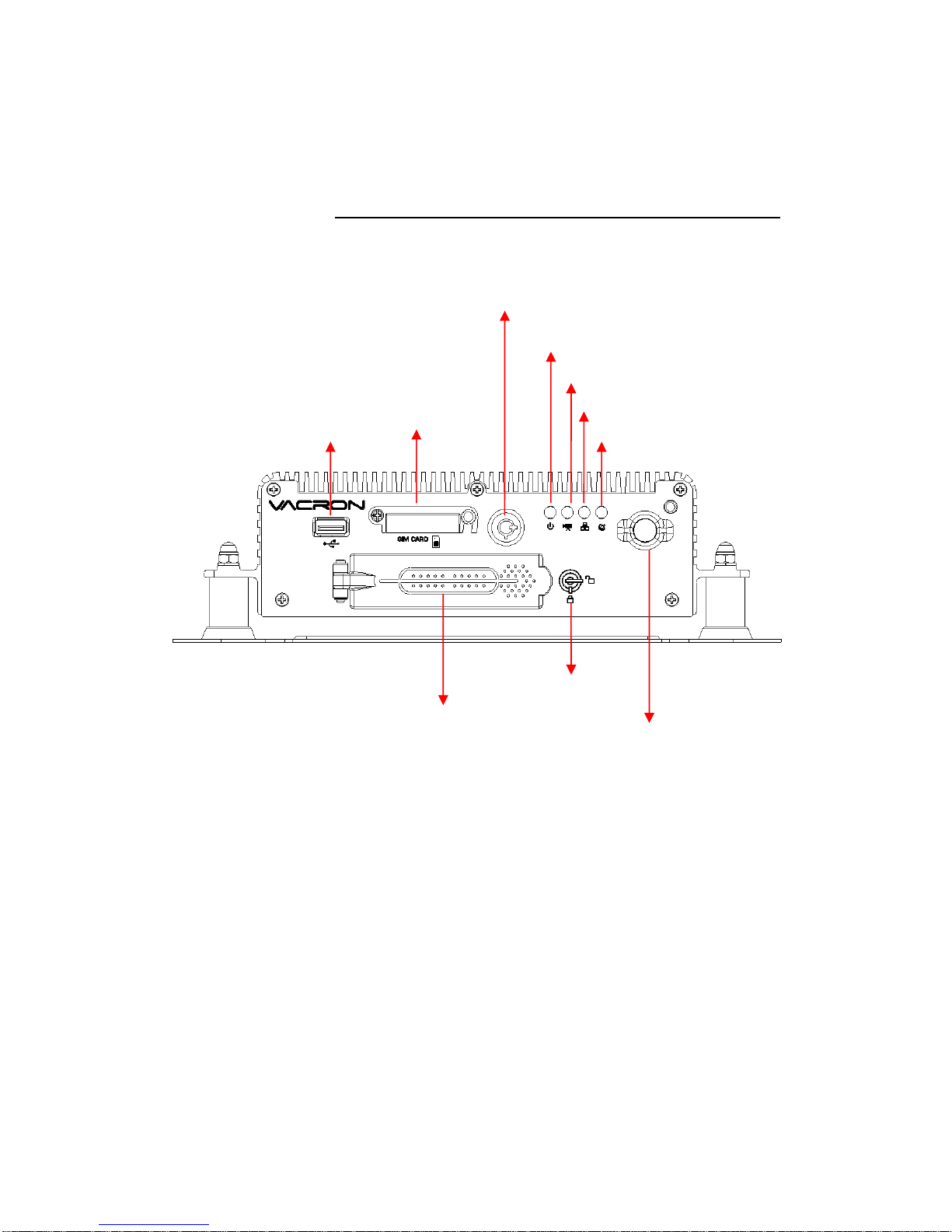

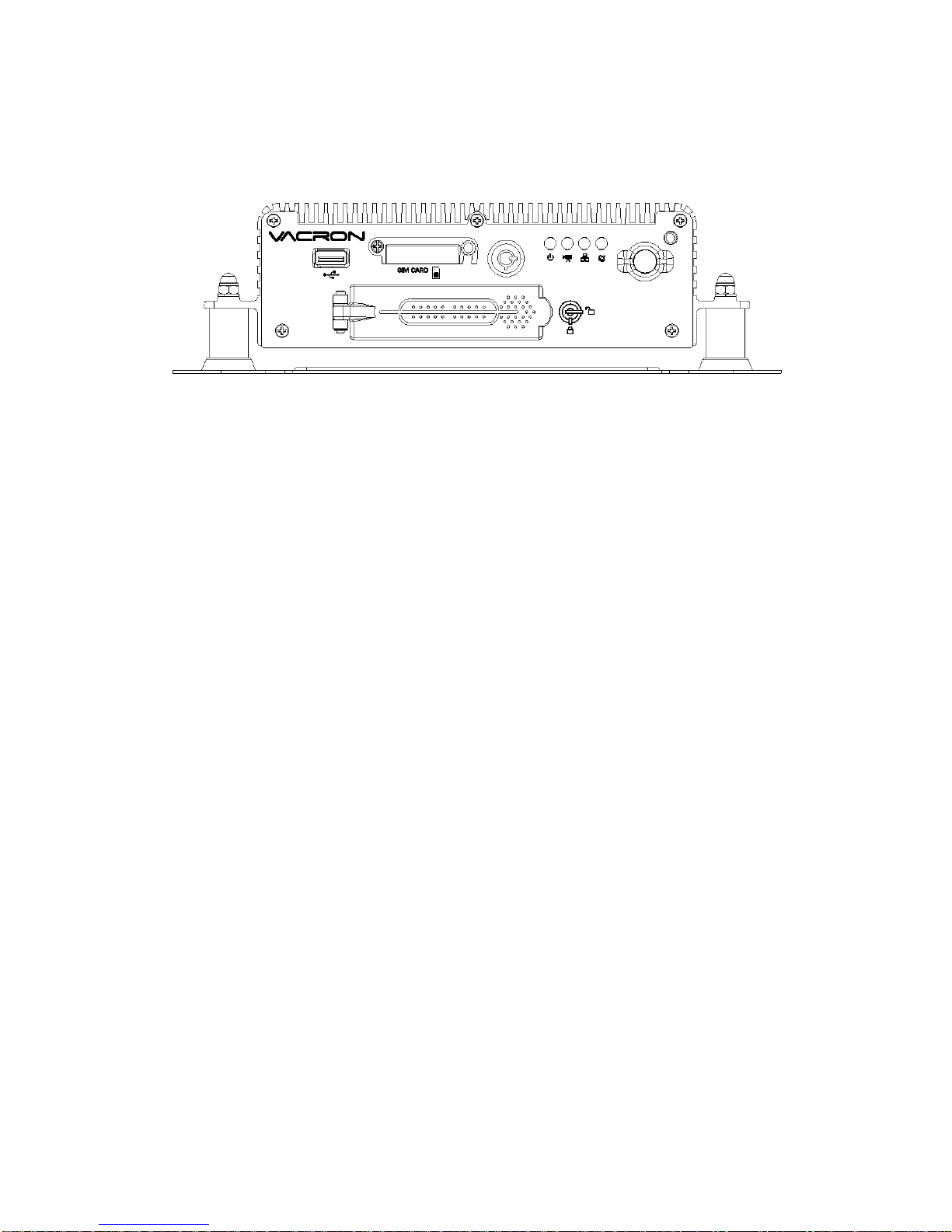

FRONT PANEL

Sim card slot

USB connection

SIM lock

Infrared receiver

Power light

Record light

Network light

GPS light

HD slot

HD slot lock

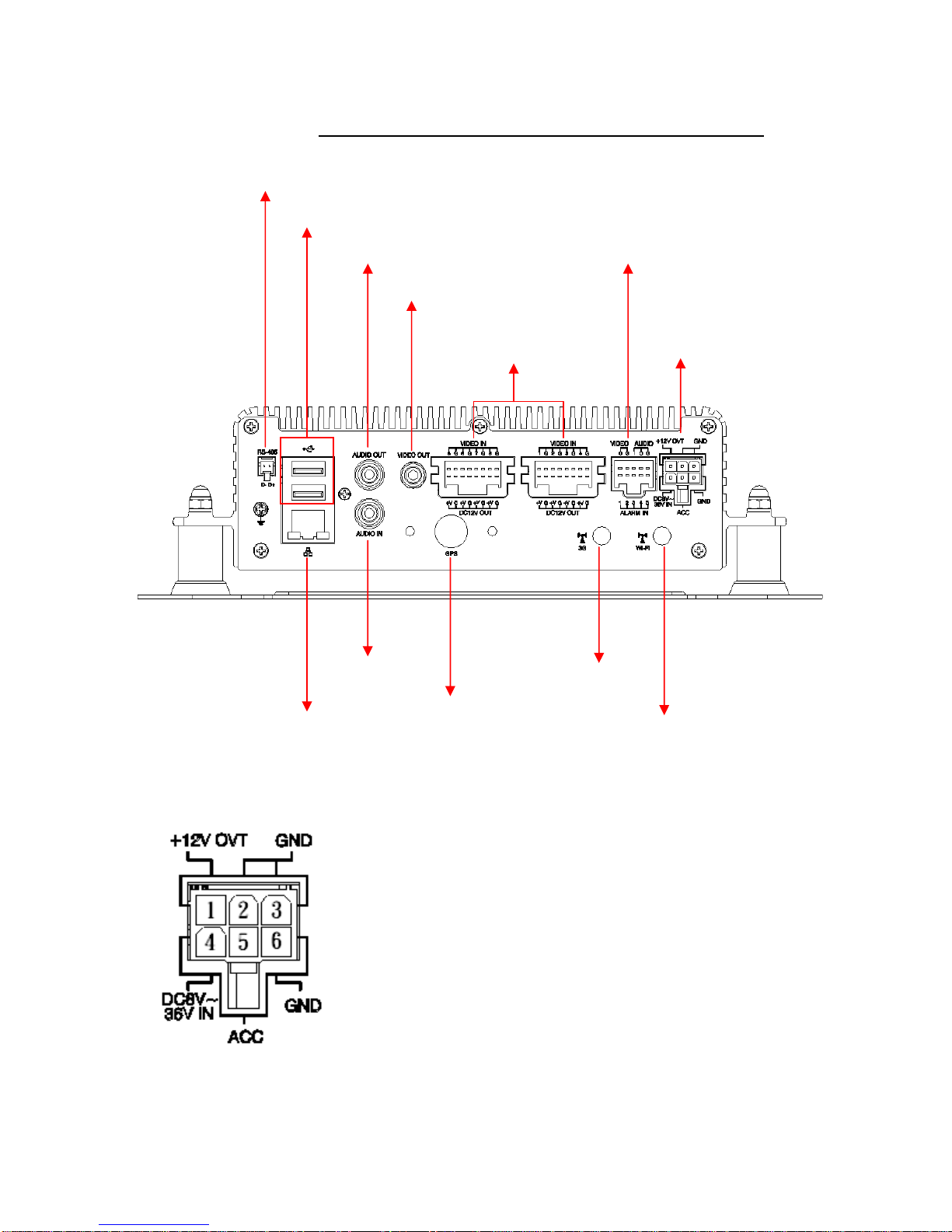

REAR PANEL

Power connection

1. Signal & DC grounding

2. Signal & DC grounding

3. DC8~36V vehicle power (+)

4. ACC control

5. GNDP vehicle power (-)

RS-485 Connection

USB Connection

Network Connection

Audio input

G-Mouse

connection

3G antenna

connection

WIFI antenna

connection

Audio output

Video output

Hollow connection

Video recorder

connectino 1-8 CH

Hollow connection

1 set of video/ audio

output

4 set of alarm input

Power Connection

D. Record / Stop-Record

1. Power on / Record

Turn on the power, and it will take approximately 40 seconds

to boot up. During the recorder booting up, the HDD

indicator LED will start flashing as the recording is in

progress.

Light indicator:

● Red light: light on, means power on; light off, means no

power/power off.

● Green light: light flashing, means HDD take recording;

light off means non-recording.

● Yellow light: On when internet connection; off when

internet disconnection.

● Blue light: On when GPS positioning is ready; off when

GPS is not ready.

★ Remark: While using playback function in DVR, it cannot

take live recording at that time.

2.Power off/Stop recording:

Power off also stop recording, at then you can take out

HDD to read the recorded files.
