Vantec NST- 360S2i-WH Bedienungsanleitung
www.vantecusa.com
USER MANUAL
Package Contents
NexStar 3i Power Management 3.5” Hard Drive Enclosure
․Power Management HDD Enclosure x 1
․Software Install CD x 1
․Power Adaptor x 1
․Vertical Stand x 1
․User Manual x 1
․USB Cable x 1
․Screws x4
TRADEMARKS
MS-DOS, Windows 95 / 98 / NT / 2000 / XP / Vista are trademarks of Microsoft Corporation.
Apple, Macintosh and Mac are trademarks of Apple Computer
*All of the third-party brands and names are the property of their respective owners.
Package Contents
1
CONTENTS
Package Contents ................................................................................................................................................. 2
1. Introduction .........................................................................................................................................................2
2. Specifications / Features / Power Consumption ...........................................................................................4
3. System Requirements .......................................................................................................................................5
4. Parts Layout ........................................................................................................................................................ 6
5. Installation ........................................................................................................................................................... 7
6. Creating a New Partition / Formatting the Hard Drive ............................................................................... 10
6.1 Creating a New Partition ..................................................................................................................10
6.2 Formatting Power Management Hard Drive .................................................................................12
7. Power Management Mode .............................................................................................................................13
7.1 Utilize the Power Management Function In Windows XP, Windows 2000 .............................13
7.2 Power Management mode introduction .........................................................................................15
8. Disconnecting the NexStar 3i ........................................................................................................................16
9. Troubleshooting / FAQ ....................................................................................................................................17
10. Warranty / Contact .........................................................................................................................................18
Contents
2

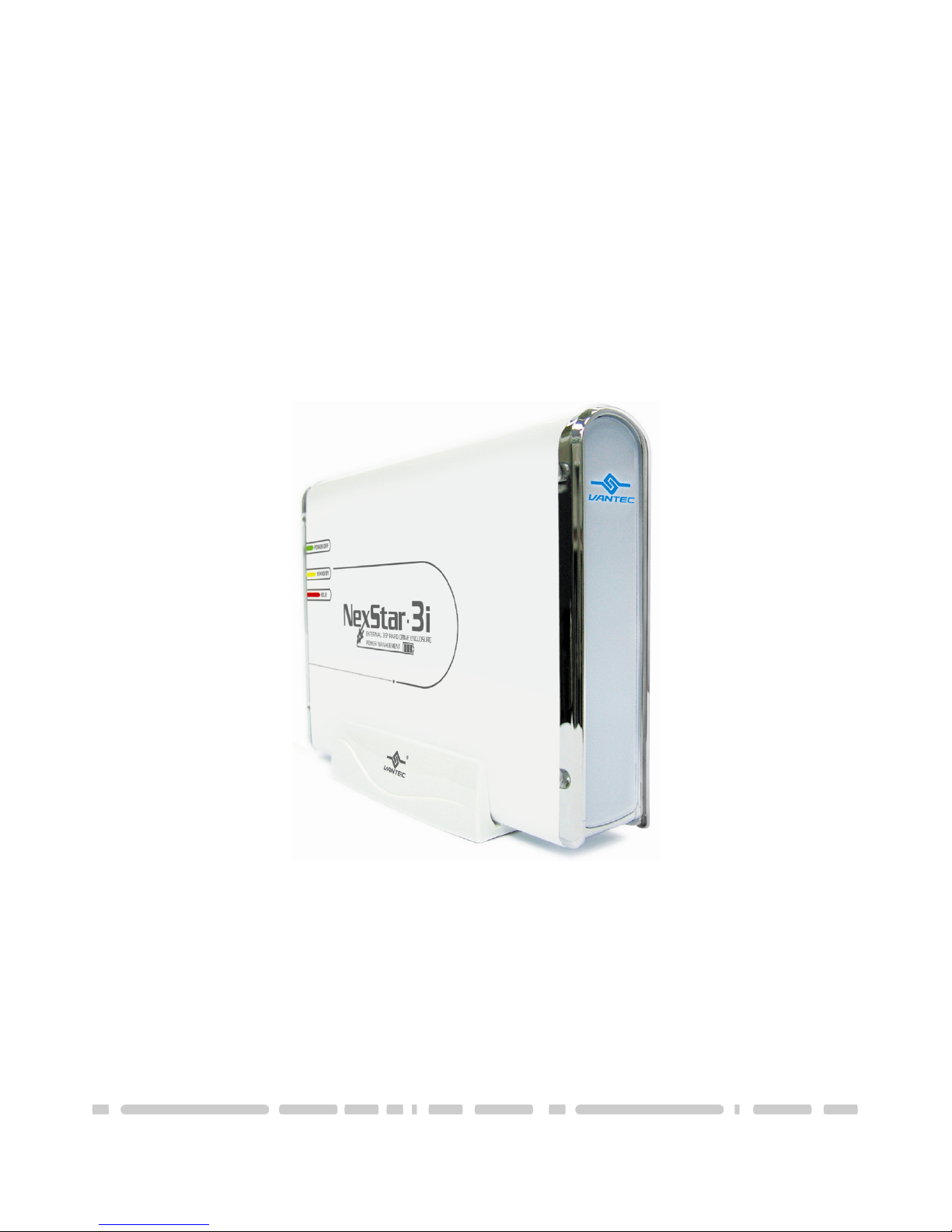

1. Introduction:
With the advent and subsequent popularity of portable computers, power management of system
components has become an important issue. The NexStar 3i Power Management Enclosure can
reduce energy consumption and cooling costs, reduce noise, and prolong the life of hard drive. Less
electricity consumption with three intelligent power management modes: Idle, Stand By, and Power
Down. The NexStar 3i utilizes USB 2.0, offering speed up to 480Mbps, and it is an ideal way to store
and transfer large amounts of data in an enclosure that matches your style!
NST- 360S2i-WH
Introduction
3
2. Specifications / Features / Power Consumption:
Specifications:
․Device Support: SATA I/II Hard Drive
․Device Size: 3.5”
․Internal Interface: SATA
․External interface: USB 2.0
․HD Capacity: Up to 1TB
․Data Transfer Rate: 480Mbps (12Mbps w/ USB1.1)
․Power Supply: AC Adapter
․Material: Aluminum
․Dimension: 198 x 125 x 33 mm
․Power Management Mode: Idle / Stand By / Power Down
Feature:
․Power Management: Saves Power and Extends Hard drive Lifetime
․Built-In Automatic Power Management Processor
․Three Intelligent Power Management Modes: Idle/Stand By/Power Down
․Supports 3.5” SATA Hard Drive Up To 1TB
․Transfer Rates Up To 480Mpbs w/ USB 2.0
․Attractive LED Indicates Power / HDD Activity
․Aluminum Casing Cools Down Your Hard Drive
․Hot Swappable: Plug & Play

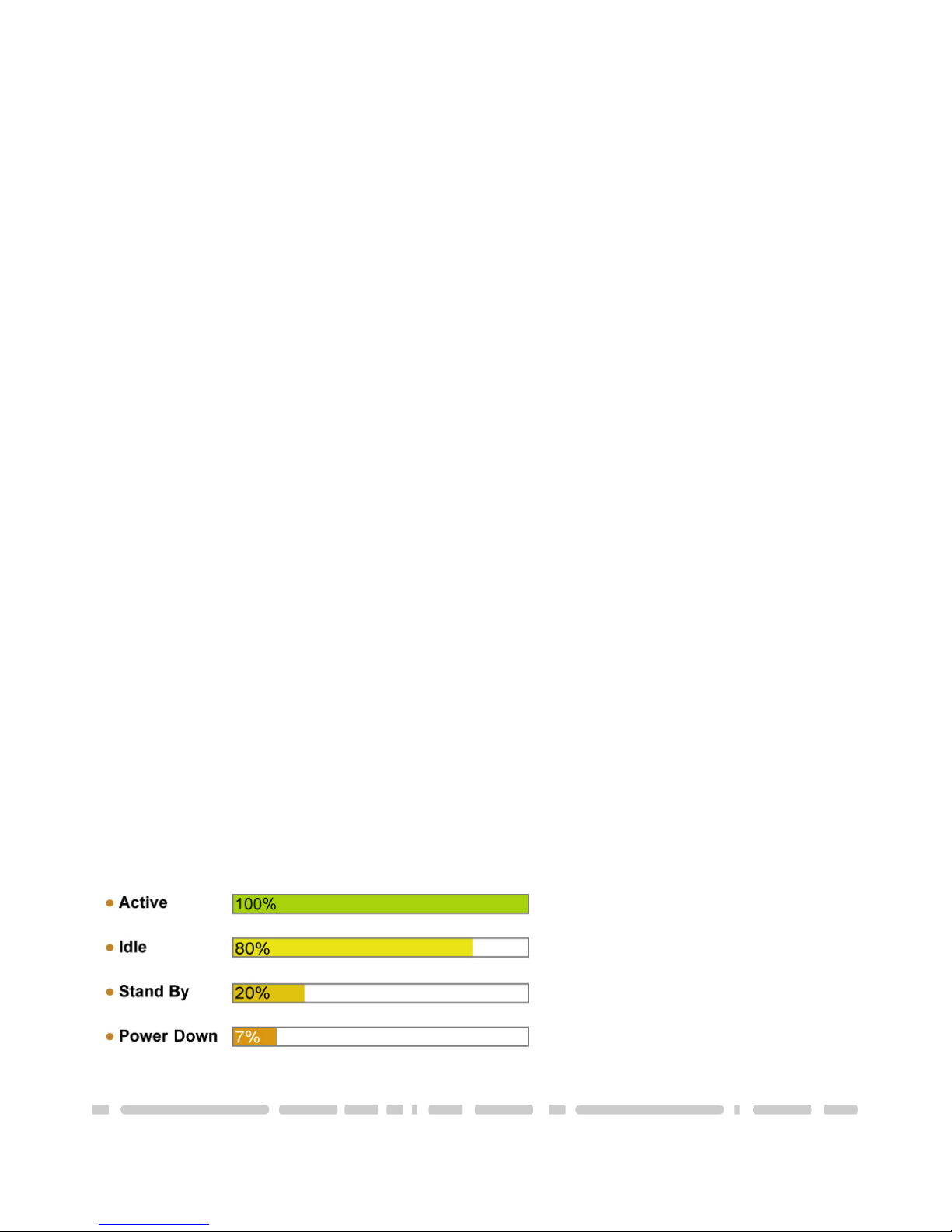

Power Consumption:
4
Specifications / Features / Power Consumption
3. System Requirements:
․Intel Pentium II 350 MHz Compatible or Mac G3 Processor & Greater
․Microsoft Windows 98SE/ME/2000/XP/Vista or Mac OS 8.6 & Greater
․USB-Equipped System
․For USB 2.0 Speeds, the System Must Support USB 2.0 Specifications
․CD-Rom Drive, If Drivers Are Needed.
5
System Requirements

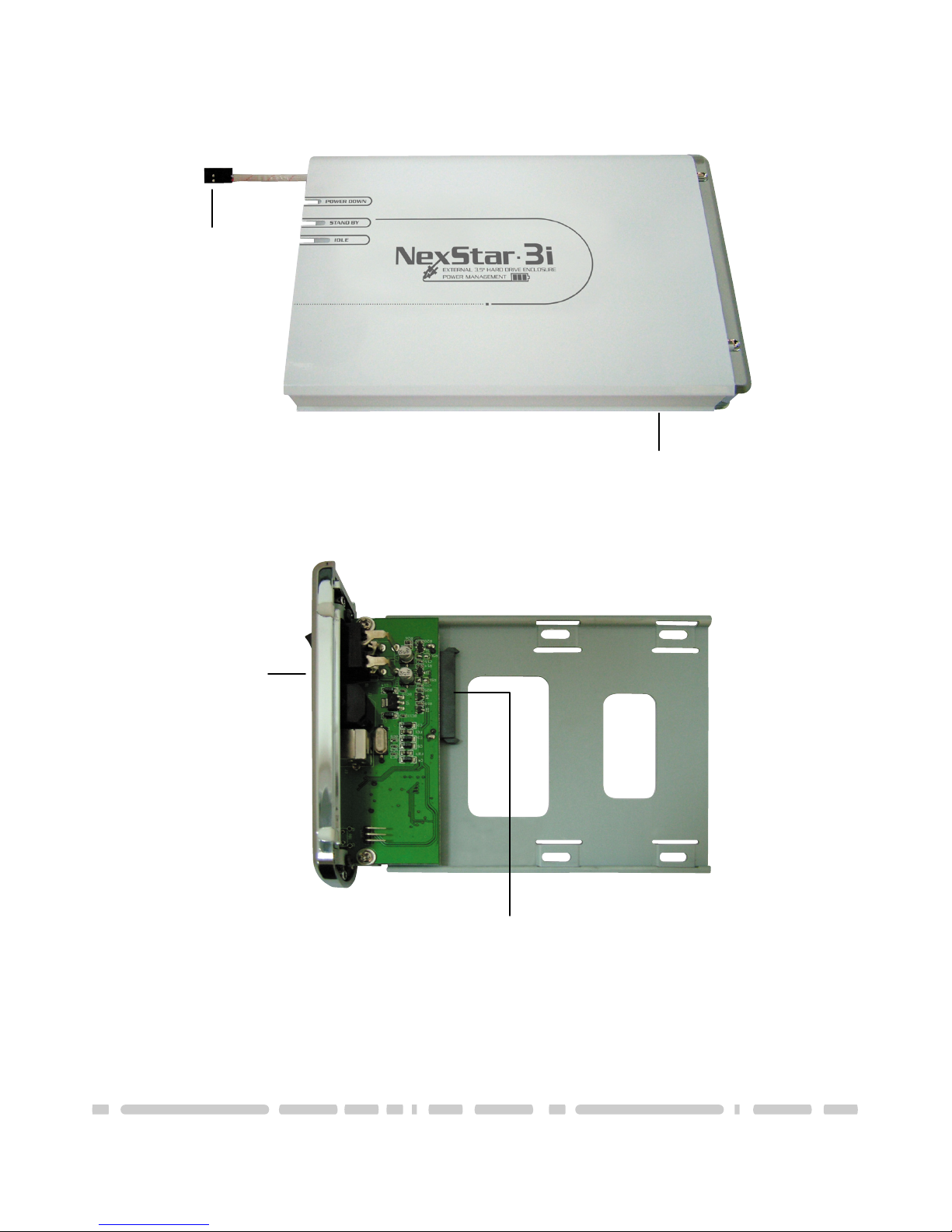

4. Parts Layout:
LED Cable
Aluminum Housing
Hard Drive
cabby
SATA/Power Cable
6
Parts Layout
5. Installation:
NexStar 3i External 3.5” HDD Enclosure:
Preparing the NexStar 3i:
1) Remove the side of the NexStar 3i with the power and USB connection ports. If it has previously
been screwed in place, remove the screws first.
2) Carefully slide out the side approximately 3 inches.
3) Unplug the red and white cable for the LED.
4) Slide out the rest of the side
7
Installation
Installing the hard drive in the NexStar 3i:
1) Connect the SATA cable and power cable to the hard drive as pictured below.
2) Align the hard drive mounting holes with the holes on the back of the drive caddy. See picture
below.
3) Secure the hard drive onto the drive caddy with the screws provided.
4) Insert the drive caddy back into the aluminum housing. Be sure to reconnect the LED cable
before closing the unit. When reinserting the caddy, also be sure to align the top of the caddy
with the guides on the housing.
8
Installation
Connecting the NexStar 3i to your computer:
1) Connect the type B USB connector to the NexStar 3i and the type A USB connector to an available
USB 1.1/ 2.0 port on your system.
2) Connect the power cable to the NexStar 3i and plug the cable into an available outlet.
3) Turn on the NexStar 3i via the power switch.
4) Your operating system should detect the NexStar 3i and automatically install the necessary drivers
(if you have Mac OS 8.6, you will need to install drivers).
Once your operating system finishes setting up the NexStar 3i, it will mount
your hard drive. On Mac OS systems, the new volume should appear on the
desktop. On a Windows PC, the new volume will appear under My Computer.
NOTE: For new hard drives, you will need to initialize and partition your hard drive before it will appear in
Windows Explorer or on your Mac desktop. Please refer to your hard drive manufacturer's
documentation or read the "Creating a New Partition" section of this manual.
5) Your NexStar 3i External Hard Drive is now ready for use.
Installation
9
