Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013

SERVICE MANUAL

Page | 1

Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013

Contents

1. Safety Information……………………………………2-3

2. Specification…………………………………………….4

3. Exploded diagram…………………………………….5-6

4. Spares list…………………………………………………7-10

5. Troubleshooting & Repairing guide…………..11-14

Page | 2

Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013

Safety Information

• Do not unplug the appliance by pulling on the power cable: grip the plug and

not the cable. Do not touch the cable or the appliance with wet hands.

• If your appliance has a cable rewind, always hold the plug while rewinding

the cable. Do not let the cable flap around as you rewind.

• Attachments, hoses and floor attachments must not be used at head height

as there is a risk of injury to eyes or ears.

• Always keep hair, clothing, fingers and all other body parts well away from

openings and moving parts.

• Set the switch to OFF after use.

• Take special care when cleaning stairs

• When using this appliance with an accessory always remove the plug from

the electric socket before attaching any rotating brush. In any case, never

touch the rotating brush while it is operating.

• Do not pass attachments over the appliance power cable or any extension

lead.

• Do not clean up sharp objects.

• Always switch off the appliance before fitting or removing the hose.

• The poles in the plug and the contacts in the power socket must never come

into contact with water. These parts can only be wiped clean with a dry cloth

and must not be allowed to come into contact with moisture. Danger of

electric shock.

• Only wipe the appliance clean with a dry (or very slightly damp) cloth while it

is unplugged. Never place the appliance in water.

• Never clean up anything that is burning or smoking, such as cigarettes,

matches, hot ash, etc.

Page | 3

Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013

• Never use the vacuum cleaner to clean up flammable or combustible liquids

such as petrol and never use the appliance in areas where the fumes of such

liquids might be present.

• Never place any items in the appliance openings. Never use the vacuum

cleaner with openings blocked in any way; keep them free from dust, fluff, hair

and anything else that might reduce air flow.

• Do not clean up toner powder. The toner used in printers and copiers can

conduct electricity.

• Do not use the vacuum cleaner without a dust bag and/or without the filters

in place. Dust bags need to be disposed of and can be used only once. Do not

try to re-use them

• If your vacuum cleaner has a blower function, do not use it to operate paint

spraying or other similar equipment that emits volatile or toxic fumes.

Page | 4

Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013

Specifications

Technical Specifications

Power

1000W

Air Watts

192 AW

Variable Power

Capacity

6.5L

Turbo Tool

Turbo Brush

Cord

10m

Filters

HEPA H13

Hose

n/a

Suitable for hard floors

Weight

6.5kg

Guarantee

1 year guarantee

Other tools included

Part number

1-1-132595-0

Page | 5

Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013

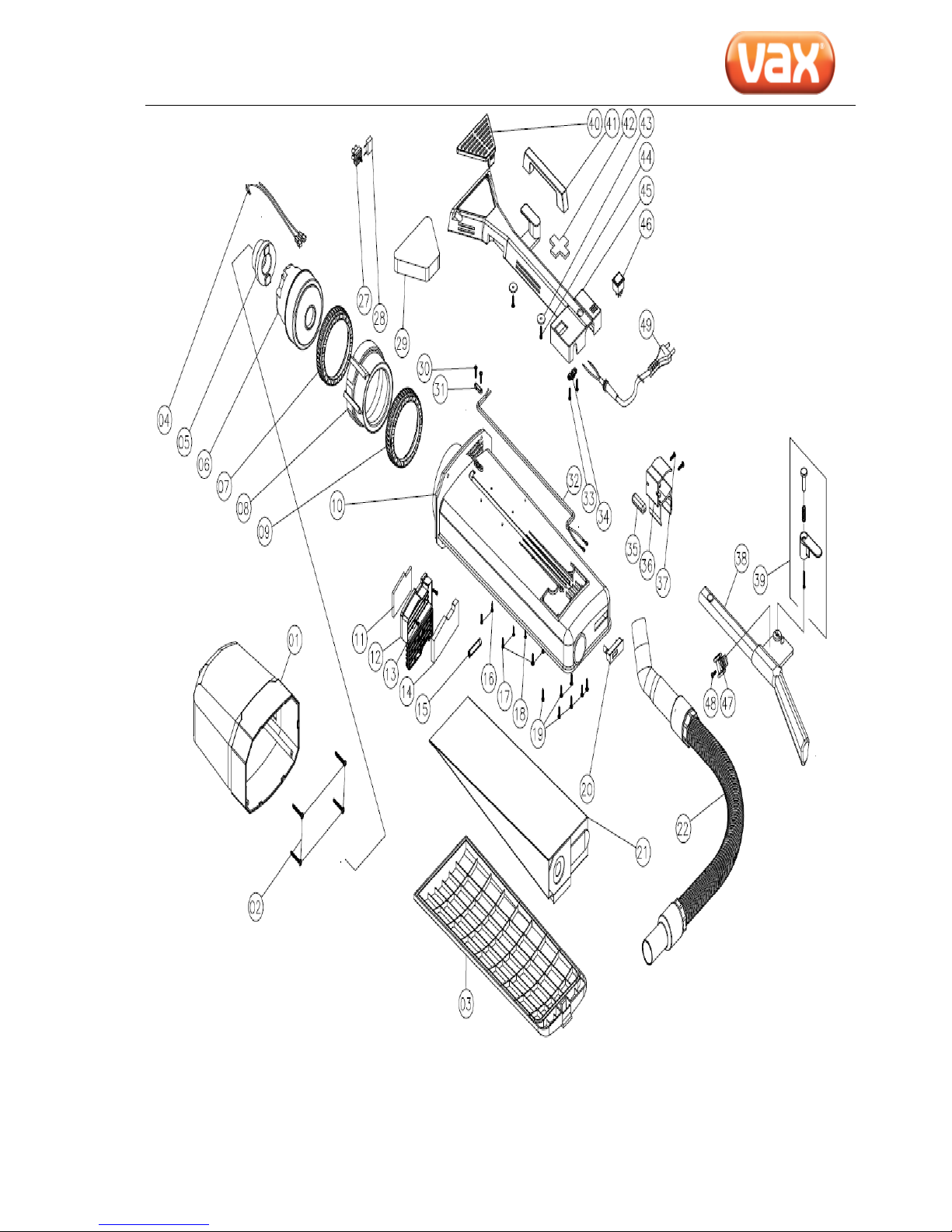

Exploded Diagram

Base

Page | 6

Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013

Main Body

Page | 7

Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013

Page | 8

Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013

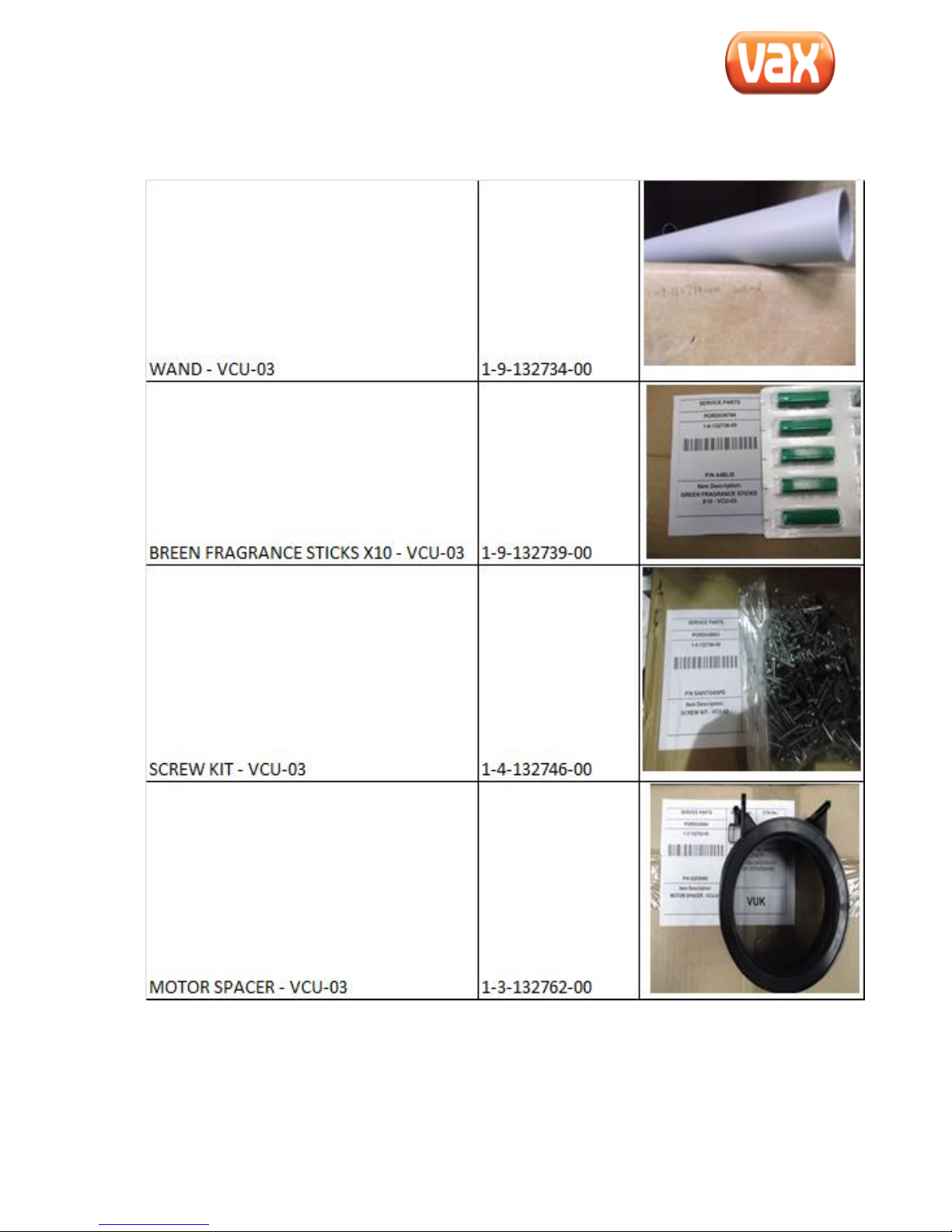

Page | 9

Service Manual VCU-03 © Vax.co.uk Date- 27-03-2013
