Vax VCU-O3C Bedienungsanleitung

VCU-O3C

User Guide

Vax Commercial Careline: (UK) 0330 026 4275

vaxcommercial.co.uk

A leading brand from one of the world’s

largest oorcare manufacturers.

GENERAL SAFETY INFORMATION

2vaxcommercial.co.uk

WARNING: Always ensure machine is switched o before plugging in

power cable. Hold the machine rmly when plugging in and turning on.

When using this vacuum cleaner basic safety precautions should always

be observed, inclusive of the following:

1. This vacuum cleaner is suitable for commercial use (eg. Hotels, schools,

care homes, factories, retail, oces and rental businesses), for cleaning

carpets only – it should not be used to clean hard oors or upholstery.

2. Ensure the machine is disconnected from the mains supply before

any assembly/disassembly.

3. Only use this machine indoors, on dry areas, keeping the area you

are cleaning well lit.

4. Keep ngers, hair and loose clothing away from moving parts and openings

whilst using the machine.

5. This commercial machine should only be used by personnel who have

received appropriate training. It should not be used by those under

8 years of age, or with reduced physical, sensory or mental capabilities.

To avoid unauthorised use, keep the machine in a place that denies access

to unauthorised personnel when it is not in use.

6. Only use Vax Commercial recommended tools and accessories with

this machine. Using others may invalidate your guarantee.

7. Use only CE approved 13 amp extension cords, as others may overheat.

Always arrange extension cable so as not to form a trip hazard.

8. Take extra care when cleaning stairs, making sure the brushbar

is switched o.

9. Always use the machine in an upright position, never upside down

or on its side.

10. Keep all openings clear and free from debris as this may aect

the airow/suction.

11. Store the machine in a cool, dry area, ensuring lters are dry if they

have been cleaned (see User Guide instructions).

12. Appropriate Personal Protective Equipment should be worn when

operating machinery to protect the user, in accordance with an appropriate

risk assessment prior to use.

PLEASE KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

3Vax Careline: (UK) 0330 026 4275

13. This vacuum cleaner is not suitable for picking up hazardous dust, including

and not limited to, any material listed by ECD 79/831/EEC, any material

to which exposure is limited by local government and any micro dust which

may be dangerous to health.

14. Regularly examine the power cable for damage, such as cracking or ageing.

If damage is found contact Vax Commercial Careline: (UK) 0330 026 4275.

DO NOT:

15. Use this machine for any other purpose than that which it is specically

designed. Evaluate the building where it will be used and comply with

the current safety regulations and conditions.

16. Leave the machine plugged in when unattended.

17. Use if the machine has been dropped, damaged, left outdoors

or dropped in water.

18. Run over the power cord or use if the power cord or plug is damaged,

and do not handle the plug or use the machine with wet hands.

The power cord should always be protected from heated surfaces

and open ames, and kept away from brushes whilst machine is in use.

19. Leave the machine’s controls on before disconnecting the power cord.

Always store the cord using the cable clips provided.

20.Use the machine to pick up sharp, hot, smoking, burning, ammable,

hazardous or combustible materials, or use in an area where it may

pick up harmful uids (chlorine, bleach, ammonia etc.)

21. Use the power cord to pull or carry the machine. Do not pull the cord around

corners, sharp edges, or close a door over it. Do not unplug the machine

by pulling the cord.

22.Carry the machine while it is switched on.

23. Attempt to remove blockages with sharp objects – this may damage

the machine.

24.Use the machine with incorrect voltage, as this may result in damage

and/or user injury (the correct voltage is shown on ratings label).

Vax Commercial Careline: (UK) 0330 026 4275

PLEASE KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

CONTENTS

4vaxcommercial.co.uk

Page 2-3 ............. General safety information

Page 4 ................. Contents

Page 5 ................. Machine Overview

Page 6 ................. Preparation and use

Page 7 ................. Maintenance

Page 7-8.............. Changing the dust bag

Page 9 ................. Pre-motor lter maintenance

Page 10................ Post-motor lter maintenance

Page 10................ Changing the fragrance stick

Page 11-12 ........... Changing belt and brushbar

Page 13................ The dust bag full indicator light

.............................. Removing blockages from hose

.............................. Removing debris from the brushbar

Page 14................ FAQ’s

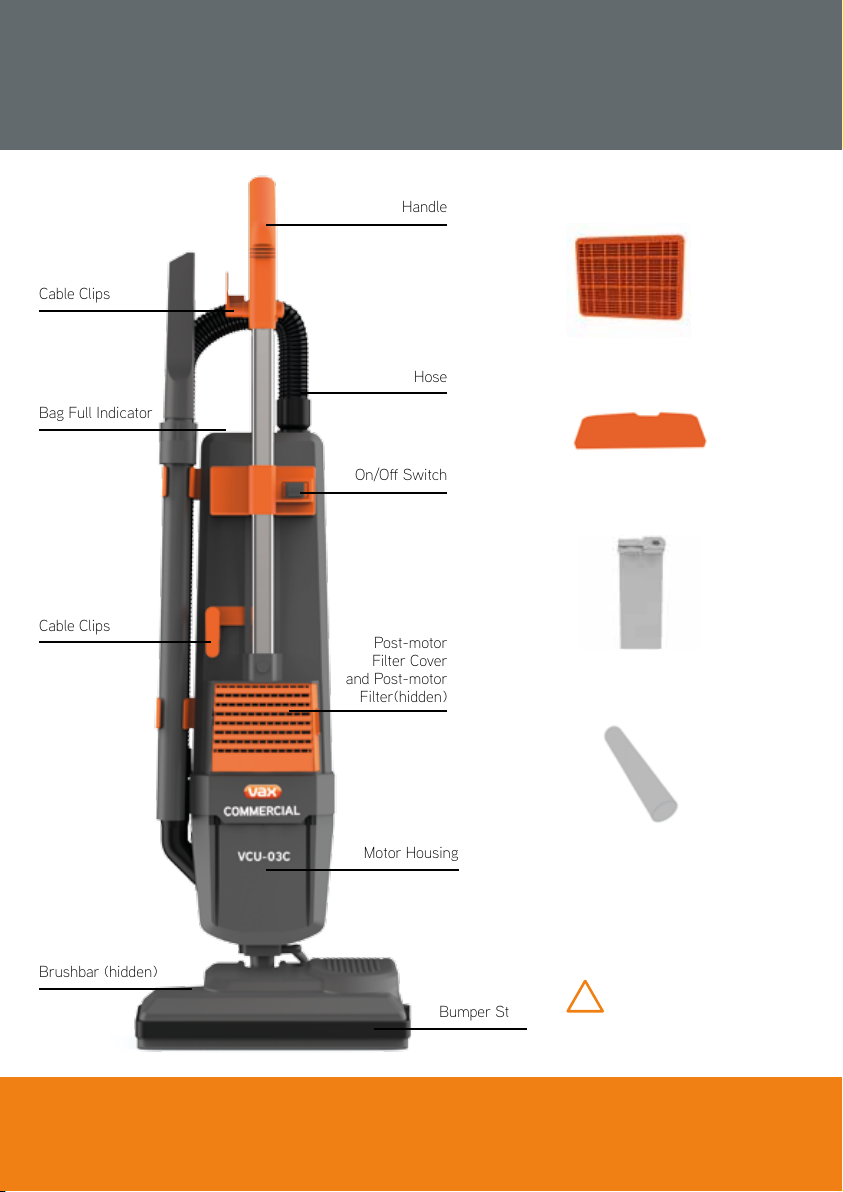

Page 15................ Machine Overview

Handle

Cable Clips

Hose

Bumper Strip

On/O Switch

Post-motor

Filter Cover

and Post-motor

Filter(hidden)

Motor Housing

Brushbar (hidden)

Bag Full Indicator

Post-motor Filter

(already assembled)

Pre-motor Filter

(already assembled)

Dust Bag (already assembled)

Seperate dust bag included

Fragrance Stick

(already assembled)

5Vax Careline: (UK) 0330 026 4275

MACHINE OVERVIEW

CAUTION: VCU-03C is a carpet

only vacuum cleaner and should

not be used to clean hard oors.

Initial setup for normal operation

1. Clean lters installed.

2. Dust bag empty

3. No obstruction within air path

PREPARATION AND USE

6vaxcommercial.co.uk

Setting up the vacuum cleaner

Connect both ends of the

hose into the main body

of the vacuum cleaner.

Unwrap power cable

and plug into mains.

Switch on at mains.

Switch machine on.

CAUTION: PLEASE READ SAFETY INFORMATION BEFORE USE (pages 2-3).

CAUTION: To help maintain the smooth movement of the machine, regularly check that the front castors

and rear wheels are free from hair or bres.

To recline the machine place

your foot on the oor head

and pull handle backwards.

MAINTENANCE

7Vax Careline: (UK) 0330 026 4275

Press the back panel release

clip and remove panel.

Hold the cardboard tabs

at the top of the bag and

pull downwards to remove.

(1) Lift dust bag upwards and slot the cardboard tab into the

back of the green bag holder.

(2) Align the bag opening with the hose and push rmly upwards.

To make the new bag easier

to t loosen the bag opening

by gently running your nger

around the opening.

Position the base of the

bag so that it sits on the

pre-motor lter cover.

CAUTION: Always switch o and unplug the vacuum cleaner from the electrical socket before changing

the dust bag or performing maintenance or troubleshooting checks on the machine.

Changing the dust bag

MAINTENANCE

8vaxcommercial.co.uk

Line up the tabs on the back

panel with the base and close

in a hinge like manner.

Holding the cardboard tabs push rmly upwards making sure

the green safety tab is pushed as far as it will go.

Push and lock into place.

CAUTION: The back panel will not close without a bag being tted or if the bag is incorrectly tted.

MAINTENANCE

9Vax Careline: (UK) 0330 026 4275

Press the back panel release

clip and remove panel.

Hold the cardboard tabs at

the top of the bag and pull

downwards to remove.

Pinch to remove lter.

Open lter cover by squeezing the rear clip and lifting upwards.

Check the pre-motor lter

for discolouration.

CAUTION: For best performance, check the lters when replacing the dust bag.

Replace the lters every 3 months or if they become damaged or discoloured.

Replace both pre and post motor lter at the same time.

Pre-motor lter maintenance

24hr

MAX

40˚C

Rinse lter under water (40°c

max) Leave to dry for 24

hours before placing back in

the machine. The lter must

be completely dry.

MAINTENANCE

10 vaxcommercial.co.uk

To remove the front, push the

clip up and slide the cover

to the right.

Slide the old lter out.

Clean lter by tapping gently.

Check the Post-motor lter

for discolouration.

CAUTION: To maintain optimum performance, check the lters whenever you replace the dust bag.

Replace the lters every 3 months or if they become damaged or discoloured. Replace both pre and

post motor lter at the same time.

Post-motor lter maintenance

The fragrence stick is located inside the pre-motor lter

cage. Remove by pulling the fragrance stick out of the cage

and replace it with a new one.

Changing the fragrance stick
