Vax VX2 Bedienungsanleitung

Robotic Cleaner

Get Cleaning...

What’s your Vax’s model number?

What’s your serial number? (Located on the base of the robotic cleaner)

Note these down in case you need them in future. Please keep instructions for further use.

VX2

User Guide

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

V X 2

vax.com.au

vax.co.nz

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

vax.com.au

vax.co.nz

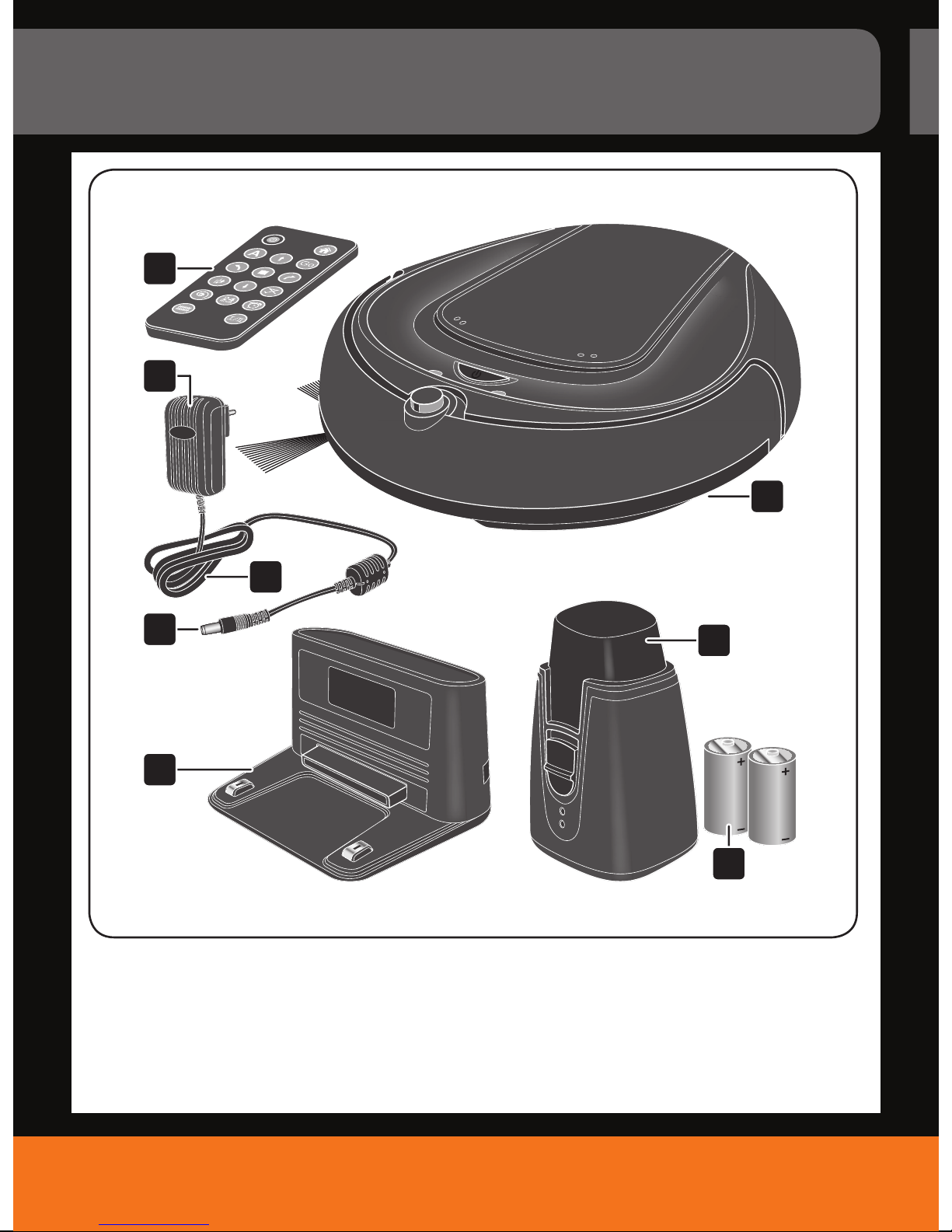

Machine Overview

1. Remote control

2. Robotic cleaner

3. AC adapter

4. AC adapter cord

5. AC adapter plug

6. Docking station

7. Virtual wall

8. Batteries (2x type C, 1.5V)

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

vax.com.au

vax.co.nz 2

Machine Overview

1. Side brush:

- conveys dust to the main brush

- may be pulled o for short pile carpet cleaning

2. “Return to station” sensor:

- guides the appliance to the docking station as soon

as the battery capacity becomes low or it receives

the respective command from the remote control

()

3. LED indicators:

- indicate if the dust bin is not in the robot

- indicate if the cli sensor detects a cli

- indicate if the bumper got stuck

- indicate if the motor is overloaded

- Also see Troubleshooting on page 19

4. “On/O” key ( ):

- switches the appliance on or o if pressed longer

than 1 second

- starts cleaning if the appliance is switched on and

pressed less than 1 second

5. Upper cover:

- covers dust bin module and

- covers battery compartment

6. Bumper:

- senses impact and causes the appliance

to bounce backwards

- if triggered constantly for 5 seconds or longer the

robot will stop automatically

Robot vacuum cleaner in detail

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

vax.com.au

vax.co.nz

Machine Overview

1. Upper cover

2. Dust bin cover

3. Filter

4. Dust bin

• Hidden: battery compartment cover

• Hidden: battery pack in battery

compartments located next to the dust bin

Dust bin module in detail

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

vax.com.au

vax.co.nz 4

Machine Overview

Docking station

1. Transmitter window (with integrated LED):

- lights up when plugged in

- ashes during charging process

2. Front button

3. Charging Pins

4. Socket for AC adapter plug

• Hidden: 4 rubber feet underneath

Virtual wall

5. Virtual wall transmitter

6. Power switch

7. LED (lights up if switched on)

8. Receiver

9. Battery cover

Dust bin module in detail

General Safety Information

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

vax.com.au

vax.co.nz

FOR HOUSEHOLD USE ONLY.

When using the robotic cleaner, basic safety precautions should always be observed, including the following:

Concerning groups of persons

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

2. This appliance is not to be used as a toy; pay close attention when used by or near children.

3. Children should be supervised to ensure that they don’t play with the appliance.

Concerning the power supply

The appliance is charged with electrical power. There is always danger of electrical shock. Therefore pay particular

attention to the following:

4. Never touch AC adapter or docking station with wet hands.

5. Never immerse appliance, docking station or AC adapter in water or other uids. Keep these components away

from rain and moisture.

6. If you want to unplug the AC adapter from the socket, always pull directly on the plug. Never pull or carry

the AC adapter via its power cord, use cord as a handle, close a door on cord or pull cord around sharp edges

or corners as this can damage the cord and can increase the risk of re or electric shock. Do not abuse the

power cord.

7. Ensure that the AC adapter’s power cord is not bent, pinched, rolled over and that it does not come into contact

with heat sources.

8. Only charge the appliance if the voltage indicated on the AC adapter matches the voltage of your socket.

9. Only use the AC adapter and docking station supplied with the appliance to charge the robotic cleaner.

10. Always check the AC adapter’s power cord for possible damage before using it. To avoid damage do not wrap

the cord around the charger for storage. Do not use an AC adapter with a damaged cord or plug. A damaged

or entangled charger cord can increase the risk of re and electric shock.

11. Before cleaning or performing maintenance on the appliance or its docking station, ensure that the AC adapter

has been unplugged from the socket.

Concerning the batteries provided

Danger of injury and explosion due to improper handling of the batteries provided.

12. Do not replace the battery pack with other batteries or rechargeable batteries.

13. Only use the original battery pack contained in the robotic cleaner and only replace with a genuine Vax battery

pack suitable for this model only.

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

vax.com.au

vax.co.nz 6

Operation

14. Before removing the battery pack, ensure that the AC adapter has been unplugged from the socket and the

toggle switch underneath the appliance is switched “o” (“0” position).

15. Never short-circuit batteries, i.e. never touch both poles simultaneously, especially with metal objects.

16. Never take batteries apart, never deform them and never expose them to high temperatures. Improper handling

can lead to liquid leaking from batteries. Avoid any contact with such liquid.

17. If any liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, ush them

immediately with clean water for a minimum of 10 minutes and seek medical attention. Liquid ejected from the

battery may cause irritation or burns. In an emergency situation contact professional help immediately!

18. Only use the AC adapter and docking station supplied with the appliance to charge this equipment.

Concerning appropriate storage, handling and use

19. Use only as described in this User Guide.

20. Do not store, use or charge the robotic cleaner outdoors, on wet surfaces or on raised surfaces such as tables

and furniture or next to heat sources.

21. Do not use with any opening blocked; keep openings free of dust, lint, hair and anything that may interfere with

the brushes.

22. Do not put objects on top of the appliance.

23. Do not modify or repair the appliance yourself. Please contact Vax for details of an authorised repair agent.

24. Do not use robotic cleaner to vacuum:

a. Water and any other liquid

b. Toner (from laser printers)

c. Anything that is ammable, burning or smoking such as cigarettes, matches or hot ashes

d. Harmful or toxic materials such as chlorine, bleach, ammonia, drain cleaner etc.

e. Hard or sharp objects such as glass, nails, screws, coins etc.

f. Plaster dust, concrete dust or any other building or vitreous materials

g. Baking soda or any other powder-based carpet deodoriser

25. If appliance is not working as it should, has been dropped, damaged, left outdoors or dropped in water

call Vax Careline for assistance. AU 1300 361 505 / NZ 0800 800 900

DAMAGE TO THE ROBOTIC CLEANER AND PARTS CAUSED AS A DIRECT RESULT OF NOT ADHERING

TO THE GENERAL SAFETY INFORMATION AND THE INSTRUCTIONS IN THIS USER GUIDE INVALIDATES

THE WARRANTY.

This machine is intended for household use only, and NOT for commercial or industrial use.

PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER USE.

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

vax.com.au

vax.co.nz

Operation

Prohibited use

Unpacking

WARNING: Do not use the robotic cleaner:

- on long pile carpet (i.e. piles longer than 1cm)

- on wet oors

- without the lter, dust bin and covers correctly inserted

CAUTION: Keep the packaging for storing the appliance, or for safe transport. Always transport or ship the

appliance in its original packaging to avoid damage.

1. Unpack the appliance and its accessories.

2. Check the contents for completeness and possible damage (Machine Overview, page 1).

1. If possible, choose a location where there is no carpet. The rubber feet will adhere better to a level surface.

2. Position the docking station in close proximity to a mains socket.

3. Position the docking station against a wall or a piece of furniture so it will not be moved by the robot.

4. Make sure that there is a space of at least 1 m x 1 m in front of and next to the docking station (Fig. 1).

5. Now remove the 4 protective lms from the rubber feet underneath the docking station (Fig. 2) and position

it in a stable manner.

CAUTION: Rubber may cause unwanted stains or discolouring on certain surfaces such as wood. Check the

oor manufacturer’s recommendations to avoid damage.

6. Have the AC adapter cable placed behind the station (Fig. 3) so that it does not obstruct the robot’s ability to dock.

NOTE: Also remember not to locate the virtual wall near the docking station. Otherwise your robot may

be obstructed from docking to the station.

Positioning the docking station

1. 2. 3.

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

vax.com.au

vax.co.nz 8

Operation

1. Ensure, that the docking station is being positioned correctly

(Fig. 1, on page 7).

2. Plug the connector of the AC adapter cable into the socket on the side

of the docking station (Fig. 4).

3. Connect the AC adapter plug to the mains socket.

1. Remove the plastic lm from the remote control’s

battery compartment (Fig. 5).

1. Open the battery compartment cover.

2. Insert the 2 supplied batteries (type C, 1.5 V) as indicated and

make sure you position them correctly (Fig. 6).

NOTE: When changing batteries, be sure not to mix batteries of dierent

types or of those that are fully charged with those that are partly charged.

Connecting the docking station

Activating the remote control

Inserting batteries into the virtual wall

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

vax.com.au

vax.co.nz

Operation

WARNING: Danger of injury! Only use the AC adapter and docking station supplied to charge the robotic cleaner.

NOTE: Before operating your robot for the rst time, charge it. This will help to retain the battery life.

1. Ensure that the docking station is set up correctly, refer to, “Connecting the docking station” on page 8.

2. Activate battery charging by switching the toggle switch underneath the robot to “on” (Fig. 7, “I” position).

NOTE: Battery can only be charged if toggle switch is put into “I” position.

3. Place your robot manually onto the docking station (Fig. 8).

4. Ensure that the charging pins of the docking station and the charging pins on the bottom of the robot make

contact 1 (Fig. 8).

- Red LED is lit and blue LED is ashing.

- A short beep occurs.

- If not, it is not correctly positioned. In that case, try again.

5. Now charge your robot for approx. 4 to 5 hours, until

- a short tune is played and

- both LEDs turn o (Fig. 9).

NOTE: When its battery capacity becomes low, your robot automatically returns to the docking station for

charging. If it for any reason, does not succeed in docking onto the docking station, you will need to manually

place it onto the docking station, as described above.

Charging the battery pack for the rst time

7. 8. 9.
