Vaxcel X0090 Gebrauchsanweisung

Cabinet

1. Do not attempt to install fixture while plugging in.

Wall

Important to Know

1. Read all instructions carefully before installation and operation.

2. If you are not familiar with state and local electrical codes, it is recommended that you consult with

a qualified electrician.

3. Maximum number of LED cabinet lighting fixtures per run should not exceed power supply wattage

rating. (Maximum 24W)(Linkable up to 2 fixtures)

4. Do not use in wet locations, use indoors only.

5. Non-replaceable LEDs.

6. LED light output is strong enough to injure human eyes. Precautions must be taken to prevent

looking directly at the LEDs with unaided eyes.

7. Specification:

Important safety instructions.

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

X0090

Installation Steps

Fig.1.

Counter Top

NO.

Dimension(inch)

Item #.

X0090 24 3

ABC

0.625

Maximum

Watts

12 A

Hardware Package:

(1 SET)

Page 1

1. Find a suitable location to mount the fixture, make sure

that the 24W driver (with 5 ft. power cord) will reach the

nearest electrical outlet. The mounting surface should

be a minimum of 1/2” thick (Fig.1).

Note: The recommended mounting for the cabinet light

fixture is near the front lip of your under cabinets as

shown in the figure 1. This provides the best light

distribution across a countertop.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

161125

Fig.2.

Mounting Bracket

Key hole

2.Use your fingernails or a small, flat-head screwdriver,

gently pry the mounting bracket until it

opens. (See Fig 2.)

Dry Wall Screw

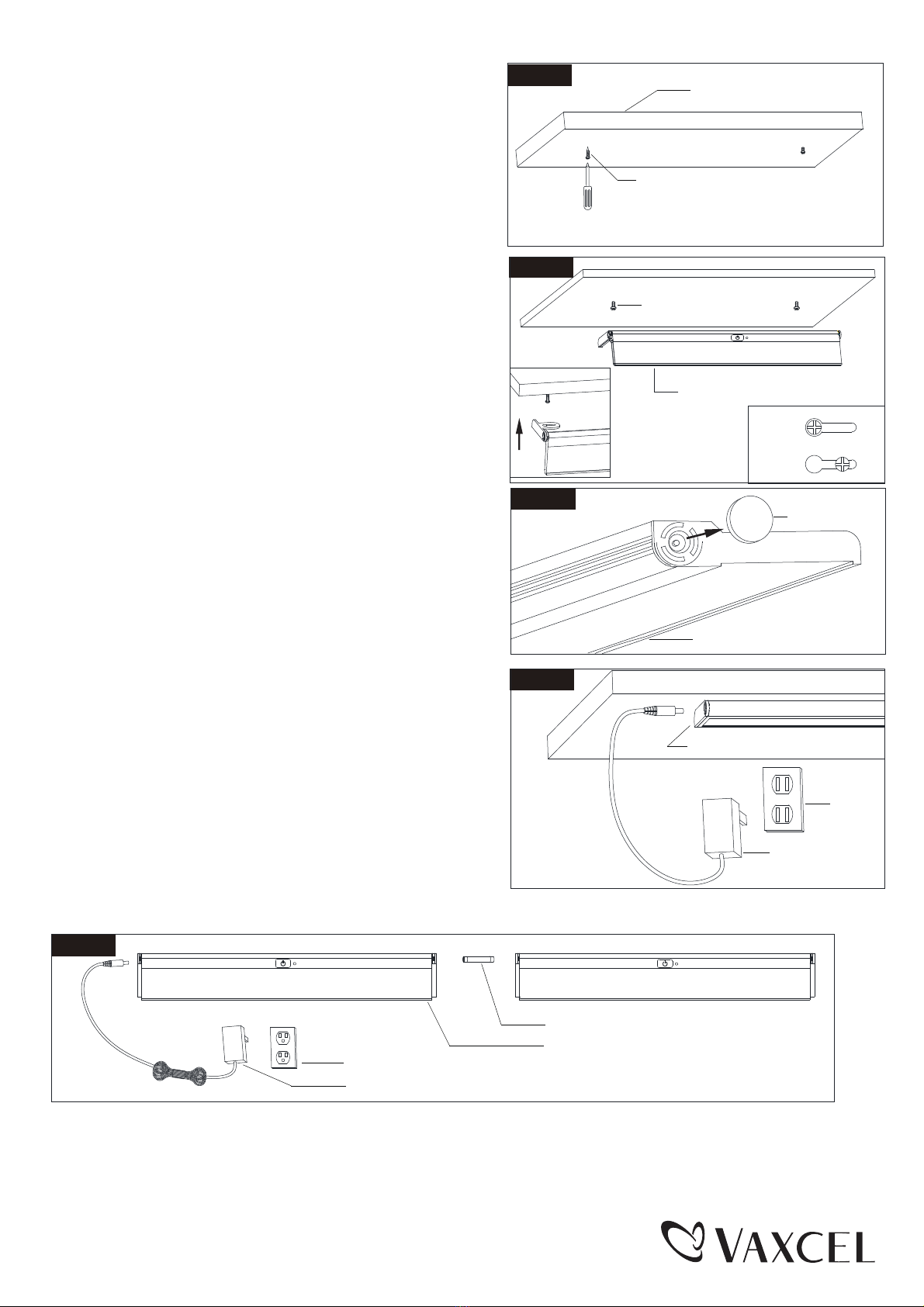

3. Place the cabinet light fixture to the mounting

surface and mark the target on the mounting

surface from the key hole, remove the cabinet

light fixture from the mounting surface. Pre-drill

holes in the mounting surface. Secure the dry

wall screws to the cabinet. (Do not over tighten

screws). Since mounting is via keyholes, the dry

wall screw heads should protrude approximately

1/4”(6.35mm) beyond surface. (See Figure 3)

4. Attach the cabinet light fixture to the cabinet by

inserting two dry wall screws heads into the key

holes, and slide the cabinet light fixture until it

locks in place. Then secure the screws tightly.

(See Figure.4)

5. Use a flathead screwdriver or other similar tool,

pry off the plastic buckle in order to insert the

power cord. (See Figure 5)

6. Plug the 24W driver into a 120VAC 60HZ outlet

and plug the linking connector into the cabinet

light fixture. (See Figure 6)

7. Adjust the cabinet lighting fixture to a desired

position, but do not rotate the cabinet light fixture

more than 90° from the original setting.

8. Turn on the power at the main fuse or circuit breaker

box. The light is ready to use.

Fig.3.

Fig.4.

Cabinet Light Fixture

Dry Wall Screw

Insert

Slide

Fig.6.

Outlet

Fig.5.

Plastic Buckle

Mounting Surface

24W driver

Cabinet Light Fixture

Page 2 161125

Connecting fixture to fixture:

When using a single 24W driver and multiple fixtures,

the cabinet light fixture units can be connected by

using a mini connector or by using a linking cord

(12 inches).

Note: a. Remove the plastic buckle from the cabinet

light fixture before installing. (See Fig.5)

b. Maximum number of cabinet light fixtures

per run should not exceed power supply

wattage rating. (Maximum 24W),

(Linkable up to 2 fixtures).

Fig.7.

Cabinet Light Fixture

Outlet

24W Driver (with 5 ft. power cord)

Mini Connector

1. Align connector on end of new fixture with connector on end of existing fixture.

2. Push new fixture to existing fixture until fixtures are flush and connectors snap together by using

mini connector. (See Fig. 7)

A. Using mini connector:

When your fingers touch the touch pad twice

continuously, the LED indicator and the fixture

will flash 2 times and then soft turn off within 1

minute.

Function and Operation

Fig.8.

12˝ Linking Cord

Cabinet Light Fixture Cabinet Light Fixture

B. Using 12˝ linking cord:

Determine location for next fixture in run. (Minimum 3” distance for linking cord should be allowed at

both ends of fixtures). Install the additional cabinet light fixture by following steps 1-5 of the instruction

steps. Once installed, attach the linking cord (12 inches) between the last cabinet light fixture and the

new one. (See Fig.8)

on-off Soft turn off

(x1)

To turn on or turn off the fixture, use your fingers

to gently touch the touch pad one time.

(x2)

Page 3 161125

1. Light will start to dim when your fingers staying

on the touch pad for longer than one second.

1a. when the LED indicator flashes 1 time, it means

the ray of light reaches maximum brightness

(100% brightness) or minimum brightness

(30% brightness).

1b. The light will lock in the brightness when the

fingers are removed from the touch pad.

Dimming

Cleaning instructions

Your fixture is made from quality materials that will last for many years with minimum care. When

cleaning, make sure you have unplugged your fixture, and have allowed sufficient time for the unit

to cool to room temperature. You should clean the housing and lense using a damp soft cloth. You

should plug your fixture back in only after the fixture has thoroughly dried.

Note:

1. This cabinet light fixture has memory function

setting. The light will stay at the same status

as the last time the power supply was turned

off.

2. When power is first applied, the light will turn

to high-level brightness (100% brightness).

3. This hardware package has a label. Please

paste the label on the cabinet, in order to

remind the position of the touch pad.

Trouble Shooting

Minor problems often can be fixed without the help of an electrician. Before doing any work on the

fixture, shut off power supply at the circuit breaker panel to avoid electrical shock.

POSSIBLE CAUSE CORRECTIVE ACTION

Light will not come ON 1. Power is off.

2. Bad plug connection.

1. Check if power supply is on.

2. Check 24W driver .

PROBLEM

24W Driver (with 5 ft. power cord)

(1 PC)

(7052DD)

12" Linking Cord

(1 PC)

(7052LC)

Mini Connector

(1 PC)

(7052MC)

Dry Wall Screw

(2 PCS)

(4847WS)

24 W

Label

Touch Pad

Remove cover before

using luminaires. Touch Pad

Page 4 161125

5-YEAR LIMITED WARRANTY:

All products are warranted to be free of defects in material and workmanship for five (5) years from date of

purchase. This warranty is limited to the correction of any such defect, or the replacement of any such defective

item(s), provided that: (a) we are properly notified and consent to return of the item(s) in question:(b) the item(s)

is / are returned with proof of purchase date; and (c) it is found upon inspection by us that the item(s) is / are defective

as noted above. This warranty does not cover labor costs, consequential damages, nor does it apply to any item(s) that

have been improperly installed, overloaded, altered, or otherwise abused by the customer, its agent(s) or employee(s).

Finishes are specially excluded from the terms of this warranty since they are subject to environmental maintenance

deemed beyond our control. Other than the described obligation, we assume no further liability with respect to the sale

or use of our products.We make no warranty, express or implied, and disclaim any warranty of merchantability or fitness

for a particular purpose.

The following parts are available for re-order if damaged or missing.

Spare Parts List:
