Verifone MX800 Series

Pinpad Serial Installation

Note: No drivers are required for the installation via serial.

Following this document requires that Cash Register Express and/or Restaurant Pro Express is running

CRE Database Version 12.6036 or above.

2 | P a g e

Installing and Configuring the Verifone MX800 Series Pinpads via Serial

When using the pinpad via serial the following will need to be done:

Checking the Correct COM Port Settings

Entering the Configuration Menu

Checking the Correct Interface Settings on the Pinpad

Enabling the Firmware Update Download on the PinPad and Beginning the Download in

CRE/RPE

Installing Pinpad Firmware and Software

oRFS017

o017_01

o17.1.B

o1.4

Restarting the Device

Other Configuration Options in CRE/RPE

Other Required Pinpad Configuration

Using the MX800 Series Pinpads

3 | P a g e

Checking the Correct COM Port Settings

In Windows XP:

1. Select Start.

2. Select Run and type in cmd. This will open the

command prompt.

In Windows 7:

1. Select Start.

2. Type in cmd. Then select cmd.exe, this will open the

command prompt.

3. At the command prompt type in: mode com1 then hit Enter.

4. You should get a message that gives information (pictured above) that shows the device is communicating with the

computer.

Note: If at the command prompt nothing is shown when typing mode com1you can type mode com2 then mode com3

etc…. you will want to continue until something is displayed. The com number that displays information (see above) will

be needed later during the setup and configuration process.

4 | P a g e

Entering the Configuration Menu

In order to use the MX800 series via Serial the device must be configured correctly through the

configuration menu.

1. When you turn on the MX800 Series Pinpad you

may see either the FORMAGENT –USB (pictured

top left) or the pcAmerica Logo’s (pictured bottom

left) this is where we can begin to access the

configuration menu.

Note: If neither of the screens (pictured left) are being

displayed then the device has no information loaded

on it. This is sometimes the case when a new device is

shipped.

5 | P a g e

2. Using a narrow tool such as a paperclip press the

button in the hole to reset the device, it may take

a minute or so.

3. After some time with the device configuring you

should see a screen (pictured left) asking for a

password.

Default password: 166831

Note: If the above password does not work then you

can also try: 166832

4. This will display the System Mode, which is where

all the settings for the MX800 series pinpads are

checked and set.

6 | P a g e

Checking the Correct Interface Settings on the Pinpad

1. At the System Mode screen select CONFIGURE.

2. The Configure (1) screen is where you will set how

the device integrates with the computer.

3. Select USB PORT.

4. At the USB configuration select Disabled.

5. Select the Left Arrow to go back to the

CONFIGURE (1).

7 | P a g e

6. You will want to check and make sure that the

Ethernet configuration is disabled.

7. Select ETHERNET PORT.

8. Check DISABLE.

9. Select the Left Arrow to go back to the

CONFIGURE (1). Select the Left Arrow once again

to go back to the System Mode screen.

8 | P a g e

Enabling the Firmware Update Download on the PinPad and Beginning the Download in CRE/RPE

1. At the System Mode screen select FILE TRANSFER.

2. At the File Transfer screen select DOWNLOAD.

3. While on the Configure Direct Download screen

select the Port that the PinPad is connected to

(Note: If using a serial cable to perform the update,

the COM port will be COM3).

4. Under Baud Rate? Leave as the default (115200).

5. Under Download Type?:

If either the OS (Step 1*) or PCA (Steps 4 & 5*)

update is being performed select Full.

If either the SP (Step 2*) or SP (Step 3*) update

is being performed select Partial.

* From the Grid on Page 12

6. Select GO! To begin the file transfer.

9 | P a g e

7. You will then see Waiting for Server on the PinPad

screen.

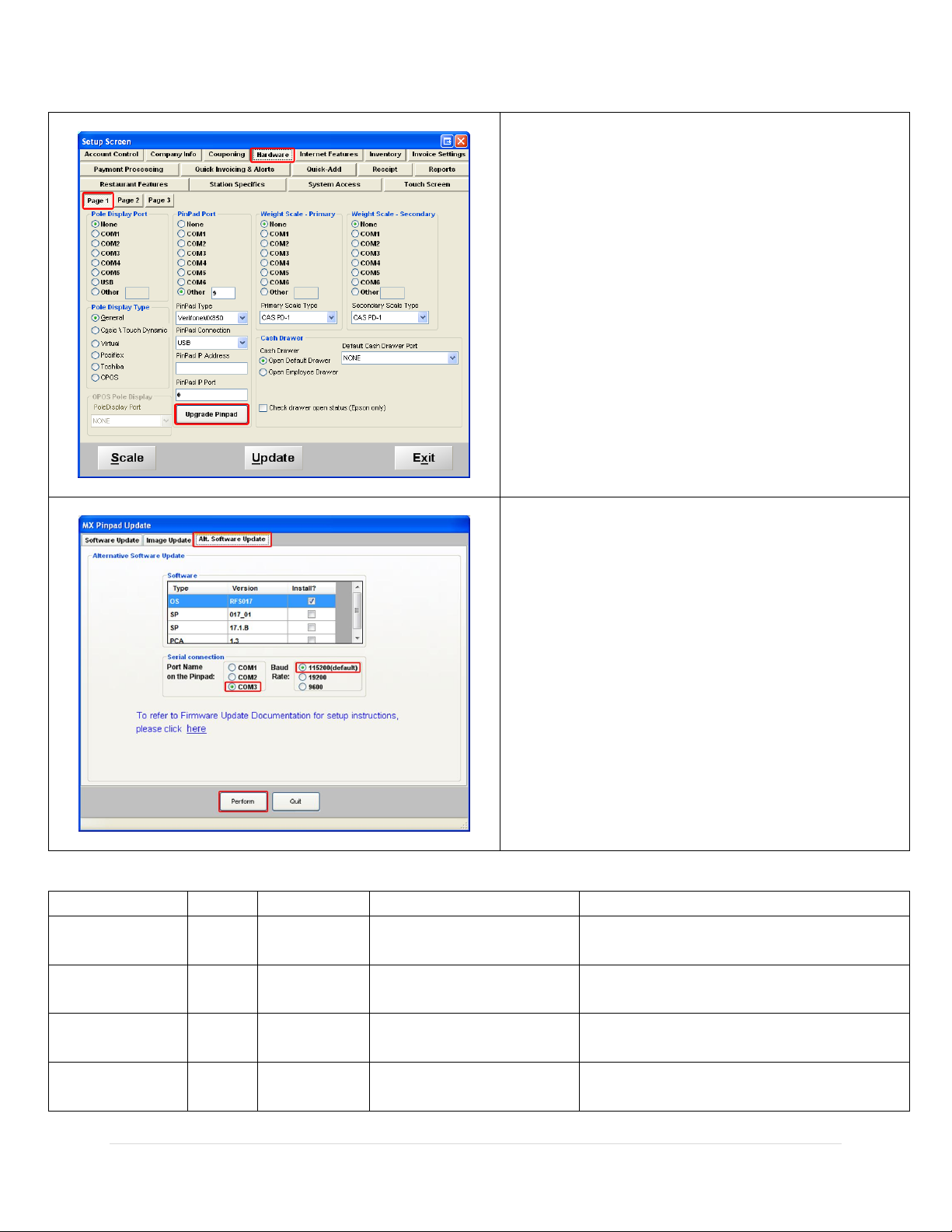

8. Open CRE/RPE and select Manager. Provide the

requested credentials and then follow these steps.

9. Select Setup and then select Setup Screen.

10. Select the Hardware tab and then select Page 1.

11. Select the Hardware tab and choose the correct

com port for the PinPad Port (e.g. COM1).

12. Select the correct pinpad that you are connecting

for the PinPad Type (e.g. VerifoneMX850).

13. Select Serial for the PinPad Connection.

14. Select Update and then re-enter the setup screen.

10 | P a g e

15. Select the Hardware tab and then select Page 1.

16. Select Upgrade PinPad.

17. You should automatically be brought to the Alt.

Software Update tab, if not then select it.

18. Using the information from the Grid on below,

please start by installing Step 1 and then install

everything through to Step 5.

19. The following will need to be done for each

installation on the pinpad that will be performed:

Under Port Name on the Pinpad select COM3.

Under Baud Rate select the default (115200).

Select Perform to begin the upgrade.

Step

Type

Version

Download type on pin pad

Remarks

RFS017

Full

Pin pad will automatically restart after

download

017_01

Partial

Pin pad will automatically restart after

download

17.1.B

Partial

Pin pad will automatically restart after

download

PCA

1.4

Full

Must manually restart pin pad after

download
