VeriFone UX301 Bedienungsanleitung
Public | External UX User Manual | Version 1.2 | July 24, 2017
UX External User Manual
Verifone, Inc.
100 Eureka Park, Ashford, Kent, TN25 4AZ
Public | External UX User Manual | Version 1.2 | July 24, 2017
UX User Manual 2
REVISION HISTORY
Version
Author
Date
Changes
1.0
MKB
09/06/2017
First Release
1.1
MKB
19/06/2017
Removed Internal references
1.2
MKB
24/07/2017
Updated, terminal number and power supply
Public | External UX User Manual | Version 1.2 | July 24, 2017
UX User Manual 3
CONTENTS
REVISION HISTORY...............................................................................2
CONTENTS.............................................................................................3
1. INTRODUCTION .................................................................................4
2. GET TO KNOW THE UX SUITE OF DEVICES ...................................5
2.1 UX 301 –FRONT................................................................................................5
2.2 UX 301 –REAR..................................................................................................5
2.3 UX 100 –FRONT................................................................................................6
2.4 UX 100 –REAR..................................................................................................6
2.5 UX 401 –FRONT................................................................................................7
2.6 UX 401 –REAR..................................................................................................7
2.7 INSTALLATION INSTRUCTIONS......................................................................8
2.8 UX 301 LED INDICATOR...................................................................................9
2.9 UX 401 LED INDICATOR...................................................................................9
3. ENVIRONMENTAL FACTORS .........................................................10
3.1 UX 401..............................................................................................................10
3.2 UX 100..............................................................................................................10
3.3 UX 301..............................................................................................................10
3.4 POWER ............................................................................................................10
3.5 HOW TO INSERT A CARD..............................................................................11
3.6 HOW TO PROCESS A CONTACTLESS CARD..............................................11
4. HOW TO RESET ANTI-REMOVAL SWITCHES ...............................12
5. HOW TO CONNECT YOUR DEVICE................................................14
5.1 ETHERNET...................................................................................................14
6. TRANSACTION PROCESSING........................................................17
6.1 SALE ............................................................................................................17
7. CONTACT DETAILS.........................................................................19
Public | External UX User Manual | Version 1.2 | July 24, 2017
UX User Manual 4
1 INTRODUCTION
This guide is the primary source of the information for setting up, installing and screen messages
that will be seen during transaction processing on the Verifone UX 301, UX 100 and UX 401
payment device, when used in conjunction with the PAYWare Ocius Gateway.
Public | External UX User Manual | Version 1.2 | July 24, 2017
UX User Manual 5
2. GET TO KNOW THE UX SUITE OF DEVICES
This section will allow the operator to understand the various aspects of the devices that make up
the UX suite. The suite of devices is the UX 301 (card reader), the UX 100 (pin pad) and the UX
401 (contactless reader).
2.1 UX 301 –FRONT
2.2 UX 301 –REAR
Anti-Removal
switch
Anti-Removal
switch
Card Slot
Mounting Stud
Holes
Status Lights
UX 100 Port (C)
Ethernet Port (E)
Power (D)
System Mode
Access
UX401 Antenna Port (B)
UX401 Power Port (A)
Public | External UX User Manual | Version 1.2 | July 24, 2017
UX User Manual 6

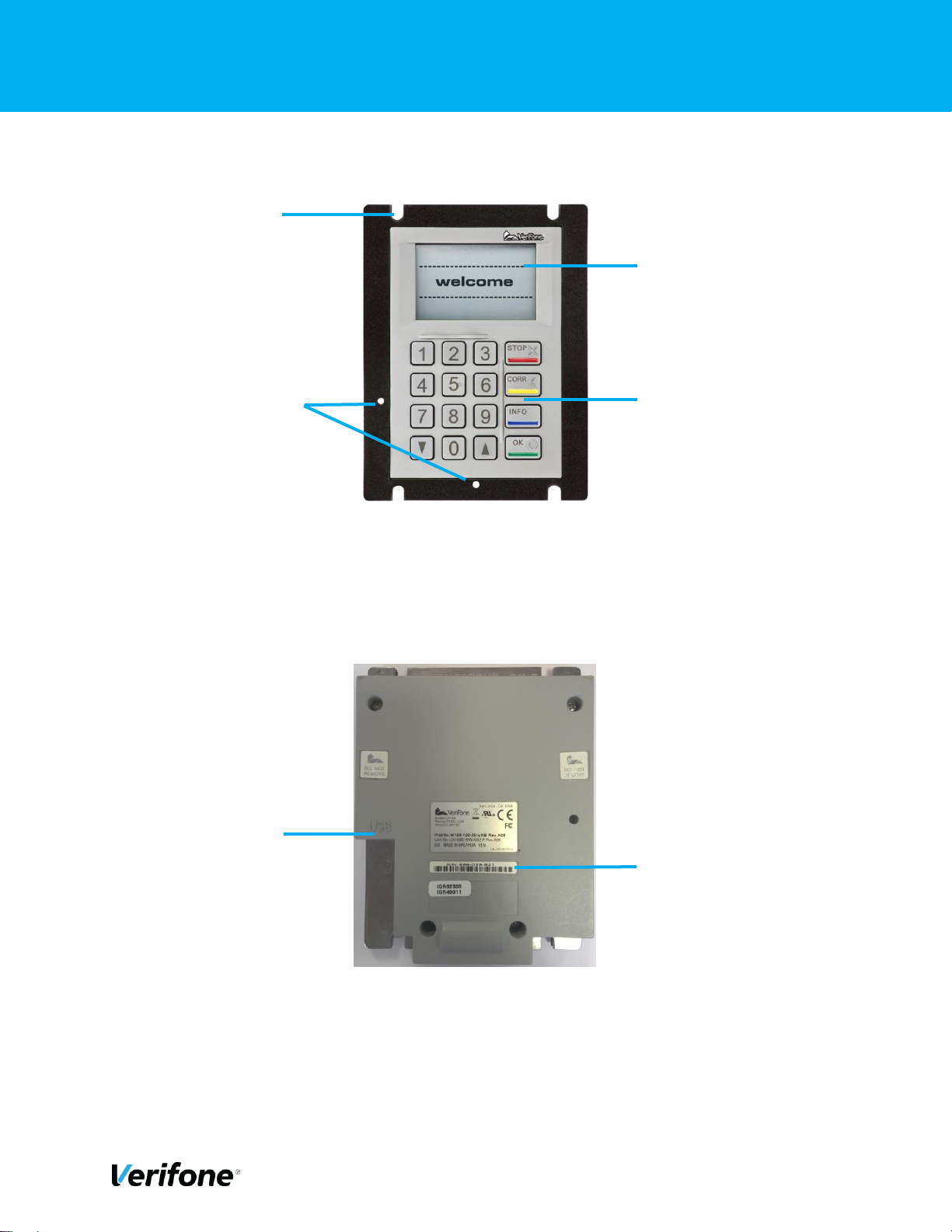

2.3 UX 100 –FRONT
2.4 UX 100 –REAR
Anti-Removal Switches
Cardholder display
Keypad
Mounting stud holes
USB Connector Port (C)
Terminal Serial Number
Public | External UX User Manual | Version 1.2 | July 24, 2017
UX User Manual 7
2.5 UX 401 –FRONT
2.6 UX 401 –REAR
Mounting stud holes
LED Indicator
Contactless Reader
Terminal Serial Number
Antenna Port (B)
Power Port (A)
Public | External UX User Manual | Version 1.2 | July 24, 2017
UX User Manual 8
2.7 INSTALLATION INSTRUCTIONS
In conjunction with the images located in sections 2.1 to 2.6, this section will add further detail
about the cables and their placement.
Cable
Location
Connecting Ports
Cable Image
RJ45 Power Cable
UX301 –UX401
A
Antenna Cable
UX301 –UX401
B
USB Data/Power
Cable
UX301 –UX100
C
Public | External UX User Manual | Version 1.2 | July 24, 2017
UX User Manual 9
Cable
Location
Connecting Ports
Cable Image
Power Cable
UX301
D
Ethernet
UX301
E
Not supplied by Verifone.
2.8 UX 301 LED INDICATOR
Condition
Colour
Cadence
Card Read
Red and Green
Solid
System Mode
Orange
Solid
Application Started
Green Only
Solid
Terminal Rebooting
Red, Green and Orange
Solid
2.9 UX 401 LED INDICATOR
Condition
Number of Lights
Cadence
Terminal Ready
1
Slow Blink
Card Processing
4
Solid
Public | External UX User Manual | Version 1.2 | July 24, 2017
UX User Manual 10
3. ENVIRONMENTAL FACTORS
Using the terminal outside of these boundaries could cause the terminal to malfunction during
operation.
If this device is to be used in any environment where the temperature range exceeds the operating
temperature, it is the responsibility of the integrators to ensure that the ambient environment is
controlled in such a way to ensure that the product operates within the specified temperature
range.
3.1 UX 401
•-30° to 70° C (-22° to 158° F) operating temperature
•-30° to 70° C (-22° to 158° F) storage temperature,
•10% to 90% relative humidity, non-condensing
•IP65 Rated
3.2 UX 100
•-20° C to 70° C (-4° F to 158° F) operating temperature,
•-25° C to 70° C (-13° F to 158° F)
•10% to 90% relative humidity, non-condensing
•IP65 and IK09 Rated
3.3 UX 301
•-30° to 70° C (-22° to 158° F) operating temperature
•-30° to 70° C (-22° to 158° F) storage temperature,
•10% to 90% relative humidity, non-condensing
•IP34 Rated
3.4 POWER
The only device that requires being connected to the mains is the UX301, both the UX100 and
UX401 draw power from the UX301.
•Power Supply: 12 V DC 3.3 A
