Vicon VCR30RT Bedienungsanleitung

Installation &

Operation Manual

XX105

MODEL VCR30RT

TIME-LAPSE VIDEO CASSETTE RECORDER

Product specifications subject to change without notice.

Vicon and its logo are registered trademarks of Vicon Industries Inc.

VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788

TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266)

UK: +44 (0) 1489 566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com

Vicon part number 8009-8105-00-00 Rev 302 Section 8

BLANK

Dear Valued Customer:

Thank you for selecting Vicon systems and

products for your video needs.

Since Vicon’s beginning in 1 67, out only

business has been the design, engineering, and

production of the highest quality video systems

and equipment for use in a wide variety of

security, safety, control, surveillance, and

communication applications.

We stand behind the quality and dependability

of every product with an industry leading

Beneficial Use warranty.

If you are not satisfied with a Vicon product or

service, I would like to know. Your complete

satisfaction is the mission of every Vicon

employee.

Sincerely,

Kenneth M. Darby

President

INTRODUCTION

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

If you pour a cold liquid into a glass, water vapor

in the air will condense on the surface of the glass.

This is moisture condensation. Moisture conden-

sation on the head drum, one of the most crucial

parts of the unit, will cause damage to the tape.

When the VCR is exposed to a rapid temperature

change from cold to warm, some condensation

will occur. Under this condition, connect the power

cord to the AC line, press POWER button on and

allow at least two hours for the VCR to dry out.

MOISTURE CONDENSATION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION : TO REDUCE THE RISK

OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK);

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The serial number is found on the back of this unit.

This number is unique to this unit and not avail-

able to others. You should record requested infor-

mation here and retain this guide as a permanent

record of your purchase.

Model No.

Serial No.

CAUTION : TO PREVENT ELECTRIC SHOCK,

DO NOT USE THIS PLUG WITH AN EXTEN-

SION CORD, RECEPTACLE OR OTHER OUT-

LET UNLESS THE PLUG CAN BE FULLY

INSERTED WITHOUT EXPOSING ANY PARTS

OF THE BLADES.

This lightning flash with arrowhead sym-

bol within an equilateral triangle is intend-

ed to alert the user to the presence of

uninsulated dangerous voltage within the

product’s enclosure that may be of suffi-

cient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilater-

al triangle is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in

the literature accompanying the product.

IMPORTANT COPYRIGHT INFORMATION: Many

television programs and films are copyrighted. In

certain circumstances, copyright law may apply to

private in-home video taping of copyrighted materi-

als.

CONTENTSFEATURES

INTRODUCTION

Features/Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

PREPARATION

Control Names and Locations . . . . . . . . . . . . . . . . .4-6

Installation/VCR to Monitor and CCD Camera

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

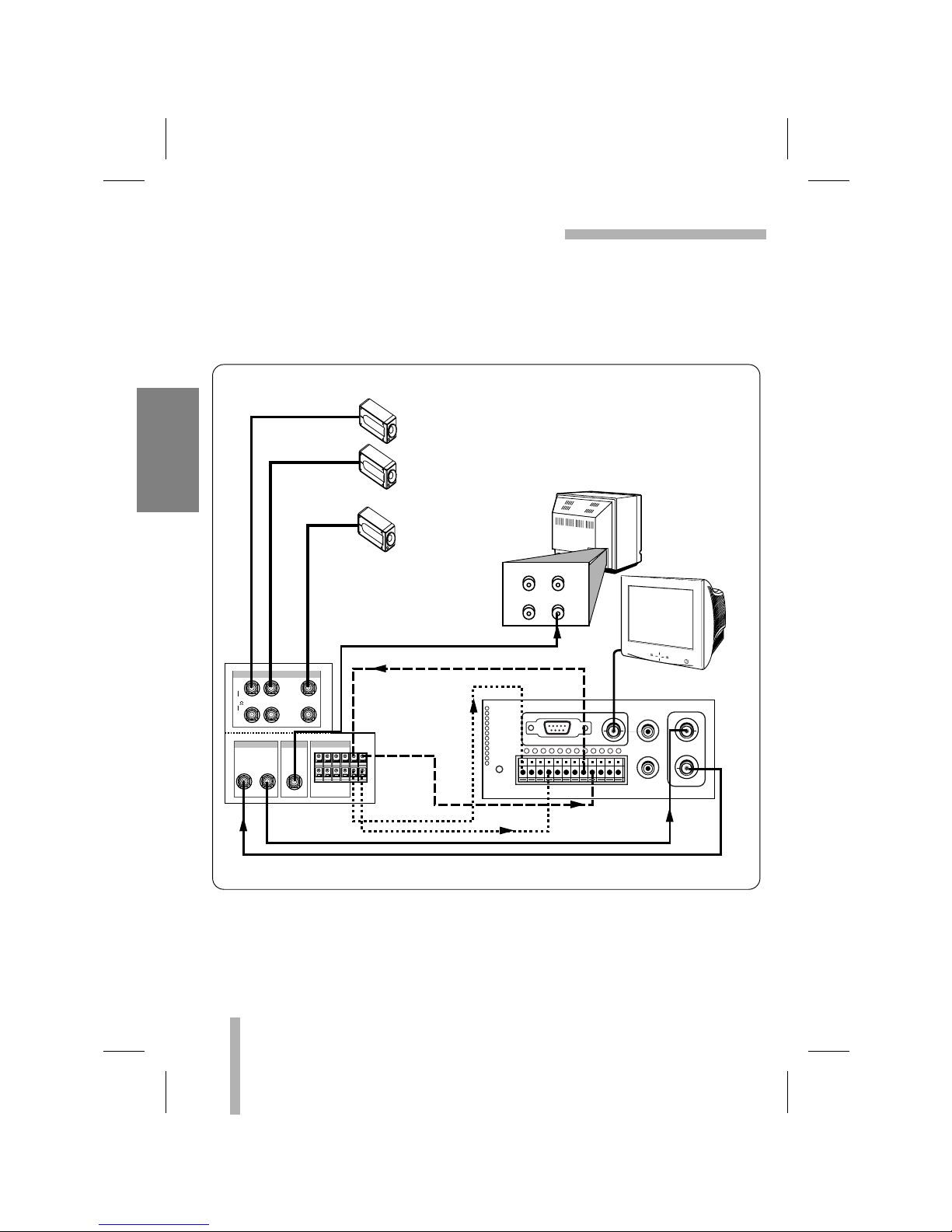

Multiplexer/Matrix Switcher Connections . . . . . . . . . .8-9

Alarm Record Connection . . . . . . . . . . . . . . . . . . . . .10

Series Record Connection . . . . . . . . . . . . . . . . . . . . .10

Setting the On screen Display . . . . . . . . . . . . . . . . . .11

Setting the Set Up Menu . . . . . . . . . . . . . . . . . . . . . .12

Setting the Set Time . . . . . . . . . . . . . . . . . . . . . . . . .13

Video Cassette Tapes . . . . . . . . . . . . . . . . . . . . . . . .14

PLAYBACK

Normal Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Special Effects Playback . . . . . . . . . . . . . . . . . . .16-17

Tape Counter Memory Feature . . . . . . . . . . . . . . . . .18

RECORDING

Normal Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Repeat Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Series Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Alarm Recording . . . . . . . . . . . . . . . . . . . . . . . . .23-24

ADDITIONAL INFORMATION

Check the Alarm Record Inform . . . . . . . . . . . . . . . .25

Check the Power Fail Inform . . . . . . . . . . . . . . . . . . .26

Use to Lock/Unlock Switch . . . . . . . . . . . . . . . . . . . .26

Self-Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Service Guide Table . . . . . . . . . . . . . . . . . . . . . . . . .28

VCR Head Cleaning . . . . . . . . . . . . . . . . . . . . . . . . .28

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

RS-232C Protocol . . . . . . . . . . . . . . . . . . . . . . . .31-54

• Time Lapse VCR Function

• Trigger Function

• Buzzer Function

• Auto Switcher Functionality

• Tape Compatibility

• Elapsed Time Display

• Series Recording Function

• Alarm Recording Function

Warning : The battery used in this device may present a fire or chemical burn hazard if mis-

treated. Do not recharge, disassemble, incinerate, or heat above 212°F (100°C). Replace the

battery with Matsushita Elec. Ind., Co., Ltd. (Panasonic) part no. VL2330 only. Use of another

battery may present a risk of fire or explosion. Dispose of used batteries. Keep away from

children. Do not disassemble or dispose of in fire.

INTRODUCTION PREPARATION PLAYBACK RECORDING ADDITIONAL INFORMATION

SHARPNESS

HARD

POWER

TIME/CNT/REM

ALARM INDEX

COUNTER

CLEAR

TIMER

V-POS

REC/PLAY HOURS

CURSOR

TRACKING

H-POS

ENTER

SOFT

LOCK

ON OFF

ALARM

KEY

LOCK

CONTROL NAMES AND LOCATIONS

FRONT

1. TIME/CNT/REM BUTTON

To switch among the clock, tape counter

and tape remaining time.

2. POWER BUTTON

To turn the VCR on and off.

3. TIMER BUTTON

To set timer recording.

4. REC/PLAY HOURS BUTTON

To change the Play or Record speed to a

lower or higher value.

5. V-POS BUTTON

To move the position of the Time/Date

display in the vertical direction.

6. H-POS BUTTON

To move the position of the Time/Date

display in the horizontal direction.

7. MENU BUTTON

Displays the programming menu on the

monitor or TV screen.

8. CURSOR (UP/DOWN) BUTTONS

To select the item on the menu.

9. CASSETTE COMPARTMENT

Where the video cassette is inserted.

10. STOP BUTTON

To stop the tape.

11. PLAY/REC CHECK BUTTON

To playback a recorded tape and used for

the Record Check function.

12. P/STILL(PAUSE STILL) BUTTON

To still playback or pause video, in con-

junction with JOG dial, enter a field

advance picture during still playback.

13. SHUTTLE RING

To fast forward or rewind the tape.

14. JOG DIAL

Rotate to advance or reverse advance

video picture while viewing a still picture.

15. RECORD BUTTON

To record video.

16. EJECT BUTTON

To eject a stopped cassette.

17. VCR FUNCTION INDICATOR PANEL

Details are on page 6.

18. ENTER BUTTON

To select items on the menu screen.

19. SHARPNESS CONTROL

To adjust the playback quality.

20. TRACKING (EE/DD) BUTTON

To adjust the manual tracking.

21. LOCK ON/OFF SWITCH

To switch lock and unlock.

22. COUNTER CLEAR BUTTON

To set the counter to zero or erase the

information on the menu screen.

23. ALARM INDEX

To active and deactivate (toggle) the

alarm index function.

1 2 3 4 5 6 7 8 9 10 11 12 13

23 22 21 20 19 18 17 16 15 14

PREPARATION

CONTROL NAMES AND LOCATIONS (cont’d)

1. POWER CORD

Connect only to an AC 100-240V, 50/60Hz

outlet.

2. RS232C CONNECTOR

Connect a personal computer for

controlling the VCR.

3. MONITOR OUT JACK

Connect to another monitor.

4. AUDIO IN/OUT JACK

Connect the audio input and output

terminal.

5. VIDEO IN/OUT JACK

Connect the video input and output

terminal.

6. RESET BUTTON

Use this button to reset the VCR.

7. 12-PIN TERMINAL BLOCK

Connect external signals.

VIDEO IN

AUDIO IN

MONITOR OUT

AUDIO OUT

VIDEO OUT

1 2 3 4 56 7 8 9 10 11 12

RS-232C

RESET

ALARM IN

ALARM OUT

ALARM RESET

GND

SERIES IN

SERIES OUT

WARNING OUT

TRIGGER OUT

GND

LOW TAPE OUT

1 SHOT REC IN

GND

REAR 1 2 3 45

TERMINAL SIGNAL LEVEL IN/OUT

1. ALARM IN INPUT

2. ALARM OUT OUTPUT

3. ALARM RESET INPUT

5. SERIES IN INPUT

6. SERIES OUT OUTPUT

7. WARNING OUT OUTPUT

8. TRIGGER OUT OUTPUT

10. LOW TAPE OUT OUTPUT

11. 1-SHOT REC IN INPUT

4, 9, 12. GND COMMON

VIH VIL

VOH VOL

VIH VIL

VOH VOL

VIH VIL

Terminal Signal Levels

VIH: 4~5V, VIL: 0~0.6V

T: above 250msec

VOH: 4~5V, VOL: 0~0.6V

T: ALARM REC STATE

VIH: 4~5V, VIL: 0~0.6V

T: above 250msec

VIH: 4~5V, VIL: 0~0.6V

T: above 250msec

VOH: 4~5V, VOL: 0~0.6V

T: above 250msec

VOH: 4~5V, VOL: 0~0.6V

T: until any key is pressed

VOH: 4~5V, VOL: 0~0.6V

T: above 8~10msec

VOH: 4~5V, VOL: 0~0.6V

T: below 5 min, end of tape

VIH: 4~5V, VIL: 0~0.6V

T: above 250msec

–

PREPARATION

ALARM

SERIES TIMER

INDEX

P.FAIL

K.LOCK

REPEAT

REC

INDICATOR PANEL

1. TIME LAPSE VCR TIME Indication

2. ALARM Indication (ALARM REC ON

indication)

3. SERIES Indication

4. RECORD Indication

5. TIMER Indication

6. CASSETTE Indication

7. INDEX Indication

8. POWER FAILURE Indication

9. KEY LOCK indication

10. REPEAT Indication

11. FUNCTION Indication (CLOCK, TAPE

COUNTER, ERROR)

12. VCR FUNCTION Indication

VCR FUNCTION Indication

PLAYBACK INDICATION RECORDING INDICATION

PLAYBACK

REVERSE PLAYBACK

PAUSE STILL

FAST FORWARD

REWIND

CUE

REVIEW

RECORDING

TIMER RECORDING

ALARM INDEX

ALARM RECORDING

SERIES RECORDING

REC

TIMERREC

ALARM

SERIES

INDEX

FORWARD SLOW PICTURE/

FORWARD FIELD ADVANCE

REVERSE SLOW PICTURE/

REVERSE FIELD ADVANCE

CONTROL NAMES AND LOCATIONS (cont’d)

1234567

12 11 10 9 8

PREPARATION

INSTALLATION

VCR TO MONITOR AND CCD CAMERA CONNECTION

MONITOR

CAMERA

VCR’s Back Panel

AUDIO VIDEO

OUT

To AUDIO IN

AUDIO OUT

VIDEO OUT

To VIDEO IN

VIDEO IN

AUDIO IN

MONITOR OUT

AUDIO OUT

VIDEO OUT

1 2 3 4 56 7 8 9 10 11 12

RS-232C

RESET

ALARM IN

ALARM OUT

ALARM RESET

GND

SERIES IN

SERIES OUT

WARNINGOUT

TRIGGER OUT

GND

LOW TAPEOUT

1 SHOT REC IN

GND

•

Connect your VCR’s AUDIO/VIDEO output jacks to the A/V input jacks on back of your monitor.

If your monitor does not have A/V input jacks, exchange the monitor or TV for one with A/V

input jacks.

•Connect the CCD camera to VCR’s VIDEO input jack.

NOTE: The MONITOR OUT BNC port does not support video when power is OFF (unplugged)

to the VCR.

•The cables for audio and video connection are not provided with your VCR.

•“RS-232C”is an interface standard for data terminals and data communications equipment

employing serial binary data exchange as stipulated under the RS-232 standard. Using the

RS-232C interface, this VCR can be controlled by a personal computer.

RS-232C communication

is possible when the

optional RS-232C

interface adaptor is

connected to a PC.

PREPARATION

MULTIPLEXER CONNECTIONS

CAMERA

VTR

PLAYBACK

REC

OUT

ALM GND

OUT

TRIG

IN GND

§§§§§

1234

678

OUT

AUTO

MONITOR ALARM IN

From GROUND

To TRIGGER IN

From ALARM OUT To ALARM IN

GROUND

To TRIGGER OUT

GROUND

To ALARM IN

From TRIGGER OUT

From GROUND

MONITOR

CAMERA 1

CAMERA 2

CAMERA 8

VCR

MULTIPLEXER

AUDIO VIDEO

OUT

VIDEO IN

AUDIO IN

MONITOR OUT

AUDIO OUT

VIDEO OUT

1 2 3 4 56 7 8 9 10 11 12

RS-232C

RESET

ALARM IN

ALARM OUT

ALARM RESET

GND

SERIES IN

SERIES OUT

WARNING OUT

TRIGGER OUT

GND

LOW TAPE OUT

1 SHOT REC IN

GND

HOW TO CONNECT MULTIPLEXER WITH TRIGGER INPUT TERMINAL

If the multiplexer has two output terminals (MONITOR OUT, PB OUT), connect monitor to the PB

OUT terminal if you want to see the playback picture.

To use the mutiplexer and trigger function properly, refer to the multiplexer instruction manual.

Andere Handbücher für VCR30RT

Inhaltsverzeichnis

Andere Vicon DVR Handbücher

Vicon

Vicon VDR-208 Bedienungsanleitung

Vicon

Vicon Kollector Fore Bedienungsanleitung

Vicon

Vicon 4CH Bedienungsanleitung

Vicon

Vicon KollectorProXG XX128-03-00 Bedienungsanleitung

Vicon

Vicon VDR-204 Bedienungsanleitung

Vicon

Vicon ViconNet JUMP Bedienungsanleitung

Vicon

Vicon 301-20-00 Series Bedienungsanleitung

Vicon

Vicon VN-VIEWER-64 Bedienungsanleitung

Vicon

Vicon Kollector Pro Bedienungsanleitung

Vicon

Vicon KollectorPro XG Bedienungsanleitung

Vicon

Vicon kollector KOL-8000 Bedienungsanleitung

Vicon

Vicon Valerus Shadow Elite Bedienungsanleitung

Vicon

Vicon VDR-204 Installationsanleitung

Vicon

Vicon Kollector Elite KE12 Bedienungsanleitung

Vicon

Vicon 301-00-00 Series Bedienungsanleitung

Vicon

Vicon Kollector Elite Bedienungsanleitung

Vicon

Vicon AurorAcord Bedienungsanleitung

Vicon

Vicon Kollector Elite Bedienungsanleitung

Vicon

Vicon XX-215-00-00 Bedienungsanleitung

Vicon

Vicon AURORA 2000 Bedienungsanleitung

Vicon

Vicon VN-NVR Shadow Bedienungsanleitung

Vicon

Vicon VDR-304 Bedienungsanleitung

Vicon

Vicon Kollector Elite Bedienungsanleitung

Vicon

Vicon iSCSI RAID Technisches Handbuch

Beliebte DVR Handbücher anderer Marken

FLIR

FLIR M3100E Series Bedienungsanleitung

VTRACKPRO

VTRACKPRO FPRO300 Bedienungsanleitung

Swann

Swann NVR-7085 models Bedienungsanleitung

XtendLan

XtendLan DVR-1670C Bedienungsanleitung

urmet domus

urmet domus 1093/004AHD Bedienungsanleitung

Holux

Holux M1 Bedienungsanleitung

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Bedienungsanleitung

Whistler

Whistler D16VRS Bedienungsanleitung

Defender Security

Defender Security 82-20235 Bedienungsanleitung

MISUMI

MISUMI MP-WF100M Bedienungsanleitung

Speco

Speco D8HU Bedienungsanleitung

UST

UST DDR-E04AA Gebrauchsanweisung

Consolidated

Consolidated Digital Video Recorder Bedienungsanleitung

Mace

Mace DVR0404RW Kurzanleitung

RCA

RCA RTD315W Bedienungsanleitung

FSM

FSM Colibri Grande PRO Bedienungsanleitung

Hauppauge

Hauppauge HD PVR 2 Bedienungsanleitung

Identivision

Identivision ICR-PH161i PIONEER Bedienungsanleitung
