Vicon VDR-204 Installationsanleitung

QUICK MANUAL

Digital Hard Disk Recorder

VDR-204

* Default system password: 111111

(for RAMS, Record stop, Menu setup, System off, Auto key lock)

* Default ID: admin (for RAMS)

VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NY 11788

TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288)

TOLL FREE: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266)

UK: 44 (0) 1489-566300 WEB: www.vicon-cctv.com

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

WARNING

The symbol is intended to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated "dangerous

voltage" within the product's enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

Warning -- This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at its own expense.

Warning – If TIMEKEEPER NVRAM IC that is consist of RTC, SRAM, POWER-FAIL CONTROL

CIRCUIT and BATTERY is replaced, the replacement is to be done by a trained technician with the

same type of component.

Caution -- Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority to operate the

equipment.

Warranty will be made void if the product is disassembled or manipulated by the user.

Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers)

that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has

two blades and a third grounding prong. The wide blade or the third prong is provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

1. Packing list

The following items are included with the VDR-204. Please be certain that all items are included as

soon as you open the box:

1.1 Components

 VDR-204 (Main Assembly) : Removable HDD Rack or CD-RW Driver

 Power cable

 Rack mount brackets

 DSUB-15 connector for PTZ / AUX /ALARM

 Quick Manual

 Software CD (RAMS, UniPlayer, MultiViewer, QuickInstaller and Operation Manual)

 Removable external Hard disk drive rack, key & screws

1.2 Options

 Remote control (two battery included)

 Hard disk drive (Option or included)

2. Features & specifications

2.1 Features

 4-channel Embedded Digital Video Recorder

 MPEG-2 compression

 Quadplex mode for simultaneous recording, playback, backup, and networking

 Live remote viewing, on-the-fly recording, and control over the network

 Dynamic IP support (DHCP & PPPoE)

 Alarm triggered FTP and E-mail alert function

 Motion detection, Video loss, and sensor alarm function

 User defined setting for recording frame rate & resolution

 Various backup method support (Removable HDD, CD-RW, USB, Network)

 Selectable QUAD/MUX recording

 Audio recording available

 Multiple recording modes: Time lapse, Event(Motion, Sensor), schedule, manual, &

continuous recording

 Still image capture and search function

 Convenient search by alarm, time, or date

 Quick and responsive playback & field-by-field viewing with the Jog/Shuttle dial

 Watermarking (Backup)

 PTZ control through RS-485

 Quick & easy setup through RS-232

 Remote controller available (optional)

 Dual video modes : Selectable NTSC & PAL

 Rack mountable : 2U

 Free voltage power input (100 - 240VAC, 50Hz/60Hz, 50W)

2.2 Specifications

Item Description

Image System NTSC, PAL selectable

Video Input 4CH Composite, 4CH Loop through, BNC

Video Output 1CH Composite, BNC, 1CH S-Video

Video Compression MPEG-2

Quad NTSC: 720x480 (30fps)

PAL : 720x576 (25fps)

Recording

Resolution MUX NTSC: 720x480 (30fps), 360x240 (120fps)

PAL : 720x576 (25fps), 360x288 (100fps)

Recording Quality 4 Levels (Normal, Enhanced, Fine, Super Fine)

NTSC: 1/30,1/15,1/10,1/7,1/5,1/3,1/2,1 (8 Steps)

Recording Speed PAL: 1/25,1/12,1/10,1/6,1/5,1/3,1/2,1 (8 Steps)

Playback Type Quad / Mux

Playback Search Date/Time, Event (Alarm, Motion detection)

Playback Speed x1/4,x1/2,x1, x2, x4, x8, x16, x32, x64, x128, Field by Field

(Forward/Backward)

Sensor Input 4 (NO/NC Selectable)

Alarm Output 1 (NO/NC)

Aux Control In/Out 2/3 (Selectable Function Menu)

Alarm Reset In, Record Start In, Record ON/OFF, Alarm Out,

Error Out, Record Start Out, Disk Full Out, Record Status Out

Audio 1CH, mono, mute

Network 10Base-T (STATIC,DHCP, PPPoE, E-mail, & FTP)

Motion Detection 11x8, 8 Level Sensitivity

Hard Disk Removable + Internal

Backup Method Removable HDD (DVR), CD-RW(DVR-C),

USB Memory, Network

Watermarking Backup

PTZ Control RS-485

System Log Video Loss, Power On, Power Off, Menu Called, HDD Full,

FTP Fail, E-mail Fail, etc

Password Function Power ON/OFF, MENU, Record OFF, Key Lock

Digital Zoom x 2

Timer Built-in Real time clock

Power Source Free Voltage (100 - 240VAC, 50Hz/60Hz, 50W)

Dimension 433(W) x 385(D) x 88(H)

Operating Temperature 5℃~ 40℃

Weight 5.5Kg (w/o HDD)

* Design and specifications are subjected to change without notice.

3. Name, function & connections

3.1 Front view

12345678

Description:

1. HDD Slot

 Users can install one removable hard disk

2. LED indicator

 POWER: Power Off status is indicated by a Red light and ON status is indicated by a

Green

light.

 REC: Green light (Recording)

 ALARM: Green light (Alarm triggered)

 HDD FULL: Green light (No more disk space for recording)

 PTZ: Pan, Tilt, Zoom, Focus status is indicated by Green

3. Numeric button - Live Viewing mode button

 1, 2, 3, 4: Channel selection for Live Viewing and Playback mode. Used to input password.

 MULTI: Multi-view. View all four channels in the same window in live viewing or quad

playback. Select all sections for Motion Detection Zone

 SEQ: Sequential view. View all active channels sequentially. Release all sections for

Motion Detection Zone

4. Function button

 POWER: Press this button to power ON/OFF

 LOCK: Press this button to lock/unlock the buttons of DVR

 ZOOM: Zoom In/Out on the images during Live Viewing.

 FRZ : Freeze.

- Press button once to freeze the frame at live mode. Press again to return.

- To take a still image capture at playback mode.

- Exchange of video input type : Press power button with FRZ button from NTSC to Pal or

PAL to NTSC.

 MISC/SH: Miscellaneous functions or Shuttle Hold.

- MISC: To substitute for the five buttons that are placed on the remote control but on the

keypad (NET, OSD, Audio Mute, HDD, LOG).

- SH: Press button while using the Shuttle to hold the speed.

●SEARCH: Press once to open the menu to search for recorded files.

●PTZ: Pan/Tilt/Zoom. Press once to access the Pan/Tilt/Zoom/Focus control mode.

Press again to exit.

 MENU: Press button to access Main Menu. Press again to return.

5. Direction/select button

 UP: Used to move the cursor up; change possible values in the setup menu; under

PTZ control sub menu, used to move camera; or used to adjust focus.

 DOWN: Used to move the cursor up; change possible values in the setup menu; under

PTZ control sub menu, used to move camera; or used to adjust focus.

 LEFT: Used to change possible values in the setup menu. Under PTZ control menu,

used to move the camera left or used to do Zoom Out; At playback mode, used to

decrease playback speed.

 RIGHT: Used to change possible values in the setup menu. Under PTZ control menu,

used to move the camera left or used to do Zoom In; At playback mode, used to

increase playback speed.

 OK: Used as a selection key. Under PTZ control menu, used to be interchanged P/T

mode with Z/F mode

6. Jog/Shuttle

 Shuttle: Multi-speed forward/reverse playback. Under Network Setup sub menu, used to

input parameters fast.

 Jog: Frame by frame search.

7. IR receiver

 Remote control signal receiver

8. Recording/Playback buttons

 RECORD: Press once to begin recording all active channels. Press again to end recording.

 R-PLAY: Reverse Playback. Press to begin reverse playback. Under PTZ control menu,

used to decrease the speed of Pan, Tilt, Zoom, Focus.

 STOP: Stop playback.

 PLAY: Access to playback.

- Playback button will activate assigned starting position and Channel at playback setup of

menu.

- At pause mode, it will release pause mode.

- Under PTZ control menu, used to increase the speed of Pan, Tilt, Zoom, Focus.

 PAUSE: Press to freeze the picture at playback mode.

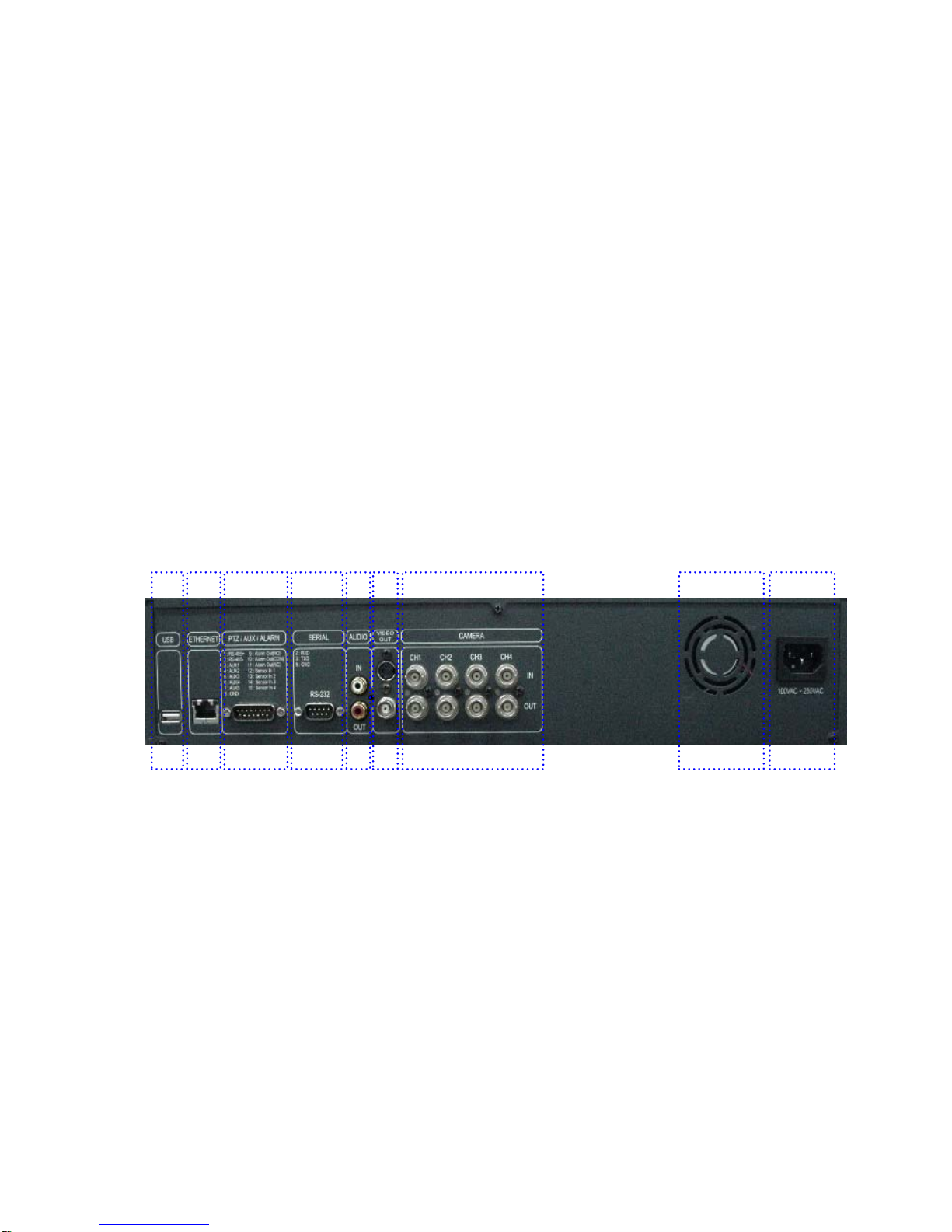

3.2 Rear panel view

12 345 6 7 8 9

1. USB

 Connect USB flash drives for backing up stored video files.

2. ETHERNET

 Network terminal for 10Base-T (RJ-45)

3. PTZ/AUX/ALARM

 Terminal for PTZ, sensor, alarm, and AUX IN/OUT (DB-15 Male Connector)

4. SERIAL

 Serial terminal for RS-232C (PC) for console or quick installation

(DB-9 Male Connector)

5. AUDIO

 IN: Audio line input

Andere Handbücher für VDR-204

Inhaltsverzeichnis

Andere Vicon DVR Handbücher

Vicon

Vicon AURORA 2000 Bedienungsanleitung

Vicon

Vicon VN-VIEWER-64 Bedienungsanleitung

Vicon

Vicon 4CH Bedienungsanleitung

Vicon

Vicon XX-215-00-00 Bedienungsanleitung

Vicon

Vicon VDR-208 Bedienungsanleitung

Vicon

Vicon AurorAcord Bedienungsanleitung

Vicon

Vicon AurorAcord Bedienungsanleitung

Vicon

Vicon kollector KOL-8000 Bedienungsanleitung

Vicon

Vicon VDR-404 Bedienungsanleitung

Vicon

Vicon ViconNet JUMP Bedienungsanleitung

Vicon

Vicon VDR-404 Bedienungsanleitung

Vicon

Vicon Kollector Elite Bedienungsanleitung

Vicon

Vicon Kollector Pro Bedienungsanleitung

Vicon

Vicon VDR-304 Bedienungsanleitung

Vicon

Vicon Valerus Shadow Elite Bedienungsanleitung

Vicon

Vicon iSCSI RAID Technisches Handbuch

Vicon

Vicon KollectorLite XG Bedienungsanleitung

Vicon

Vicon Kollector Elite Bedienungsanleitung

Vicon

Vicon KollectorPro XG Bedienungsanleitung

Vicon

Vicon Express Bedienungsanleitung

Vicon

Vicon KollectorProXG XX128-03-00 Bedienungsanleitung

Vicon

Vicon 301-20-00 Series Bedienungsanleitung

Vicon

Vicon Kollector Elite KE12 Bedienungsanleitung

Vicon

Vicon 4CH Bedienungsanleitung

Beliebte DVR Handbücher anderer Marken

FLIR

FLIR M3100E Series Bedienungsanleitung

VTRACKPRO

VTRACKPRO FPRO300 Bedienungsanleitung

Swann

Swann NVR-7085 models Bedienungsanleitung

XtendLan

XtendLan DVR-1670C Bedienungsanleitung

urmet domus

urmet domus 1093/004AHD Bedienungsanleitung

Holux

Holux M1 Bedienungsanleitung

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Bedienungsanleitung

Whistler

Whistler D16VRS Bedienungsanleitung

Defender Security

Defender Security 82-20235 Bedienungsanleitung

MISUMI

MISUMI MP-WF100M Bedienungsanleitung

Speco

Speco D8HU Bedienungsanleitung

UST

UST DDR-E04AA Gebrauchsanweisung

Consolidated

Consolidated Digital Video Recorder Bedienungsanleitung

Mace

Mace DVR0404RW Kurzanleitung

RCA

RCA RTD315W Bedienungsanleitung

FSM

FSM Colibri Grande PRO Bedienungsanleitung

Hauppauge

Hauppauge HD PVR 2 Bedienungsanleitung

Identivision

Identivision ICR-PH161i PIONEER Bedienungsanleitung
