Viotek GN27CB Bedienungsanleitung

ORCURVED GAMING MONIT

USER MANUAL

GN27CB

In order to continue serving our customers and providing the best products, our product information

including our user manuals may receive updates from time to time. Please check our website for the latest

user manuals and product materials. ver.1.0 2/21/19

Table of Contents

Section 1: Safety Precautions............................................ 4

Section 2: Box Contents..................................................... 5

Section 3: Product Overview.............................................. 6

3.1 – Monitor Buttons....................................................... 6

3.2 – Monitor Ports .......................................................... 6

Section 4: Stand Installation .............................................. 7

Section 5: Mount Installation.............................................. 8

Section 6: Connectivity Options........................................ 9

6.1 – Removing the Port Cover........................................ 9

6.2 – Connecting the Power Cable.................................. 9

6.3 – DP Connectivity...................................................... 10

6.4 – HDMI Connectivity.................................................. 10

Section 7: Basic Operation................................................. 10

Section 8: Indicator Light.................................................... 11

Section 9: OSD Setup.......................................................... 12

9.1 – Using the Quick-Nav ............................................... 12

9.2 – OSD Menu Functions.............................................. 13

Section 10: ECO Modes and GAMEPLUS Switching........ 15

Section 11: Troubleshooting............................................... 15

Section 12: Speciﬁcations .................................................. 17

12.1 – Resolution Compatibility for DP............................. 17

Section 13: 1 Year Limited Hardware Warranty ................ 18

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use

dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however,

the safest. If using damp cloth, wait for your monitor to completely dry before

plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your

monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid

blocking these openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any heat sources e.g: portable heaters or

heating vents, as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen

or any part of the monitor.

6. Do not insert anything into any part of the monitor especially the ventilation openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it

from falling and sustaining damage.

8. Unplug your monitor during any extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any

disassembly or modication etc. not performed by an authorized technician

can result in damage to the monitor and/or possible exposure to high voltage

electricity which may lead to serious injury or death.

VIOTEK®shall not be held responsible for injury or damage of products or persons

due to failure to adhere to the aforementioned precautions or any others noted

hereafter.

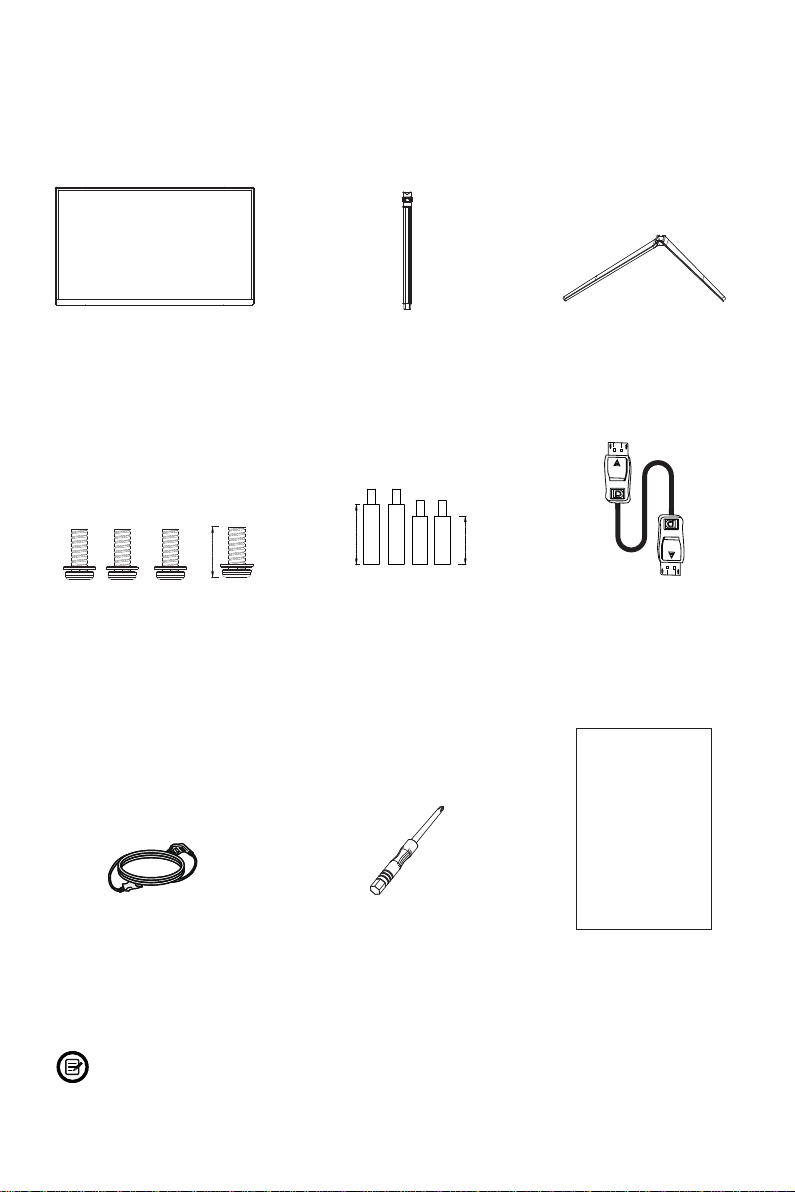

Section 2: Box Contents

Monitor x 1 Stand Stem x 1 Stand Base x 1

Power Cable x 1

(AC 100-240V, 50/60Hz)

NO. 2 Screws x 4

(for Mounting) DP Cable x 1

Screwdriver x 1 User Manual x 1

The screws come in different sizes: NO.1 (12mm x 4 pcs), NO.2 (31mm x 2 pcs

and 26mm x 2 pcs).

26mm

31mm

NO.1 Screws x 4

(for Stand Installation)

12mm

Section 3: Product Overview

3.1 – Monitor Buttons

8 HDMI Connector: Insert one end of the HDMI cable into the computer’s HDMI output

and connect the other end to the monitor’s HDMI port.

Both HDMI Connectors are HDMI 1.4.

9 DP Connector: Insert one end of the DP cable into the computer’s DP output and

connect the other end to the monitor’s DP1.2 port.

8 9

1 3 4 5 6 72

1 Power Connector: Insert the power cable to supply power to the monitor.

2 M Menu Button: Press to display the OSD menu or enter sub-menus.

3 Down Button: Press to move down in the menus.

4 Up Button: Press to move up in the menus.

5 E Exit Button:Press to exit.

6 Power Button: Press to turn the monitor on/off.

7 LED Indicator: Changes colors to indicate status. Refer to Section 8.

The E button can also be used to switch between two color gamuts when a compatible

graphics card and either HDMI or DP connections are in use.

3.2 – Monitor Ports

Section 4: Stand Installation

Keep the foam underneath the monitor before attaching the stand.

1. Open the package and take out the monitor with foam still attached. Gently place

it on a desktop or table.

2. Remove the extra parts and the foam covering the back of the monitor. Press the

release button to remove the stand plate.

Button

Stand Plate

3. Use the included screwdriver and two NO.1 screws to fasten the stand plate to

the stem. Next, use the remaining two NO.1 screws to fasten the base to the

stem.

NO.1 Screw

12mm x 2

Stand Stem Base

NO.1 Screws

12mm x 2

4. Insert the stand plate into the opening on the back of the monitor. It should click

into place. Make sure the stand is securely attached to the back of the monitor

then remove the monitor from the remaining foam section and stand it up on a

table or desk.

If needed, the stand can easily be detached from the monitor by pressing the

button near the stand plate. Make sure the monitor is laid on a at surface

before removing the stem.

Monitor

Stem

Stand Plate

Button

Section 5: Mount Installation

This monitor ONLY includes screws which may be used when attaching

the monitor to a VESA 75x75mm type mount. No VESA mount or

mounting accessory is included.

Keep the foam underneath the monitor before attaching the stand to a mount

or accessory.

1. Open the package and take out the monitor with foam still attached. Gently place

it on a desktop or table. Remove the extra parts and the foam covering the back

of the monitor. Press the release button to remove the stand plate. If the monitor

is already attached to the stand, remove the stand.

Button

Stand Plate

2. Remove the original screws x 4 ( 1) from the opening in the back of the monitor.

3. Follow the directions received with your VESA mount, stand, or accessory

and install the monitor on the wall or xture as desired. Remember to use the

included NO. 2 screws when mounting the monitor. Refer to the image ( 2) for

correct screw placement.

Use the 31mm

NO. 2 Screws x 2

Use the 26mm

NO. 2 Screws x 2

- Use only the NO. 2 Screws (31 mm x 2 pcs, 26mm x 2 pcs) provided with

this type of installation.

- Do not discard the original screws as these may be needed for future use.

Mount

(Not included)

Section 6: Connectivity Options

6.1 – Removing the Port Cover

Before connecting any cables, remove the port cover rst.

Port Cover

Back of Monitor

6.2 – Connecting the Power Cable

Connect the included power cable to the power connector, and then plug the other end into an

wall outlet.

Power Cable

6.3 – DP Connectivity

In order for the monitor to receive DP signals from the computer, use the DP cable to connect

the monitor to the computer.

DP OUTPUT

DP Cable (Included)

6.4 – HDMI Connectivity

In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to

connect the monitor to the computer.

HDMI OUTPUT

HDMI Cable (Not included)

Section 7: Basic Operation

When connecting or disconnecting any cables, it is recommended to remove the port

cover rst. Refer to Section 6.1.

1. Insert one end of the DP cable into your PC’s graphics card. HDMI may also be used.

HDMI cable not included.

For optimal refresh rate (or “performance”), it is recommended to use a DP (display port)

cable with the monitor’s corresponding connector.
