Viotek GN24CW Bedienungsanleitung

ORCURVED GAMING MONIT

USER MANUAL

In order to continue serving our customers and providing the best products, our product information

including our user manuals may receive updates from time to time. Please check our website for the

latest user manuals and product materials. 07/16/18

GN24CW/GN24CB

Table of Contents

Section 1: Safety Precautions................................................................4

Section 2: Box Contents.........................................................................5

Section 3: Product Overview .................................................................6

3.1 – Monitor Buttons .........................................................................6

3.2 – Monitor Ports.............................................................................6

Section 4: Stand Installation..................................................................7

Section 5: Mount Installation .................................................................8

Section 6: Connectivity Options ...........................................................9

6.1 – Connecting the Power Cable.....................................................9

6.2 – DP Connectivity ........................................................................9

6.3 – HDMI Connectivity ....................................................................9

Section 7: Basic Operation ....................................................................10

Section 8: Indicator Light .......................................................................10

Section 9: OSD ........................................................................................11

9.1 – OSD Menu Functions ................................................................12

Section 10: ECO Modes and Gameplus Switching..............................13

Section 11: Troubleshooting ..................................................................14

Section 12: Speciﬁcations......................................................................15

12.1 – Resolution Compatibility for DP...............................................16

Section 13: 1 Year Limited Hardware Warranty ...................................16

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use

dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however,

the safest. If using damp cloth, wait for your monitor to completely dry before

plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your

monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid blocking

these openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any heat sources e.g: portable heaters or heating

vents, as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen

or any part of the monitor.

6. Do not insert anything into any part of the monitor especially the ventilation

openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it

from falling and sustaining damage.

8. Unplug your monitor during any extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any

disassembly or modication etc. not performed by an authorized technician

can result in damage to the monitor and/or possible exposure to high voltage

electricity which may lead to serious injury or death.

VIOTEK®shall not be held responsible for injury or damage of products or persons

due to failure to adhere to the aforementioned precautions or any others noted

hereafter.

Section 2: Box Contents

Monitor x 1 Stand Stem x 1 Stand Base x 1

Power Adapter x 1

(DC 12V / 3A)

VESA Adapter x 1NO.1 Screws x 2 NO. 2 Screw x 1 DP Cable x 1

Screwdriver x 1 User Manual x 1

14mm

6mm

The screws come in two sizes, 6mm x 2 and 14mm x 1.

Section 3: Product Overview

3.1 – Monitor Buttons

7 HDMI Connector: Insert one end of the HDMI cable into the computer’s

HDMI output and connect the other end to the monitor’s HDMI port.

8 DP Connector: Insert one end of the DP cable into the computer’s DP output

and connect the other end to the monitor’s DP port.

9 Power Connector: Insert the power cable to supply power to the monitor.

2 3 4 5 61

1 M Menu Button: Press to display the OSD menu or enter sub-menus.

2 Down Button: Press to move down in the menus.

3 Up Button: Press to move up in the menus.

4 E Exit Button:Press to exit.

5 Power Button: Press to turn the monitor on/off.

6 LED Indicator: Changes colors to indicate status. Refer to Section 8.

The E button can also be used to switch between two color gamuts when a

compatible graphics card and either HDMI or DP connections are in use.

3.2 – Monitor Ports

7 8 9

Section 4: Stand Installation

Keep the foam underneath the monitor before attaching the stand.

1. Open the package, take out the product with foam still attached, and gently place

it on a desktop or table.

Monitor

Stand Base

Foam

Stand Stem

2. Take out the two parts of the stand, and remove the foam covering the back of the

monitor. Next, insert the stand stem into the opening on the back of monitor then

use the included screwdriver and two NO.1 screws to fasten it to the monitor.

Stand Stem

NO.1 Screws

6mm x 2

3. Use the NO.2 screw to fasten the base to the stem.

NO.2 Screw

14mm x 1

Base

4. Make sure the stand is securely attached to the back of the monitor then remove

the monitor from the remaining foam and stand it up on a table or desk.

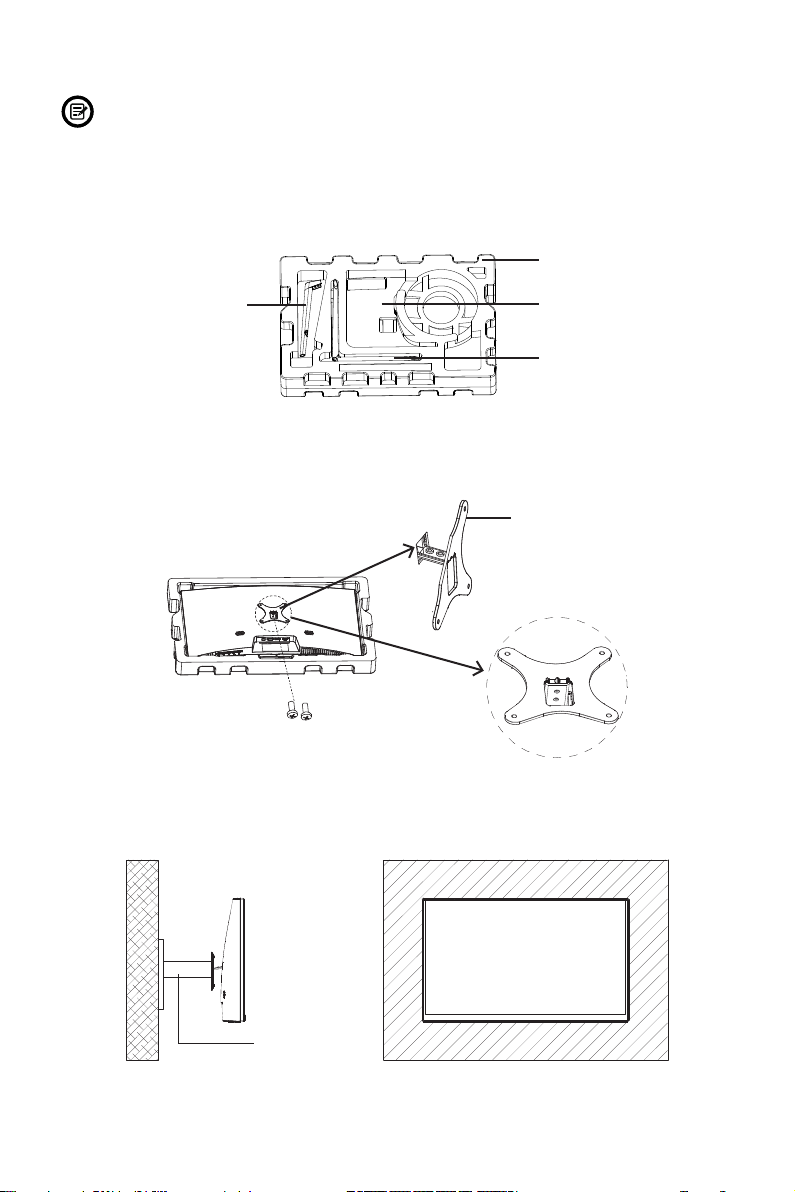

Section 5: Mount Installation

Keep the foam underneath the monitor before attaching the stand to a mount

or accessory.

1. Open the package, take out the product with foam still attached, and gently

place it on a desktop or table. Remove the extra parts and the foam covering the

back of the monitor. If the monitor is already attached to the stand, remove the

stand and unfasten the two NO.1 screws from it.

Monitor

Stand Base

Foam

Stand Stem

2. Fit the VESA adapter into the opening on the back of monitor, then use the NO.1

screws to fasten it to the monitor.

NO.1 Screws

6mm x 2

VESA Adapter

(75 x 75mm)

3. Follow the directions received with your mount, stand, or accessory and install

the monitor on the wall or xture as desired.

Mount

(Not included)

Section 6: Connectivity Options

6.1 – Connecting the Power Cable

Connect the included power adapter to the power connector, and then plug the other

end into an wall outlet.

Power Adapter

6.2 – DP Connectivity

In order for the monitor to receive DP signals from the computer, use the DP cable

to connect the monitor to the computer.

DP OUTPUT

DP Cable (Included)

6.3 – HDMI Connectivity

In order for the monitor to receive HDMI signals from the computer, use the HDMI

cable to connect the monitor to the computer.

HDMI OUTPUT

HDMI Cable (Not included)

Section 7: Basic Operation

1. Insert one end of the DP cable into your PC’s graphics card. An HDMI cable may

also be used. An HDMI cable not included.

2. Connect the other end of the cable to the corresponding connector on your

monitor.

HDMI Connectors

DP Connector

3. Connect the power cable to your monitor then connect the other end to your

power source. It is recommended that you use a surge protector with adequate

voltage if a wall outlet cannot be reached directly.

4. Locate the power button on the monitor and press it to turn the monitor on.

FreeSync

The feature itself is on by default. In order to use this feature, please note you must

have hardware with FreeSync capability, a DP cable, and the latest graphic drivers.

To use this feature, connect your computer and monitor with a DP cable. After

connecting, you may receive a prompt to enable the feature on your computer. If

you do not receive the prompt, you may need to enable the function in your graphics

card menu. See your graphics card manufacturer’s documentation for instructions

on how to turn on and/or enable FreeSync.

Section 8: Indicator Light

Indicator Light

A solid blue light indicates power is on and the monitor is operating normally.

Flashing blue light indicates no video source has been detected. Red light indicates

that no horizontal or vertical signal has been detected or voltage is low. Please

ensure your computer is on and all video cables are fully inserted and/or connected.
