Vivo MOUNT-PS5C Bedienungsanleitung

2-in-1 (Wall & Desk) Mount Designed for PS5

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-ps5c

SKU: MOUNT-PS5C

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

M-A (x6)

ST5x30mm

Screw

M-B (x6)

ST5x16mm

Screw

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

M-C (x6)

Drywall Anchor

A (x1)

Base Bracket

B (x1)

Hook Bracket

C (x1)

Mounting Template

M-D (x1)

M3 Security Bolt

TOOLS NEEDED

Phillips

Screwdriver

Level

Drill

Pencil Stud

Finder

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

STEP 1

OPTION B: Drywall Installation

Tape Mounting Template (C) against a wall at desired location and mark drilling locations

with a pencil. Use of a level and a stud finder is recommended.

Note: The Disc Edition can only be mounted with the front of the console facing le and

the back facing right. So, it is recommended to only mount on the le side of a TV for cable

managemnet purposes.

STEP 1 (Continued)

OPTION A: Stud Installation

Tape Mounting Template (C) against a wall at desired location and mark drilling locations

with a pencil. Use of a level and a stud finder is recommended. Up to 2 holes per bracket

can be used with a stud, one hole must be mounted with a drywall anchor.

Note: The Disc Edition can only be mounted with the front of the console facing le and

the back facing right. So, it is recommended to only mount on the le side of a TV for cable

managemnet purposes.

STEP 1 (Continued)

OPTION C: Under Desk Installation

Align Mounting Template (C) with the front edge of the desktop with the holes placed away

from the edge. Tape Mounting Template (C) against the underside of the desktop at desired

location and mark drilling locations with a pencil.

You must have at least 11” (27.9cm) of depth from the front edge of the desktop to ensure

the PS5 will fit without hitting any frame structure.

STEP 2

OPTION A: Stud Installation

Drill 1” (25mm) deep holes into the stud using a 3/32” (2.5mm) drill bit. Follow Step 2

Drywall Installation for the remaining mounting holes. Install Base Bracket (A) and Hook

Bracket (B) to the wall using ST5x30mm Screws (M-A) with a Phillips Screwdriver.

>11”

M-A

Reference STEP 2 Option

B for anchor installation

STEP 2 (Continued)

OPTION B: Drywall Installation

Using a 5/16” (8mm) bit, drill fully through the drywall. Insert the Drywall Anchors (M-C)

in the holes. Install Base Bracket (A) and Hook Bracket (B) to the wall using ST5x30mm

Screws (M-A) with a Phillips Screwdriver.

STEP 2 (Continued)

OPTION C: Under Desk Installation

Using a 3/32” (2.5mm) bit, drill 3/8” (10mm) deep holes into the desktop. Install Base

Bracket (A) and Hook Bracket (B) to the desk using ST5x16mm Screws (M-B) with a

Phillips Screwdriver.

Note: Base Bracket (A) must be placed on the le side when mounting under a desk.

M-A

M-C

M-B

STEP 3

OPTION A: Wall Installation

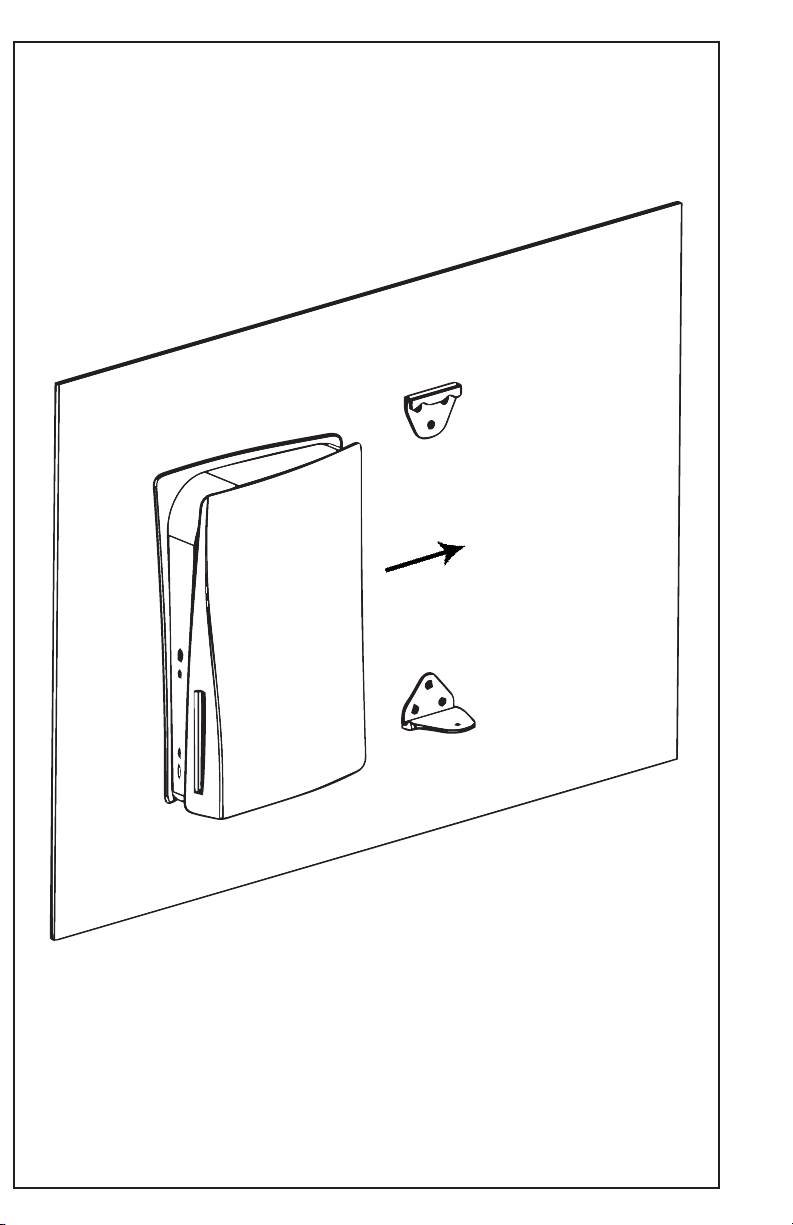

Slide the PS5, back first, onto the mount making sure the le panel is being grabbed by

both brackets. The panel will flex to provide a tight fit.

STEP 3 (Continued)

OPTION B: Under Desk Installation

Slide the PS5, back first, onto the mount making sure the panel is being grabbed by both

brackets and the base of the console is facing le towards Base Bracket (A). The panel will

flex to provide a tight fit.

STEP 4

Install M3 Security Bolt (M-D) to the base of the PS5 through Base Bracket (A).

M-D

LAST UPDATED: 10/21/2021

REV1

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
