Vivo STAND-V002F Bedienungsanleitung

Dual Monitor Desk Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v002f

SKU: STAND-V002F

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

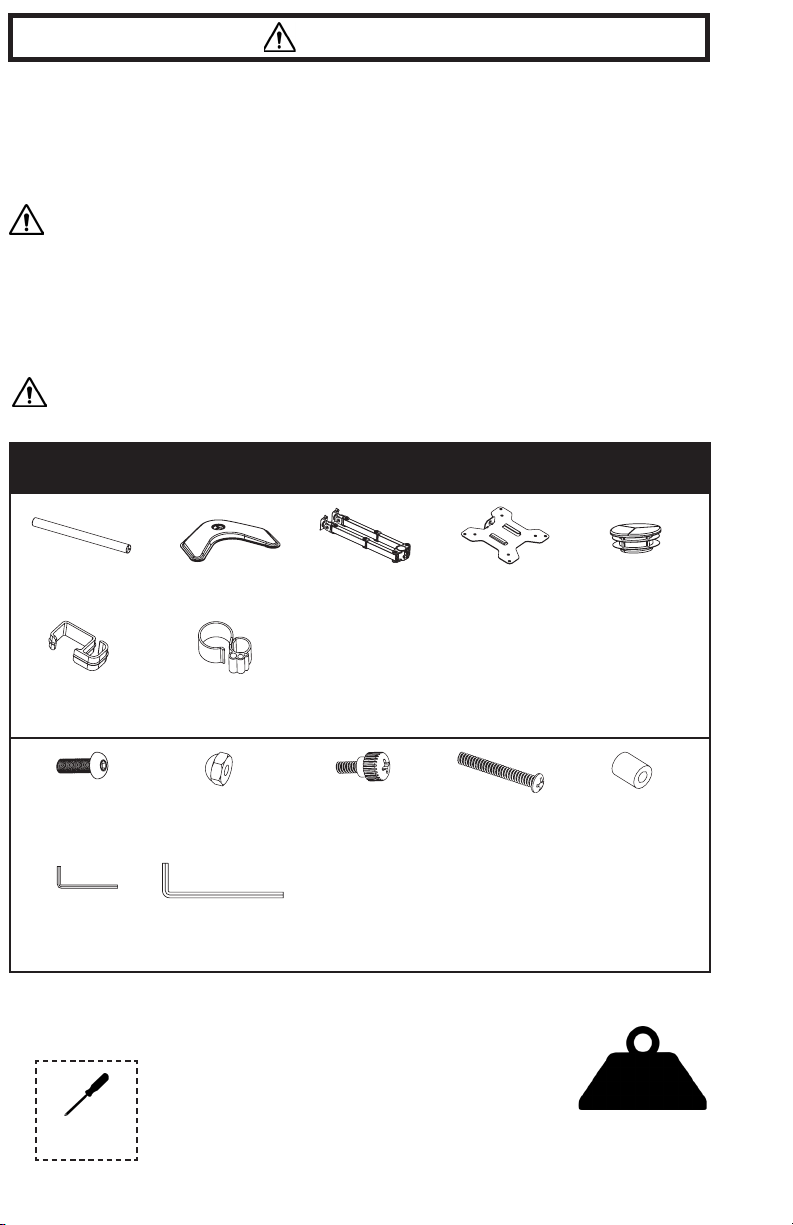

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

Phillips

Screwdriver

A (x1)

Pole

B(x1)

Base

C(x1)

Swivel Arm

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

D(x2)

VESA Plate

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

S-B (x2)

Nut

G(x1)

Pole Cable

Clip

F (x4)

Arm Cable

Clip

M-A (x8)

M4x12mm

Thumbscrew

M-B (x8)

M4x30mm

Screw

M-C (x8)

M6 Spacer

22 lbs

(10kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• TO PREVENT TIPPING, PLEASE BE CAREFUL NOT TO EXTEND THE ARMS TOO FAR FORWARD OR

BACKWARD.

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

S-A (x3)

M6x16mm

Screw

E(x1)

Pole Cap

T-A (x1)

3mm Allen

Wrench

T-B (x1)

5mm Allen

Wrench

PER ARM

ASSEMBLY STEPS

STEP 1

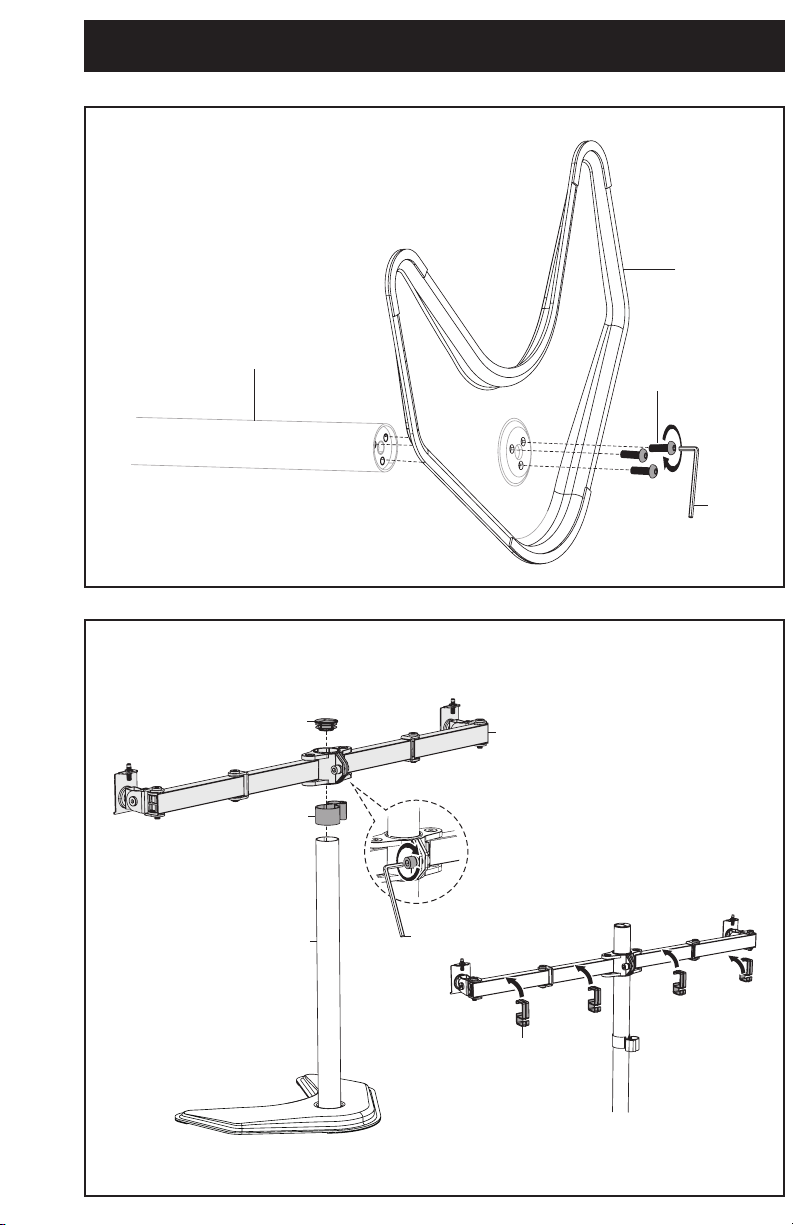

Install the pole (A) to the base (B) using M6x16 Screw (S-A). Tighten with the 3mm Allen Wrench (T-A).

T-A

S-A

STEP 2

Slide Pole Cable Clip (G) and Swivel Arm (C) down onto the Pole (A) and tighten the screw with 5mm

Allen Wrench (T-B). Attach the Pole Cap (E) to the top of the Pole (A). Attach Arm Cable Clips (F) to the

Arms.

AT-B

OPTION A: Flat Back Monitor

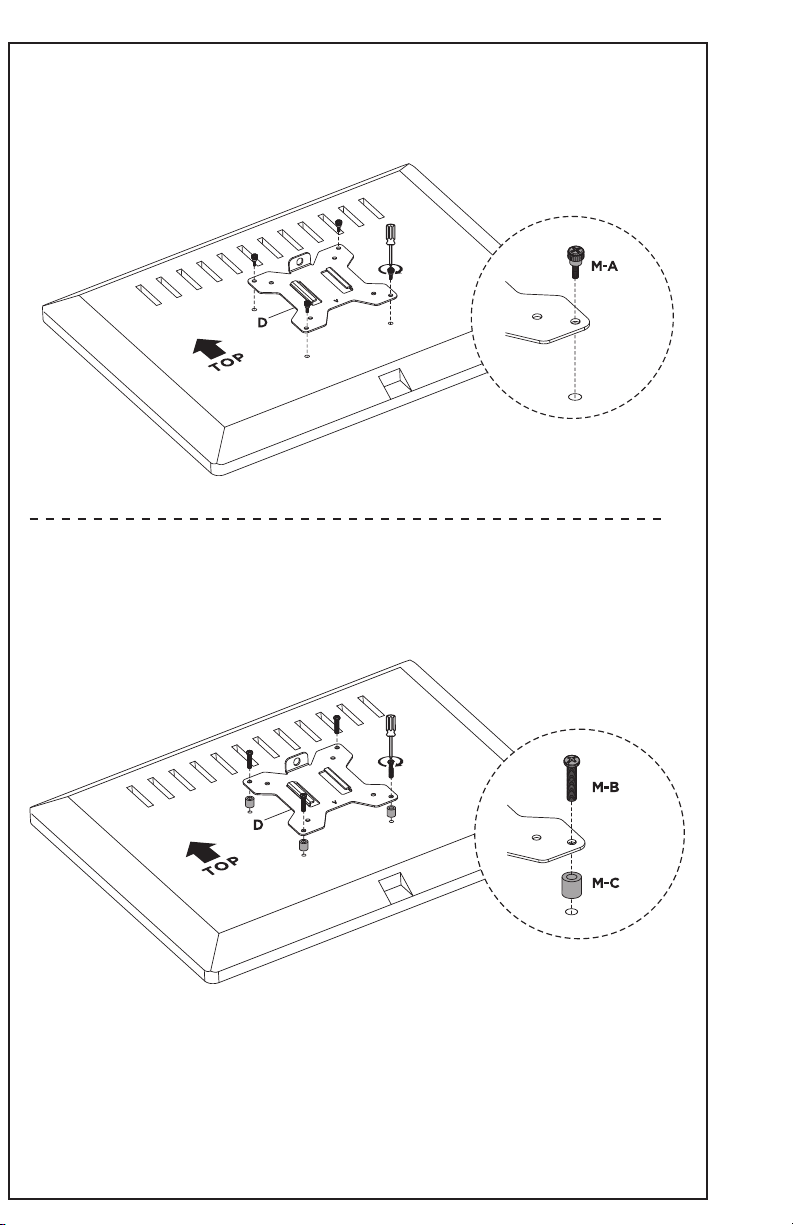

Attach the VESA Plates (D) to the monitors using M4x12mm Thumbscrew (M-A).

NOTE: Hand tighten screws to avoid stripping the plastic screw heads.

OPTION B: Curved Back Monitor

Attach the VESA Plates (D) to the monitors using M6 Spacers (M-C) and M4x30mm Screws (M-B).

Tighten with a Phillips screwdriver.

STEP 3

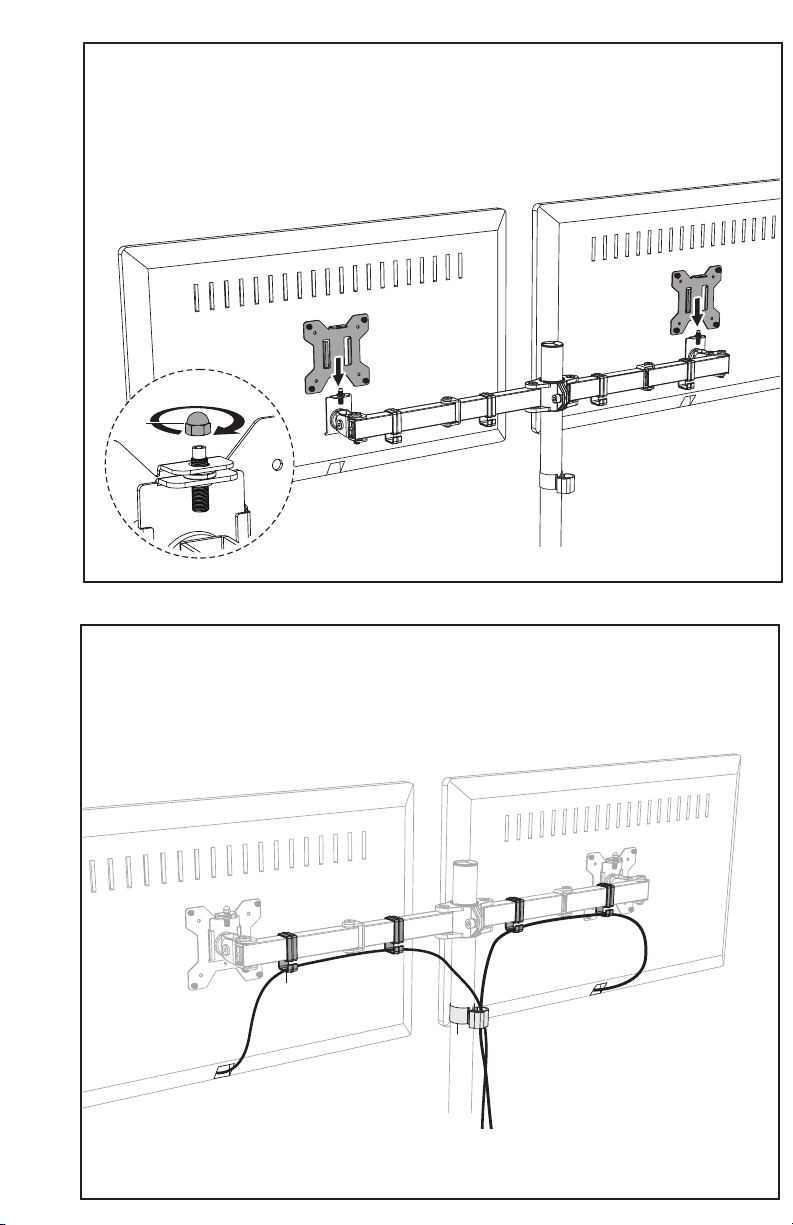

Slide the monitors onto the heads of swivel arm and install the Security Nuts (S-B). Make sure the

security nuts are installed before you rotate the monitors.

Note: To prevent tipping, have a second person hold down the opposite arm to the one you are

placing the monitor on. Ensure you are using similar sized monitors.

Use Cable Clips (F, G) to route and manage cables. Allen Wrenches (T-A, T-B) can be stored in Pole

Cable Clip (G).

STEP 4

Cable Management

S-B

Adjust as Desired

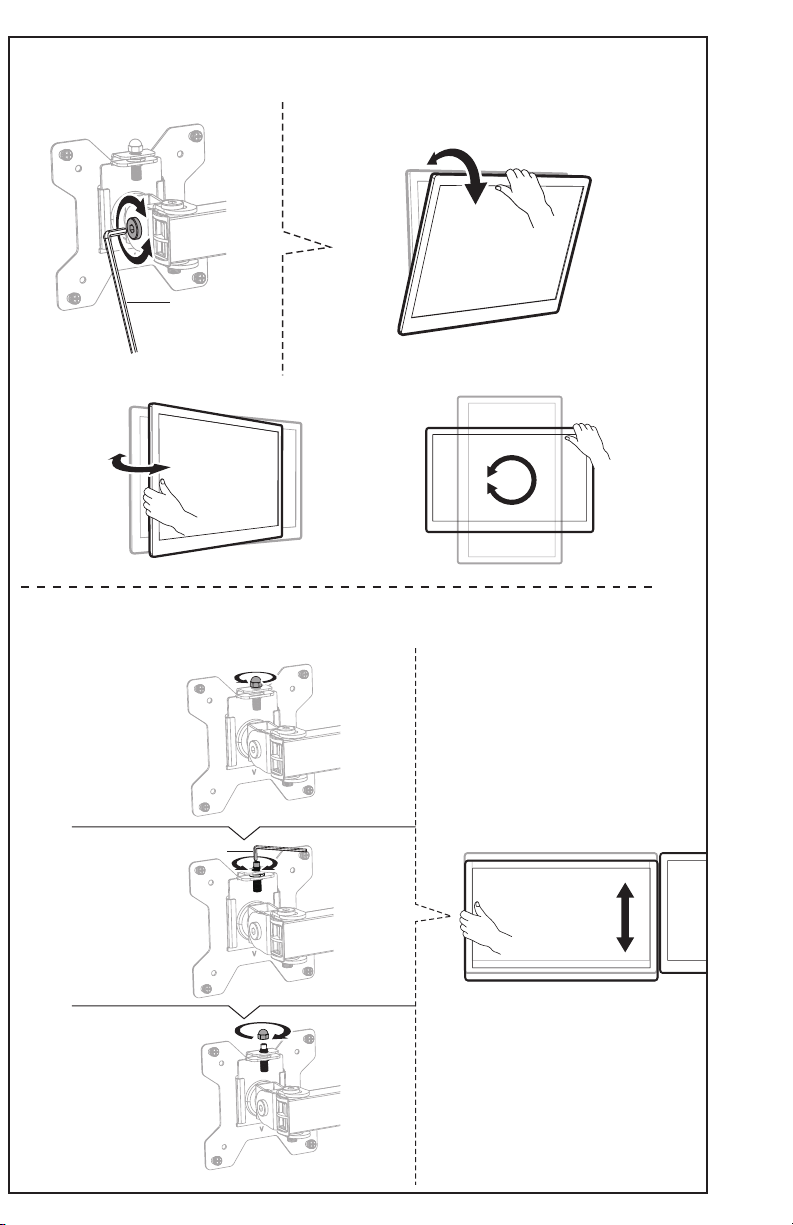

Tighten the bolt on the side of the tilt joint with the 5mm Allen Wrench (T-B) to fix the tilt angle.

To level the monitors, remove the security nut and turn the bolt with the 3mm Allen Wrench (T-A) to

raise or lower the monitor. Replace nut aer the adjustment.

T-B

T-A

CAUTION

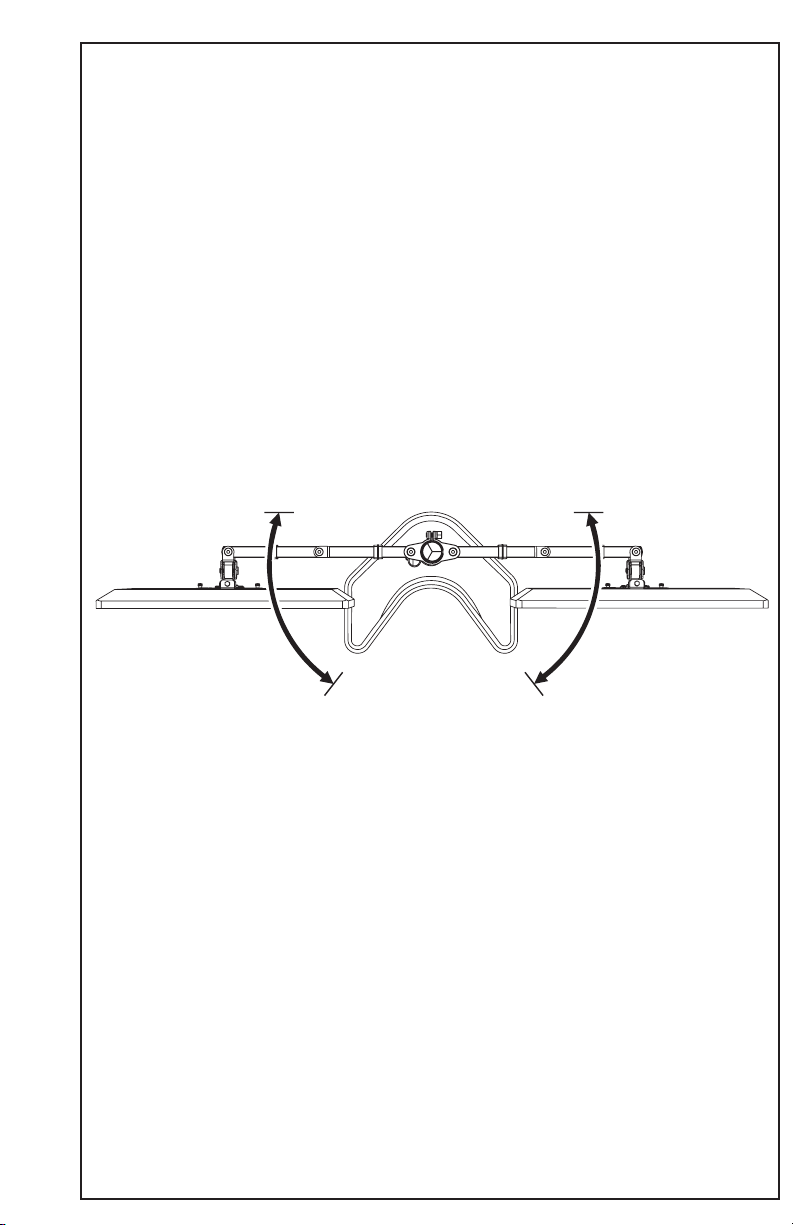

CAUTION: To prevent tipping, please be careful not to extend the arms beyond arrow range.

LAST UPDATED: 05/08/2023

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
